649006013322 datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > The connector> The connector> 649006013322

649006013322: DescriptionBoard Connector, 6 Contact(s), 1 Row(s), Female, 0.165 inch Pitch, Locking, White Insulator, Receptacle; CategoryThe connector The connector; File Size662KB，2 Pages; ManufacturerWurth Elektronik; Environmental Compliance

Download Datasheet Parametric Compare View All

649006013322 Overview

Board Connector, 6 Contact(s), 1 Row(s), Female, 0.165 inch Pitch, Locking, White Insulator, Receptacle

649006013322 Parametric

Parameter Name	Attribute value
Is it Rohs certified?	conform to
Maker	Wurth Elektronik
Reach Compliance Code	compliant
ECCN code	EAR99
body width	0.291 inch
subject depth	0.772 inch
body length	1.039 inch
Body/casing type	RECEPTACLE
Connector type	BOARD CONNECTOR
Contact to complete cooperation	NOT SPECIFIED
Contact point gender	FEMALE
Contact material	NOT SPECIFIED
contact mode	RECTANGULAR
Contact style	SQ PIN-SKT
Dielectric withstand voltage	1500VAC V
Insulation resistance	1000000000 Ω
Insulator color	WHITE
insulator material	NYLON
Manufacturer's serial number	6490
Plug contact pitch	0.165 inch
Installation option 1	LOCKING
Number of rows loaded	1
Maximum operating temperature	105 °C
Minimum operating temperature	-40 °C
polarization key	POLARIZED HOUSING
Guideline	UL
reliability	COMMERCIAL
Total number of contacts	6

Preview

Download Datasheet

View All

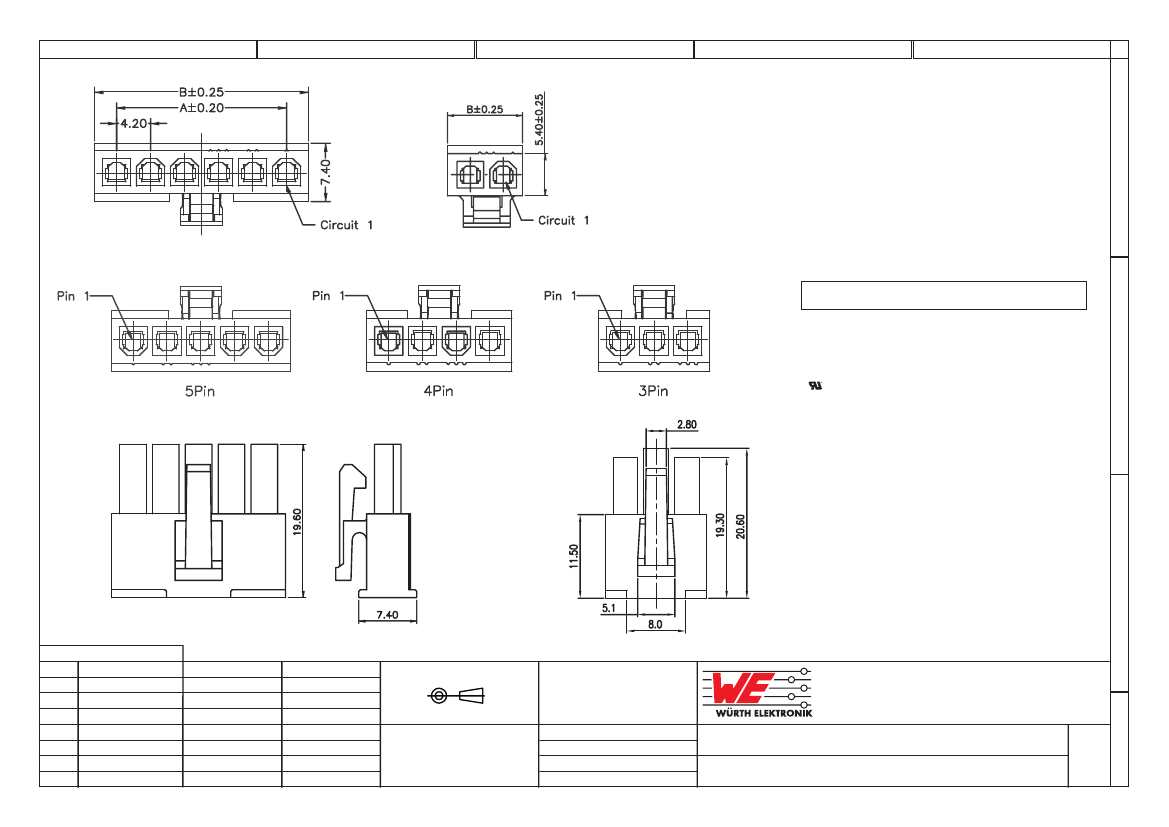

TECHNICAL CHARACTERISTICS

MATERIAL

INSULATOR: NYLON 66

FLAMABILITY RATING: UL94-V0

COLOR: WHITE

PITCH: 4.20MM

ENVIRONMENTAL

OPERATING TEMPERATURE: -40 UP TO 105°C

COMPLIANCE: LEAD FREE AND ROHS

ELECTRICAL

CURRENT RATING: 8 TO 9A

NB CIRCUITS

AMPERES

2-3

4-5

WORKING VOLTAGE: 600V AC

INSULATOR RESISTANCE: >1000 MOHM

DIELECTRIC WITHSTANDING VOLTAGE: 1500V AC/MN

STANDARD

CERTIFIED: E323964 / MODEL NUMBER 649-0133

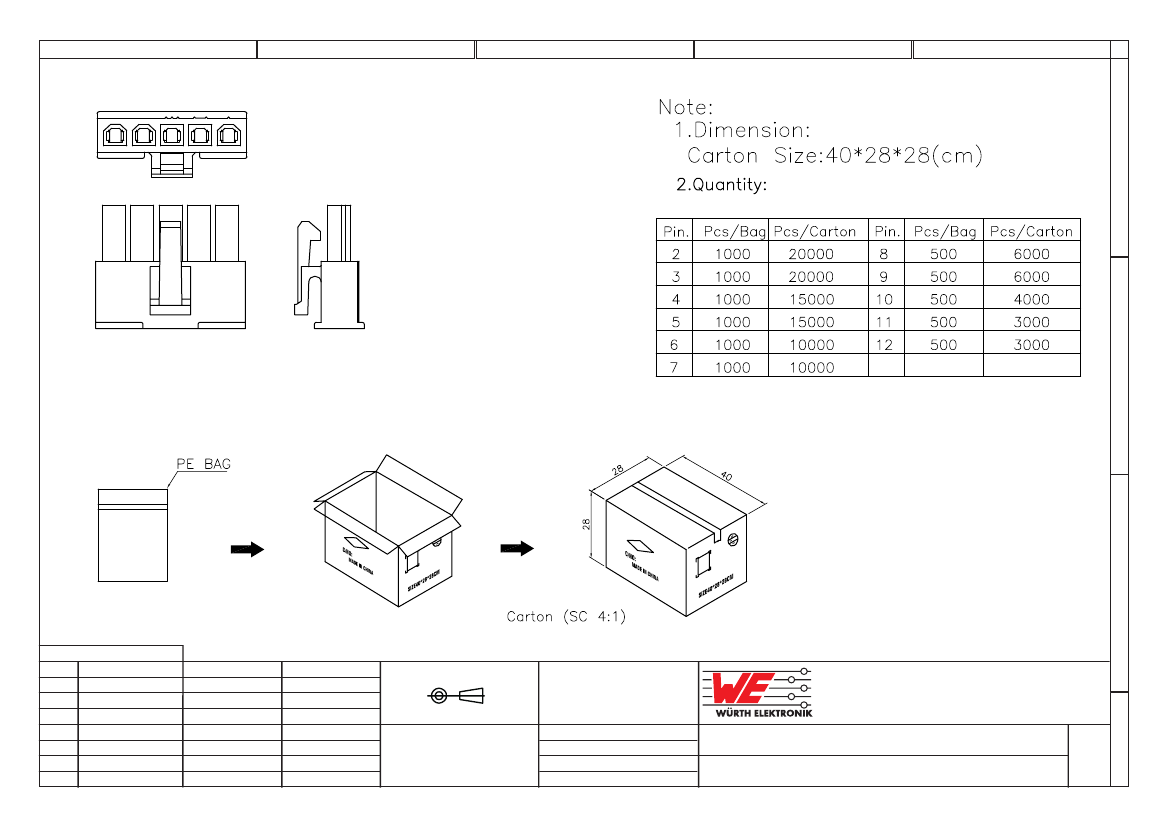

PACKAGING

TRAY

DIMENSION

A = 4.20 x (NB. PIN - 1)

B = 4.20 x (NB. PIN) + 1.20

RoHS Compliant

PROJECTION:

GENERAL TOLERANCE

.X = +/- 0.2

.XX = +/- 0.15

APPROVAL: RJ

REV

08-NOV-11

DATE

DRAWING

FILE

UNIT: MM

SCALE:

SHEET: 1/2

DRAW: MARY

WERI PART NO: 649 0xx 013 322

DESCRIPTION: 4.20MM FEMALE SINGLE ROW RECEPTACLE

SIZE

649006013322 Related Products

	649006013322	649012013322	649012013322_TPK	649005013322_TPK	649007013322	649007013322_TPK
Description	Board Connector, 6 Contact(s), 1 Row(s), Female, 0.165 inch Pitch, Locking, White Insulator, Receptacle	Board Connector, 12 Contact(s), 1 Row(s), Female, 0.165 inch Pitch, Locking, White Insulator, Receptacle	Board Connector	Board Connector	Board Connector, 7 Contact(s), 1 Row(s), Female, 0.165 inch Pitch, Locking, White Insulator, Receptacle	Board Connector
Is it Rohs certified?	conform to	conform to	conform to	conform to	conform to	conform to
Reach Compliance Code	compliant	compliant	compliant	compliant	compliant	compliant
Connector type	BOARD CONNECTOR	BOARD CONNECTOR	BOARD CONNECTOR	BOARD CONNECTOR	BOARD CONNECTOR	BOARD CONNECTOR
Manufacturer's serial number	6490	6490	6490	6490	6490	6490
Maker	Wurth Elektronik	-	-	Wurth Elektronik	Wurth Elektronik	Wurth Elektronik
ECCN code	EAR99	EAR99	EAR99	-	EAR99	-
Contact to complete cooperation	NOT SPECIFIED	-	-	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED
Contact material	NOT SPECIFIED	-	-	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED
