662104230822: Description3.00mm SMT Male Dual Row Angled Header with THT Retention Clip WR-MPC3; CategoryThe connector The connector; File Size497KB，3 Pages; ManufacturerWurth Elektronik

Download Datasheet Parametric Compare View All

662104230822 Overview

3.00mm SMT Male Dual Row Angled Header with THT Retention Clip WR-MPC3

662104230822 Parametric

Parameter Name	Attribute value
Brand Name	Wurth Electronik
Maker	Wurth Elektronik
Reach Compliance Code	compliant
Other features	ROHS COMPLIANT
Board mount options	SPLIT BOARD LOCK
body width	0.345 inch
subject depth	0.626 inch
body length	0.382 inch
Body/casing type	RECEPTACLE
Connector type	BOARD CONNECTOR
Contact to complete cooperation	SN
Contact completed and terminated	TIN
Contact point gender	MALE
Contact material	COPPER ALLOY
contact mode	RECTANGULAR
Contact resistance	10 mΩ
Contact style	SQ PIN-SKT
Dielectric withstand voltage	1500VAC V
Durability	25 Cycles
Insulation resistance	1000000000 Ω
Insulator color	BLACK
insulator material	NYLON
Manufacturer's serial number	6621
Plug contact pitch	0.118 inch
Match contact row spacing	0.118 inch
Installation option 1	FRICTION RAMP
Installation option 2	LOCKING
Installation method	RIGHT ANGLE
Installation type	BOARD
Number of connectors	ONE
PCB row number	2
Number of rows loaded	2
Maximum operating temperature	105 °C
Minimum operating temperature	-40 °C
PCB contact pattern	RECTANGULAR
PCB contact row spacing	4.6228 mm
polarization key	POLARIZED HOUSING
Rated current (signal)	5 A
Guideline	UL
reliability	COMMERCIAL
Terminal pitch	2.9972 mm
Termination type	SURFACE MOUNT
Total number of contacts	4

Preview

Download Datasheet

View All

TECHNICAL CHARACTERISTICS

MATERIAL

INSULATOR: LCP

FLAMABILITY RATING: UL94-V0

COLOR: BLACK

CONTACT MATERIAL: COPPER ALLOY

CONTACT TYPE: STAMPED

CONTACT PLATING: TIN

QUALITY CLASS: 25 MATING CYCLES

PITCH: 3.00MM

ENVIRONMENTAL

OPERATING TEMPERATURE: -40 UP TO 105°C

COMPLIANCE: LEAD FREE AND ROHS

ELECTRICAL

CURRENT RATING:5A

WORKING VOLTAGE: 250V AC

INSULATOR RESISTANCE: >1000 MOHM

DIELECTRIC WITHSTANDING VOLTAGE: 1500V AC/MN

CONTACT RESISTANCE: 10 mOHM MAX

SOLDERING

JEDEC LEAD FREE REFLOW SOLDERING PROCESS

PACKAGING

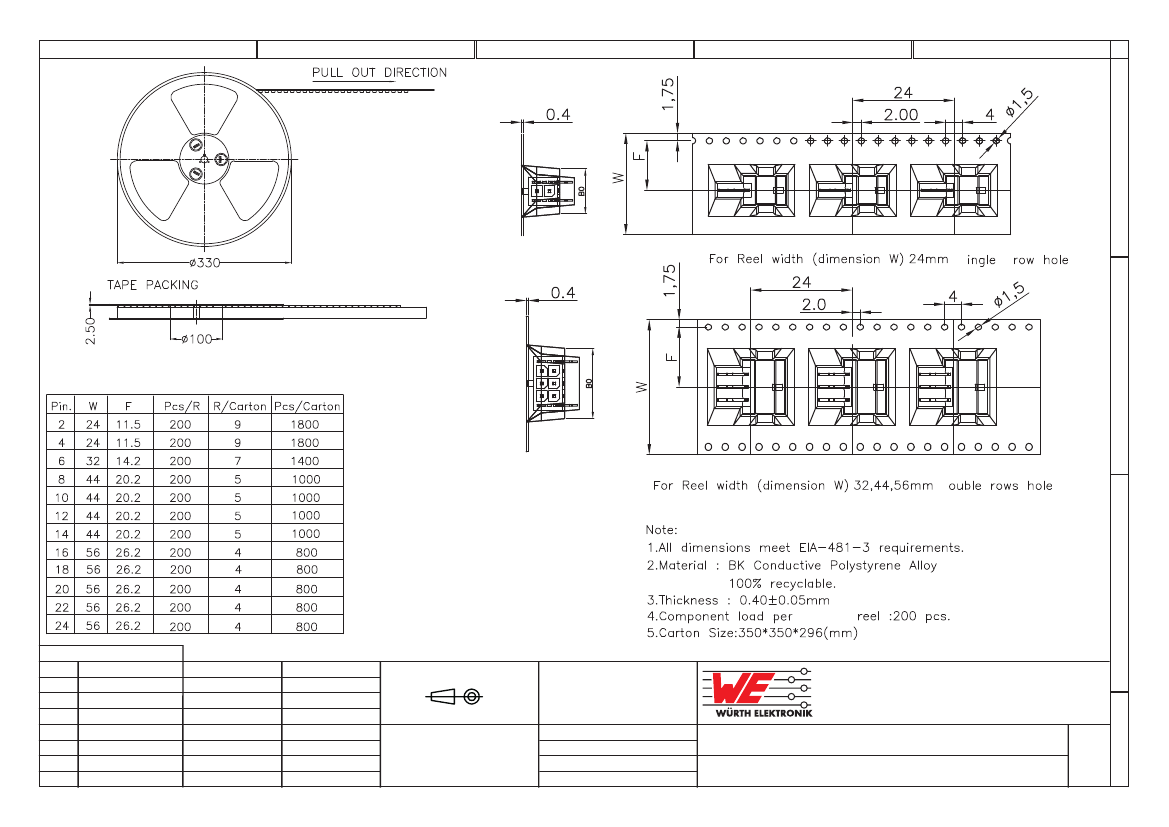

TAPE AND REEL

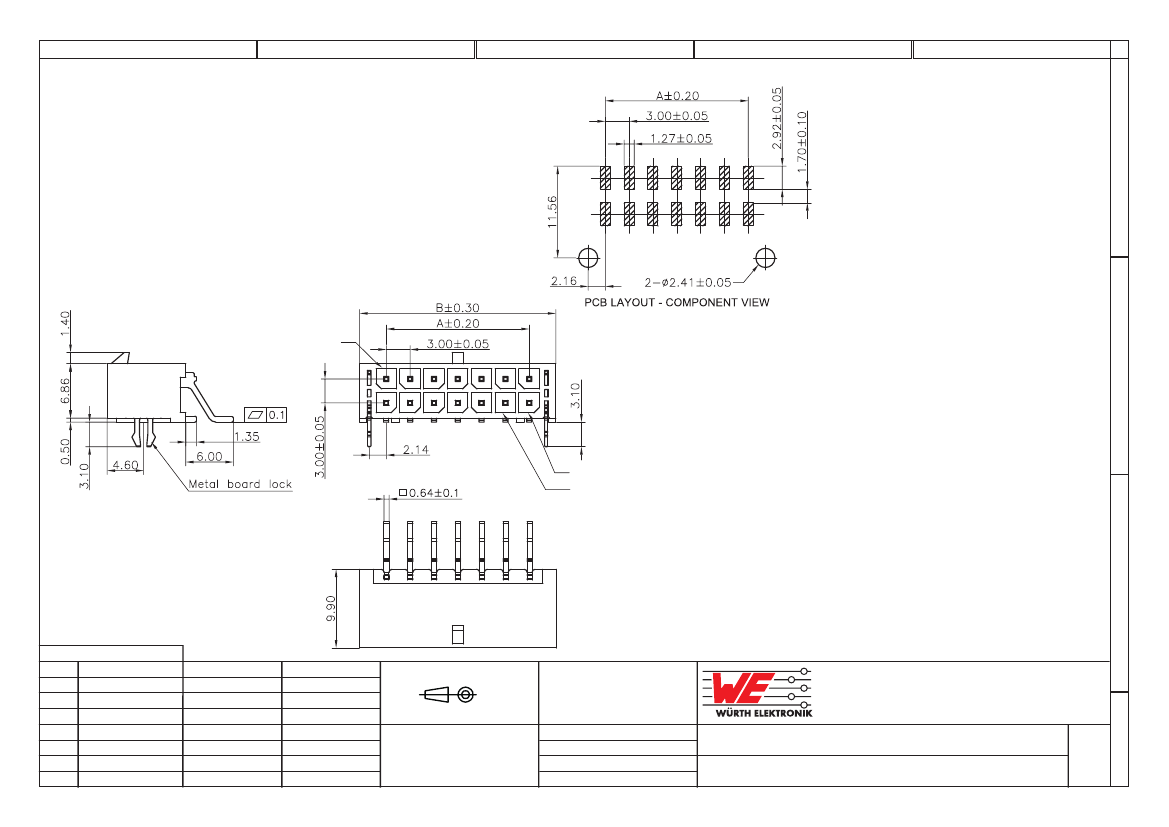

DIMENSION

A = 3.00 x (NB. PIN / 2 - 1)

B = 3.00 x (NB. PIN / 2 + 1) + 0.70

LAST CKT.

CKT.#1

CKT.#2

RoHS Compliant

PROJECTION:

GENERAL TOLERANCE

.X = +/- 0.2

.XX = +/- 0.15

REV

07-MAR-16

02-JUL-15

DATE

COPLANARITY

PINNING

FILE

APPROVAL:BBu

UNIT: MM

SCALE:

SHEET: 1/3

DRAW: QP

DESCRIPTION: 3.00MM MALE DUAL ROW SMT RIGHT ANGLE HEADER

WITH THROUGH HOLE RETENTION METAL CLIP

WERI PART NO: 662 1xx 230 822

SIZE

662104230822 Related Products

	662104230822	662110230822	662112230822	662108230822	662114230822	662102230822	662106230822
Description	3.00mm SMT Male Dual Row Angled Header with THT Retention Clip WR-MPC3	3.00mm SMT Male Dual Row Angled Header with THT Retention Clip WR-MPC3	3.00mm SMT Male Dual Row Angled Header with THT Retention Clip WR-MPC3	3.00mm SMT Male Dual Row Angled Header with THT Retention Clip WR-MPC3	3.00mm SMT Male Dual Row Angled Header with THT Retention Clip WR-MPC3	3.00mm SMT Male Dual Row Angled Header with THT Retention Clip WR-MPC3	3.00mm SMT Male Dual Row Angled Header with THT Retention Clip WR-MPC3
Brand Name	Wurth Electronik	Wurth Electronik	Wurth Electronik	Wurth Electronik	Wurth Electronik	Wurth Electronik	Wurth Electronik
Reach Compliance Code	compliant	compli	compliant	compliant	compliant	compliant	compliant
Other features	ROHS COMPLIANT	ROHS COMPLIANT	ROHS COMPLIANT	ROHS COMPLIANT	ROHS COMPLIANT	ROHS COMPLIANT	ROHS COMPLIANT
Board mount options	SPLIT BOARD LOCK	SPLIT BOARD LOCK	SPLIT BOARD LOCK	SPLIT BOARD LOCK	SPLIT BOARD LOCK	SPLIT BOARD LOCK	SPLIT BOARD LOCK
body width	0.345 inch	0.345 inch	0.345 inch	0.345 inch	0.345 inch	0.345 inch	0.345 inch
subject depth	0.626 inch	0.626 inch	0.626 inch	0.626 inch	0.626 inch	0.626 inch	0.626 inch
body length	0.382 inch	0.736 inch	0.854 inch	0.618 inch	0.972 inch	0.264 inch	0.5 inch
Body/casing type	RECEPTACLE	RECEPTACLE	RECEPTACLE	RECEPTACLE	RECEPTACLE	RECEPTACLE	RECEPTACLE
Connector type	BOARD CONNECTOR	BOARD CONNECTOR	BOARD CONNECTOR	BOARD CONNECTOR	BOARD CONNECTOR	BOARD CONNECTOR	BOARD CONNECTOR
Contact to complete cooperation	SN	SN	SN	SN	SN	SN	SN
Contact completed and terminated	TIN	TIN	TIN	TIN	TIN	TIN	TIN
Contact point gender	MALE	MALE	MALE	MALE	MALE	MALE	MALE
Contact material	COPPER ALLOY	COPPER ALLOY	COPPER ALLOY	COPPER ALLOY	COPPER ALLOY	COPPER ALLOY	COPPER ALLOY
contact mode	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR
Contact resistance	10 mΩ	10 mΩ	10 mΩ	10 mΩ	10 mΩ	10 mΩ	10 mΩ
Contact style	SQ PIN-SKT	SQ PIN-SKT	SQ PIN-SKT	SQ PIN-SKT	SQ PIN-SKT	SQ PIN-SKT	SQ PIN-SKT
Dielectric withstand voltage	1500VAC V	1500VAC V	1500VAC V	1500VAC V	1500VAC V	1500VAC V	1500VAC V
Durability	25 Cycles	25 Cycles	25 Cycles	25 Cycles	25 Cycles	25 Cycles	25 Cycles
Insulation resistance	1000000000 Ω	1000000000 Ω	1000000000 Ω	1000000000 Ω	1000000000 Ω	1000000000 Ω	1000000000 Ω
Insulator color	BLACK	BLACK	BLACK	BLACK	BLACK	BLACK	BLACK
insulator material	NYLON	NYLON	NYLON	NYLON	NYLON	NYLON	NYLON
Manufacturer's serial number	6621	6621	6621	6621	6621	6621	6621
Match contact row spacing	0.118 inch	0.118 inch	0.118 inch	0.118 inch	0.118 inch	0.118 inch	0.118 inch
Installation option 1	FRICTION RAMP	FRICTION RAMP	FRICTION RAMP	FRICTION RAMP	FRICTION RAMP	FRICTION RAMP	FRICTION RAMP
Installation option 2	LOCKING	LOCKING	LOCKING	LOCKING	LOCKING	LOCKING	LOCKING
Installation method	RIGHT ANGLE	RIGHT ANGLE	RIGHT ANGLE	RIGHT ANGLE	RIGHT ANGLE	RIGHT ANGLE	RIGHT ANGLE
Installation type	BOARD	BOARD	BOARD	BOARD	BOARD	BOARD	BOARD
Number of connectors	ONE	ONE	ONE	ONE	ONE	ONE	ONE
PCB row number	2	2	2	2	2	2	2
Number of rows loaded	2	2	2	2	2	2	2
Maximum operating temperature	105 °C	105 °C	105 °C	105 °C	105 °C	105 °C	105 °C
Minimum operating temperature	-40 °C	-40 °C	-40 °C	-40 °C	-40 °C	-40 °C	-40 °C
PCB contact pattern	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR
PCB contact row spacing	4.6228 mm	4.6228 mm	4.6228 mm	4.6228 mm	4.6228 mm	4.6228 mm	4.6228 mm
polarization key	POLARIZED HOUSING	POLARIZED HOUSING	POLARIZED HOUSING	POLARIZED HOUSING	POLARIZED HOUSING	POLARIZED HOUSING	POLARIZED HOUSING
Rated current (signal)	5 A	5 A	5 A	5 A	5 A	5 A	5 A
Guideline	UL	UL	UL	UL	UL	UL	UL
reliability	COMMERCIAL	COMMERCIAL	COMMERCIAL	COMMERCIAL	COMMERCIAL	COMMERCIAL	COMMERCIAL
Termination type	SURFACE MOUNT	SURFACE MOUNT	SURFACE MOUNT	SURFACE MOUNT	SURFACE MOUNT	SURFACE MOUNT	SURFACE MOUNT
Total number of contacts	4	10	12	8	14	2	6
Maker	Wurth Elektronik	-	Wurth Elektronik	Wurth Elektronik	Wurth Elektronik	Wurth Elektronik	Wurth Elektronik
Plug contact pitch	0.118 inch	0.118 inch	0.118 inch	0.118 inch	0.118 inch	-	0.118 inch
Terminal pitch	2.9972 mm	2.9972 mm	2.9972 mm	2.9972 mm	2.9972 mm	-	2.9972 mm
ECCN code	-	EAR99	EAR99	EAR99	-	-	EAR99
