6719749128461: DescriptionBoard Connector, 28 Contact(s), 1 Row(s), Male, Right Angle, Surface Mount Terminal,; CategoryThe connector The connector; File Size63KB，1 Pages; ManufacturerWurth Elektronik

Download Datasheet Parametric View All

6719749128461 Overview

Board Connector, 28 Contact(s), 1 Row(s), Male, Right Angle, Surface Mount Terminal,

Parameter Name	Attribute value
Maker	Wurth Elektronik
Reach Compliance Code	compliant
ECCN code	EAR99
Connector type	BOARD CONNECTOR
Contact to complete cooperation	GOLD FLASH
Contact completed and terminated	GOLD FLASH
Contact point gender	MALE
DIN compliance	NO
Filter function	NO
IEC compliance	NO
JESD-609 code	e4
MIL compliance	NO
Mixed contacts	NO
Installation method	RIGHT ANGLE
Installation type	BOARD
Number of rows loaded	1
Options	GENERAL PURPOSE
Terminal pitch	2.54 mm
Termination type	SURFACE MOUNT
Total number of contacts	28
UL Flammability Code	94V-0

TECHNICAL DATA

Electrical

Current Rating: 3A

Dielecttric voltage:1000V AC for one minute

Insulation resistance:1000M

Ω

Min

Contact resistance: 20m

Ω

Max

10.0

3.46

Mechanical

Temperature rating: -40 C to +105 C

general tolerance

.X 0.38mm

.XX 0.25mm

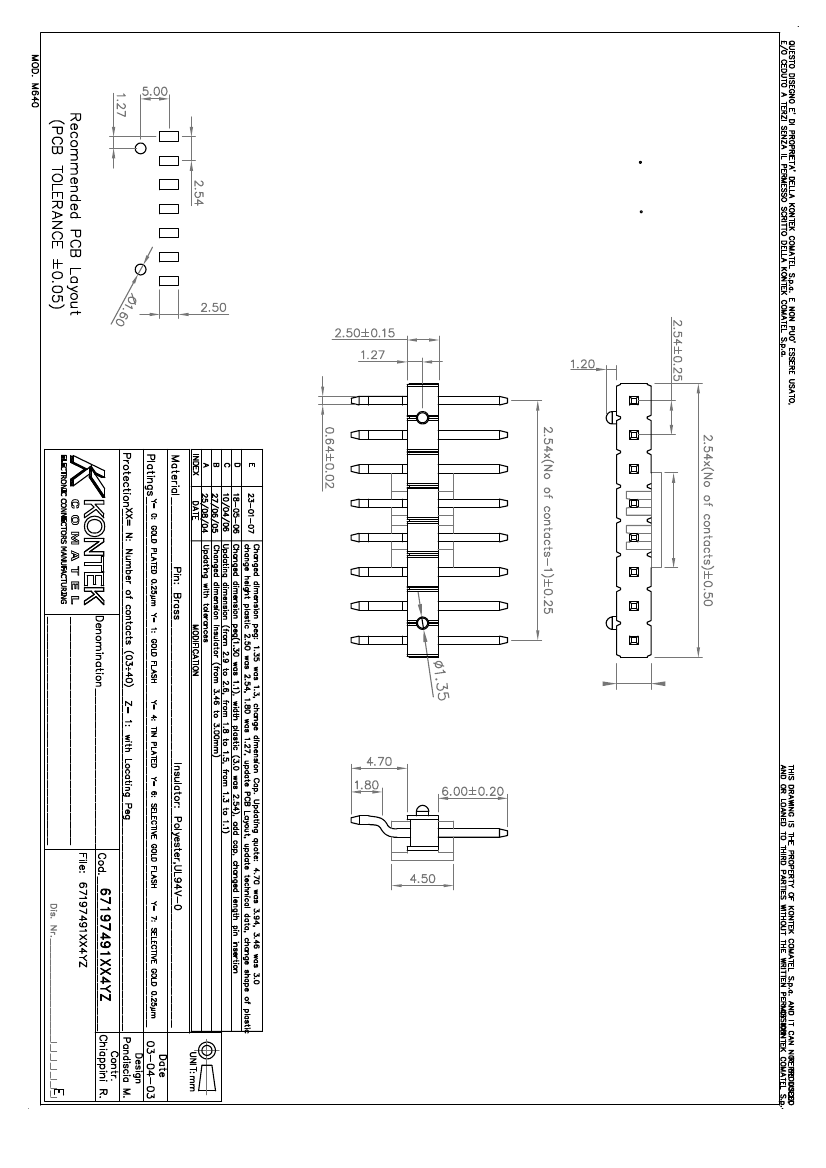

PIN HEADER 2.54mm SMT RIGHT ANGLE TYPE
