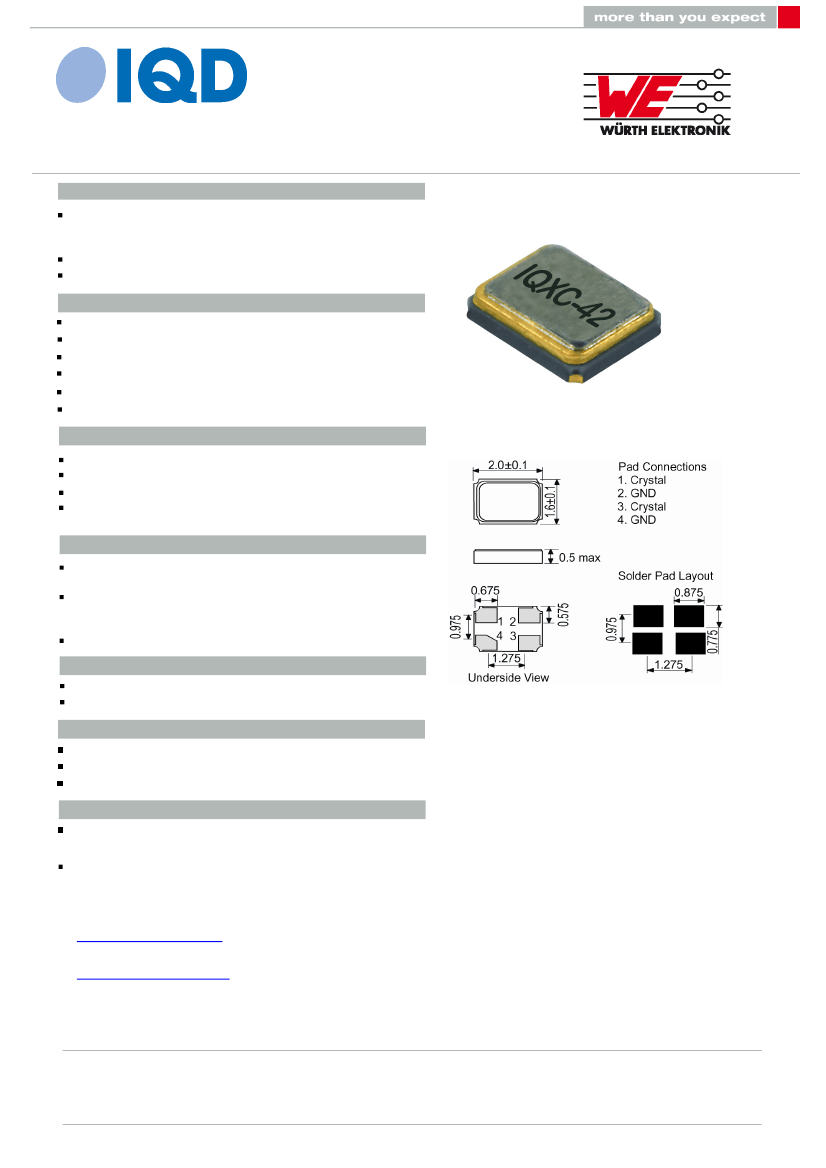

Quartz Crystal Specification

IQD Part No. + Packaging: LFXTAL082131RL3K

Wurth Part No.

830108213109

Description

2 x 1.6mm SMD crystal

Ceramic package with a seam sealed metal lid, hermetically

sealed

Model

IQXC-42

Model Issue number

Frequency Parameters

Frequency

Frequency Tolerance

Frequency Stability

Operating Temperature Range

Overtone Order

Ageing

Electrical Parameters

38.40MHz

±10.00ppm

±15.00ppm

-40.00 to 85.00°C

Fundamental

±3ppm max per year @ 25°C

Outline (mm)

Load Capacitance (CL)

Shunt Capacitance (C0)

Drive Level

ESR

Environmental Parameters

8.00pF

3pF max

100µW max

60.00Ω max

Shock: IEC 60068-2-27: 1000G, 1ms, 3 times in each of 3

mutually perpendicular planes

Vibration: IEC 60068-2-6: 1.5mm amplitude, 10Hz-55Hz, 1min

in 3 mutually perpendicular planes, duration 2hrs each plane

(total 6hrs)

Storage Temperature Range: –55 to 125°C

Manufacturing Details

RoHS Terminations

RoHS Reflow Temp

Compliance

NiAu

260degC 10s

RoHS Status (2011/65/EU)

REACh Status

MSL Rating (JDEC-STD-033):

Packaging Details

Compliant

Not Applicable

Pack Style: RL3K

Pack Size: 3,000

Tape & reel in accordance with EIA-481-D

Alternative packing option available

USEFUL LINKS

Toolbox:

www.we-online.com/toolbox

Product Catalog:

www.we-online.com/products

CONTACT INFORMATION:

Würth Elektronik eiSos GmbH & Co. KG

Max-Eyth-Str. 1, 74638 Waldenburg, Germany

Tel: +49(0) 7942 945-0

Printed on 27 Jun 19 11:09 using WE Part Data Sheet V1.00019

Email: eiSos@we-online.de

Web: www.we-online.com

Page 1 of 1
