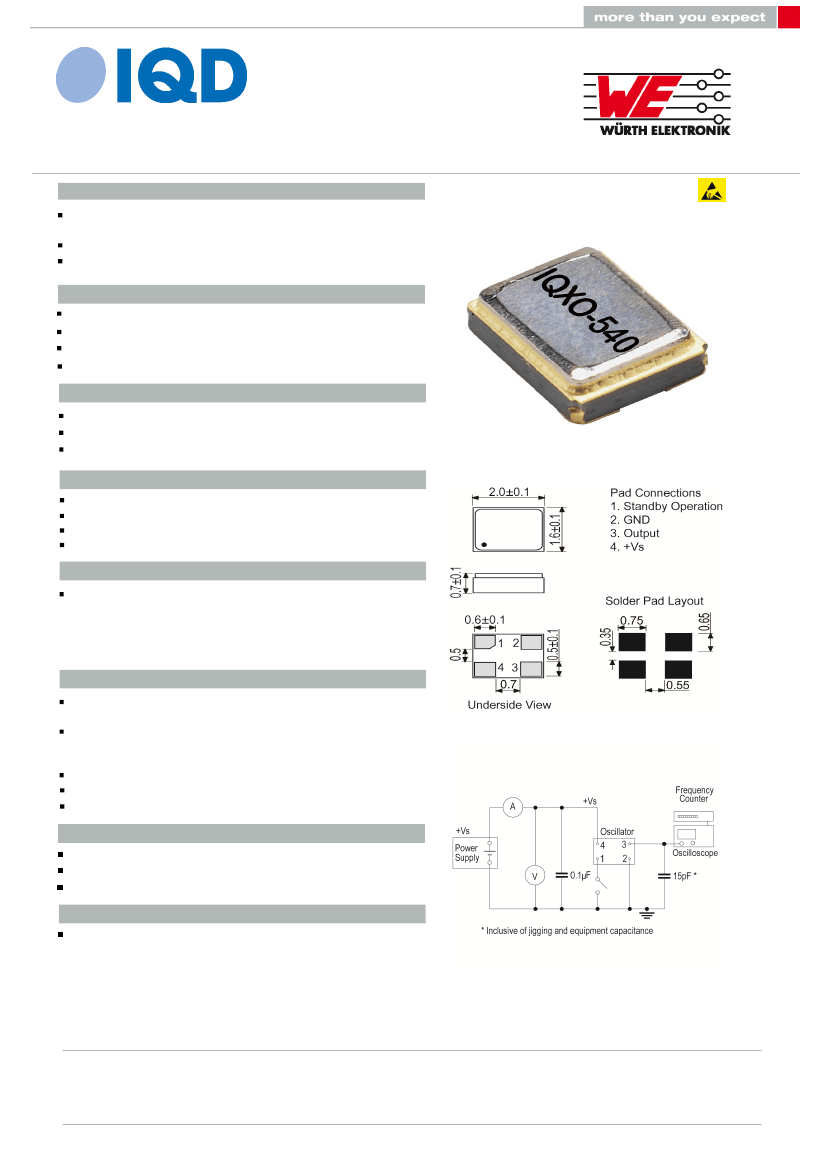

Crystal Clock Oscillator Specification

IQD Part No. + Packaging: LFSPXO082156RL3K

Wurth Part No.

830208215609

Description

Standard 2 x 1.6 crystal oscillator in a ceramic package with a

seam sealed metal lid, hermetically sealed

Model

IQXO-540

Model Issue number

Frequency Parameters

Frequency

Frequency Stability

Operating Temperature Range

Ageing

Electrical Parameters

32.7680MHz

±25.00ppm

-20.00 to 70.00°C

±5ppm

3.3V ±10%

Supply Voltage

Current Draw

7.000mA

Standby Current: 10μA max (pad 1 at logic '0')

Output Details

Outline (mm)

Output Compatibility

Drive Capability

Rise and Fall Time

Duty Cycle

Output Control

CMOS

15pF max

5.0ns max

45/55%

Standby Operation: Logic ‘1’ (≥70%VS) to pad 1 enables

oscillator output

Logic ‘0’ (≤30%VS) to pad 1 disables oscillator output; when

disabled the oscillator output goes to the high impedance state

No connection to pad 1 enables oscillator output

Environmental Parameters

Impact: Weight of 10G dropped to centre of part from a height

of 6mm

Vibration: IEC 60068-2-6: 1.5mm amplitude, 10Hz-55Hz, 1min

in 3 mutually perpendicular planes, duration 2hrs each plane

(total 6hrs)

Storage Temperature Range: –40 to 85°C

RoHS Terminations

RoHS Reflow Temp

250°C 10S max

Compliance

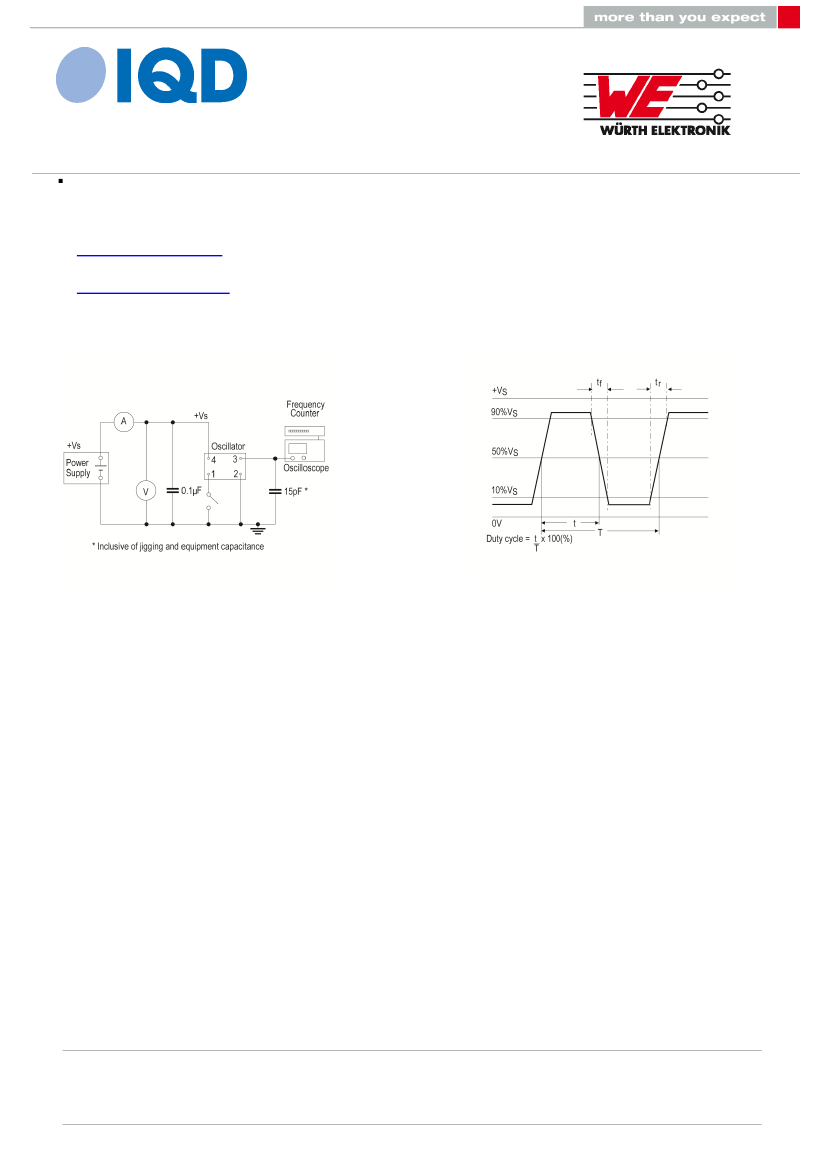

Test Circuit

RoHS Status (2011/65/EU)

REACh Status

MSL Rating (JDEC-STD-033):

Packaging Details

Compliant

Not Applicable

Pack Style: RL3K

Pack Size: 3,000

Tape & reel in accordance with EIA-481-D

CONTACT INFORMATION:

Würth Elektronik eiSos GmbH & Co. KG

Max-Eyth-Str. 1, 74638 Waldenburg, Germany

Tel: +49(0) 7942 945-0

Printed on 27 Jun 19 12:28 using WE Part Data Sheet V1.00019

Email: eiSos@we-online.de

Web: www.we-online.com

Page 1 of 2
