Crystal Clock Oscillator Specification
IQD Part No. + Packaging: LFSPXO082158RL3K
Wurth Part No.
830208215809
Description

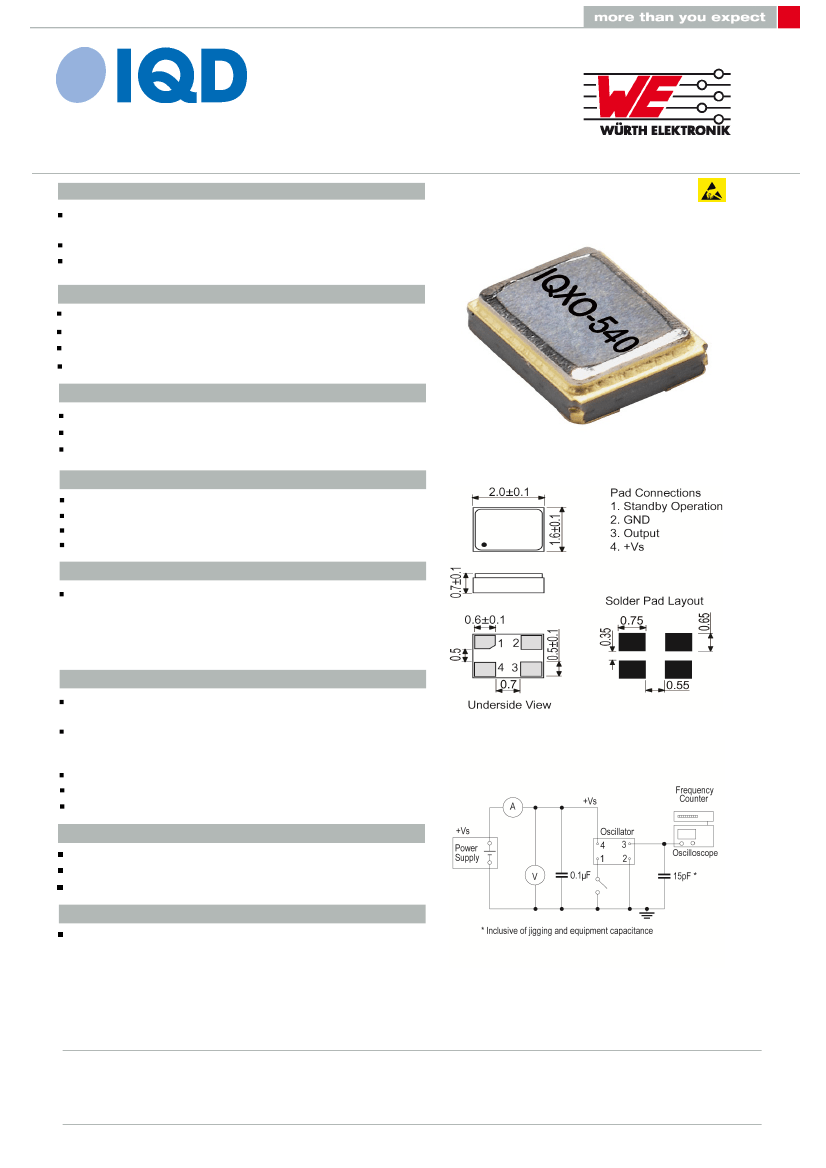

Standard 2 x 1.6 crystal oscillator in a ceramic package with a
seam sealed metal lid, hermetically sealed
Model
IQXO-540
Model Issue number
2
Frequency Parameters
Frequency
Frequency Stability
Operating Temperature Range
Ageing
Electrical Parameters
50.0MHz
±25.00ppm
-20.00 to 70.00°C
±5ppm
3.3V ±10%
Supply Voltage
Current Draw
10.000mA
Standby Current: 10μA max (pad 1 at logic '0')
Output Details
Outline (mm)
Output Compatibility
Drive Capability
Rise and Fall Time
Duty Cycle
Output Control
CMOS
15pF max
5.0ns max
45/55%
Standby Operation: Logic ‘1’ (≥70%VS) to pad 1 enables
oscillator output
Logic ‘0’ (≤30%VS) to pad 1 disables oscillator output; when
disabled the oscillator output goes to the high impedance state
No connection to pad 1 enables oscillator output
Environmental Parameters
Impact: Weight of 10G dropped to centre of part from a height
of 6mm
Vibration: IEC 60068-2-6: 1.5mm amplitude, 10Hz-55Hz, 1min
in 3 mutually perpendicular planes, duration 2hrs each plane
(total 6hrs)
Storage Temperature Range: –40 to 85°C
RoHS Terminations
RoHS Reflow Temp
250°C 10S max
Compliance

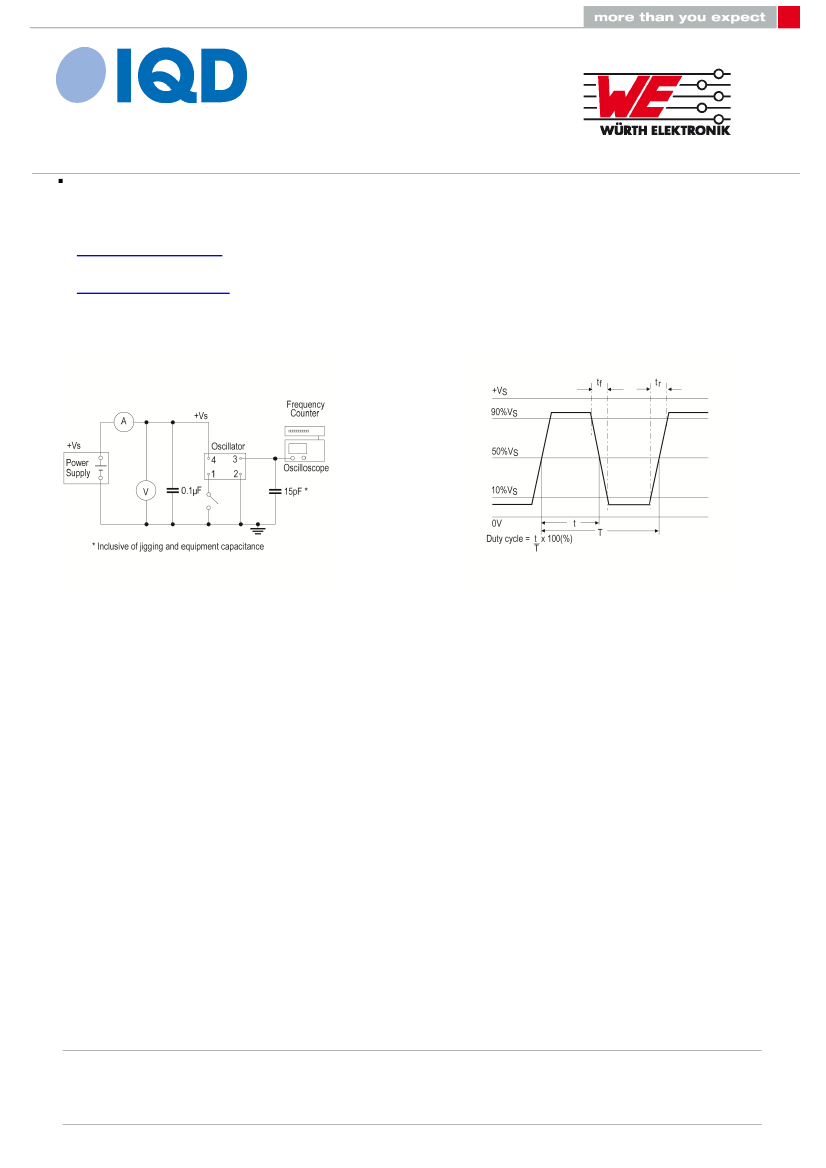

Test Circuit
RoHS Status (2011/65/EU)
REACh Status
MSL Rating (JDEC-STD-033):
Packaging Details
Compliant
Compliant
Not Applicable
Pack Style: RL3K
Pack Size: 3,000
Tape & reel in accordance with EIA-481-D
CONTACT INFORMATION:
Würth Elektronik eiSos GmbH & Co. KG
Max-Eyth-Str. 1, 74638 Waldenburg, Germany
Tel: +49(0) 7942 945-0
Printed on 27 Jun 19 12:30 using WE Part Data Sheet V1.00019
Email: eiSos@we-online.de
Web: www.we-online.com
Page 1 of 2
Crystal Clock Oscillator Specification
IQD Part No. + Packaging: LFSPXO082158RL3K
Wurth Part No.
830208215809
Alternative packing option available
USEFUL LINKS
Toolbox:
www.we-online.com/toolbox
Product Catalog:
www.we-online.com/products
Test Circuit
