Crystal Clock Oscillator Specification
IQD Part No. + Packaging: LFSPXO063343RL3K
Wurth Part No.
831063343
Description

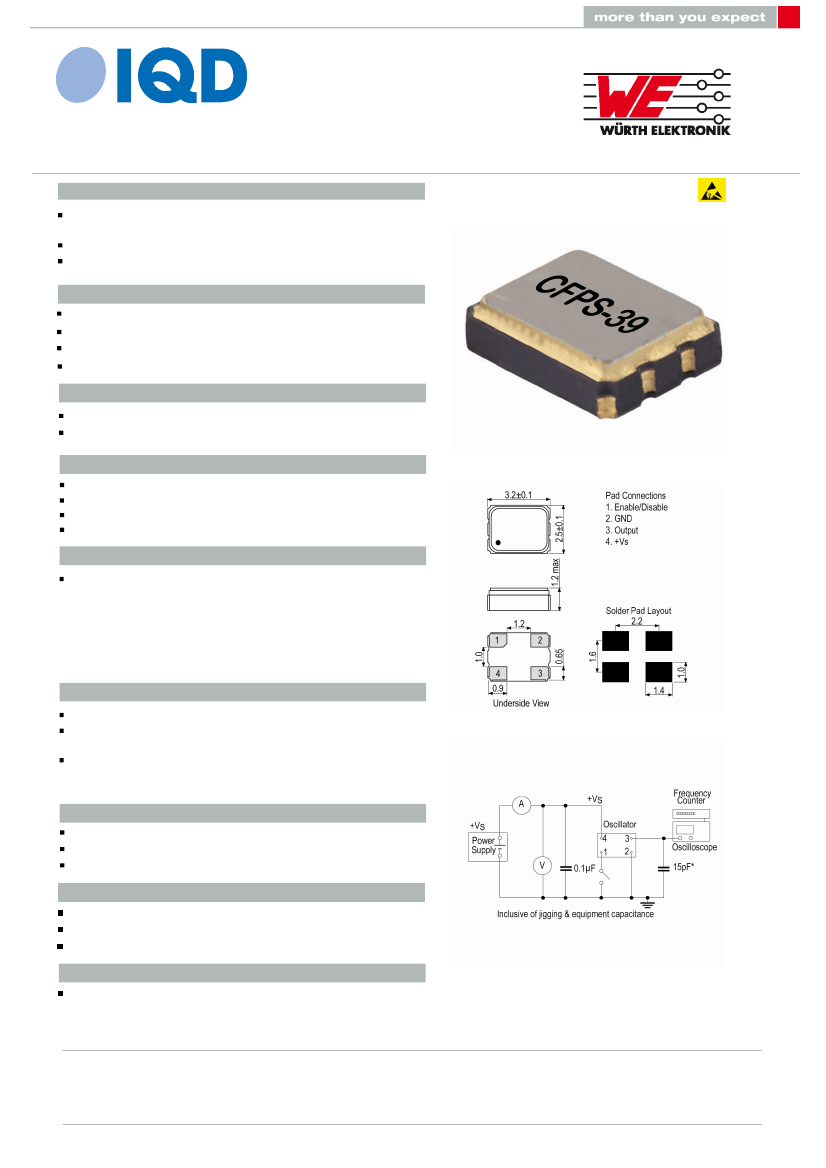

Surface mount 3.2 x 2.5mm crystal oscillator in a hermetically
sealed ceramic package with a seam sealed metal lid.
Model
CFPS-39
Model Issue number
5
Frequency Parameters
Frequency
Frequency Stability
Operating Temperature Range
Ageing
Electrical Parameters
20.0MHz
±25.00ppm
-40.00 to 85.00°C
±3ppm max per year @ 25°C
Supply Voltage
Current Draw
Output Details
3.3V ±10%
12.000mA
Output Compatibility
Drive Capability
Rise and Fall Time
Duty Cycle
Output Control
CMOS
15pF max
5.0ns max
45/55%
Outline (mm)
Standby Operation:
Logic ‘1’ (>70% VS) to pad 1 enables oscillator output
Logic ‘0’ (<30% VS) to pad 1 disables oscillator output; when
disabled the oscillator output goes to the high impedance state
No connection to pad 1 enables oscillator output
Standby Current: 10μA max
Start-Up Time: 10ms max
Environmental Parameters
Storage Temperature Range: –55 to 125°C
Shock: MIL-STD-202F, Method 213B: 1000G, 0.5ms, 1/2 sine
wave
Vibration: MIL-STD-202F, Method 204D, Test Condition D:
20G (10Hz-2000Hz), 4hrs in 3 mutually perpendicular planes
(total 12hrs)
Manufacturing Details
Test Circuit
Maximum Process Temperature: 260°C (10secs max)
RoHS Terminations
NiAu
RoHS Reflow Temp
260degC 10s
Compliance
RoHS Status (2011/65/EU)
REACh Status
MSL Rating (JDEC-STD-033):
Packaging Details
Compliant
Compliant
Not Applicable
Pack Style: RL3K
Pack Size: 3,000
Tape & reel in accordance with EIA-481-D
CONTACT INFORMATION:
Würth Elektronik eiSos GmbH & Co. KG
Max-Eyth-Str. 1, 74638 Waldenburg, Germany
Tel: +49(0) 7942 945-0
Printed on 27 Jun 19 14:07 using WE Part Data Sheet V1.00019
Email: eiSos@we-online.de
Web: www.we-online.com
Page 1 of 2
Crystal Clock Oscillator Specification
IQD Part No. + Packaging: LFSPXO063343RL3K
Wurth Part No.
831063343
Alternative packing option available
USEFUL LINKS
Toolbox:
www.we-online.com/toolbox
Product Catalog:
www.we-online.com/products

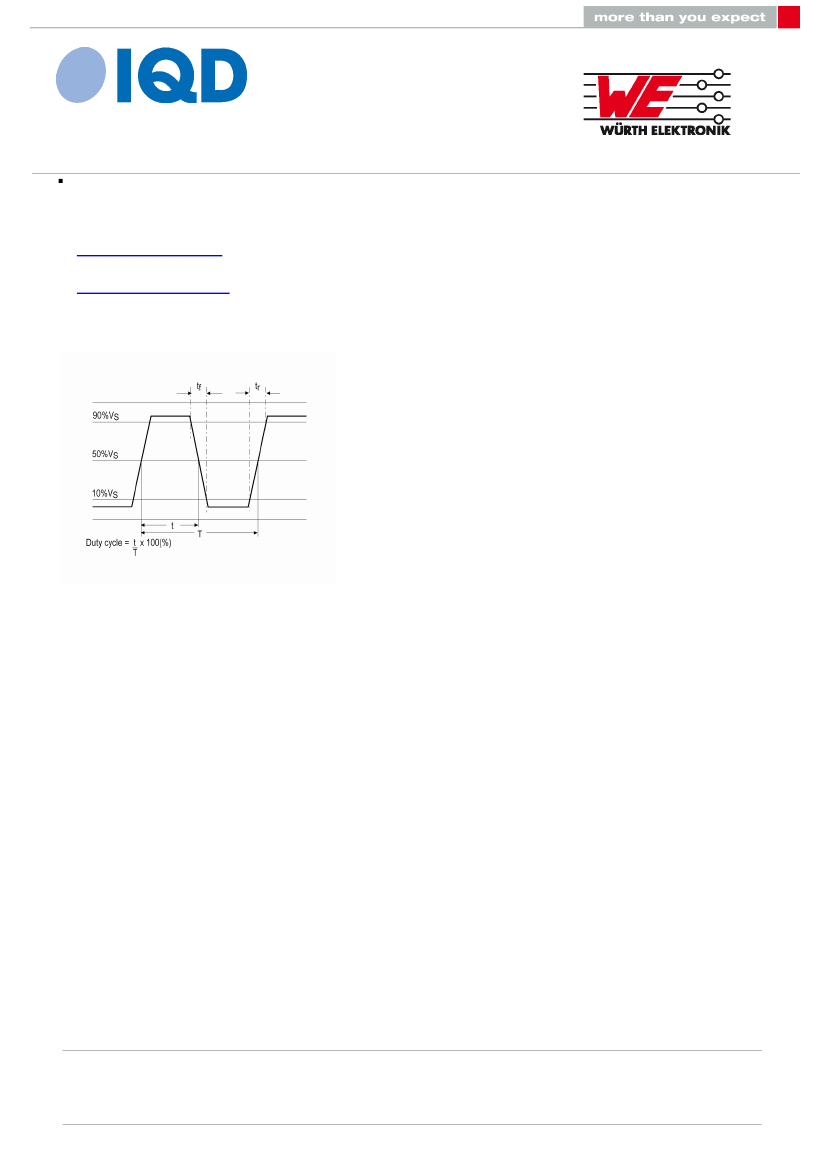

Wave Form
