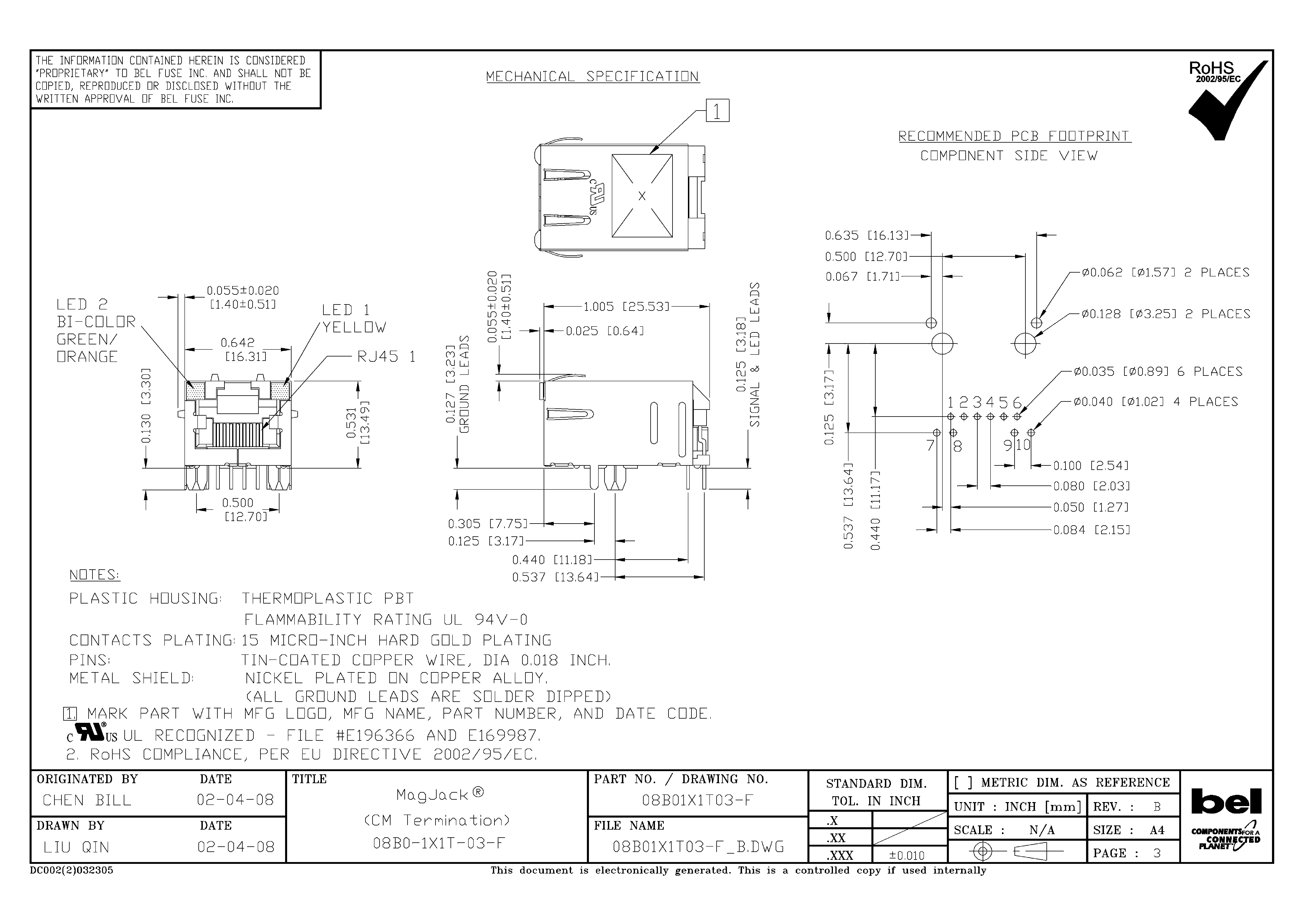

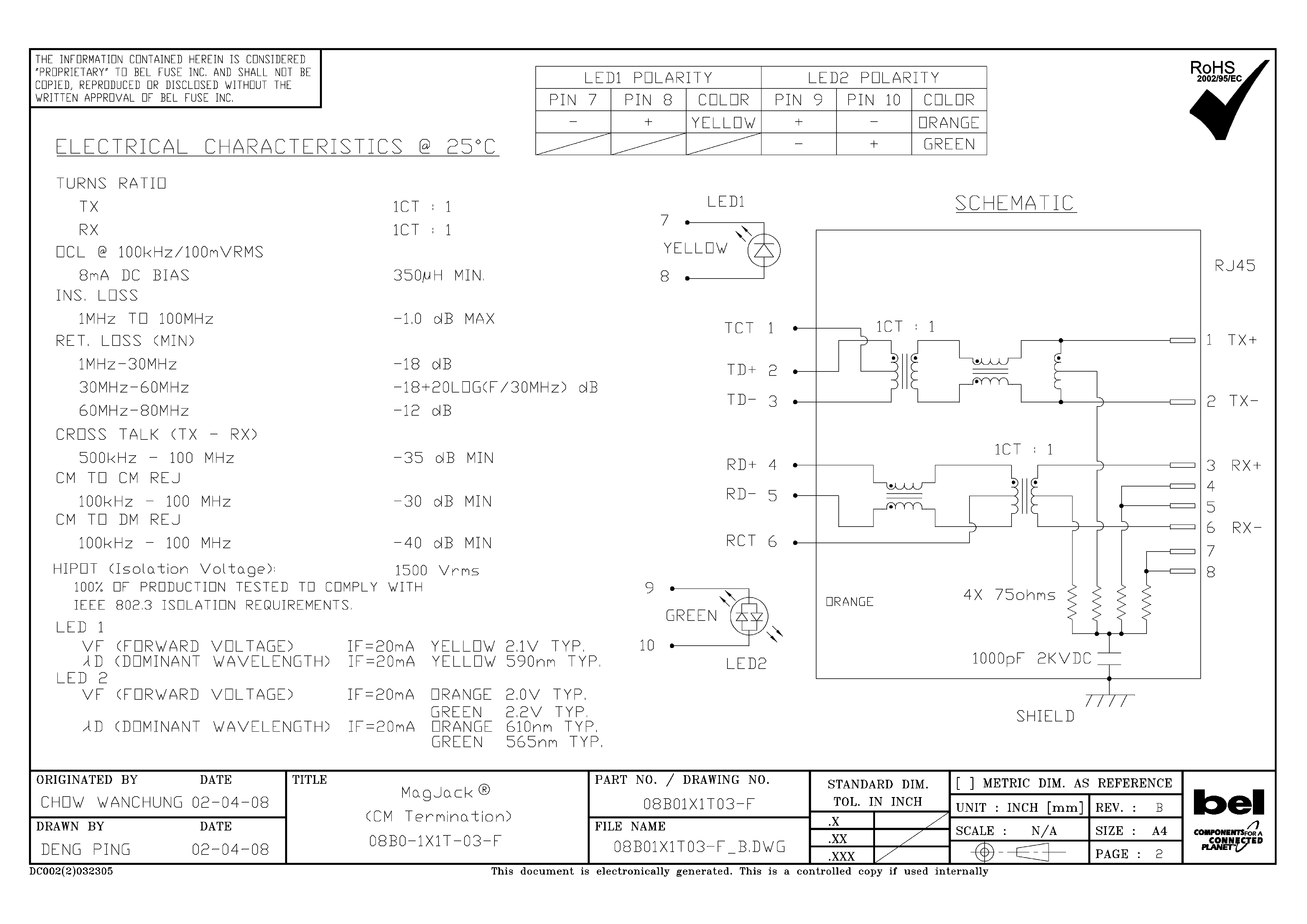

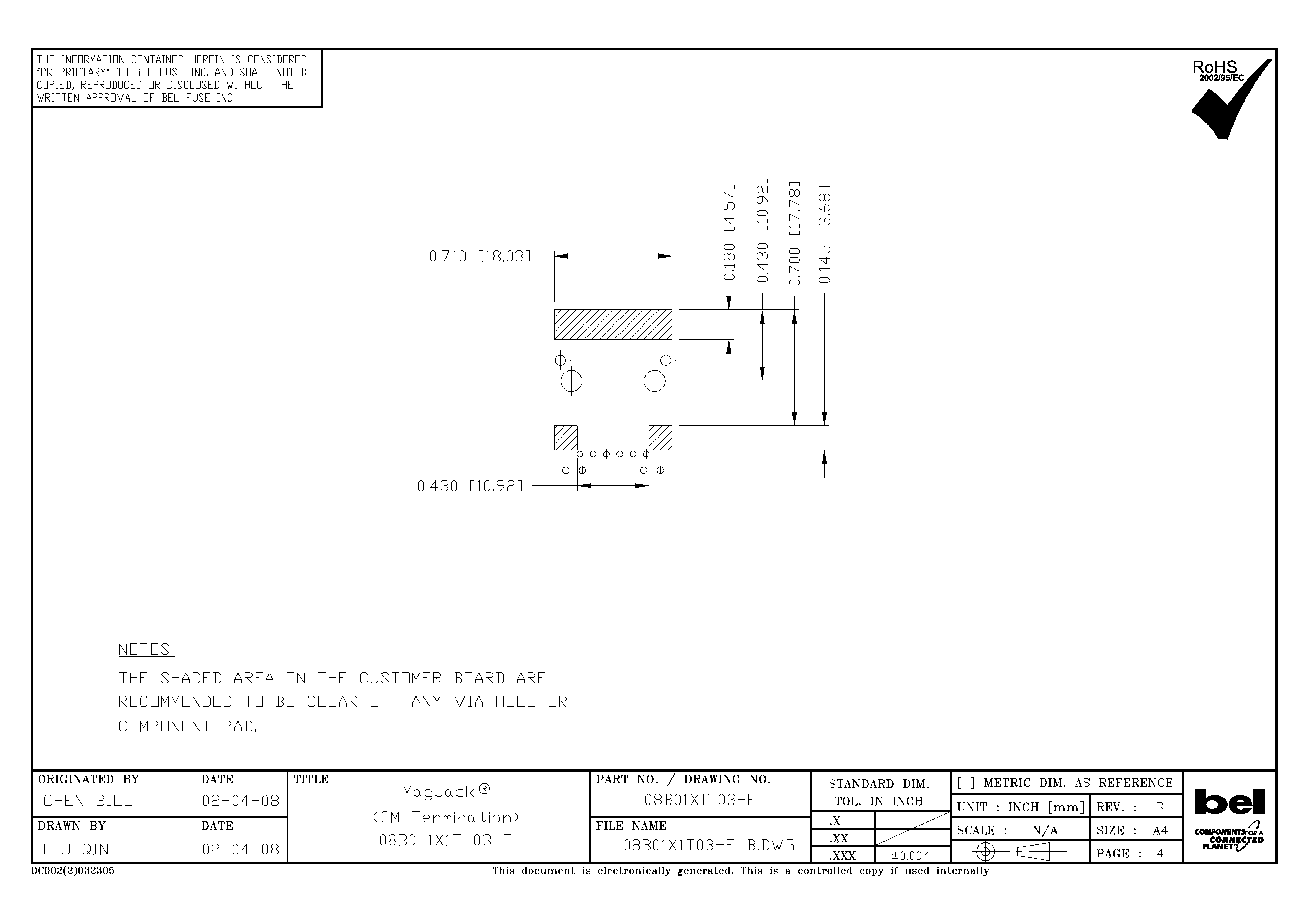

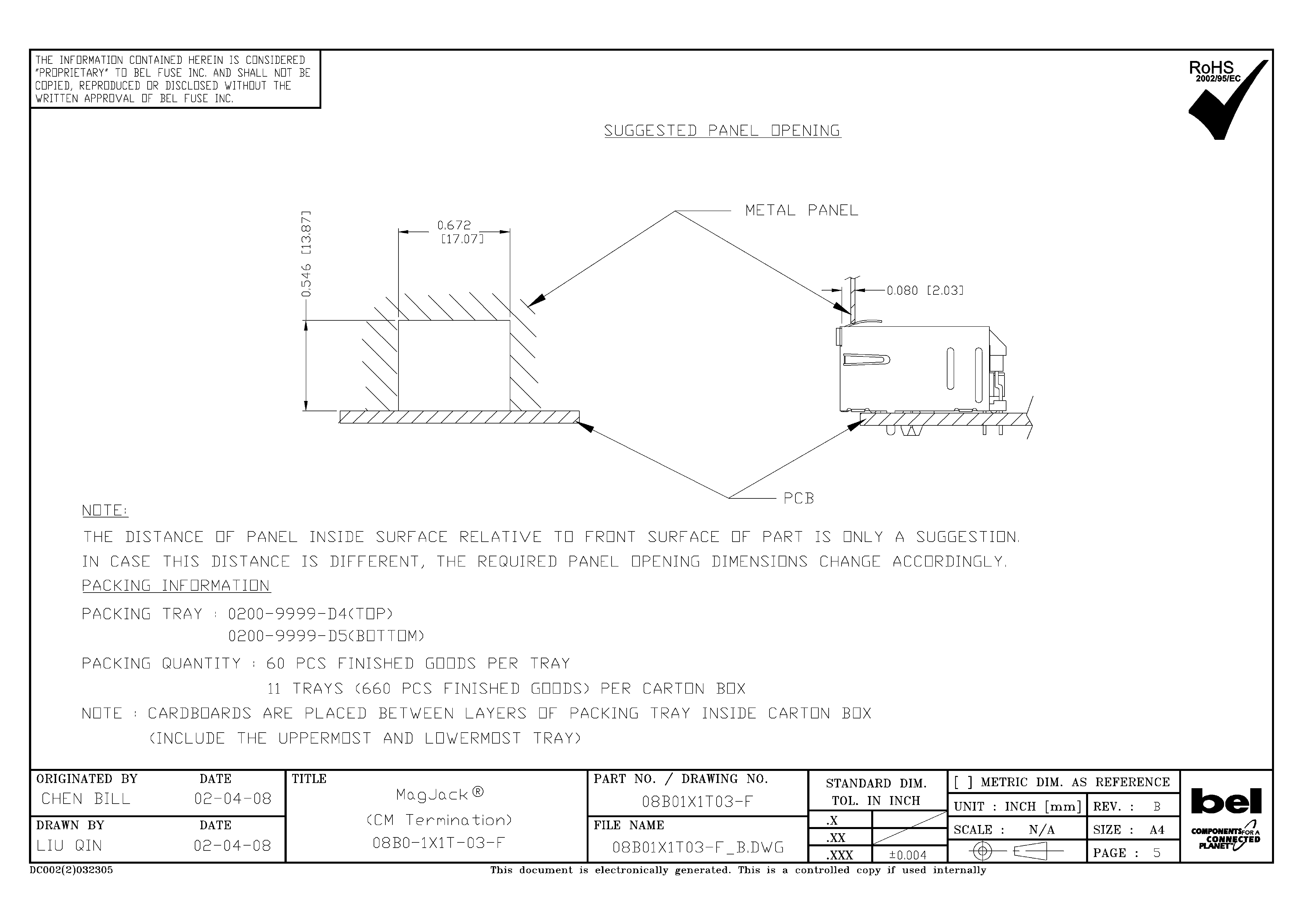

Telecom and Datacom Connector, 8 Contact(s), Male, Right Angle, Solder Terminal, Locking, Jack
| Parameter Name | Attribute value |
| Maker | Bel Fuse |
| Reach Compliance Code | compliant |
| Board mount options | SPLIT BOARD LOCK |
| body width | 0.531 inch |
| subject depth | 1.005 inch |
| body length | 0.752 inch |
| Body/casing type | JACK |
| Connector type | TELECOM AND DATACOM CONNECTOR |
| Contact to complete cooperation | AU |
| Contact point gender | MALE |
| Contact style | TELCOM, MODULAR |
| Dielectric withstand voltage | 2100VAC V |
| Manufacturer's serial number | 08B0 |
| Installation option 1 | LOCKING |
| Installation method | RIGHT ANGLE |
| Installation type | BOARD |
| Number of ports | 1 |
| PCB contact pattern | STAGGERED |
| Plating thickness | 15u inch |
| Guideline | UL |
| reliability | COMMERCIAL |
| Shell surface | NICKEL |
| Shell material | COPPER ALLOY |
| Terminal length | 0.125 inch |
| Terminal pitch | 2.032 mm |
| Termination type | SOLDER |
| Total number of contacts | 8 |
| 8B01X1T03-F | 08B0-1X1T-03-F | |
|---|---|---|
| Description | Telecom and Datacom Connector, 8 Contact(s), Male, Right Angle, Solder Terminal, Locking, Jack | CONN MAGJACK 1PORT 100 BASE-T |
| Maker | Bel Fuse | Bel Fuse |
| Reach Compliance Code | compliant | compliant |
| Connector type | TELECOM AND DATACOM CONNECTOR | TELECOM AND DATACOM CONNECTOR |
| Contact to complete cooperation | AU | GOLD (15) OVER NICKEL |
| Contact point gender | MALE | FEMALE |
| Installation method | RIGHT ANGLE | RIGHT ANGLE |
| Installation type | BOARD | BOARD AND PANEL |
| Shell surface | NICKEL | NICKEL |
| Shell material | COPPER ALLOY | COPPER ALLOY |
| Termination type | SOLDER | SOLDER |
| Total number of contacts | 8 | 8 |
