Detailed Specifications & Technical Data
ENGLISH MEASUREMENT VERSION
AX105200-S1 Modular Connectors - FX BRILLIANCE UNIVERSAL LC CONNECTOR
For more Information
please call
1-800-Belden1
General Description:
FX Brilliance Universal LC Field Installable Connector, Multimode, OM1, Beige Housing, 1/Pack, with
support for 250 um (using Breakout kit), 900 um, 2 mm and 3 mm fiber (using jacketed boots). Includes 900
um boot, other accessories (Breakout Kit & jacketed boots) sold separately.

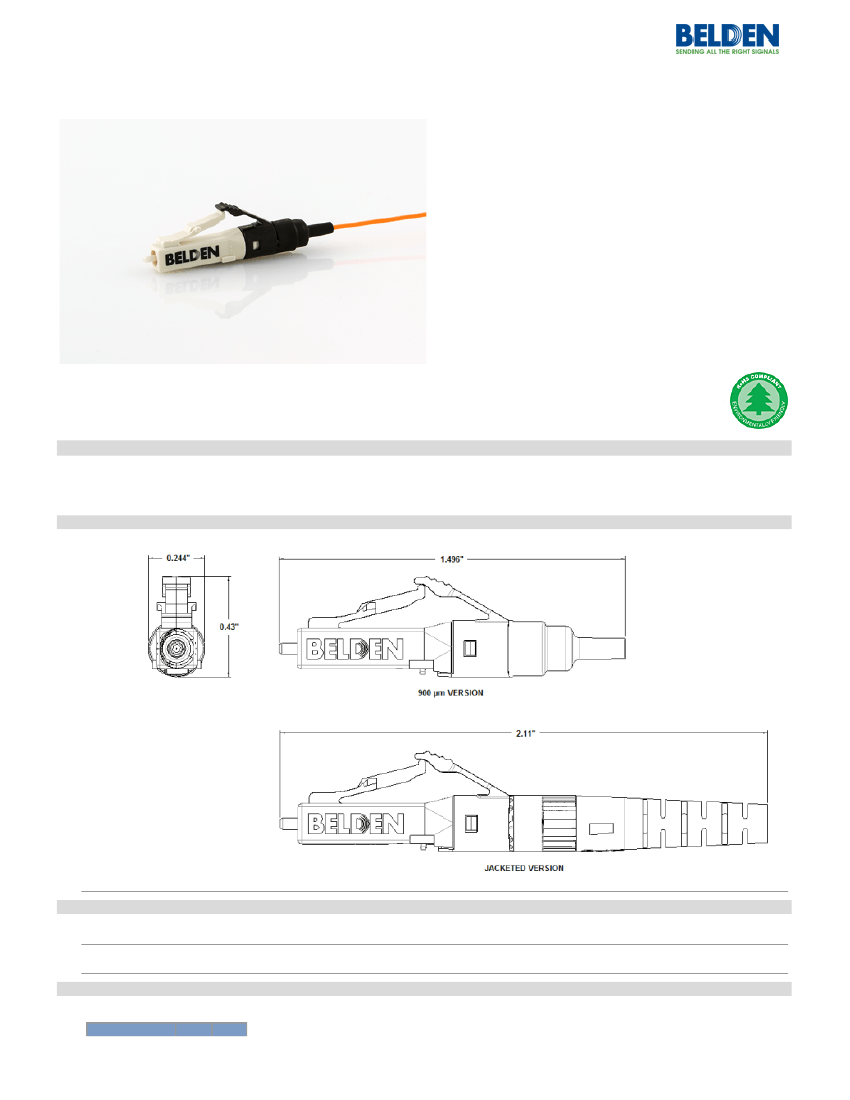

Image:
Usage (Overall)
Suitable Applications:
Field-termination of fiber optic cables within Patch Panels, Distribution Frames, Workstation Outlets for
FTTD (Fiber to the Desk), drops for FTTH (Fiber to the home) and MDU (Multiple Dwelling Units).
FX Brilliance Precision Installation Kit, Boots for 2mm and 3mm Jacketed Fiber, 250um to 900um break
out kits.
Related Parts:
Physical Characteristics (Connectivity)
Materials
Materials:
Description
Material Color
Page 1 of 3
08-08-2014
Detailed Specifications & Technical Data
ENGLISH MEASUREMENT VERSION
AX105200-S1 Modular Connectors - FX BRILLIANCE UNIVERSAL LC CONNECTOR
Boot
Connector Body
Rubber
Plastic
Black
Opaque
Beige
Protective Ferrule Cap Plastic
Weight
Weight:
0.007 lbs.
Included Parts
Included Parts:
900 µm boot, protective ferrule cap
Packaging
Packaging:
Single (1) connector sample in a sealed plastic bag
Mechanical Characteristics (Connectivity)
Mechanical Specifications:
Parameters
Interconnection Compatibility
Field Assembly Time
Durability (Multimode)
Durability (Single-mode)
Nominal Fiber OD
Storage Temperature
Operating Temperature
Tensile strength on 2 mm Jacketed fiber
Tensile strength on 250um fiber
Ferrule
Specifications
TIA/EIA-604-10A (FOCIS 10)
40 seconds including fiber preparation
500 cycles, less than 0.2 dB change, FOTP-21
500 cycles, less than 0.3 dB change, FOTP-21
125 µm
-40°F to +140°F (-40°C to +60°C)
-40°F to +167°F (-40°C to +75°C)
11.24 lb (5.1 Kg), less than 0.2 dB change, FOTP-6
0.5lb (0.45Kg), less than 0.2 dB change, FOTP-6
Ceramic
Tensile strength on 900 µm tight buffered fiber 1.12 lb (0.5 Kg), less than 0.2 dB change, FOTP-6
Applicable Specifications and Agency Compliance (Overall)
Applicable Standards & Environmental Programs
EU Directive 2002/95/EC (RoHS):
EU RoHS Compliance Date (mm/dd/yyyy):
MII Order #39 (China RoHS):
Telecommunications Standards:
Safety Listing:
Yes
07/01/2006
EUP 50
TIA 568-C.3
ACA
Suitability
Suitability - Indoor:
Yes - Indoor
Transmission Characteristics (Connectivity)
Transmission Specifications:
Fiber type
Multimode
Maximum Insertion Loss Typical Insertion Loss Minimum reflectance @ 1550 nm
0.50 dB
0.20 dB
0.30 dB
0.30 dB
-30 dB
-50 dB
-60 dB
Single-mode UPC 0.50 dB
Single-mode APC 0.50 dB
Notes (Overall)
Notes:
Refer to Installation Guide PX105234 for installation procedures. Fiber can be reterminated up to 5 times with the same connector.
Product Family
Part Number List:
Description
FX Brilliance Universal LC for OM1 Contractor 25/PK
FX Brilliance Universal LC for OM1 Sample 1/PK
FX Brilliance Universal LC for OM2 Contractor 25/PK
FX Brilliance Universal LC for OM2 Sample 1/PK
FX Brilliance Universal LC for OM3/OM4 Sample 1/PK
FX Brilliance Universal LC for OM4 Contractor 25/PK
FX Brilliance Universal LC for OM4 Sample 1/PK
FX Brilliance Universal LC for OS2 Contractor 25/PK
FX Brilliance Universal LC for OS2 Sample 1/PK
FX Brilliance Universal 2mm Boot 25/PK
FX Brilliance Universal 3mm Boot 25/PK
Breakout Kit 6 fibers
Breakout Kit 12 fibers
Breakout Kit 6 fibers for Central Tube Loose Tube Cable
Color
Beige
Beige
Black
Black
Aqua
Belden Part Number
AX105200-B25
AX105200-S1
AX105201-B25
AX105201-S1
AX105202-B25
AX105202-S1
FX Brilliance Universal LC for OM3/OM4 Contractor 25/PK Aqua
Erika Violet AX105252-B25
Erika Violet AX105252-S1
Blue
Blue
Black
Black
N/A
N/A
N/A
AX105203-B25
AX105203-S1
AX105214-B25
AX105215-B25
AX101100
AX101101
AX104695
AX104696
Breakout Kit 12 fibers for Central Tube Loose Tube Cable N/A
Page 2 of 3
08-08-2014
Detailed Specifications & Technical Data
ENGLISH MEASUREMENT VERSION
AX105200-S1 Modular Connectors - FX BRILLIANCE UNIVERSAL LC CONNECTOR
Put Ups and Colors:
Item #
AX105200-S1
Putup
1 EA
Ship Weight
0.009 LB
Color
Notes
Item Desc
FX BR UNIVERSAL LC OM1 1/PK
Revision Number: 0
© 2014 Belden, Inc
All Rights Reserved.
Revision Date: 08-07-2014
Although Belden makes every reasonable effort to ensure their accuracy at the time of this publication, information and specifications described herein are subject to error or omission and to
change without notice, and the listing of such information and specifications does not ensure product availability.
Belden provides the information and specifications herein on an "AS IS" basis, with no representations or warranties, whether express, statutory or implied. In no event will Belden be liable for
any damages (including consequential, indirect, incidental, special, punitive, or exemplary damages) whatsoever, even if Belden has been advised of the possibility of such damages, whether
in an action under contract, negligence or any other theory, arising out of or in connection with the use, or inability to use, the information or specifications described herein.
All sales of Belden products are subject to Belden's standard terms and conditions of sale.
Belden believes this product to be in compliance with EU RoHS (Directive 2002/95/EC, 27-Jan-2003). Material manufactured prior to the compliance date may be in stock at Belden facilities
and in our Distributor’s inventory. The information provided in this Product Disclosure, and the identification of materials listed as reportable or restricted within the Product Disclosure, is
correct to the best of Belden’s knowledge, information, and belief at the date of its publication. The information provided in this Product Disclosure is designed only as a general guide for the
safe handling, storage, and any other operation of the product itself or the one that it becomes a part of. This Product Disclosure is not to be considered a warranty or quality specification.
Regulatory information is for guidance purposes only. Product users are responsible for determining the applicability of legislation and regulations based on their individual usage of the
product.
