ACH-0.032768MHZ-E-H-S-A datasheet, PDF

Datasheet> All Categories > Passive components> oscillator> ACH-0.032768MHZ-E-H-S-A

ACH-0.032768MHZ-E-H-S-A: DescriptionOscillator, 0.032768MHz Min, 200MHz Max, 0.032768MHz Nom; CategoryPassive components oscillator; File Size582KB，2 Pages; ManufacturerAbracon; Websitehttp://www.abracon.com/index.htm; Environmental Compliance

Download Datasheet Parametric View All

ACH-0.032768MHZ-E-H-S-A Overview

Oscillator, 0.032768MHz Min, 200MHz Max, 0.032768MHz Nom

ACH-0.032768MHZ-E-H-S-A Parametric

Parameter Name	Attribute value
Is it Rohs certified?	conform to
Maker	Abracon
Reach Compliance Code	compliant
Installation features	THROUGH HOLE MOUNT
Number of terminals	4
Maximum operating frequency	200 MHz
Minimum operating frequency	0.032768 MHz
Nominal operating frequency	0.032768 MHz
Maximum operating temperature	70 °C
Minimum operating temperature	-20 °C
Oscillator type	HCMOS/TTL
Package body material	METAL
Encapsulate equivalent code	DIP4/8,.3
power supply	5 V
Certification status	Not Qualified
Maximum slew rate	30 mA
Nominal supply voltage	5 V
surface mount	NO

Preview

Download Datasheet

View All

HALF-SIZE DIP LOW VOLTAGE 5.0V

CRYSTAL CLOCK OSCILLATOR

ACH Series

FEATURES:

• Wide frequency range.

• Tri-state Enable / Disable function.

• HCMOS and TTL compatible. • Fast rise and fall times.

• Tight symmetry option.

• Anti-Static packaging tube

RoHS

Compliant

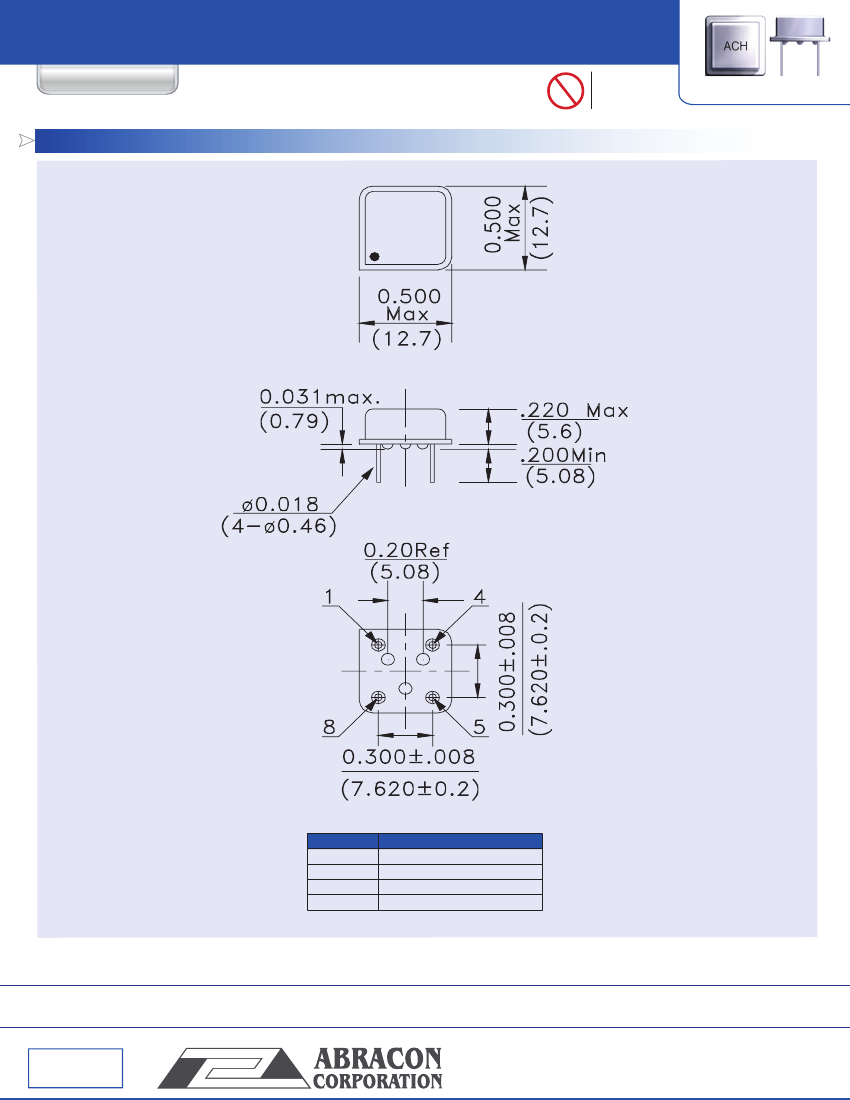

12.7 x 12.7 x 5.6mm

| | | | | | | | | | | | | | |

APPLICATIONS:

• Provide clock signals for microprocessors

and digital circuits.

• High output drive capability applications.

STANDARD SPECIFICATIONS:

PARAMETERS

ABRACON P/N

Frequency:

Operating temperature:

Storage temperature:

Frequency Stability:

Supply voltage (Vdd):

Symmetry:

Rise and Fall Times(Tr/Tf):

Output load:

Output Voltage:

Tri-state Function:

Start-up-time:

Output Disable/ Enable time:

Input current:

ACH Series

32.768kHz to 200MHz

0°C to +70°C

- 55°C to + 125°C

± 100ppm max. (see options)

5.0Vdc ± 10%

45/55% max.for F<50MHz

40/60% max. for F>=50MHz (see options)

10 ns max. for F<=24MHz

5ns max. for F>24MHz

10 TTL or 15 pF for F<80MHz

5 TTL or 15 pF for F>=80MHz

VOH = 0.9 * VDD min.

VOL = 0.1*VDD max.

"1" (VIH >= 2.2 Vdc) or open: Oscillation

"0" (VIL < 0.8V): Hi Z

10 ms max

100 ns max. (for Option "-A" ONLY)

30 mA max. for F < 24 MHz

45 mA max. for F < 50 MHz

70 mA max. for F < 80 MHz

85 mA max. for F >= 24 MHz

OPTIONS & PART IDENTIFICATION:

(Left blank if standard)

ACH - Frequency -

Temperature Options

-10°C to +60°C

-20°C to +70°C

-30°C to +70°C

-30°C to +85°C

-40°C to +85°C

Freq. Stability

±10 ppmmax.

±20 ppm max.

±25 ppm max.

±30 ppm max.

±35 ppm max.

±50 ppm max.

Symmetry Options

45/55%@1/2Vdd

47.5/52.5%@1/2Vdc

45/55@1.4Vdc

45.5/52.5@1.4Vdc

Packaging

Blank

Tube

Tray

Tristate Enable Funct

Tristate Function

50pF Option

50pF

Value Added Option

Gull Wing

GHT

Gull Wing Reflow

Q30

0.30(7.62)

Q25

0.25(6.35)

Q20

0.20(5.08)

Q15

0.15(3.81)

Q10

0.10(2.54)

ABRACON IS

ISO 9001 / QS 9000

CERTIFIED

Revised: 09.09.09

30332 Esperanza, Rancho Santa Margarita, California 92688

tel 949-546-8000

fax 949-546-8001

| www.abracon.com

Visit www.abracon.com for Terms & Conditions of Sale
