AIAP-05-821K: DescriptionGeneral Purpose Inductor, 820uH, 10%, 1 Element, AXIAL LEADED, ROHS COMPLIANT; CategoryPassive components inductor; File Size3MB，2 Pages; ManufacturerAbracon; Websitehttp://www.abracon.com/index.htm; Environmental Compliance

Download Datasheet Parametric View All

AIAP-05-821K Overview

General Purpose Inductor, 820uH, 10%, 1 Element, AXIAL LEADED, ROHS COMPLIANT

AIAP-05-821K Parametric

Parameter Name	Attribute value
Is it Rohs certified?	conform to
Maker	Abracon
Reach Compliance Code	compliant
ECCN code	EAR99
DC Resistance	1.96 Ω
Nominal inductance(L)	820 µH
Inductor Applications	POWER INDUCTOR
Inductor type	GENERAL PURPOSE INDUCTOR
Manufacturer's serial number	AIAP-05
Number of functions	1
Number of terminals	2
Maximum operating temperature	130 °C
Minimum operating temperature	-55 °C
Maximum rated current	0.2 A
Shape/Size Description	TUBULAR PACKAGE
shield	NO
surface mount	NO
Terminal location	AXIAL
Terminal shape	WIRE
Test frequency	0.001 MHz
Tolerance	10%

AIAP-05-821K Preview

Axial Power Inductor

AIAP-05

FEATURES:

•

Low cost axial leaded inductors

•

High current rating

•

Wide inductance range

•

Covered with UL heat shrink tubing

ELECTRICAL SPECIFICATIONS:

Part No.

AIAP-05-3R9

AIAP-05-4R7

AIAP-05-5R6

AIAP-05-6R8

AIAP-05-8R2

AIAP-05-100

AIAP-05-120

AIAP-05-150

AIAP-05-180

AIAP-05-220

AIAP-05-270

AIAP-05-330

AIAP-05-390

AIAP-05-470

AIAP-05-560

AIAP-05-680

AIAP-05-820

AIAP-05-101

AIAP-05-121

AIAP-05-151

AIAP-05-181

AIAP-05-221

AIAP-05-271

AIAP-05-331

AIAP-05-391

AIAP-05-471

AIAP-05-561

AIAP-05-681

AIAP-05-821

AIAP-05-105

AIAP-05-122

AIAP-05-152

AIAP-05-182

AIAP-05-222

AIAP-05-272

AIAP-05-332

AIAP-05-392

AIAP-05-472

AIAP-05-562

AIAP-05-682

AIAP-05-822

AIAP-05-105

AIAP-05-123

AIAP-05-153

AIAP-05-183

L(µH)

3.9

4.7

5.6

6.8

8.2

10

12

15

18

22

27

33

39

47

56

68

82

100

120

150

180

220

270

330

390

470

560

680

820

1000

1200

1500

1800

2200

2700

3300

3900

4700

5600

6800

8200

10000

12000

15000

18000

Tolerance

(K: ±10%)

K

DCR(Ω) max

0.019

0.022

0.024

0.026

0.028

0.033

0.037

0.040

0.044

0.050

0.058

0.075

0.094

0.109

0.140

0.145

0.152

0.208

0.283

0.340

0.362

0.430

0.557

0.655

0.772

1.15

1.27

1.61

1.96

2.30

2.65

3.45

4.03

4.48

5.90

6.56

8.63

10.5

13.9

16.3

20.8

26.4

29.9

42.5

48.3

I

sat

(A) max

3.60

3.30

3.00

2.70

2.50

2.30

2.10

1.90

1.70

1.50

1.40

1.30

1.20

1.10

0.97

0.88

0.80

0.73

0.66

0.60

0.54

0.49

0.45

0.40

0.37

0.34

0.31

0.28

0.26

0.23

0.21

0.19

0.18

0.16

0.14

0.13

0.12

0.11

0.10

0.09

0.08

0.07

0.06

RoHS

Compliant

17.8 x ϕ6.4mm

APPLICATIONS:

•

Power supplies

•

Switching circuits

•

TV and audio equipment

•

Telecommunication devices

•

RF and other filters

I

rms

(A) max

1.280

1.008

0.804

0.632

0.508

0.400

0.315

0.250

0.200

0.158

0.125

0.100

0.082

0.065

0.050

0.039

Inductance

Code

3R9K

4R7K

5R6K

6R8K

8R2K

100K

120K

150K

180K

220K

270K

330K

390K

470K

560K

680K

820K

101K

121K

151K

181K

221K

271K

331K

391K

471K

561K

681K

821K

102K

122K

152K

182K

222K

272K

332K

392K

472K

562K

682K

822K

102K

123K

153K

183K

Table #1

ABRACON IS

ISO

ISO 9001:2008

9001 / QS 9000

CERTIFIED

30332 Esperanza, Rancho Santa Margarita, California 92688

Visit

www.abracon.com

for Terms & Conditions of Sale

Revised: 10.16.12

tel 949-546-8000

|

fax 949-546-8001

| www.abracon.com

Axial Power Inductor

AIAP-05

Test Conditions

Test frequency: 1kHz, 0.1Vrms, 0ADC

Isat: 5% inductance drops typical

Irms: Temperature rise 35ºC max

Operating Temperature

-55ºC ~ +130ºC

Storage Temperature

-40ºC ~ +85ºC

PART NUMBER IDENTIFICATION

RoHS

Compliant

17.8 x ϕ6.4mm

AIAP-05-

Inductance Code

Please refer to table #1

Packing (100pcs / bag)

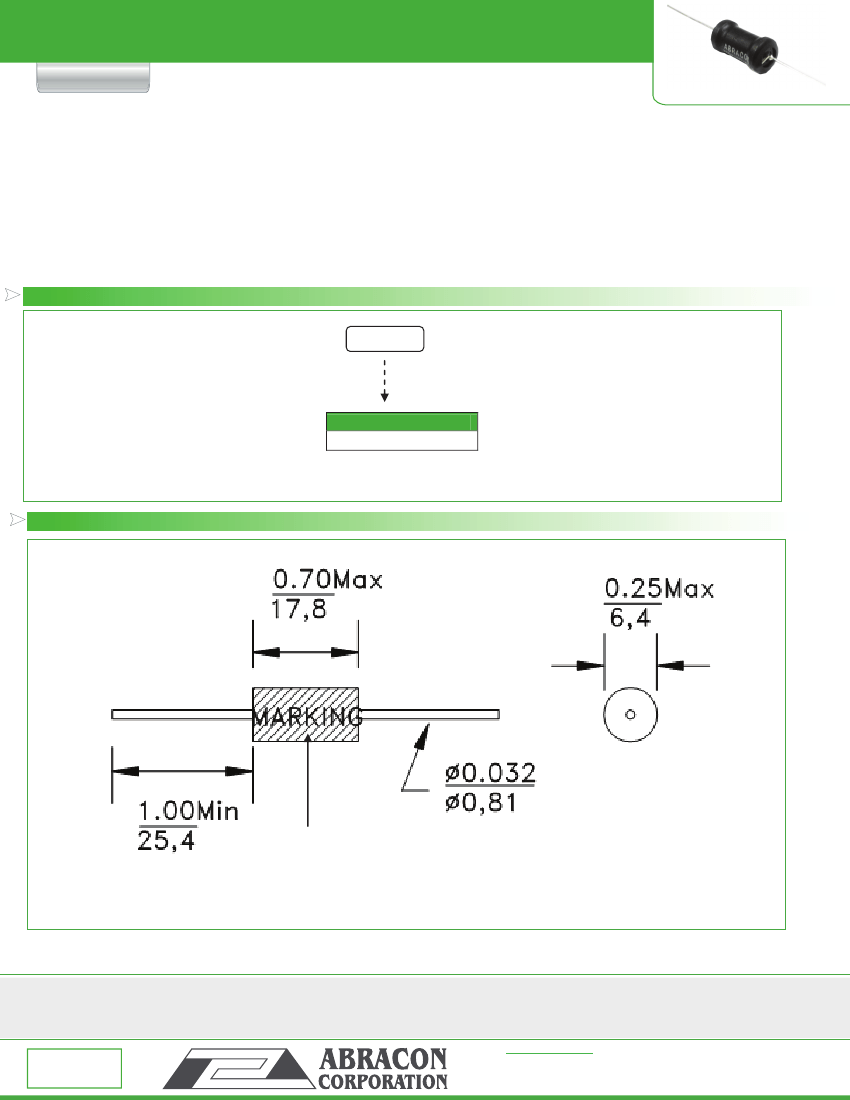

OUTLINE DRAWING:

Polyolefin Sleeving

Dimension: inch/mm

ATTENTION:

Abracon Corporation’s products are COTS – Commercial-Off-The-Shelf products; suitable for Commercial, Industrial and, where designated, Automotive Applications.

Abracon’s products are not specifically designed for Military, Aviation, Aerospace, Life-dependant Medical applications or any application requiring high reliability where component

failure could result in loss of life and/or property. For applications requiring high reliability and/or presenting an extreme operating environment, written consent and authorization from

Abracon Corporation is required. Please contact Abracon Corporation for more information.

ABRACON IS

ISO

ISO 9001:2008

9001 / QS 9000

CERTIFIED

30332 Esperanza, Rancho Santa Margarita, California 92688

Visit

www.abracon.com

for Terms & Conditions of Sale

Revised: 10.16.12

tel 949-546-8000

|

fax 949-546-8001

| www.abracon.com

More (Only the first 5 pages are displayed. Please Download Datasheet to view the full content.) >
