Approval sheet
RFDIP Series – 1005(0402)- RoHS Compliance
MULTILAYER CERAMIC DIPLEXER
Halogens Free Product
2.4 GHz & 5 GHz ISM Band RF Application
P/N: RFDIP1005040L1T
*Contents in this sheet are subject to change without prior notice.
Page 1 of 7
ASC_RFDIP1005040L1T_V02
Mar. 2017
Approval sheet
FEATURES
1.
2.
3.
Miniature footprint: 1.00 X 0.50 X 0.40 mm
Low Insertion Loss
LTCC process
3
APPLICATIONS
1.
ISM band 2.4/ 5GHz working frequency
2.
Wi-Fi 802.11a/b/g/n application
CONSTRUCTION
Top view
P4
P3
PIN
1
2
3
Connection
Common Port
GND
High Band (5 GHz)
Low Band (2.4 GHz)
P1
P2
4

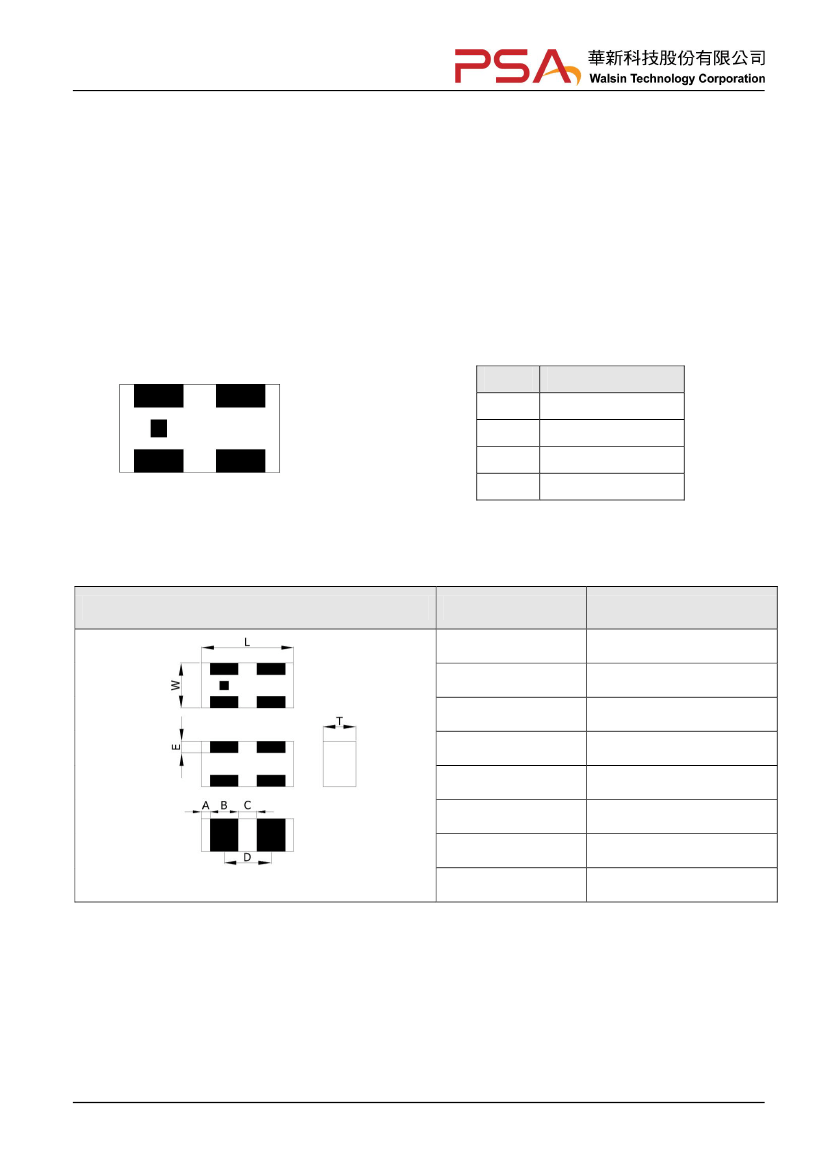

DIMENSIONS
Figure
Symbol
L
Dimension (mm)
1.00 ± 0.10
0.50 ± 0.10
0.40 max.
0.10 ± 0.10
0.30 ± 0.10
0.20 ± 0.10
0.50 ± 0.10
0.125 ± 0.10
Top view
W
T
Bottom view
Side view
A
B
C
Side view
D
E
Page 2 of 7
ASC_RFDIP1005040L1T_V02
Mar. 2017
Approval sheet
ELECTRICAL CHARACTERISTICS
RFDIP1005040L1T
Frequency range
2400~2500 MHz
0.5 dB max. @ 25
℃
0.6 dB max. @ -40~+85
℃
Specification
4900~5950 MHz
0.8 dB max. @ 25
℃
Insertion Loss
1.0 dB max. @ -40~+85
℃
25 dB min. @ 30~2400 MHz
23 dB min. @ 4800~6000 MHz
32 dB min. @ 2400~2500 MHz
Attenuation
23 dB min. @ 7200~7500 MHz
23 dB min. @ 2500~2690 MHz
20 dB min. @ 9800~11900 MHz
VSWR
2.0 max.
Impedance
50Ω
Moisture sensitivity levels
MSL is LEVEL 1 (Refer to : IPC/JEDEC J-STD-020)
Operating & Storage Condition (Component)
Operation Temperature Range: -40 ~ +85
℃
Storage Temperature Range: -40 ~ +85
℃
Storage Condition before Soldering (Included packaging material)
Storage Temperature Range: +5 ~ +40
℃
Humidity: 30 to 70% relative humidity

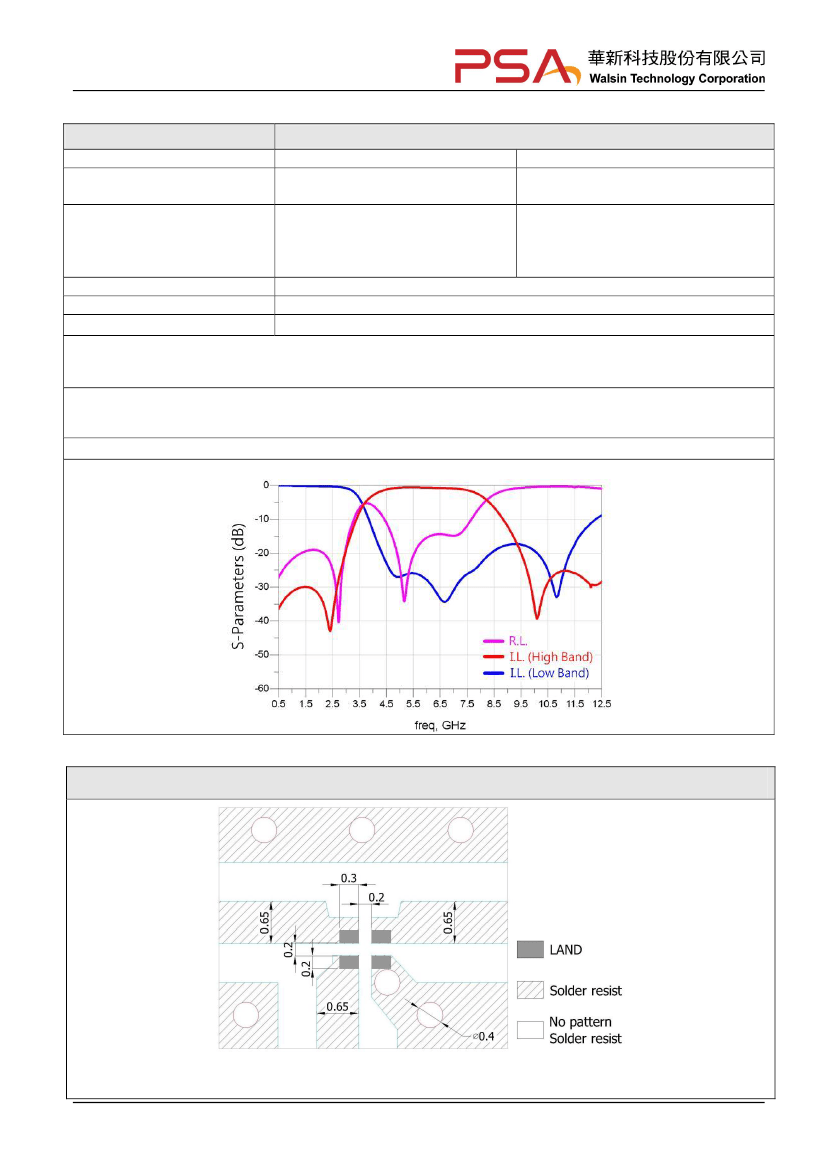

TYPICAL ELECTRICAL PERFORMANCE
S-Parameter
SOLDER LAND PATTERN
Figure
Unit : mm
Line width to be designed to match 50
Ω
characteristic impedance, depending on PCB material and thickness.
Page 3 of 7
ASC_RFDIP1005040L1T_V02
Mar. 2017
Approval sheet
RELIABILITY TEST
Test item
Solderability
JIS C 0050-4.6
JESD22-B102D
Leaching
(Resistance to
dissolution of
metallization)
IEC 60068-2-58
Resistance to soldering
heat
JIS C 0050-5.4
1 minute.
*Solder temperature：2705C
*Immersion time：101 sec
Solder：Sn3Ag0.5Cu for lead-free
Measurement to be made after keeping at
electrode shall not exceed 25%.
room temperature for 242 hrs
Drop Test
JIS C 0044
Customer’s specification.
*Height：75 cm
*Test Surface：Rigid surface of concrete or
steel.
*Times：6 surfaces for each units；2 times
for each side.
Vibration
JIS C 0040
No mechanical damage.
Electrical specification shall satisfy the
descriptions in electrical characteristics under
the operational temperature range within -40
~ 85°C.
*Preheating temperature：120~150C,
No mechanical damage.
Electrical specification shall satisfy the
descriptions in electrical characteristics under
the operational temperature range within -40
~ 85°C.
Loss of metallization on the edges of each
Test condition / Test method
*Solder bath temperature：235
5C
*Immersion time：2
0.5 sec
Solder：Sn3Ag0.5Cu for lead-free
*Solder bath temperature：260
5C
*Leaching immersion time：30
0.5 sec
Solder : SN63A
Loss of metallization on the edges of each
electrode shall not exceed 25%.
Specification
At least 95% of a surface of each terminal
electrode must be covered by fresh solder.
*Frequency：10Hz~55Hz~10Hz(1min)
*Total amplitude：1.5mm
*Test times：6hrs.(Two hrs each in three
mutually perpendicular directions)
No mechanical damage.
Electrical specification shall satisfy the
descriptions in electrical characteristics under
the operational temperature range within -40
~ 85°C.
Adhesive Strength
of Termination
JIS C 0051- 7.4.3
Bending test
JIS C 0051- 7.4.1
*Pressurizing force：
5N(≦0603)；10N(>0603)
*Test time：10±1 sec
The middle part of substrate shall be
No remarkable damage or removal of the
termination.
No mechanical damage.
pressurized by means of the pressurizing rod Electrical specification shall satisfy the
at a rate of about 1 mm/s per second until the descriptions in electrical characteristics under
deflection becomes 1mm/s and then pressure the operational temperature range within -40
shall be maintained for 51 sec.
~ 85°C.
Measurement to be made after keeping at
room temperature for 242 hours
Page 4 of 7
ASC_RFDIP1005040L1T_V02
Mar. 2017
Approval sheet
Temperature cycle
JIS C 0025
1.
2.
3.
4.
303 minutes at -40C3C,
10~15 minutes at room temperature,
303 minutes at +85C3C,
10~15 minutes at room temperature,
No mechanical damage.
Electrical specification shall satisfy the
descriptions in electrical characteristics
under the operational temperature range
within -40 ~ 85°C.
Total 100 continuous cycles
Measurement to be made after keeping at
room temperature for 242 hrs
High temperature
JIS C 0021
*Temperature：85C2C
*Test duration：1000+24/-0 hours
Measurement to be made after keeping at
room temperature for 242 hrs
Humidity
(steady conditions)
JIS C 0022
*Time：1000+24/-0 hrs.
Measurement to be made after keeping at
room temperature for 242 hrs
※
500hrs measuring the first data then
1000hrs data
Low temperature
JIS C 0020
*Temperature：-40C2C
*Test duration：1000+24/-0 hours
Measurement to be made after keeping at
room temperature for 242 hrs
*Humidity：90% to 95% R.H.
*Temperature：402C
No mechanical damage.
Electrical specification shall satisfy the
descriptions in electrical characteristics under
the operational temperature range within -40
~ 85°C.
No mechanical damage.
Electrical specification shall satisfy the
descriptions in electrical characteristics under
the operational temperature range within -40
~ 85°C.
No mechanical damage.
Electrical specification shall satisfy the
descriptions in electrical characteristics under
the operational temperature range within -40
~ 85°C.
Page 5 of 7
