TLYE160A: DescriptionTOSHIBA T-1 InGaAIP Ultra Bright LED; CategoryLED optoelectronic/LED photoelectric; File Size133KB，2 Pages; ManufacturerMarktech; Websitehttps://www.marktechopto.com/

Download Datasheet Parametric View All

TLYE160A Overview

TOSHIBA T-1 InGaAIP Ultra Bright LED

TLYE160A Parametric

Parameter Name	Attribute value
Reach Compliance Code	unknow
color@wavelength	Yellow
Maximum forward current	0.05 A
Maximum forward voltage	2.5 V
Lens type	WATER CLEAR
Maximum operating temperature	85 °C
Minimum operating temperature	-30 °C
total height	5.84 mm
peak wavelength	590 nm
Maximum reverse voltage	4 V
perspective	8 deg
Base Number Matches	1

Preview

Download Datasheet

View All

YELLO

YELLOW

TOSHIBA T-1¾InGaAIP Ultra Bright LED

TLYE160A

Product Features

eatur

Product Features -

• InGaAIP Technology

• T-1 (3 mm) Package

l

• Yellow Light (l

p

= 590 nm) Emission

• Water Clear Lens

• Narrow Radiation Pattern

RATINGS (Ta

MAXIMUM RATINGS (Ta = 25°C)

CHARACTERISTIC

SYMBOL

RATING

UNIT

Forward Current

Reverse Voltage

Power Dissipation

Operating Temperature

Storage Temperature

I

F

V

R

P

D

T

opr

T

stg

50

4

125

-30 ~ 85

-40 ~ 120

mA

V

mW

°C

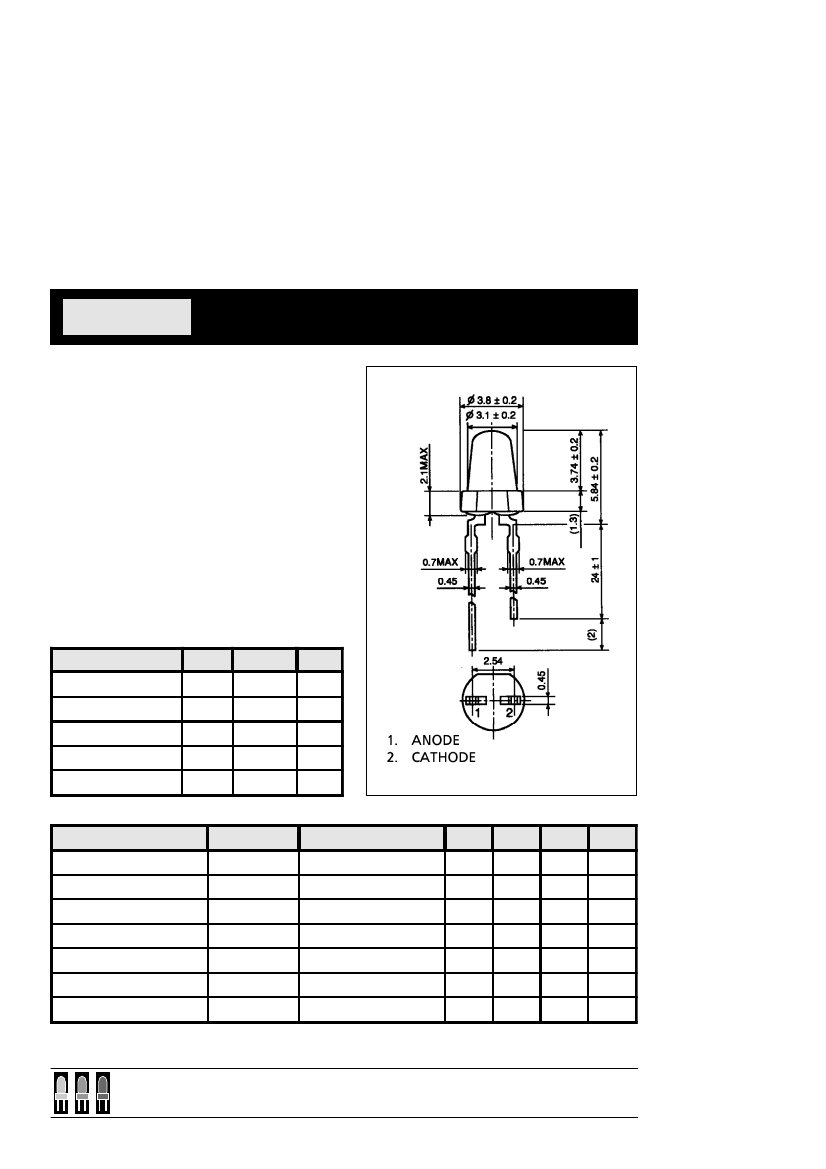

UNIT: mm

OPTO-ELECTRICAL CHARACTERISTICS (Ta

OPTO-ELECTRICAL CHARACTERISTICS (Ta = 25°C)

CHARACTERISTIC

Forward Voltage

Reverse Current

Luminous Intensity*

Viewing Angle

Peak Wavelength

Dominant Wavelength

Spectral Line Half Width

Available in One Bin Combination: (RS)

SYMBOL

V

F

I

R

I

V

2θ½

λ

p

λ

d

∆λ

TEST CONDITION

IF = 20mA

VR = 4V

IF = 20mA

—

IF = 20mA

MIN.

—

475

—

TYP.

2.1

—

2000

8

590

587

13

MAX.

2.5

50

—

UNIT

V

µA

mcd

°

nm

* Luminous Ranks: (R : 560-1120mcd), (S : 1000-2000mcd), (T : 1800-3600mcd) Upper and lower limit tolerance ±15%

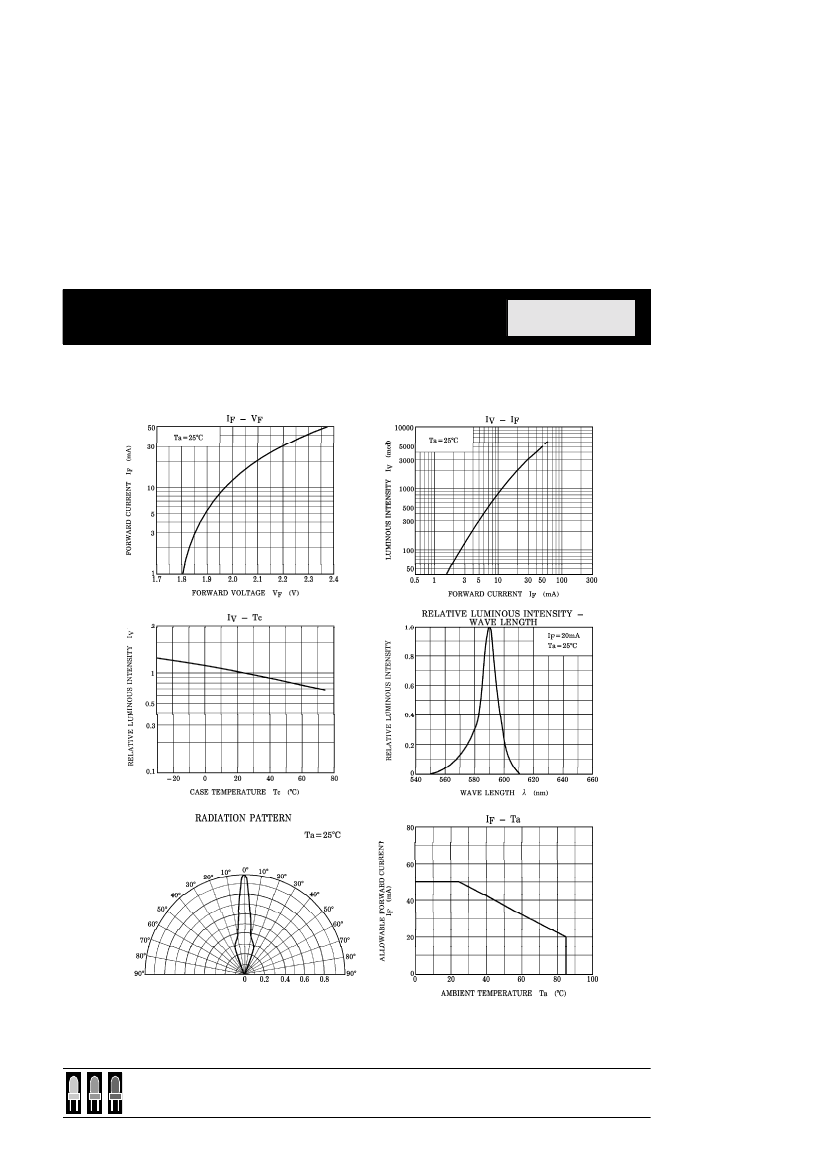

marktech

optoelectronics

For up-to-date product info visit our web site at www.marktechopto.com

120 Broadway • Menands, New York 12204

Toll Free:

(800) 98-4LEDS

• Fax: (518) 432-7454

All specifications subject to change.

196
