1W Class-AB Audio Power Amplifier
PT2366
DESCRIPTION
PT2366 is an audio power amplifier IC utilizing advanced CMOS technology. It can deliver 1W power
output under 5V supply voltage. The power consumption is very low in stand-by mode. Built-in
over-temperature protection, package size is not occupies PCB space. It is suitable for small or
portable products.
FEATURES
•
•
•
•
•
•
CMOS technology
Output power 1W (8Ω)
Low harmonics distortion
Built-in pop and click noise suppress
Shutdown function, turn on can into save mode (Icc<0.1µA)
Built-in over-temperature protection
APPLICATIONS
•
•
•
•
•
DSC, PDA
LCD TV or Monitor
Electronic dictionary
Multimedia speaker
Other A/V applications
PT2366 V1.2
-1-
May, 2008
Tel: 886-2-66296288
Fax: 886-2-29174598
URL: http://www.princeton.com.tw
1W Class-AB Audio Power Amplifier
PT2366

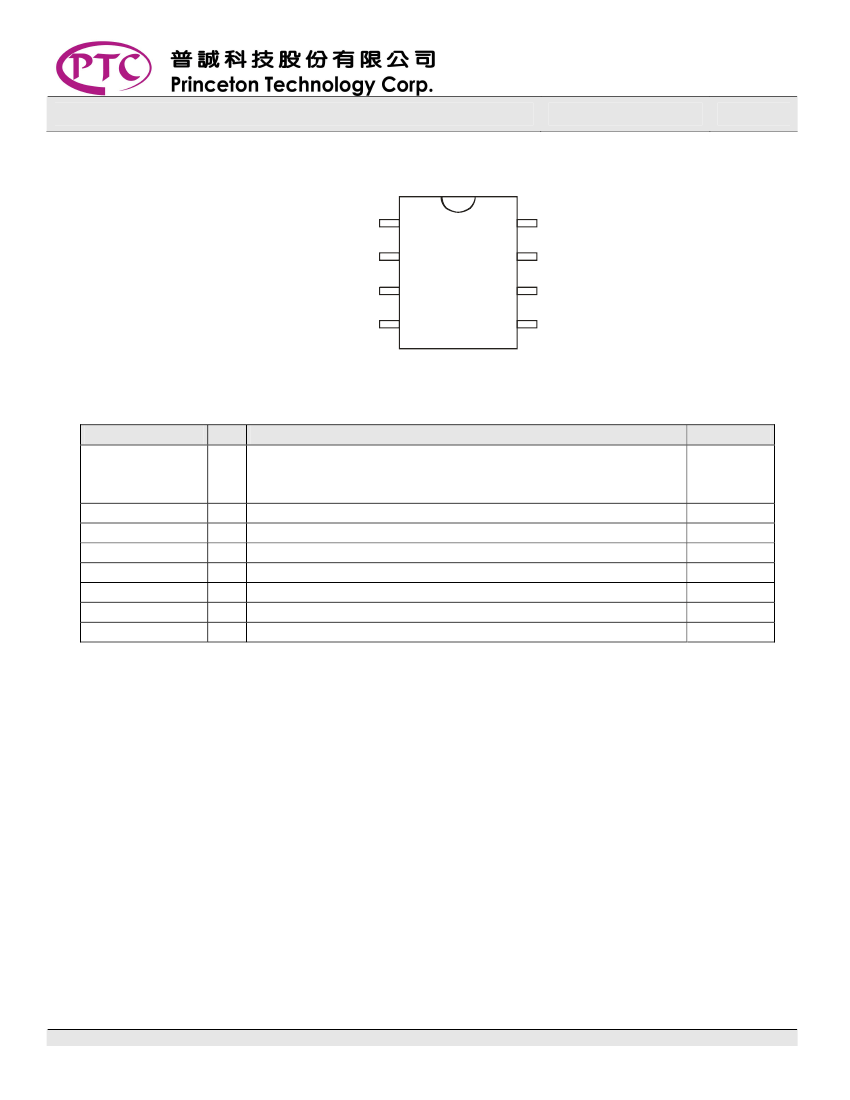

PIN CONFIGURATION
/S HUTDOW N
BY PASS
+IN
-IN
1
2
3
4
PT 2366
8
7
6
5
V
O 2
GND
V
D D
V
O 1
PIN DESCRIPTION
Pin Name
/SHUTDOWN
BYPASS
+IN
-IN
Vo1
VDD
GND
Vo2
I/O
I
I
I
I
O
-
-
O
Description
Shutdown pin
Entire IC into the shutdown mode when this pin connected
to the GND.
Internal bias reference bypassing
Channel input (+)
Channel input (-)
Channel output (-)
Supply voltage
Ground
Channel output (+)
Pin No.
1
2
3
4
5
6
7
8
PT2366 V1.2
-2-
May, 2008
Tel: 886-2-66296288
Fax: 886-2-29174598
URL: http://www.princeton.com.tw
1W Class-AB Audio Power Amplifier
PT2366
APPLICATION CIRCUIT

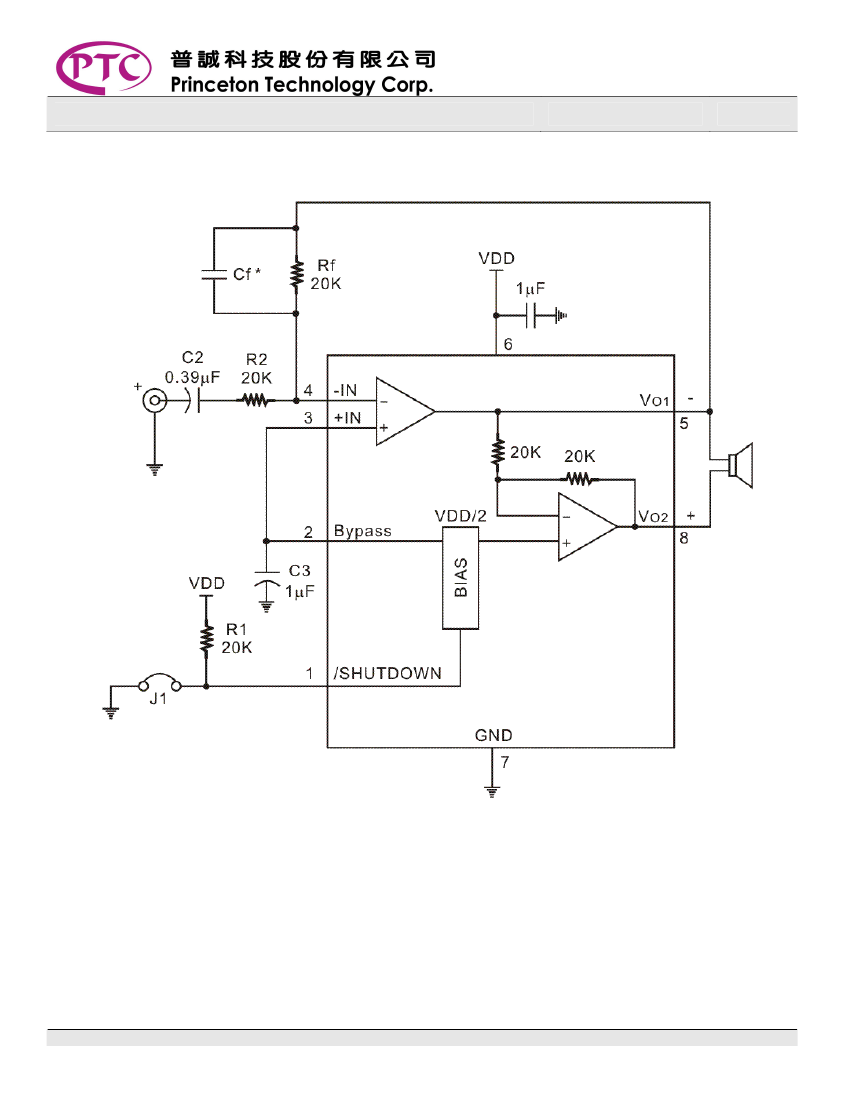

SINGLE ENDED INPUT
Notes:
1. * = Not stuffed
2. Add a circuit (Cf) if needed, it can be a low filter to delete high frequency oscillation, but must to
avoid incorrect Rf and Cf combination to cause “glide” before 20KHz. In general Rf=20KΩ,
Cf=25pF, -3dB is 320KHz is recommended.
PT2366 V1.2
-3-
May, 2008
Tel: 886-2-66296288
Fax: 886-2-29174598
URL: http://www.princeton.com.tw
1W Class-AB Audio Power Amplifier
PT2366

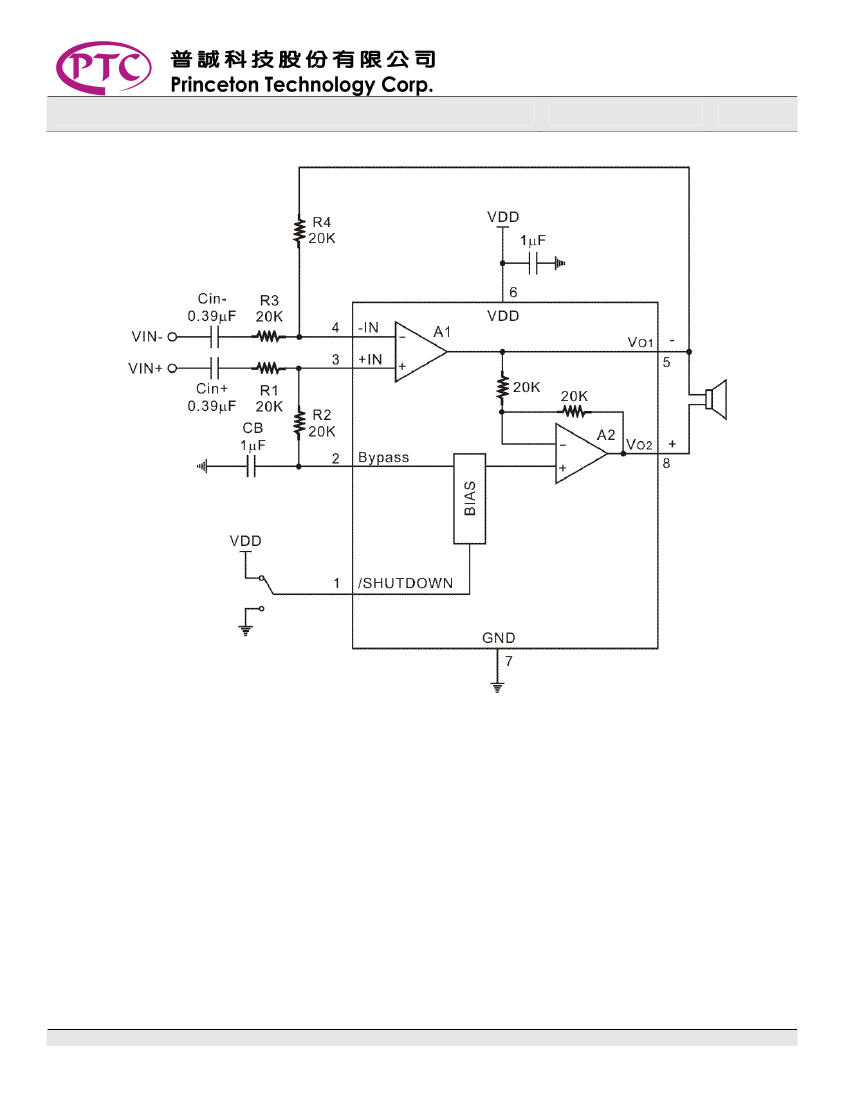

DIFFERENTIAL INPUT
PT2366 V1.2
-4-
May, 2008
Tel: 886-2-66296288
Fax: 886-2-29174598
URL: http://www.princeton.com.tw
1W Class-AB Audio Power Amplifier
PT2366
ORDER INFORMATION
Valid Part Number
PT2366-MS
Package Type
8 Pins, MSOP, 118mil
Top Code
PT2366-MS
PT2366 V1.2
-5-
May, 2008
