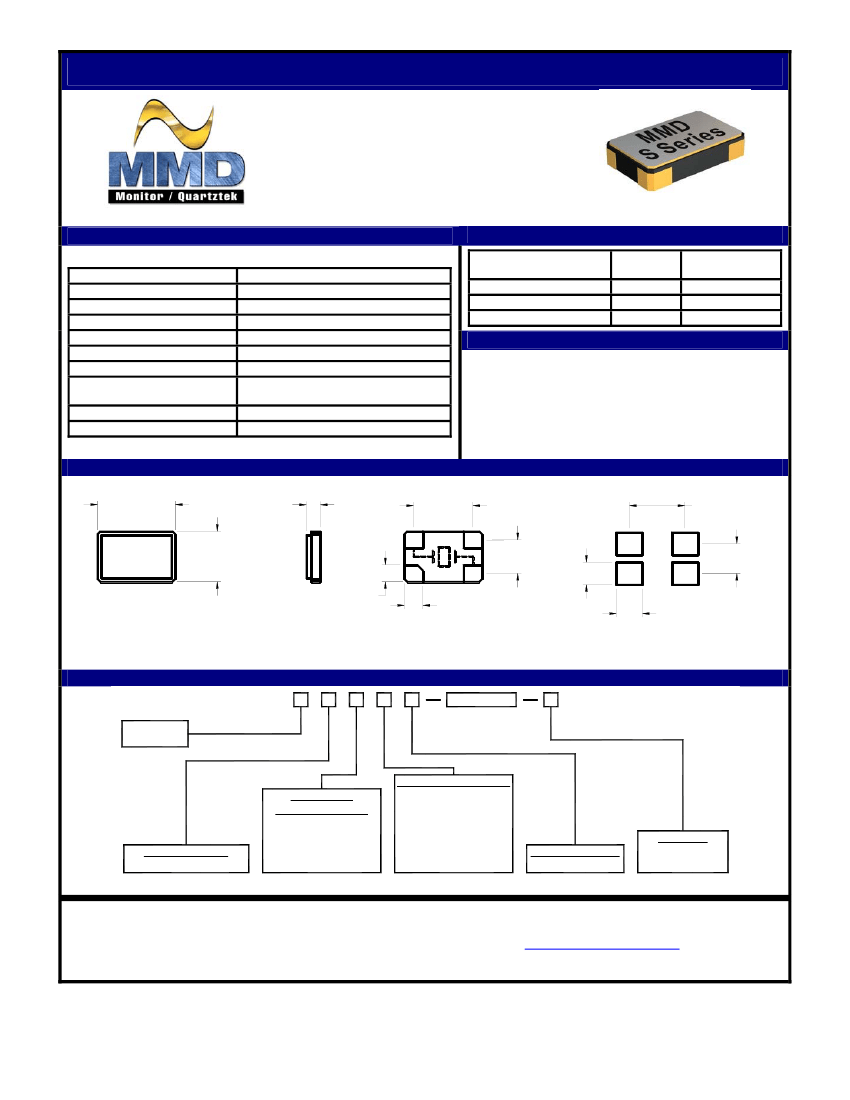

S Series Crystal
4.0mm X 2.5mm SMD Package
Wide Frequency Range
RoHS Compliant
Tight Tolerance and Stability
ELECTRICAL SPECIFICATIONS:
Frequency Range
Frequency Tolerance / Stability
Operating Temperature Range
Storage Temperature
Aging
Shunt Capacitance
Load Capacitance
Equivalent Series Resistance
(ESR)
Drive Level
Insulation Resistance
12.000MHz to 50.000MHz
(See Part Number Guide for Options)
(See Part Number Guide for Options)
-40°C to +85°C
±5ppm / first year max
5pF Max
(See Part Number Guide for Options)
See ESR Chart
10µW Typ / 100µW Max
500 Megaohms Min at 100VDC ±15VDC
ESR CHART:
Frequency Range
12.000MHz to 16.000MHz
16.000MHz to 30.000MHz
30.000MHz to 50.000MHz
ESR
(Ohms)
80 Max
60 Max
40 Max
Mode / Cut
Fund / AT
Fund / AT
Fund / AT
MARKING:
Line 1: MXX.XXX
XX.XXX = Frequency in MHz
Line 2: SYMCCL
S = Internal Code
YM = Date Code (Year/Month)
CC = Crystal Parameters Code
L = Denotes RoHS Compliant
MECHANICAL DETAILS:
4.20 [.165]
MAX
0.75 [.030]
MAX
3.00 [.118]
3.00 [.118]
2.70 [.106]
MAX
0.90 [.035]
1.40 [.055]
1.20 [.047]
1.00 [.039]
1.60 [.063]
1.40 [.055]
RECOMMENDED
LAND PATTERN
DIMENSION IN BRACKETS ARE IN INCHES
PART NUMBER GUIDE:
S
4mm x 2.5mm
4 pads
1
Frequency
Operating Temperature
Temperature
Tolerance/Stability
B = ±30 ppm / ±50 ppm
F = ±30 ppm / ±30 ppm
G = ±10 ppm / ±30 ppm
N = ±10 ppm / ±10 ppm
A = 0°C to +70°c
B = -20°C to +70°c
C = -40°C to +85°c
D = -10°C to +60°c
E = -10°C to +70°c
F = -30°C to +85°c
Packaging
Mode of Operation
1 = Fundamental
Blank = Bulk
T = Tape and Reel
Load Capacitance
XX = XXpF (9pF to 50pF)
Please Consult with MMD Sales Deparment for any other Parameters or Options
MMD Components,
30400 Esperanza, Rancho Santa Margarita, CA, 92688
Phone: (949) 709-5075, Fax: (949) 709-3536,
www.mmdcomp.com
Sales@mmdcomp.com
Specifications subject to change without notice
Revision S031008E
