DM-SM04-M1-G datasheet, PDF - EEWORLD Datasheet

DM-SM04-M1-G: DescriptionSnap Acting/Limit Switch, SPDT, Vertical, 2.2098mm, Quick Connect Terminal, Simulated Roller Actuator, Panel Mount; CategoryMechanical and electronic products switch; File Size149KB，1 Pages; ManufacturerKnitter-switch; Websitehttp://www.knitter-switch.com/

Download Datasheet Parametric View All

DM-SM04-M1-G Overview

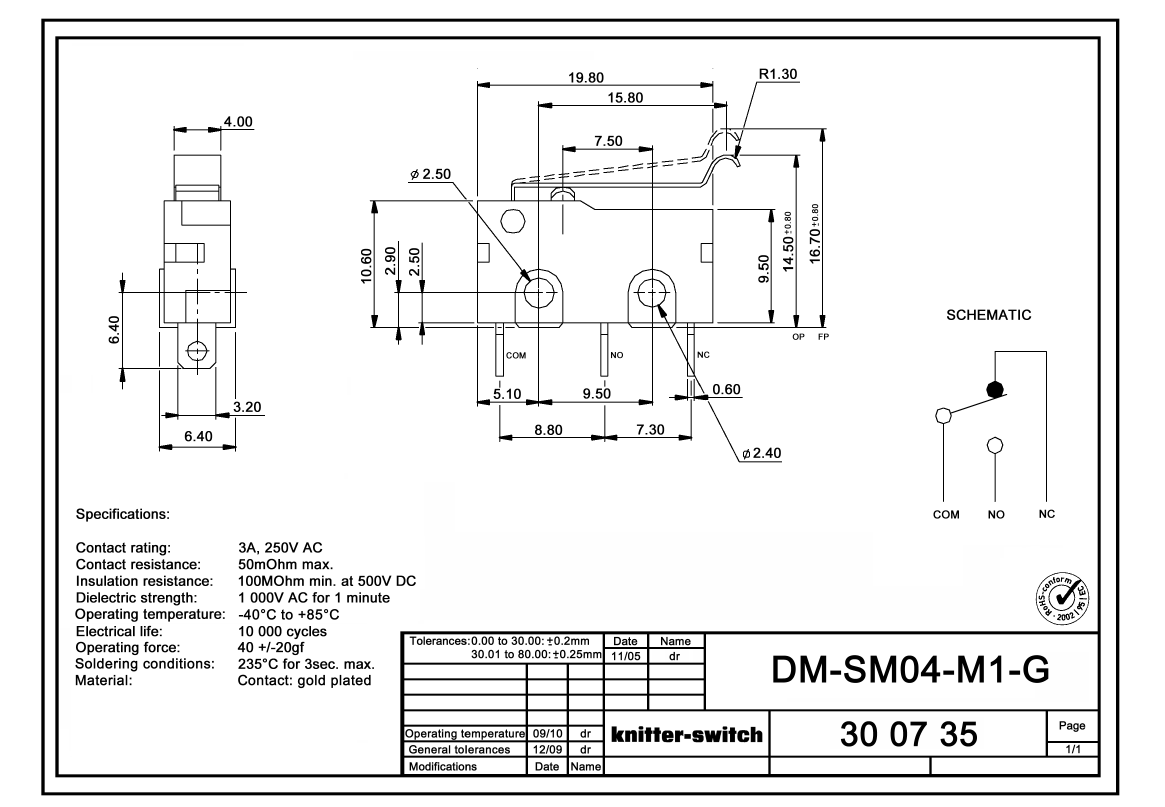

Snap Acting/Limit Switch, SPDT, Vertical, 2.2098mm, Quick Connect Terminal, Simulated Roller Actuator, Panel Mount

Parameter Name	Attribute value
Maker	Knitter-switch
Reach Compliance Code	compliant
Actuator length	0.622 inch
Actuator stroke	2.2098 mm
Actuator type	SIMULATED ROLLER
body width	6.4008 mm
body height	10.5918 mm
Body length or diameter	19.812 mm
Center contact plating	GOLD
Contact (AC) maximum rated R load	3A@250VAC
Maximum contact current (AC)	3 A
Contact resistance	0.05 mΩ
contact time	SNAP ACTION
Maximum contact voltage (AC)	250 V
Dielectric withstand voltage	1000VAC V
End contact plating	GOLD
Insulation resistance	100000000 Ω
Manufacturer's serial number	DM-SM
Installation features	PANEL MOUNT
Maximum operating force	0.392 N
work location	0.571 inch
Maximum operating temperature	85 °C
Minimum operating temperature	-40 °C
surface mount	NO
Switch action	VERTICAL
switch function	SPDT
Switch type	SNAP ACTING/LIMIT SWITCH
Termination type	QUICK CONNECT
