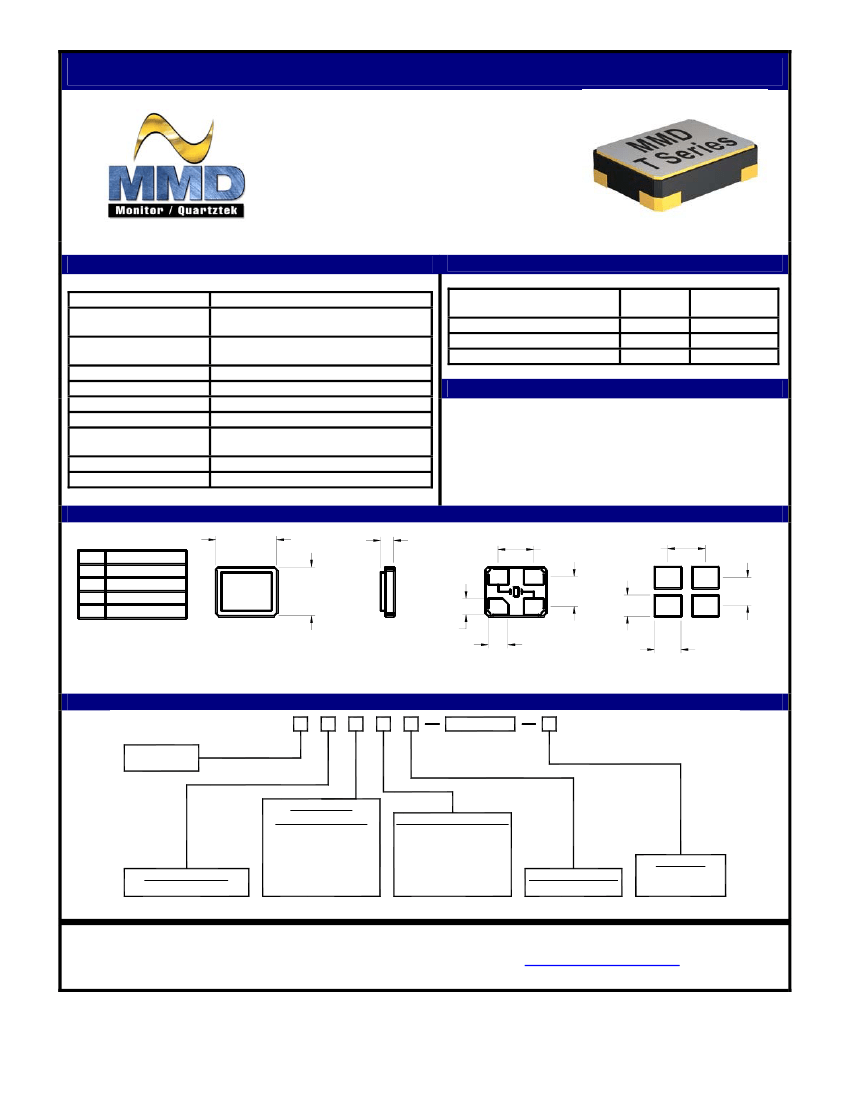

T Series Crystal Spec
3.2mm X 2.5mm SMD
Wide Frequency Range
RoHS Compliant
Tight Tolerance and Stability
ELECTRICAL SPECIFICATIONS:
Frequency Range
Frequency Tolerance /
Stability
Operating Temperature
Range
Storage Temperature
Aging
Shunt Capacitance
Load Capacitance
Equivalent Series
Resistance (ESR)
Drive Level
Insulation Resistance
13.000MHz to 55.000MHz
(See Part Number Guide for Options)
(See Part Number Guide for Options)
-40°C to +85°C
±5ppm / first year max
5pF Max
(See Part Number Guide for Options)
See ESR Chart
10µW Typ / 100µW Max
500 Megaohms Min at 100VDC ±15VDC
ESR CHART:
Frequency Range
13.000MHz to 20.000MHz
20.000MHz to 30.000MHz
30.000MHz to 55.000MHz
ESR
(Ohms)
100 Max
80 Max
60 Max
Mode / Cut
Fund / AT
Fund / AT
Fund / AT
MARKING:
Line 1: MXX.XXX
XX.XXX = Frequency in MHz
Line 2: SYMCCL
S = Internal Code
YM = Date Code (Year/Month)
CC = Crystal Parameters Code
L = Denotes RoHS Compliant
MECHANICAL DETAILS:
PIN
1
2
3
4
CONNECTION
CRYSTAL
NC
CRYSTAL
NC
3.45 [.136]
MAX
0.75 [.030]
MAX
2.00 [.079]
2.12 [.083]
2.75 [.108]
MAX
0.91 [.036]
1.12 [.044]
DIMENSIONS IN BRACKETS ARE IN INCHES
1
4
2
1.70 [.067]
1.60 [.063]
1.20 [.047]
3
1.50 [.059]
RECOMMENDED
LAND PATTERN
PART NUMBER GUIDE:
T
3.2mm x 2.5mm
4 pads
1
Frequency
Load Capacitance
XX = XXpF (9pF to 50pF)
Temperature
Tolerance/Stability
B = ±30 ppm / ±50 ppm
F = ±30 ppm / ±30 ppm
G = ±10 ppm / ±30 ppm
N = ±10 ppm / ±10 ppm
P = ±20 ppm / ±20 ppm
Operating Temperature
A = 0°C to +70°c
B = -20°C to +70°c
C = -40°C to +85°c
D = -10°C to +60°c
E = -10°C to +70°c
Packaging
Mode of Operation
1 = Fundamental
Blank = Bulk
T = Tape and Reel
Please Consult with MMD Sales Deparment for any other Parameters or Options
MMD Components,
30400 Esperanza, Rancho Santa Margarita, CA, 92688
Phone: (949) 709-5075, Fax: (949) 709-3536,
www.mmdcomp.com
Sales@mmdcomp.com
Specifications subject to change without notice
Revision T031008D
