1023-626-CE472 datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > Passive components> The resistor> 1023-626-CE472

1023-626-CE472: DescriptionRESISTOR, POTENTIOMETER, CARBON FILM, 0.25W, 4700ohm; CategoryPassive components The resistor; File Size345KB，1 Pages; ManufacturerBourns; Websitehttp://www.bourns.com; Environmental Compliance

Download Datasheet Parametric View All

1023-626-CE472 Overview

RESISTOR, POTENTIOMETER, CARBON FILM, 0.25W, 4700ohm

1023-626-CE472 Parametric

Parameter Name	Attribute value
Is it lead-free?	Lead free
Is it Rohs certified?	conform to
Maker	Bourns
Reach Compliance Code	compliant
ECCN code	EAR99
Actuator direction	VERTICAL
Actuator type	SLIDE
structure	Metal Housing
gang number	1
Manufacturer's serial number	1023
Installation features	THROUGH HOLE MOUNT
Number of terminals	3
Maximum operating temperature	70 °C
Minimum operating temperature	-25 °C
Package height	9.4 mm
Package length	60 mm
Package shape	RECTANGULAR PACKAGE
Package form	PCB Mount
Package width	11 mm
Rated power dissipation(P)	0.25 W
resistance	4700 Ω
resistance law	LINEAR
Resistor type	POTENTIOMETER
series	1023
surface mount	NO
technology	CARBON FILM
Terminal shape	FLAT
Tolerance	10%

Preview

Download Datasheet

View All

Features

40 mm travel

Metal housing

Carbon resistive element

Smooth sliding feel

Non-standard options available upon request

This model is

not

recommended for new designs.

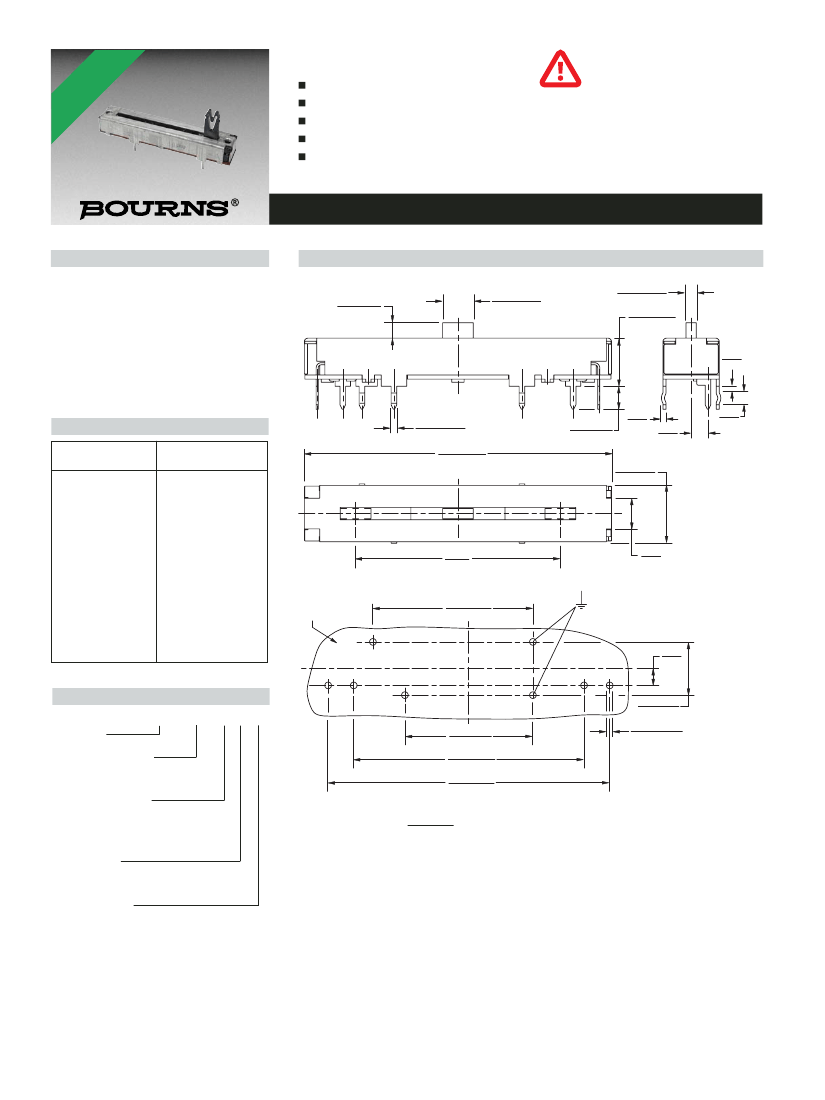

1023 - Slide Potentiometer

Stroke Length...............................40 mm

Standard Resistance Range

...................100 ohms to 4.7 megohms

Resistance Taper...........................Linear

Power Rating ...............................0.25 W

Operating Force ...................0.8 to 2.4 N

End Stop Force.......................50 N max.

Temperature Range ......-25 °C to +70 °C

Slide Life ...........................10,000 cycles

Standard Resistance Table

Resistance

(Ohms)

100

220

470

1,000

2,200

4,700

10,000

22,000

47,000

100,000

220,000

470,000

1,000,000

2,200,000

4,700,000

Characteristics

Product Dimensions

1023-626

3.0 ± 0.2

(.118 ± .008)

6.0 +0/-0.05

(.236 +0/-.002)

2.0 +0/-0.05

(.079 +0/-.002)

9.4 +0.1/-0

(.370 +.004/-0

1.3

(.051)

Resistance

Code

101

221

471

102

222

472

103

223

473

104

224

474

105

225

475

How to Order

Model Type

• 1023

Terminal & Lever Style

• 626

Other styles available

upon request.

Independent Linearity

A = ±5 %

B = ±4 %

C = ±3 %

D = ±2.5 %

E = ±2 %

Element Taper

B = Linear Carbon ±20 %

E = Linear Carbon ±10 %

M = Linear Carbon ±30 %

Resistance Code

Other versions available upon request.

1023 - 626 - A B 103

60.0 ± 0.1

(2.362 ± .004)

40.0

(1.575)

MECHANICAL TRAVEL

31.25 ± 0.1

(1.230 ± .004)

COMPONENT

SIDE

25.0 ± 0.1

(.984 ± .004)

45.0 ± 0.1

(1.772 ± .004)

55.0 ± 0.1

(2.165 ± .004)

1.1 +0/-0.1

(.043 +0/-.004)

4.5 ± 0.2

(.177 ± .008)

0.9

(.035)

3.3

(.130)

2.0

(.079)

11.0 ± 0.2

(.433 ± .008)

6.0

(.236)

3.3

(.130)

10.4 ± 0.2

(.409 ± .008)

1.3 +0.1/-0

(.051 +.004/-0)

DIA.

DIMENSIONS ARE:

(INCHES)

REV. 11/12

*RoHS Directive 2002/95/EC Jan. 27, 2003 including annex and RoHS Recast 2011/65/EU June 8, 2011.

Specifications are subject to change without notice.

Customers should verify actual device performance in their specific applications.
