RT100KP SERIES
VOLTAGE-28.0 TO 400 Volts
DRAFT
GLASS PASSIVATED JUNCTION TRANSIENT VOLTAGE SUPPRESSOR
100,000 Watt Peak Pulse Power
FEATURES
• Plastic package has Underwriters Laboratory
Flammability Classification 94V-0
• Glass passivated junction
• 100, 000W Peak Pulse Power
capability on 6.4/69 µs waveform
• Excellent clamping capability
• Repetition rate (duty cycle):0.05%
• Low incremental surge resistance
• Fast response time: typically less
than 1.0 ps from 0 volts to BV
• High temperature soldering guaranteed:
265°C/10 seconds/.375", (9.5mm) lead
length, 5lbs., (2.3kg) tension
100 KW Transient Voltage Suppressor (TVS) are
designed for aircraft applications requiring high power
transient protection. This includes various threats such as

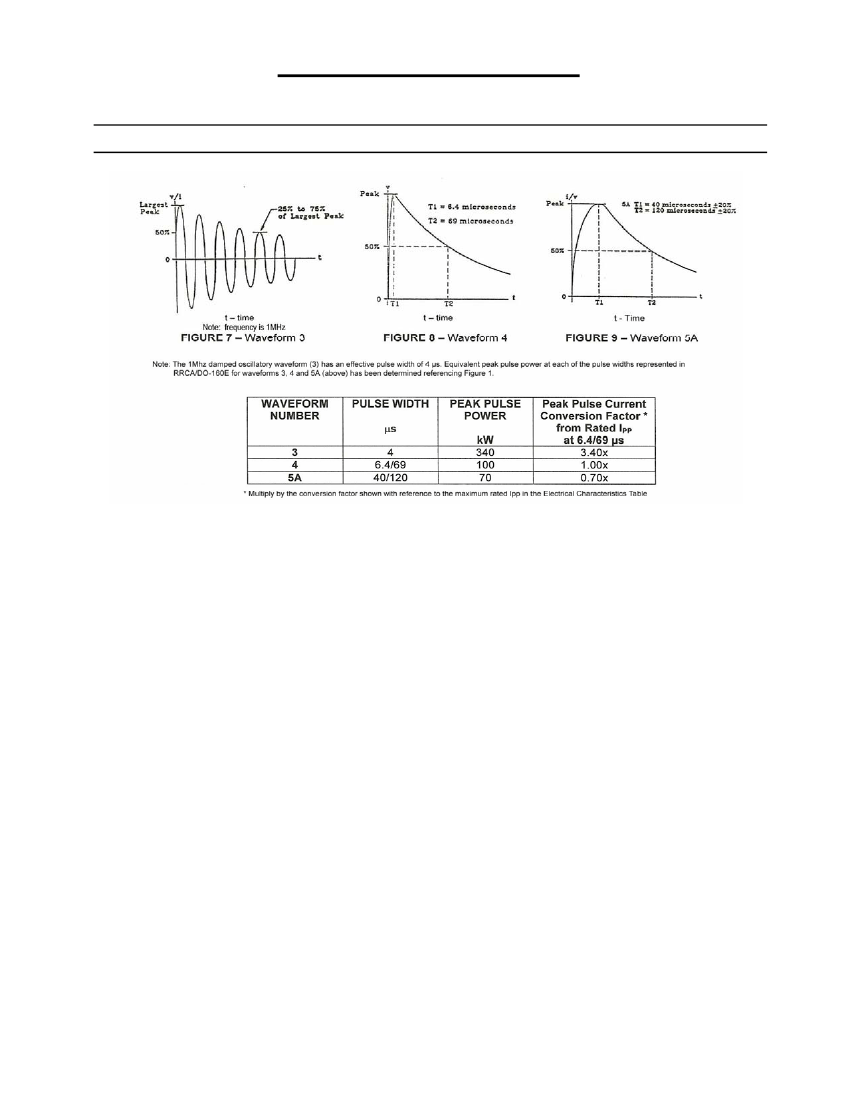

"Waveform 4" at 6.4/69 µs per RTCA/DO-160E Section22.
P-600
1.0(25.4) MIN
.360(9.1)
.340(8.6)
DIA
.360(9.1)
.340(8.6)
.052(1.3)
.048(1.2)
1.0(25.4) MIN
DIA
MECHANICAL DATA
Case:Molded plastic over glass passivated junction
Terminals: Plated Tin Axial leads, solderable per
MIL-STD-750, Method 2026
Polarity: Color band denoted positive end (cathode)
except Bipolar
Mounting Position: Any
Weight: 0.07 ounce, 2.5 gram
Dimensions in inches (milimeters)
DEVICES FOR BIPOLAR APPLICATIONS
For Bidirectional use C or CA Suffix for types RT100KP28 thru types RT100KP400
Electrical characteristics apply in both directions.
MAXIMUM RATINGS AND CHARACTERISTICS
Ratings at 25°C ambient temperature unless otherwise specified.
RATING
Peak Pulse Power Dissipation on 6.4/69 µs
waveform
Peak Pulse Current of on 6.4/69 µs waveform
Steady State Power Dissipation at Tl=75 °C
Lead Lengths.375", (9.5mm)(NOTE 2)
SYMBOL
P
PPM
I
PPM
P
M
(AV)
VALUE
Minimum 100,000
SEE TABLE 1
8.0
UNITS
Watts
Amps
Watts
Peak Forward Surge Current, 8.3ms Sine-Wave
I
FSM
400.0
Superimposed on Rated Load, (JEDEC Method)
(NOTE 3)
Operatings and Storage Temperature Range
T
J
, T
STG
-55 to +175
NOTES:
1.Non-repetitive current pulse, per Fig.3 and derated above Ta=25 °C per Fig.2.
2.Mounted on Copper Pad area of 0.8x0.8" (20x20mm) per Fig.5.
3.8.3ms single half sine-wave, or equivalent square wave, Duty cycle=4 pulses per minutes maximum
Certified RoHS Compliant
Amps
°C
MDE Semiconductor, Inc.
78-150 Calle Tampico, Unit 210, La Quinta, CA., USA 92253 Tel: 760-564-8656 • Fax: 760-564-2414
1-800-831-4881 Email: sales@mdesemicondutor.com Web: www.mdesemiconductor.com
RT100KP Series Rating and Characteristic Curves
DRAFT
Fig. 1 - Peak Pulse Power Rating Curve
1000
P
PPM
-Peak Pulse Power s. Pulse Time - KW
Non-repetitive Pulse
100
10
1
100ns
1µs
10µs
100µs
t
d
- Pulse Width (sec.)
Fig.2 - Pulse Derating Curve
100
87.5
75
62.5
Peak Pulse Power (P
PP
)
or Current (I
PP
)
Derating in Percentage,%
50
37.5
25
12.5
0
0
25
50
75
100
125
150
175
200
T
A
- Ambient Temperature (°C)
51mcu
