Shanghai Lunsure Electronic
Technology Co.,LTD
Tel:0086-21-37185008
Fax:0086-21-57152769
BSOZA501
THRU
BSOZA506
BIG SOZA CELL
VOLTAGE RANGE
100 TO 600 VOLTS
CURRENT 50AMPS
Features
Low leakage
Low forward voltage drop
High current capability
High forward surge current capability
BS
Mechanical Data
Copper slug
Technology: cell with vcauum soldered,
cell with 180mil SQU
Polarity: blue dots denotes cathode end
Mounting Position: Any
Weigth: 0.7 grams
.299(7.6)
DIA
.283(7.2)
0.086(2.2)
0.078(2.0)
Maximum Ratings and Electrical Charactristics
Rating at 25
o
C ambient temperature unless otherwise specified
Single phase, half wave, 60Hz, resistive or inductive load
For capacitive load derate current by 20%
Dimensions in inches and millimeters
Parameters
Symbols BSOZA501 BSOZA502 BSOZA503 BSOZA504 BSOZA506
V
RRM
Maximum repetitive peak reverse voltage
100
200
300
400
600
V
RMS
Maximum RM S voltage
70
140
210
280
420
V
DC
Maximum DC blocking voltage
100
200
300
400
600
Maximum Average rectified forward current
I
o
50
at T
C
=110
o
C
Peak forward surge current 8.3mS single
I
FSM
500
half sine-wave superimposed on rated load
(JE DEC Method)
Maximum instantaneous forward voltage
V
F
1.08
drop at 100A
5
Maximum DC reverse current T
A
=25
o
C
I
R
250
at rated DC blocking voltage T
A
=150
o
C
Typical thermal resistance
Operating and storage temperature
R
θJC
T
J
,T
STG
0.8
-65 to +175
Units
Volts
Volts
Volts
Amps
Amps
Volts
uA
o
C/W
o
C

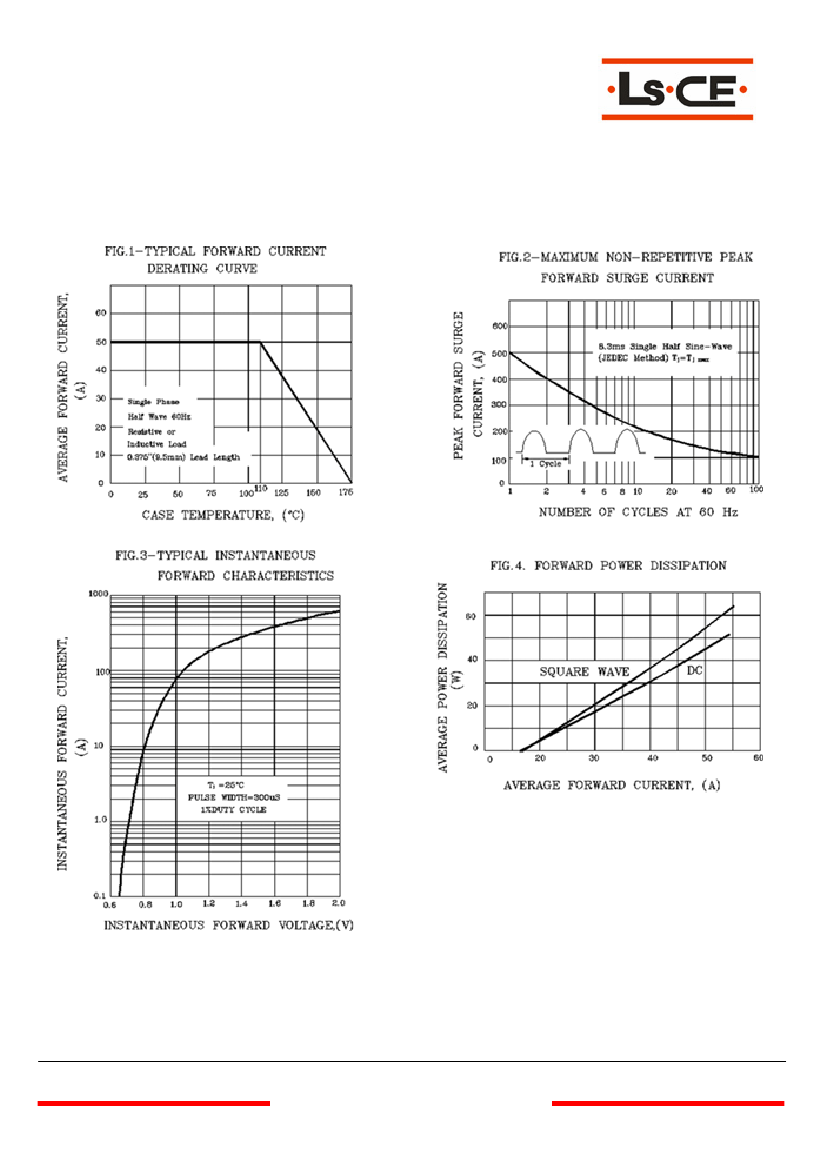

Notes: 1.Enough heatsink must be considered in application.
