CSNL10.002871%R

Description
RESISTOR, CURRENT SENSE, METAL FOIL, 1.5W, 1%, 50ppm, 0.00287ohm, SURFACE MOUNT, 2010, CHIP, ROHS COMPLIANT
CategoryPassive components    The resistor
File Size94KB,2 Pages
ManufacturerSEI(Stackpole Electronics Inc.)
Websitehttps://www.seielect.com/
Environmental Compliance
Download Datasheet Parametric View All

CSNL10.002871%R Overview

RESISTOR, CURRENT SENSE, METAL FOIL, 1.5W, 1%, 50ppm, 0.00287ohm, SURFACE MOUNT, 2010, CHIP, ROHS COMPLIANT

CSNL10.002871%R Parametric

Parameter NameAttribute value
Is it Rohs certified?conform to
MakerSEI(Stackpole Electronics Inc.)
package instructionCHIP, ROHS COMPLIANT
Reach Compliance Codeunknown
ECCN codeEAR99
JESD-609 codee3
Manufacturer's serial numberCSNL
Installation featuresSURFACE MOUNT
Number of terminals2
Maximum operating temperature170 °C
Minimum operating temperature-55 °C
Package shapeRECTANGULAR PACKAGE
method of packingTR, 7 INCH
Rated power dissipation(P)1.5 W
Rated temperature70 °C
resistance0.00287 Ω
Resistor typeFIXED RESISTOR
size code2010
surface mountYES
technologyMETAL FOIL
Temperature Coefficient50 ppm/°C
Terminal surfaceMatte Tin (Sn) - with Nickel (Ni) barrier
Terminal shapeWRAPAROUND
Tolerance1%

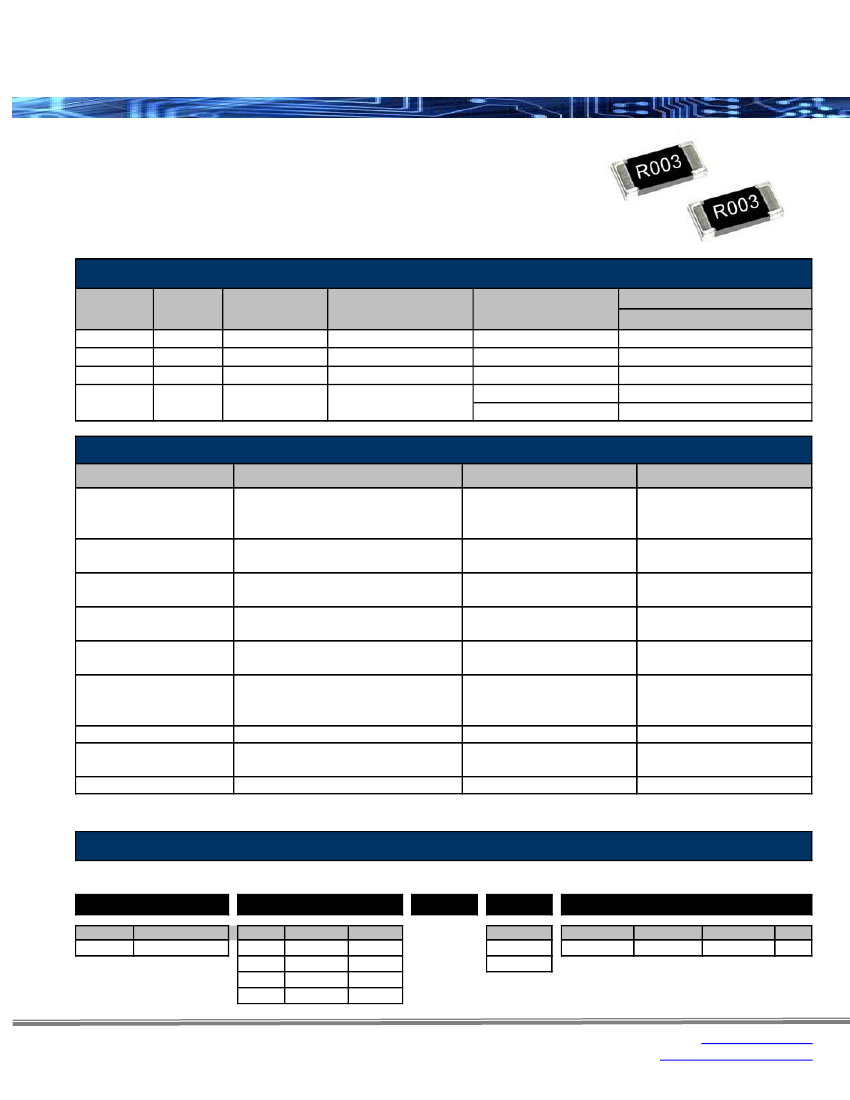

CSNL Series
Metal Foil Current Sensing Chip Resistor
Features:
High power current sense resistor
TCR of ±50 ppm/°C
Resistances down to 0.0005 (1/2 mΩ)
Current handling up to 63 amps
Non-standard resistance values available
RoHS compliant / lead-free
Stackpole Electronics, Inc.
Resistive Product Solutions
Electrical Specifications
Type / Code
CSNL 1/2
CSNL 1
CSNL 2
CSNL 3
Package
Type
1206
2010
2512
2512
Power Rating
(Watts) @ 70ºC
1W
1.5W
2W
3W
Dielectric Withstanding
Voltage
200V
200V
200V
200V
Resistance Temperature
Coefficient
±50 ppm/ºC
±50 ppm/ºC
±50 ppm/ºC
±50 ppm/ºC
±100 ppm/ºC
Ohmic Range (Ω) and Tolerance
1%, 5%
0.001 - 0.05
0.0005 - 0.1
0.0005 - 0.01
0.001 - 0.003
0.0005 - 0.00075
Performance Characteristics
Test
Load Life
Test Method
MIL-STD-502F-Method 108A
RCWV at 70°C; 1.5hrs ON; 0.5hrs OFF
Total 1024 ± 24hrs
MIL-STD-202F-Method 210E
260 ± 5°C for 10 ± 1sec
MIL-STD-202F-Method 208H
245 ± 5°C for 2 ± 0.5sec
MIL-STD-202F-Method 107G
-55°C to 150°C, 100 cycles
JIS-C-5202-5.5
5x rated power for 5 sec
JIS-C-5202-7.4
-55°C: 30 min. 25°C: 2 to 3 min.
155°C: 30min. 25°C: 2 to 3 min.
MIL- STD-202F-Method 106G
MIL-STD-202F-Method 302
Apply 100Vdc for 1 minute
-
Test Specification
± 0.5%
Typical
0.5%
Resistance to Soldering Heat
Solderability
Thermal Shock
Short Time Overload
± 0.5%
minimum 95% coverage
± 0.5%
± 0.5%
0.25%
> 95%
0.5%
0.5%
Temperature Cycling
Moisture Resistance
Insulation Resistance
± 0.5%
± 0.5%
1MΩ minimum
90 seconds minimum
0.5%
0.5%
1MΩ
90 seconds
Leach Resistance
Operating Temperature Range: -55°C to +170°C

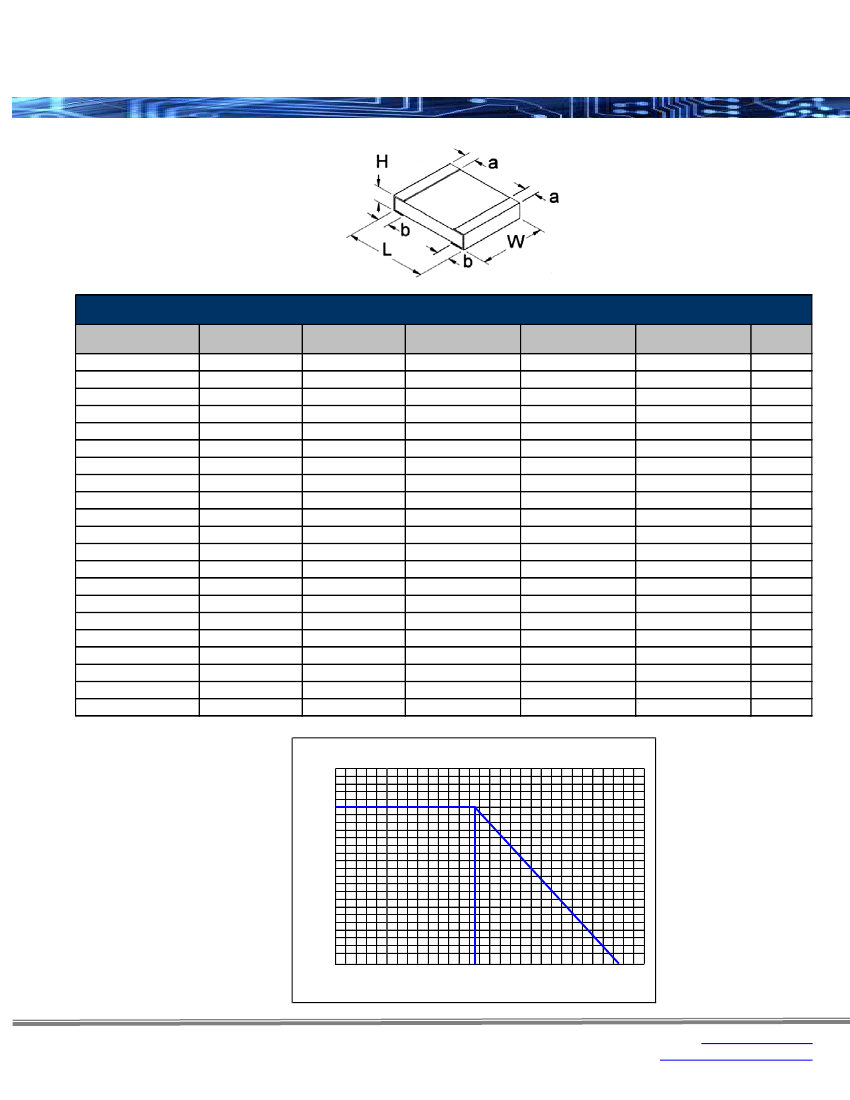

How to Order
SEI Type
Code
Nominal
Resistance
Tolerance
Packaging
CSNL
Type
CSNL
Description
Metal Foil
Code
1/2
1
2
3
1/2
Wattage
1W
1.5W
2W
3W
Size
1206
2010
2512
2512
0.01
1%
Tolerance
1%
5%
SEI Types
ALL
R
Pkg Qty
2,000
Description Code
7" reel
R
Rev Date: 01/05/2010
This specification may be changed at any time without prior notice
Please confirm technical specifications before you order and/or use.
43
www.seielect.com
