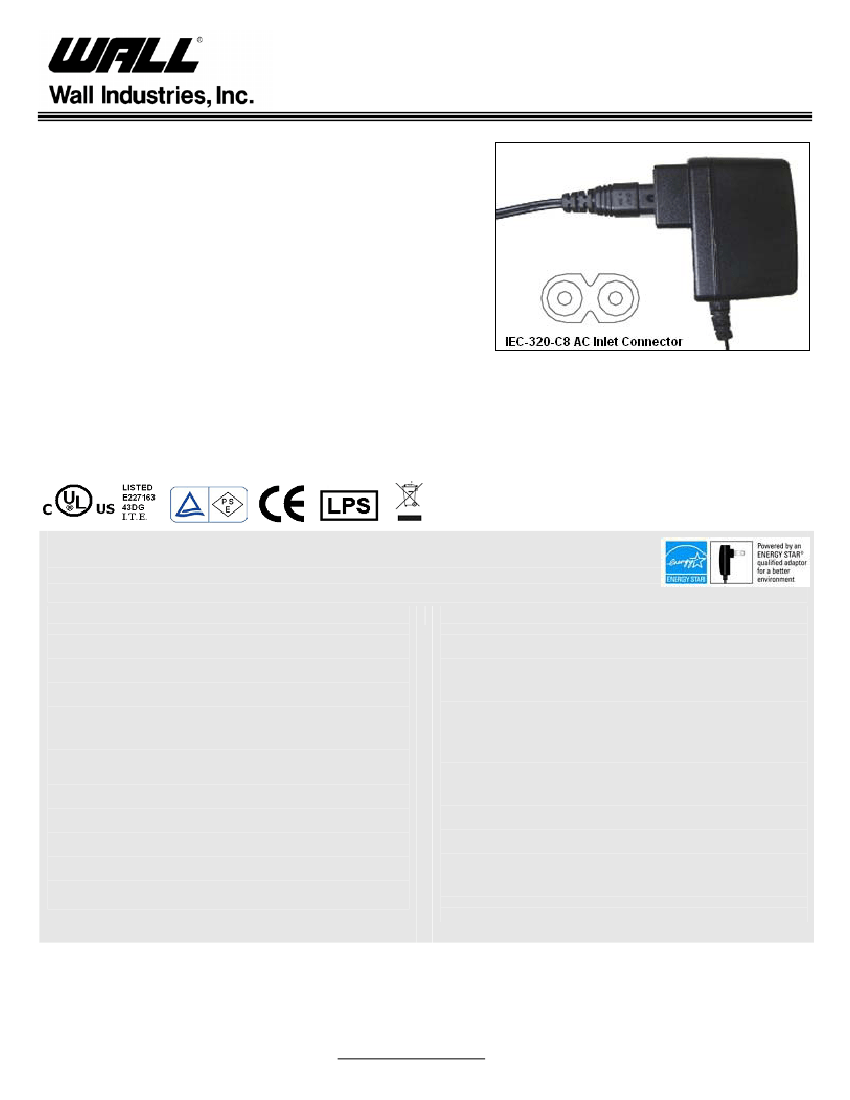

DTA18-Y Series
Rev. B
15-18 Watts
Single Output
AC/DC Desktop Power Supply
FEATURES
●
Single Output
●
Energy Star Compliant
●
Short Circuit Protected
●
Output Current from 1.2~3A
●
IEC-320-C8 AC Inlet Connector
●
Output Voltages from 5~15VDC
DESCRIPTION
The DTA18-Y Series offers 15 to 18 Watts in a universal input single output desktop power supply.
Output voltages are available from 5VDC to 15VDC. This series is Energy Star Compliant and also has
short circuit protection. All models come with an IEC-320-C8 AC inlet connector.
SPECIFICATIONS:
DTA18-Y Series
All specifications apply @ ±25°C ambient unless otherwise noted
INPUT SPECIFICATIONS
Input Range ............................................................ 100 - 240VAC
Input Frequency ............................................................... 50-60Hz
Leakage Current ....................................................... 0.25mA max
Inrush Current ...............................................30A max @ 115VAC
PROTECTION
Short Circuit Protection ................................................. Continuous
Over Voltage Protection........................................................Option
ENVIRONMENTAL SPECIFICATIONS
Operating Temperature .................................................. 0 ~ +40°C
Storage Temperature................................................... -25 ~ +85°C
OUTPUT SPECIFICATIONS
Output Current ................................................................ see table
Output Voltage ................................................................ see table
Line Regulation ...................................................................... ±1%
Load Regulation ..................................................................... ±5%
Ripple/Noise (20 MHz BW) ...................................................... 1%
Hold Up Time ..................................................... 10ms @ 115VAC
PHYSICAL SPECIFICATIONS
Weight ................................................................................. 123.2g
Dimensions ..............................................2.91 x 1.85 x 1.06 inches
74 x 47 x 27 mm
AC Inlet Connector ...................................................... IEC-320-C8
SAFETY
EMI Conduction ................................................... CISPR22 class B
Due to advances in technology, specifications subject to change without notice
Wall Industries, Inc. 5 Watson Brook Road Exeter, NH 03833
603-778-2300 www.wallindustries.com Fax 603-778-9797
DTA18-Y Series
Rev. B
15-18 Watts
Single Output
AC/DC Desktop Power Supply
OUTPUT VOLTAGE / CURRENT RATING CHART
Model
DTAF1805-Y
DTAF1806-Y
DTAF1807-Y
DTAF1808-Y
DTAG1809-Y
DTAG1810-Y
DTAG1811-Y
DTAH1812-Y
DTAH1813-Y
DTAH1814-Y
DTAH1815-Y
Output Voltage
5 VDC
6 VDC
7 VDC
8 VDC
9 VDC
10 VDC
11 VDC
12 VDC
13 VDC
14 VDC
15 VDC
Output Current
0 ~ 3.00A
0 ~ 2.50A
0 ~ 2.14A
0 ~ 1.87A
0 ~ 2.00A
0 ~ 1.80A
0 ~ 1.63A
0 ~ 1.50A
0 ~ 1.38A
0 ~ 1.28A
0 ~ 1.20A
Ripple & Noise
50mV
60mV
70mV
80mV
90mV
100mV
110mV
120mV
130mV
140mV
150mV
Line Regulation
± 1%
± 1%
± 1%
± 1%
± 1%
± 1%
± 1%
± 1%
± 1%
± 1%
± 1%
Load Regulation
± 5%
± 5%
± 5%
± 5%
± 5%
± 5%
± 5%
± 5%
± 5%
± 5%
± 5%
NOTES
1. The DTA18-Y Series is designated as DTAx18z-Y where
x
represents the different output voltage sections:
F (5-8V), G (9-11V), H (12-15V).
Z
can be 05, 06, 07, 08, 09, 10, 11, 12, 13, 14, or 15 for output voltage and
Y
represents the AC inlet connector (IEC-320-C8).
2. Powered by an ENERGY STAR
®
qualified adaptor for a better environment.
