Rev A

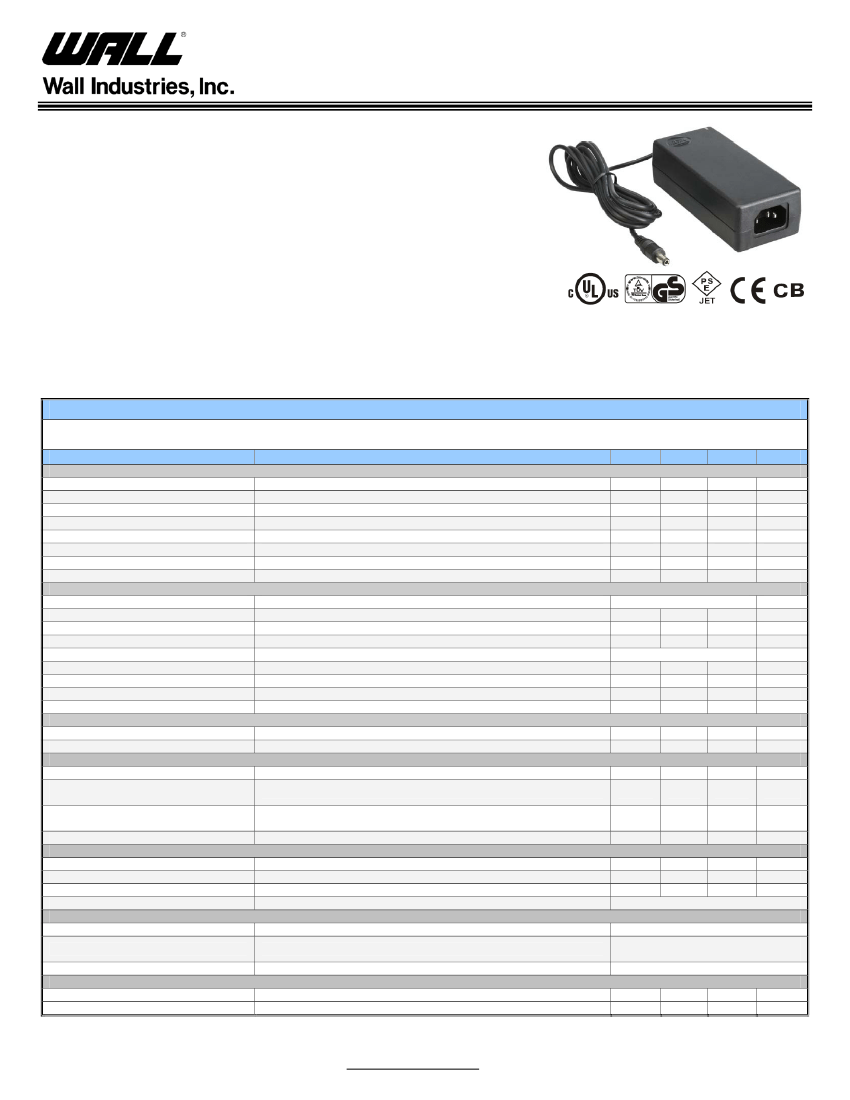

DTIPU30 Series
Single Output
Up to 30 Watts
AC/DC Desktop Power Supply
FEATURES
APPLICATIONS
●
Splash Proof
●
Scanners
●
100% Burn-in
●
LCD Monitors
●
Class I Insulation
●
Thermal Printers
●
IEC-320-C14 Input Inlet
●
Humidity Temperature Meters
●
Optional Output Connectors Available
●
Over Voltage Protection (Crowbar Design)
●
-20°C ~ +70°C Operating Temperature Range
●
Wide Input Voltage Range: 90 to 264VAC, 47~63Hz
●
Input Surge Current, Over Voltage, and Over Load Protection
DESCRIPTION
The DTIPU30 series of AC/DC desktop switching mode power supplies provide up to 30 watts of continuous output power. All models have
a single output, universal input voltage range, and an operating temperature range of –20°C ~ +70°C. These supplies are also protected
against input surge current, over voltage, and over load conditions. All supplies are also UL 94V-1 compliant and include an IEC-320-C14
input connector for worldwide applications. All models meet FCC-Part-15 class B and CISPR-22 class B emission limits and are designed
to comply with UL/c-UL (UL 60950-1), TUV/GS (EN 60950-1), and new CE requirements. These supplies are 100% burn-in tested.
SPECIFICATIONS:
DTIPU30 Series
All specifications are based on 25°C, Nominal Input Voltage, and Maximum Output Current unless otherwise noted.
We reserve the right to change specifications based on technological advances.
SPECIFICATION
INPUT (V
in
)
Operating Voltage Range
Input Frequency
Input Current (Low Line)
Input Current (High Line)
Inrush Current (Low Line)
Inrush Current (High Line)
Safety Ground Leakage Current
Start-Up Time
OUTPUT (V
o
)
Output Voltage
Load Regulation
Line Regulation
Output Power
Output Current
*Ripple
& Noise (peak to peak)
Transient Response Time
Hold-Up Time
Temperature Coefficient
PROTECTION
Over Voltage Protection
Over Current Protection
GENERAL
Efficiency
Dielectric Withstanding Voltage
For Primary to Secondary
Dielectric Withstanding Voltage
For Primary to Ground
Isolation Resistance
ENVIRONMENTAL
Operating Temperature
Storage Temperature
Relative Humidity
MTBF
PHYSICAL
Weight
Dimensions (L x W x H)
Warranty
SAFETY
EMI Requirements for CISPR-22
EMI Requirements for FCC PART-15
TEST CONDITIONS
Min
90
47
Nom
Max
264
63
0.8
0.5
15
30
0.75
2
Unit
VAC
Hz
A
A
A
A
mA
s
VDC
%
%
W
A
%
ms
ms
%/°C
%
%
%
VDC
VDC
MΩ
Io = Full Load, Vin = 115VAC
Io = Full Load, Vin = 230VAC
Io = Full Load, 25°C, Cool Start, Vin = 115VAC
Io = Full Load, 25°C, Cool Start, Vin = 230VAC
Io = Full Load, Vin = 240VAC
Io = Full Load, Vin = 100VAC
Vin = 230VAC
Io = Full Load
Vin = 90 to 264VAC
Full Load, Vin = 90VAC
Io = Full Load to Half Load, Vin = 100VAC
Io = Full Load, Vin = 100VAC
All Outputs
0.3
12
26
0.5
1
See Rating Chart
3
7
0.5
1
0
30
See Rating Chart
0.5
1
4
12
-0.04
+0.04
112
110
132
150
75
85
Io = Full Load, Vin = 230VAC
Primary to Secondary
Primary to Ground
Test Voltage = 500VDC
Derates linearly from 100% Load at 40°C to 50% load at 70°C
Operating Temperature at 25°C, Calculated per MIL-HDBK-217F
65
4242
2121
50
-20
-40
5
+70
+85
95
100,000 hours
°C
°C
%
Approximately 265 ~ 280 grams
4.65 x 2.05 x 1.36 inches
118.0 x 52.0 x 34.5 mm
2 years
Vin = 220VAC
Vin = 110VAC
B
B
Class
Class
*Note: The Ripple & Noise for output voltages under 3.3VDC is 2% max.
Wall Industries, Inc. 5 Watson Brook Road Exeter, NH 03833
603-778-2300 www.wallindustries.com Fax 603-778-9797
Rev A
DTIPU30 Series
Single Output
Up to 30 Watts
AC/DC Desktop Power Supply
OUTPUT VOLTAGE / CURRENT RATING CHART
Model Number
*DTIPU30-101
*DTIPU30-102
DTIPU30-103
DTIPU30-104
DTIPU30-105
DTIPU30-106
DTIPU30-107
DTIPU30-108
DTIPU30-109
DTIPU30-110
DTIPU30-111
Input Current
90 ~ 264VAC
90 ~ 264VAC
90 ~ 264VAC
90 ~ 264VAC
90 ~ 264VAC
90 ~ 264VAC
90 ~ 264VAC
90 ~ 264VAC
90 ~ 264VAC
90 ~ 264VAC
90 ~ 264VAC
Preset Voltage Output Voltage Range
5 VDC
6 VDC
8 VDC
11 VDC
13 VDC
16 VDC
21 VDC
27 VDC
33 VDC
40 VDC
50 VDC
3 ~ 5 VDC
5 ~ 6 VDC
6 ~ 8 VDC
8 ~ 11 VDC
11 ~ 13 VDC
13 ~ 16 VDC
16 ~ 21 VDC
21 ~ 27 VDC
27 ~ 33 VDC
33 ~ 40 VDC
40 ~ 50 VDC
Output Current
5.00 A max
5.00 ~ 4.16 A
4.16 ~ 3.12 A
3.75 ~ 2.72 A
2.72 ~ 2.30 A
2.30 ~ 1.87 A
1.87 ~ 1.42 A
1.42 ~ 1.11 A
1.11 ~ 0.90 A
0.90 ~ 0.75 A
0.75 ~ 0.60 A
Total Regulation
(3)
Output Power
7%
5%
5%
5%
5%
5%
5%
5%
5%
3%
3%
20W
25W
25W
30W
30W
30W
30W
30W
30W
30W
30W
NOTES
1. For single output models the output voltage is specified as a range (Ex: 40 ~ 50VDC); the preset voltage will be set as
standard models if nothing different is requested. Please contact factory for ordering details.
2. The “
*
” symbol means PSE approval.
3. Models 101~102 need to use AWG#16/4FT output cable in order to meet the total regulation. Models 103~111 need to
use AWG#18/6FT output cable in order to meet the total regulation.
4. Optional output connectors are available. Please call factory for ordering details
.

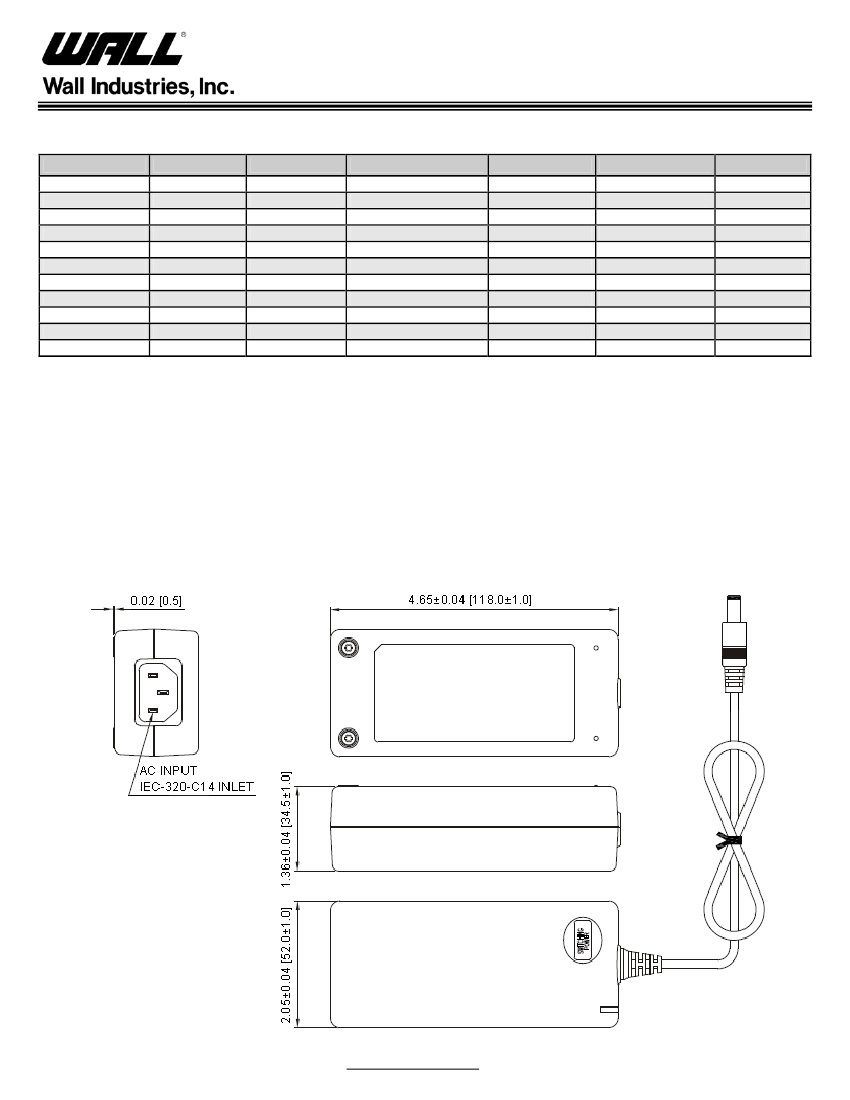

MECHANICAL DRAWING
Unit: inches [mm]
