RGC1/16ST15490.5%R datasheet, PDF

Datasheet> All Categories > Passive components> The resistor> RGC1/16ST15490.5%R

RGC1/16ST15490.5%R: DescriptionFixed Resistor, Metal Glaze/thick Film, 0.063W, 549ohm, 50V, 0.5% +/-Tol, 100ppm/Cel, Surface Mount, 0402, CHIP, ROHS COMPLIANT; CategoryPassive components The resistor; File Size100KB，1 Pages; ManufacturerSEI(Stackpole Electronics Inc.); Websitehttps://www.seielect.com/; Environmental Compliance

Download Datasheet Parametric View All

RGC1/16ST15490.5%R Overview

Fixed Resistor, Metal Glaze/thick Film, 0.063W, 549ohm, 50V, 0.5% +/-Tol, 100ppm/Cel, Surface Mount, 0402, CHIP, ROHS COMPLIANT

RGC1/16ST15490.5%R Parametric

Parameter Name	Attribute value
Is it Rohs certified?	conform to
Maker	SEI(Stackpole Electronics Inc.)
package instruction	CHIP, ROHS COMPLIANT
Reach Compliance Code	compliant
ECCN code	EAR99
Other features	PRECISION
JESD-609 code	e3
Manufacturer's serial number	RGC
Installation features	SURFACE MOUNT
Number of terminals	2
Maximum operating temperature	150 °C
Minimum operating temperature	-55 °C
Package shape	RECTANGULAR PACKAGE
method of packing	TAPE, PAPER
Rated power dissipation(P)	0.063 W
Rated temperature	70 °C
resistance	549 Ω
Resistor type	FIXED RESISTOR
size code	0402
surface mount	YES
technology	METAL GLAZE/THICK FILM
Temperature Coefficient	100 ppm/°C
Terminal surface	Matte Tin (Sn) - with Nickel (Ni) barrier
Terminal shape	WRAPAROUND
Tolerance	0.5%
Operating Voltage	50 V

Preview

Download Datasheet

View All

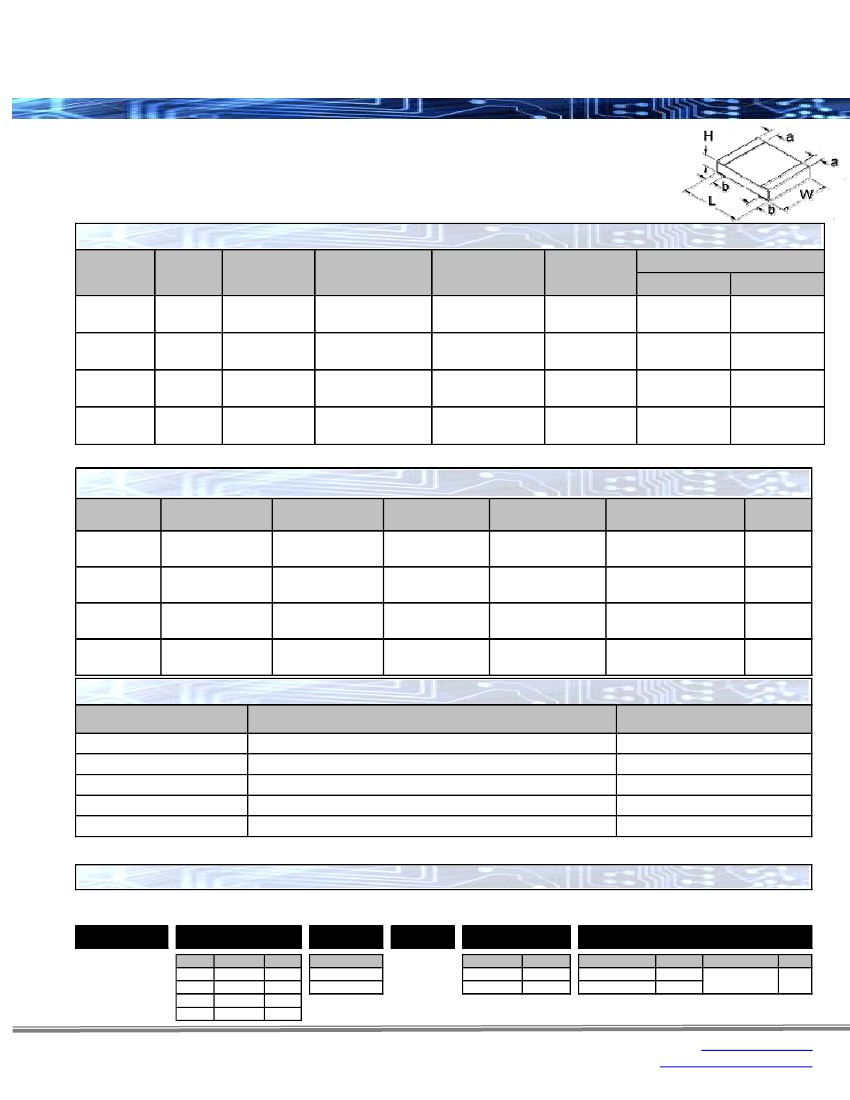

RGC Series

Semi-Precision Thick Film Chip Resistors

Features:

Precision performance

Tolerances of +0.5% and ±1%

RoHS compliant / lead-free

Less sensitive to ESD discharges than

comparable thin film devices

Stackpole Electronics, Inc.

Resistive Product Solutions

Highly stable performance over time

Power derating from 100% at 70ºC to

zero at 150ºC

Temperature coefficient of resistance of

±50ppm/ºC and ±100ppm/ºC

Electrical Specifications

Type / Code

Package

Type

0402

0603

0805

1206

Power Rating

(Watts) @ 70ºC

0.063W

0.100W

0.125W

0.250W

Maximum Working

Voltage

50V

150V

200V

Maximum Overload

Voltage

100V

300V

400V

Resistance

Temperature

Coefficient

± 50 ppm/ºC

± 100 ppm/ºC

± 50 ppm/ºC

± 350 ppm/ºC

Ohmic Range and Tolerance

0.5%

10Ω - 97.6Ω

100Ω - 1MΩ

10Ω - 97.6Ω

100Ω - 1MΩ

RGC 1/16S

RGC 1/16

RGC 1/10

RGC 1/8

Lesser of

√PR

or maximum working voltage.

Mechanical Specifications

Type / Code

RGC 1/16S

RGC 1/16

RGC 1/10

RGC 1/8

Body Length

0.039 ± 0.002

1.00 ± 0.05

0.063 ± 0.004

1.60 ± 0.10

0.079 ± 0.004

2.00 ± 0.10

0.126 + 0.002/-0.008

3.20 + 0.05/-0.20

Body Width

0.020 ± 0.002

0.50 ± 0.05

0.031 ± 0.004

0.80 ± 0.10

0.050 ± 0.004

1.25 ± 0.10

0.063 + 0.002/-0.006

1.60 + 0.05/-0.15

Body Height

0.014 ± 0.002

0.35 ± 0.05

0.018 ± 0.004

0.45 ± 0.10

0.020 ± 0.004

0.50 ± 0.10

0.024 ± 0.004

0.60 ± 0.10

Top Termination

0.008 ± 0.004

0.20 ± 0.10

0.012 ± 0.008

0.30 ± 0.20

0.016 ± 0.008

0.40 ± 0.20

0.020 ± 0.010

0.50 ± 0.25

Bottom Termination

0.010 + 0.002/-0.004

0.25 + 0.05/-0.10

0.012 ± 0.008

0.30 ± 0.20

0.016 ± 0.008

0.40 ± 0.20

0.020 ± 0.08

0.50 ± 0.20

Units

inches

Performance Characteristics

Test

Endurance @ 125ºC

Endurance @ 70ºC

Resistance to Soldering Heat

Short Time Overload

Voltage Proof

Operating Temperature Range:

-55ºC to +150ºC

Test Conditions

125ºC, No load, 1,000 hrs.

Rated Voltage, 1.5 hr. ON, 0.5 hr. OFF, 1,000 hrs. 70ºC

260ºC ± 5ºC, 5 seconds +1/-0

2 seconds at 2.5 times rated or limiting voltage

100 volts AC, 60 seconds

Test Results

± 5%

± 1%

No breakdown or flashover R

≥

1GΩ

How to Order

SEI Type

Code

TCR

Nominal

Resistance

Tolerance

Packaging

RGC

1/16

Code Wattage

1/16S 0.063W

1/16 0.100W

1/10 0.125W

1/8

0.250W

Size

0402

0603

0805

1206

TCR

T1 = 100ppm

T2 = 50ppm

4.7K

Tolerance

0.5%

Values

E96

SEI Types

Pkg Qty

1/16S

10,000

1/16, 1/10, 1/8 5,000

Description

Paper

Code

Rev Date: 9/30/2009

This specification may be changed at any time without prior notice

Please confirm technical specifications before you order and/or use.

www.seielect.com
