DTSPU16 Series
15 Watt
Single Output
AC/DC Desktop Power Supply
FEATURES
●
Splash Proof
●
Single Output
●
2 Year Warranty
●
Energy Star Compliant
●
Optional Output Connectors
●
A & C Types: Class I Insulation
●
3 Types of Inlet Connectors Available
●
Wide Input Voltage 90 to 264VAC, 47~63Hz
●
B Type: Class II Insulation (Double Insulation)
●
Output Voltages Available from 3VDC thru 48VDC
Approval not for B Type
SPECIFICATIONS:
DTSPU16 Series
o
All specifications are based on 25 C, Nominal Input Voltage, and Maximum Output Current unless otherwise noted.
We reserve the right to change specifications based on technological advances.
SPECIFICATION
INPUT (V
in
)
Operating Voltage Range
Input Frequency
Input Current (Low Line)
Input Current (High Line)
Inrush Current (Low Line)
Inrush Current (High Line)
Safety Ground Leakage Current
Start-Up Time
OUTPUT (V
o
)
Output Voltage Range
Load Regulation
Line Regulation
Output Power Range
Output Current Range
*Ripple
& Noise (peak to peak)
Transient Response
Hold-Up Time
Minimum Load
PROTECTION
Over Voltage Protection
Over Current Protection
GENERAL
Efficiency
Dielectric Withstanding Voltage
For Primary to Secondary
Dielectric Withstanding Voltage
Primary to Ground
(For A & C Types Only)
Isolation Resistance
Power Consumption (No Load)
ENVIRONMENTAL
Operating Temperature
Storage Temperature
Relative Humidity
Temperature Coefficient
PHYSICAL
Weight
Dimensions
Input Inlet
Warranty
SAFETY
CISPR (EMI Requirements for CISPR-22)
FCC (EMI Requirements for FCC Part-15)
TEST CONDITIONS
Min
90
47
Nom
Max
264
63
0.4
0.26
15
30
0.75
2
Unit
VAC
Hz
A
A
A
A
mA
s
VDC
%
%
W
A
%
ms
ms
%
%
%
%
VDC
VDC
Io = Full Load, Vin = 115VAC
Io = Full Load, Vin = 230VAC
Io = Full Load, 25°C, Cool Start, Vin = 115VAC
Io = Full Load, 25°C, Cool Start, Vin = 230VAC
Io = Full Load, Vin = 240VAC
Io = Full Load, Vin = 100VAC
0.3
12
26
0.5
1
Vin = 230VAC
Io = Full Load
Vin = 90 to 264VAC
Full Load, Vin = 90VAC
Io = Full Load to Half Load, Vin = 100VAC
Io = Full Load, Vin = 110VAC
See Rating Chart
3
10
0.5
1
15
See Rating Chart
0.5
1
4
5
0
Nil
Nil. Output protected to short circuit conditions
Io = Full Load, Vin = 230VAC
Primary to Secondary
Primary to Ground
Test Voltage = 500VDC
No Load, Vin = 240VAC

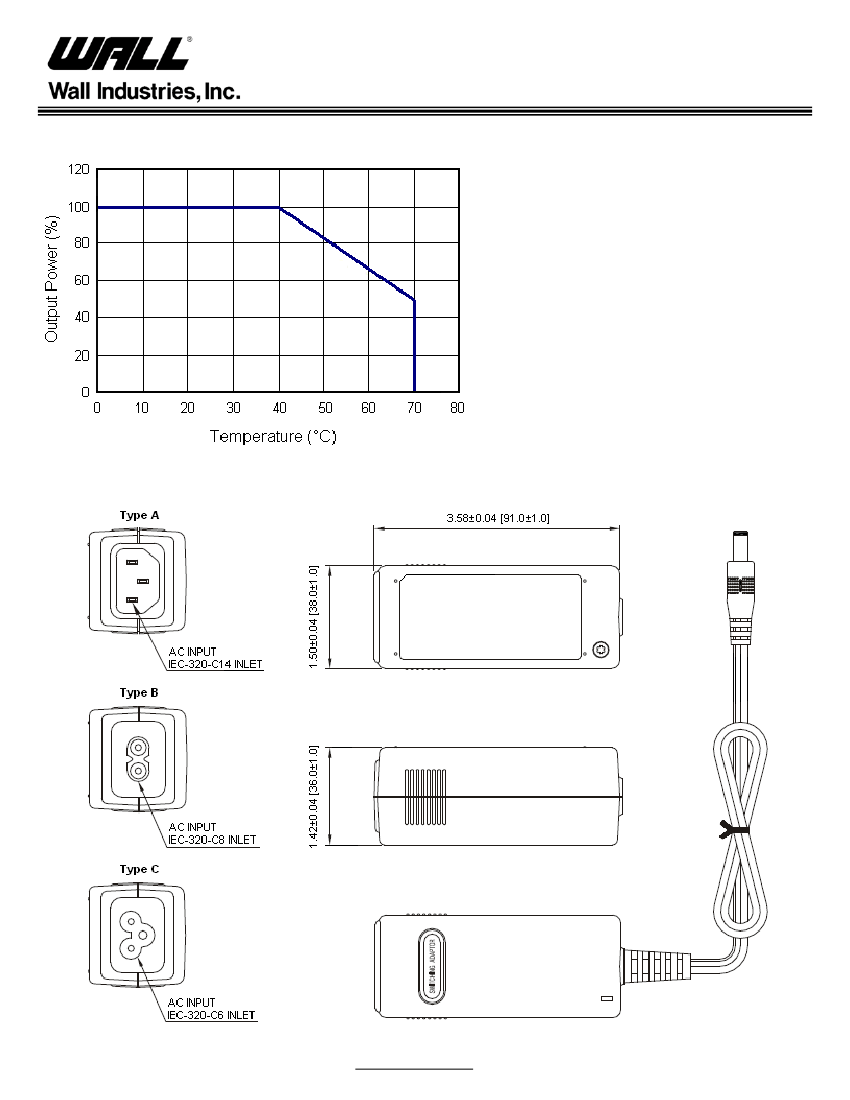

Derate linearly from 100% Load at 40°C to 50% load at 70°C
80
4242
2121
50
0
0
-40
5
-0.04
0.4
85
0.5
70
85
95
+0.04
MΩ
W
°C
°C
%
%/°C
All Outputs
Approximately 165 grams
3.58(L) x 1.50(W) x 1.42(H)
inches
IEC-320-C14, IEC-320-C8, IEC-320-C6
2
years
Vin = 220VAC
Vin = 110VAC
B
B
Class
Class
*Note: The Ripple & Noise for output voltages under 3.3VDC is 2% max.
Wall Industries, Inc. 5 Watson Brook Road Exeter, NH 03833
603-778-2300 www.wallindustries.com Fax 603-778-9797
DTSPU16 Series
15 Watt
Single Output
AC/DC Desktop Power Supply
OUTPUT VOLTAGE/ CURRENT RATING CHART
Model Number
*DTSPU16A-101
*DTSPU16A-102
*DTSPU16A-103
*DTSPU16A-104
*DTSPU16A-105
*DTSPU16A-106
*DTSPU16A-107
*DTSPU16A-108
*DTSPU16A-109
DTSPU16A-110
DTSPU16A-111
*DTSPU16B-101
*DTSPU16B-102
*DTSPU16B-103
DTSPU16B-104
DTSPU16B-105
DTSPU16B-106
DTSPU16B-107
DTSPU16B-108
DTSPU16B-109
DTSPU16B-110
DTSPU16B-111
*DTSPU16C-101
*DTSPU16C-102
*DTSPU16C-103
*DTSPU16C-104
*DTSPU16C-105
*DTSPU16C-106
*DTSPU16C-107
*DTSPU16C-108
*DTSPU16C-109
DTSPU16C-110
DTSPU16C-111
Preset
Voltage
5 VDC
6 VDC
8 VDC
11 VDC
13 VDC
16 VDC
21 VDC
27 VDC
33 VDC
40 VDC
48 VDC
5 VDC
6 VDC
8 VDC
11 VDC
13 VDC
16 VDC
21 VDC
27 VDC
33 VDC
40 VDC
48 VDC
5 VDC
6 VDC
8 VDC
11 VDC
13 VDC
16 VDC
21 VDC
27 VDC
33 VDC
40 VDC
48 VDC
Output
Voltage Range
3 ~ 5 VDC
5 ~ 6 VDC
6 ~ 8 VDC
8 ~ 11 VDC
11 ~ 13 VDC
13 ~ 16 VDC
16 ~ 21 VDC
21 ~ 27 VDC
27 ~ 33 VDC
33 ~ 40 VDC
40 ~ 48 VDC
3 ~ 5 VDC
5 ~ 6 VDC
6 ~ 8 VDC
8 ~ 11 VDC
11 ~ 13 VDC
13 ~ 16 VDC
16 ~ 21 VDC
21 ~ 27 VDC
27 ~ 33 VDC
33 ~ 40 VDC
40 ~ 48 VDC
3 ~ 5 VDC
5 ~ 6 VDC
6 ~ 8 VDC
8 ~ 11 VDC
11 ~ 13 VDC
13 ~ 16 VDC
16 ~ 21 VDC
21 ~ 27 VDC
27 ~ 33 VDC
33 ~ 40 VDC
40 ~ 48 VDC
Output
Current
2.50A max
2.40 ~ 2.00A
2.00 ~ 1.50A
1.87 ~ 1.36A
1.36 ~ 1.15A
1.15 ~ 0.94A
0.94 ~ 0.72A
0.72 ~ 0.55A
0.55 ~ 0.45A
0.45 ~ 0.37A
0.37 ~ 0.31A
2.50A max
2.40 ~ 2.00A
2.00 ~ 1.50A
1.87 ~ 1.36A
1.36 ~ 1.15A
1.15 ~ 0.94A
0.94 ~ 0.72A
0.72 ~ 0.55A
0.55 ~ 0.45A
0.45 ~ 0.37A
0.37 ~ 0.31A
2.50A max
2.40 ~ 2.00A
2.00 ~ 1.50A
1.87 ~ 1.36A
1.36 ~ 1.15A
1.15 ~ 0.94A
0.94 ~ 0.72A
0.72 ~ 0.55A
0.55 ~ 0.45A
0.45 ~ 0.37A
0.37 ~ 0.31A
Total
Regulation
7%
5%
5%
5%
5%
5%
5%
5%
5%
3%
3%
7%
5%
5%
5%
5%
5%
5%
5%
5%
3%
3%
7%
5%
5%
5%
5%
5%
5%
5%
5%
3%
3%
Maximum
Output Power
12W
12W
12W
15W
15W
15W
15W
15W
15W
15W
15W
12W
12W
12W
15W
15W
15W
15W
15W
15W
15W
15W
12W
12W
12W
15W
15W
15W
15W
15W
15W
15W
15W
AC Inlet
Connector
IEC-320-C14
IEC-320-C8
IEC-320-C6
NOTES
1. The DTSPU16 Series is designated as DTSPU16x-y where x represents the type of AC input inlet connector, which can either be
A (IEC-320-C14), B (IEC-320-C8), or C (IEC-320-C6); y can be 101, 102, 103, 104, 105, 106, 107, 108, 109, 110 or 111.
2. The output voltage is specified as a range (Ex: 40 ~ 50VDC); the preset voltage will be set as standard models if nothing different
is requested. Please contact factory for ordering details.
3. The “
*
” symbol means PSE approval.
4. A & C Types Only: Models with output voltages under 30VDC have been approved by TUV/PSE.
5. Optional output connectors are available (see “DC Output Plug Selector List” link located at the bottom of the “Desktop” category
page). Please call factory for ordering details.
Wall Industries, Inc. 5 Watson Brook Road Exeter, NH 03833
603-778-2300 www.wallindustries.com Fax 603-778-9797
