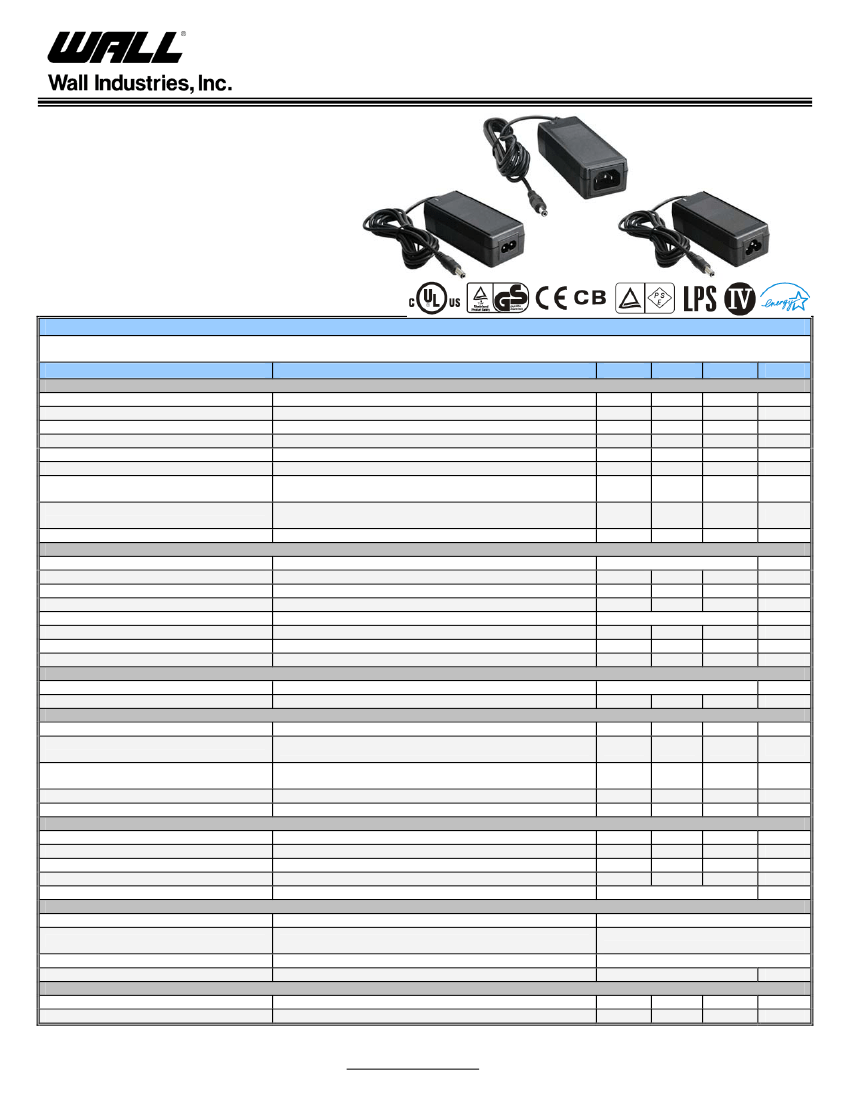

DTSPU25 Series
25 Watt
Single Output
AC/DC Desktop Power Supply
FEATURES
●
Splash Proof
●
Single Output
●
2 Year Warranty
●
Optional Output Connectors
●
A & C Types: Class I Insulation
●
3 Types of Inlet Connectors Available
●
Wide Input Voltage 90 to 264VAC, 47~63Hz
●
B Type: Class II Insulation (Double Insulation)
●
Output Voltages Available from 3VDC to 48VDC
SPECIFICATIONS:
DTSPU25 Series
SPECIFICATION
INPUT (V
in
)
Operating Voltage Range
Input Frequency
Input Current (Low Line)
Input Current (High Line)
Inrush Current (Low Line)
Inrush Current (High Line)
Safety Ground Leakage Current
(A & C Types Only)
Safety Ground Leakage Current
(B Type Only)
Start-Up Time
OUTPUT (V
o
)
Output Voltage Range
Load Regulation
Line Regulation
Output Power Range
Output Current Range
Ripple & Noise (peak to peak)
Transient Response
Hold-Up Time
PROTECTION
Over Voltage Protection
Over Current Protection
GENERAL
Efficiency
Dielectric Withstanding Voltage
For Primary to Secondary
Dielectric Withstanding Voltage
For Primary to Ground
(A & C Types Only)
Isolation Resistance
Power Consumption (No Load)
ENVIRONMENTAL
Operating Temperature
Storage Temperature
Relative Humidity
Temperature Coefficient
MTBF
PHYSICAL
Weight
Dimensions
Input Inlet
Warranty
SAFETY
CISPR (EMI Requirements for CISPR-22)
FCC (EMI Requirements for FCC Part-15)
o
Type A
Type B
Type C
All specifications are based on 25 C, Nominal Input Voltage, and Maximum Output Current unless otherwise noted.
We reserve the right to change specifications based on technological advances.
TEST CONDITIONS
Min
90
47
Nom
Max
264
63
0.4
0.25
15
30
0.75
0.25
0.5
Unit
VAC
Hz
A
A
A
A
mA
mA
s
VDC
%
%
W
A
%
ms
ms
%
%
%
VDC
VDC
Io = Full Load, Vin = 115VAC
Io = Full Load, Vin = 230VAC
Io = Full Load, 25°C, Cool Start, Vin = 115VAC
Io = Full Load, 25°C, Cool Start, Vin = 230VAC
Io = Full Load, Vin = 240VAC
Io = Full Load, Vin = 240VAC
Io = Full Load, Vin = 100VAC
12
26
0.5
0.15
0.25
Vin = 230VAC
Io = Full Load
Vin = 90 to 264VAC
Full Load, Vin = 90VAC
Io = Full Load to Half Load, Vin = 100VAC
Io = Full Load, Vin = 110VAC
See Rating Chart
1
3
5
0.5
1
0
25
See Rating Chart
0.5
1
4
12
14
16
Nil
110
150
85
95
Io = Full Load, Vin = 230VAC
Primary to Secondary
Primary to Ground
Test Voltage = 500VDC
No Load, Vin = 240VAC
Derate linearly from 100% Load at 40°C to 50% load at 70°C
75
4242
2121
50
0
0
-40
5
-0.04
0.4
0.5
70
85
95
+0.04
MΩ
W
°C
°C
%
%/°C
hours
All Outputs
300,000
Approximately 170 grams

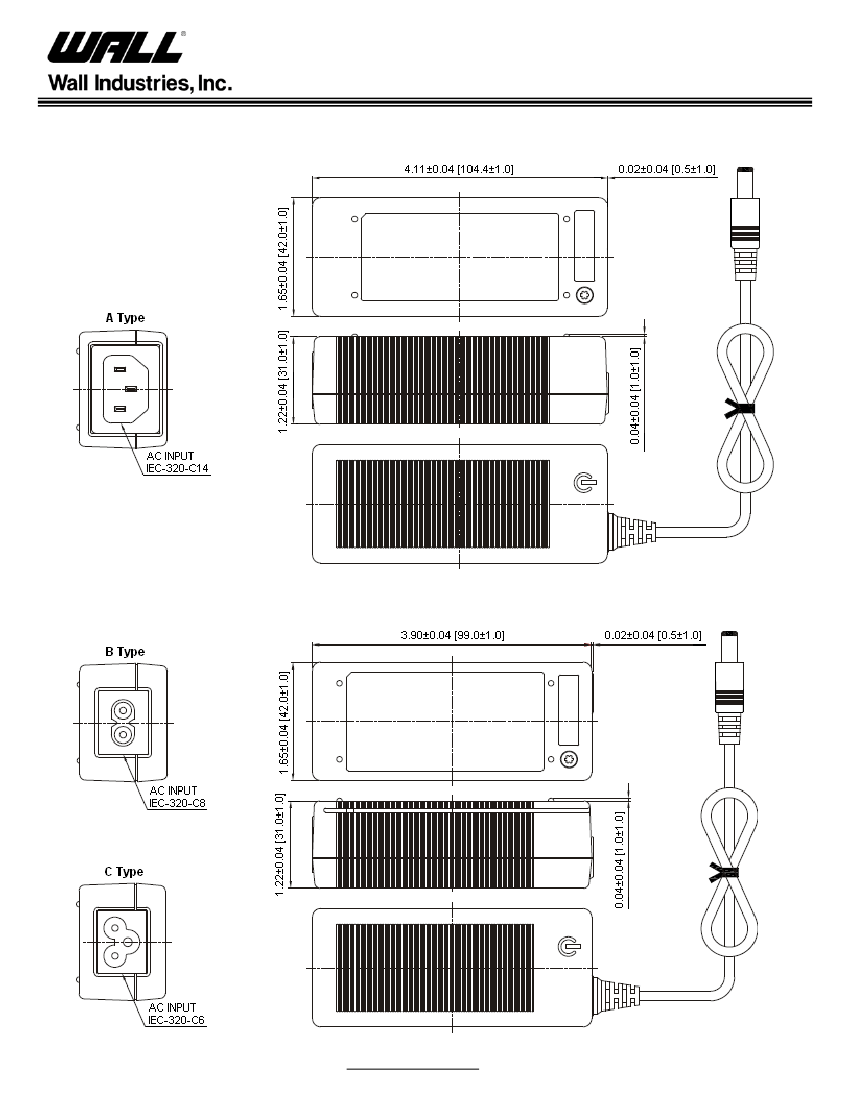

A Type:
4.11 x 1.65 x 1.22 inches
B & C Types:
3.90 x 1.65 x 1.22 inches
IEC-320-C14, IEC-320-C8, IEC-320-C6
2
years
Vin = 220VAC
Vin = 110VAC
B
B
Class
Class
Wall Industries, Inc. 5 Watson Brook Road Exeter, NH 03833
603-778-2300 www.wallindustries.com Fax 603-778-9797
DTSPU25 Series
25 Watt
Single Output
AC/DC Desktop Power Supply
OUTPUT VOLTAGE/ CURRENT RATING CHART
Model Number
DTSPU25A-102
DTSPU25A-103
DTSPU25A-104
DTSPU25A-105
DTSPU25A-106
DTSPU25A-107
DTSPU25A-108
DTSPU25A-109
DTSPU25A-110
DTSPU25A-111
DTSPU25B-102
DTSPU25B-103
DTSPU25B-104
DTSPU25B-105
DTSPU25B-106
DTSPU25B-107
DTSPU25B-108
DTSPU25B-109
DTSPU25B-110
DTSPU25B-111
DTSPU25C-102
DTSPU25C-103
DTSPU25C-104
DTSPU25C-105
DTSPU25C-106
DTSPU25C-107
DTSPU25C-108
DTSPU25C-109
DTSPU25C-110
DTSPU25C-111
Preset Voltage
6 VDC
8 VDC
11 VDC
13 VDC
16 VDC
21 VDC
27 VDC
33 VDC
40 VDC
48 VDC
6 VDC
8 VDC
11 VDC
13 VDC
16 VDC
21 VDC
27 VDC
33 VDC
40 VDC
48 VDC
6 VDC
8 VDC
11 VDC
13 VDC
16 VDC
21 VDC
27 VDC
33 VDC
40 VDC
48 VDC
Output Voltage
Range
5 ~ 6 VDC
6 ~ 8 VDC
8 ~ 11 VDC
11 ~ 13 VDC
13 ~ 16 VDC
16 ~ 21 VDC
21 ~ 27 VDC
27 ~ 33 VDC
33 ~ 40 VDC
40 ~ 48 VDC
5 ~ 6 VDC
6 ~ 8 VDC
8 ~ 11 VDC
11 ~ 13 VDC
13 ~ 16 VDC
16 ~ 21 VDC
21 ~ 27 VDC
27 ~ 33 VDC
33 ~ 40 VDC
40 ~ 48 VDC
5 ~ 6 VDC
6 ~ 8 VDC
8 ~ 11 VDC
11 ~ 13 VDC
13 ~ 16 VDC
16 ~ 21 VDC
21 ~ 27 VDC
27 ~ 33 VDC
33 ~ 40 VDC
40 ~ 48 VDC
Output Current
3.00 ~ 2.75A
3.30 ~ 2.50A
2.75 ~ 2.00A
2.27 ~ 1.92A
1.92 ~ 1.56A
1.56 ~ 1.19A
1.19 ~ 0.92A
0.92 ~ 0.75A
0.75 ~ 0.62A
0.62 ~ 0.52A
3.00 ~ 2.75A
3.30 ~ 2.50A
2.75 ~ 2.00A
2.27 ~ 1.92A
1.92 ~ 1.56A
1.56 ~ 1.19A
1.19 ~ 0.92A
0.92 ~ 0.75A
0.75 ~ 0.62A
0.62 ~ 0.52A
3.00 ~ 2.75A
3.30 ~ 2.50A
2.75 ~ 2.00A
2.27 ~ 1.92A
1.92 ~ 1.56A
1.56 ~ 1.19A
1.19 ~ 0.92A
0.92 ~ 0.75A
0.75 ~ 0.62A
0.62 ~ 0.52A
Total Regulation
5%
5%
5%
5%
5%
5%
3%
3%
3%
3%
5%
5%
5%
5%
5%
5%
3%
3%
3%
3%
5%
5%
5%
5%
5%
5%
3%
3%
3%
3%
Max Output Power
16.5W
20W
22W
25W
25W
25W
25W
25W
25W
25W
16.5W
20W
22W
25W
25W
25W
25W
25W
25W
25W
16.5W
20W
22W
25W
25W
25W
25W
25W
25W
25W
AC Inlet
Connector
IEC-320-C14
IEC-320-C8
IEC-320-C6
NOTES
1. The DTSPU25 Series is designated as DTSPU25x-y where x represents the type of AC input inlet connector, which can either be
A (IEC-320-C14), B (IEC-320-C8), or C (IEC-320-C6); y can be 102, 103, 104, 105, 106, 107, 108, 109, 110 or 111.
2. The output voltage is specified as a range (Ex: 40 ~ 48 VDC); the customer must specify what they would like the output voltage set at.
3. Models with output voltages under 30VDC have been approved by TUV/PSE.
4. Optional output connectors are available (see “DC Output Plug Selector List” link located at the bottom of the “Desktop” category page).
DERATING CURVE
Wall Industries, Inc. 5 Watson Brook Road Exeter, NH 03833
603-778-2300 www.wallindustries.com Fax 603-778-9797
