DTSPU45 Series
Up to 50 Watts
Single, Dual, & Triple Outputs
AC/DC Desktop Power Supply
FEATURES
●
Splash Proof
●
Class I Insulation
●
Two Year Warranty
●
IEC-320-C14 Input Inlet
●
Optional Output Connectors
●
Single, Dual, and Triple Outputs
●
Over Voltage Protection (Crowbar Design)
●
Wide Input Voltage 90 to 264VAC, 47~63Hz
●
Output Voltage Available from 2VDC to 50VDC
●
Input Surge Current, Over Voltage, and Over Load Protection
SPECIFICATIONS:
DTSPU45 Series
SPECIFICATION
INPUT (V
in
)
Input Voltage
Input Frequency
Input Current (Low Line)
Input Current (High Line)
Inrush Current (Low Line)
Inrush Current (High Line)
Safety Ground Leakage Current
Start-Up Time
OUTPUT (V
o
)
Output Voltage Range
Load Regulation
Line Regulation
Output Power Range
Output Current Range
*Ripple
& Noise (peak to peak)
Transient Response
Hold-Up Time
PROTECTION
Over Voltage Protection
Over Current Protection
GENERAL
Efficiency
Dielectric Withstanding Voltage
For Primary to Secondary
Dielectric Withstanding Voltage
For Primary to Ground
Isolation Resistance
ENVIRONMENTAL
Operating Temperature
Storage Temperature
Relative Humidity
Temperature Coefficient
PHYSICAL
Weight
Dimensions
Warranty
SAFETY
EMI Requirements for CISPR-22
EMI Requirements for FCC PART-15
All specifications are based on 25 C, Nominal Input Voltage, and Maximum Output Current unless otherwise noted.
We reserve the right to change specifications based on technological advances.
o
TEST CONDITIONS
Min
90
47
Nom
Max
264
63
1.35
0.8
15
30
0.75
2
Unit
VAC
Hz
A
A
A
A
mA
s
VDC
%
%
W
A
%
ms
ms
%
%
%
VDC
VDC
MΩ
Io = Full Load, Vin = 115VAC
Io = Full Load, Vin = 230VAC
Io = Full Load, 25°C, Cool Start, Vin = 115VAC
Io = Full Load, 25°C, Cool Start, Vin = 230VAC
Io = Full Load, Vin = 240VAC
Io = Full Load, Vin = 100VAC
0.3
12
26
0.5
1
Vin = 230VAC
Io = Full Load
Vin = 90 to 264VAC
Full Load, Vin = 90VAC
Io = Full Load to Half Load, Vin = 100VAC
Io = Full Load, Vin = 110VAC
See Rating Chart
3
15
0.5
1
0
50
See Rating Chart
0.5
1
4
16
112
110
132
150
83
88
Io = Full Load, Vin = 230VAC
Primary to Secondary
Primary to Ground
Test Voltage = 500VDC
Derate linearly from 100% Load at 40°C to 50% load at 70°C
75
4242
2121
50
0
-40
5
-0.04
All Outputs
70
85
95
+0.04
°C
°C
%
%/°C
grams
inches
years
Class
Class
Approximately 535 ~ 560
5.75(L) x 2.99(W) x 1.69(H)
2
Vin = 220VAC
Vin = 110VAC
B
B
*Note: The Ripple & Noise for output voltages under 3.3VDC is 2% max.
Wall Industries, Inc. 5 Watson Brook Road Exeter, NH 03833
603-778-2300 www.wallindustries.com Fax 603-778-9797
Rev. A
DTSPU45 Series
Up to 50 Watts
Single, Dual, & Triple Outputs
AC/DC Desktop Power Supply
NOTES
1. For single output models the output voltage is specified as a range (Ex: 40 ~ 50VDC); the preset voltage will be set as
standard models if nothing different is requested. Please contact factory for ordering details.
2. The “
*
” symbol means PSE approval.
3. Models with output voltages under 15VDC have been approved by TUV/PSE.
4. Optional output connectors are available (see “DC Output Plug Selector List” link located at the bottom of the “Desktop”
category page). Please call factory for ordering details.

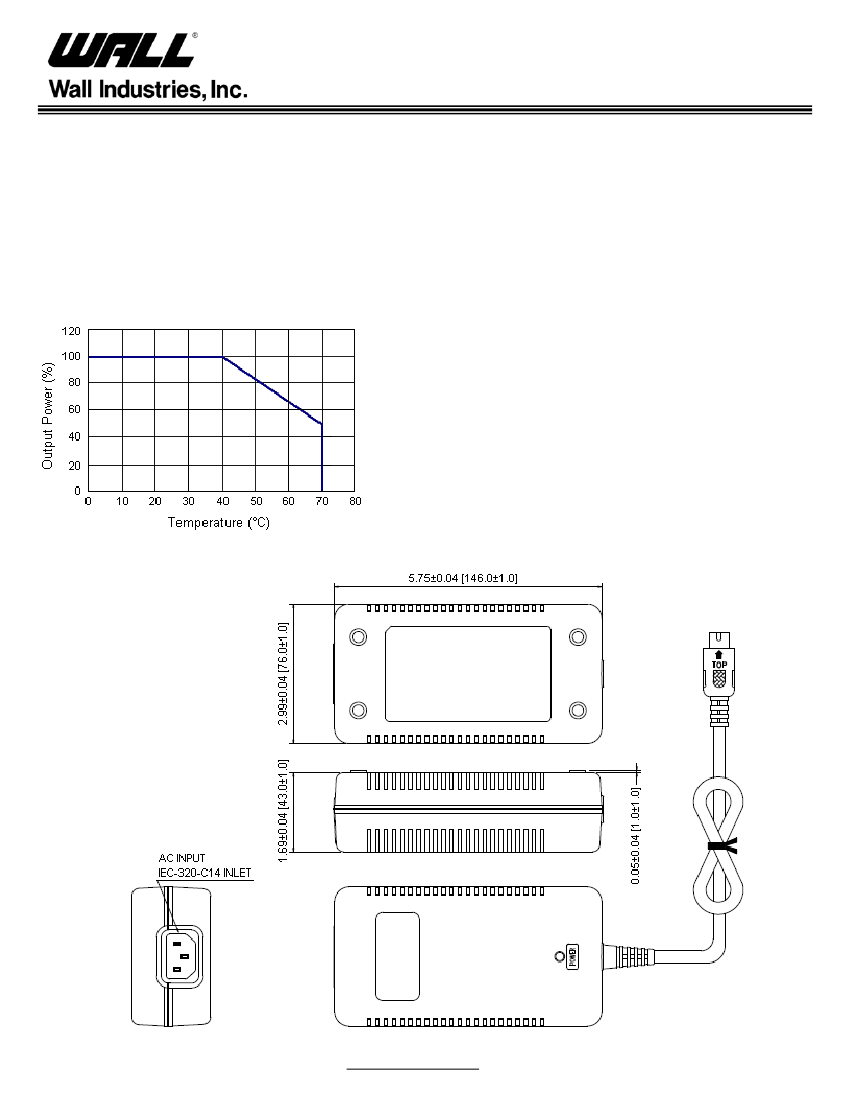

DERATING CURVE
MECHANICAL DRAWINGS
Unit: inches [mm]
Wall Industries, Inc. 5 Watson Brook Road Exeter, NH 03833
603-778-2300 www.wallindustries.com Fax 603-778-9797
