VER :
B_3
update :
98.04.09
AC-DC Medical
MTC SERIES

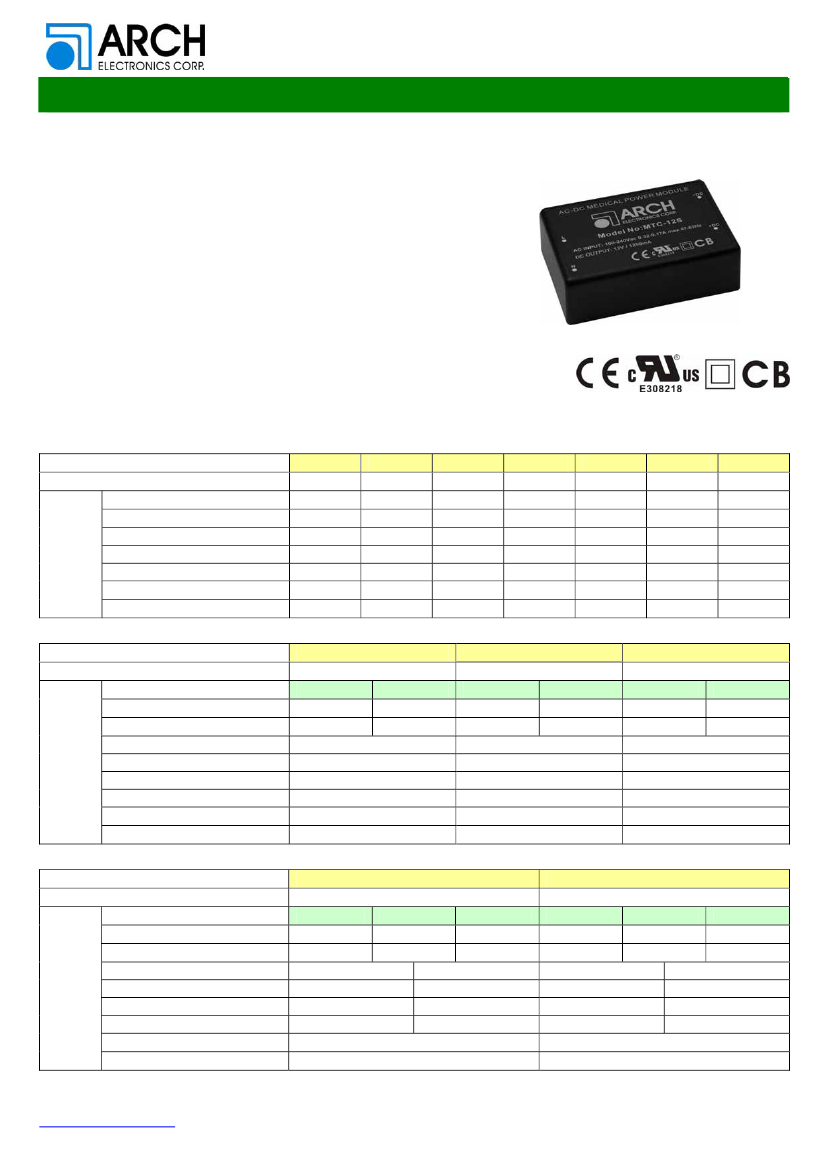

KEY FEATURES
Switching Power Modules for PCB Mounting
Fully Encapsulated Plastic Case
Universal Input Range 90-264VAC, 47-440 Hz
Regulated Output
Low Ripple and Noise
Isolation Class II
UL60601-1 / IEC60601-1 / EC60601-1 Medical Safety Approvals
3-Years Product Warranty
15
Watts
ELECTRICAL SPECIFICATIONS
Model No.
( Single Output )
(W)
Voltage (V.DC.)
Current (mA) max
Voltage set accuracy
Output
Line regulation (Max..)
Load regulation (0-100%) (Max.)
Minimum load
Efficiency (Typ)
MTC-3.3S
9.9W
3.3V
3000
±2%
0.5%
1%
0%
74%
MTC-5S
15W
5V
3000
±2%
0.5%
1%
0%
78%
MTC-7.35S
15W
7.35V
2040
±2%
0.5%
1%
0%
79%
MTC-9S
15W
9V
1666
±2%
0.5%
1%
0%
79%
MTC-12S
15W
12V
1250
±2%
0.5%
1%
0%
81%
MTC-15S
15W
15V
1000
±2%
0.5%
1%
0%
81%
MTC-24S
15W
24V
625
±2%
0.5%
1%
0%
83%
Max output wattage
Model No.
( Dual Output )
(W)
MTC-5D
15W
Output 1
Output 2
-5V
1500
±2%
0.5%
1% (symmetric load)
5%
10%
78%
MTC-12D
15W
Output 1
+12V
625
±2%
0.5%
1% (symmetric load)
3%
10%
80%
Output 2
-12V
625
MTC-15D
15W
Output 1
+15V
500
±2%
0.5%
1% (symmetric load)
3%
10%
81%
Output 2
-15V
500
Max output wattage
Voltage (V.DC.)
Current (mA) max
Voltage set accuracy
Output
Line regulation (Max.)
Load regulation (10-100%) (Max.)
Cross regulation
Minimum load
Efficiency (Typ)
+5V
1500
Model No.
( Triple Output )
(W)
Output 1
Voltage (V.DC.)
Current (mA) max
Voltage set accuracy
5
2000
±2%
0.5%
1%
1%
MTC-5S12D
15W
Output 2
+12
200
±3%
2%
5% (symmetric load)
5%
25%
78%
Output 3
-12
200
Output 1
5
2000
±2%
0.5%
1%
1%
MTC-5S15D
15W
Output 2
+15
150
±3%
2%
5% (symmetric load)
5%
25%
78%
Output 3
-15
150
Max output wattage
Output
Line regulation (Max..)
Load regulation (10-100%) (Max.)
Cross regulation
Minimum load
Efficiency (Typ)
http://www.archcorp.com.tw
TEL: +886-2-26989508 FAX: +886-2-26981319
-1-
VER :
B_3
update :
98.04.09
AC-DC Medical
MTC SERIES
Voltage
Frequency (Hz)
Input
Current (Full load)
Inrush current (<2ms)
Leakage Current
External fuse (recommend)
Maximum capacitive load
Ripple & Noise
Hold-up time
Switching frequency
Over current protection
Protection
Over voltage protection
Short circuit protection
OTP
Input-Output (V.AC)
Operating temperature
Storage temperature
Environment
Temperature coefficient
Humidity
MTBF
Dimension (L x W x H)
Physical
Case Material
Weight
Cooling method
Safety Approvals
approval
EMI
/ PFI conducted
EMC Standards
Safety & EMC
ESD Susceptibility
Radiated Susceptibility
EFT / Burst
Surge
Conducted Susceptibility
90-264 VAC or 100-375 VDC
47-440 Hz
220 mA max. (115 VAC) / 118 mA max. (230 VAC)
10 A max. (115 VAC) / 20 A max. (230 VAC)
0.1 mA max. (115 VAC) / 0.2 mA max. (230 VAC)
2.0 A slow blow type
330-23,000µF depending on model
1% of Vout
20 ms min.
132 kHz
Above 105% rated output power
Zener diode clamp
Hiccup mode, indefinite (automatic recovery)
100°C
4000V
-25°C…+70°C (Case Temperature max. +95°C)
-40°C…+100°C
0.01%/°C
95% RH
200,000 h~400,000 h @ 25°C
2.52 x 1.79 x 0.92 Inches
120 g
Free air convection
UL60601-1 / IEC60601-1
cUL / UL / CB
EN 55011 class B
EN60601-1-2
EN60601-1-2
EN60601-1-2
EN60601-1-2
EN60601-1-2
EN60601-1-2
( 64.0 x 45.6 x 23.5 mm ) Tolerance
±0.5
mm
Plastic resin + Fiberglass (flammability to UL 94V-0)
15
Watts
Output
Isolation
1. All specifications valid at nominal input voltage, full load and +25°C after warm-up time unless otherwise stated.
2. Ripple & Noise are measured at 20MHz of bandwidth with 0.1μF & 47μF parallel capacitor.
http://www.archcorp.com.tw
TEL: +886-2-26989508 FAX: +886-2-26981319
-2-

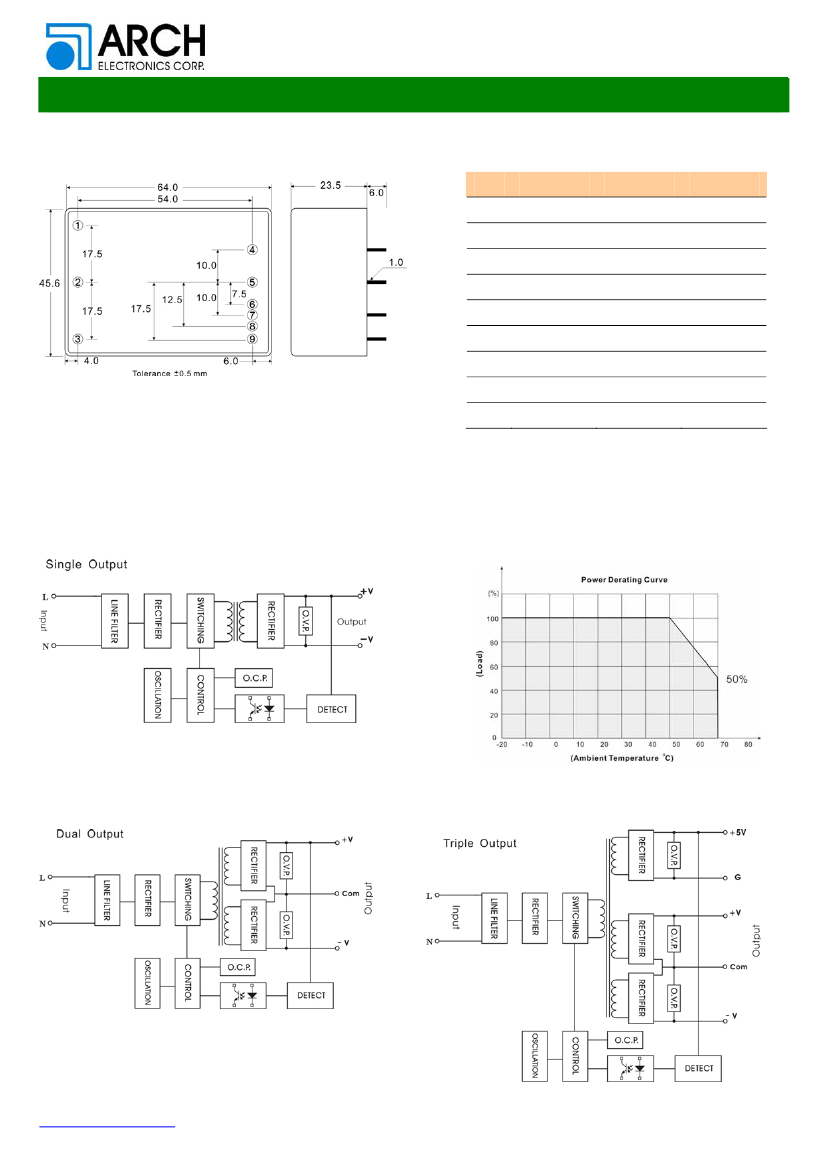

PCB Design
