RPC Series
Pulse Withstanding Thick Film Chip Resistor
Features:
•
•
•
•
•
•
Stackpole Electronics, Inc.
Resistive Product Solutions
Excellent pulse withstanding performance
Broad resistance range
Higher anti-surge performance compared with RMCF Series
Lower values may be available – contact factory
1% and wider tolerances are qualified to AEC-Q200
RoHS compliant
Electrical Specifications
Type / Code
Power Rating
(Watts)
@ 70ºC
0.1W
0.25W
0.33W
0.5W
0.75W
1.5W
Maximum
Working
Voltage
50V
150V
200V
200V
400V
500V
Maximum
Overload
Voltage
100V
300V
400V
400V
800V
1000V
Resistance
Temperature
Coefficient
±200 ppm/ºC
±100 ppm/ºC
±200 ppm/ºC
±100 ppm/ºC
±200 ppm/ºC
±100 ppm/ºC
±200 ppm/ºC
±100 ppm/ºC
±200 ppm/ºC
±100 ppm/ºC
±200 ppm/ºC
10 - 20
20.5 - 20M
10 - 20
20.5 - 20M
10 - 20
20.5 - 20M
10 - 20
20.5 - 20M
1 - 20
22 - 20M
1 - 20
22 - 20M
1 - 20
22 - 20M
10 - 294
Ohmic Range (Ω) and Tolerance
0.5%
10 - 294
1%
1 - 294
300 - 1M
1 - 294
300 - 20M
1 - 20
22 - 20M
1 - 270
5%, 10%, 20%
1 - 270
RPC0603
RPC0805
RPC1206
RPC1210
RPC2010
RPC2512
±100 ppm/ºC
Working Voltage =
√(P*R)
or Max. Working Voltage listed above, whichever is lower.
Overload Voltage = 2.5*√(P*R) or Max. Overload Voltage listed above, whichever is lower.
Electrical Specifications – High Power
Type / Code
Power Rating
(Watts)
@ 70ºC
0.2W
0.4W
0.5W
0.75W
1W
Maximum
Working Voltage
50V
150V
200V
200V
400V
Maximum
Overload
Voltage
100V
300V
400V
400V
800V
Resistance
Temperature
Coefficient
±200 ppm/ºC
±100 ppm/ºC
±200 ppm/ºC
±100 ppm/ºC
±200 ppm/ºC
±100 ppm/ºC
±200 ppm/ºC
±100 ppm/ºC
±200 ppm/ºC
10 - 20
20.5 - 20M
10 - 20
20.5 - 20M
1 - 20
22 - 1M
10 - 20
20.5 - 20M
1 - 20
22 - 20M
10 - 294
300 - 1M
1 - 20
22 - 20M
Ohmic Range (Ω) and Tolerance
0.5%
10 - 294
1%
1 - 294
300 - 1M
1 - 294
5%
RPC0603…-HP
RPC0805…-HP
RPC1206…-HP
RPC1210…-HP
RPC2010…-HP
±100 ppm/ºC
Working Voltage =
√(P*R)
or Max. Working Voltage listed above, whichever is lower.
Overload Voltage = 2.5*√(P*R) or Max. Overload Voltage listed above, whichever is lower.
Rev Date: 06/14/2017
This specification may be changed at any time without prior notice
Please confirm technical specifications before you order and/or use.
1
www.seielect.com
marketing@seielect.com
RPC Series
Pulse Withstanding Thick Film Chip Resistor
Stackpole Electronics, Inc.
Resistive Product Solutions

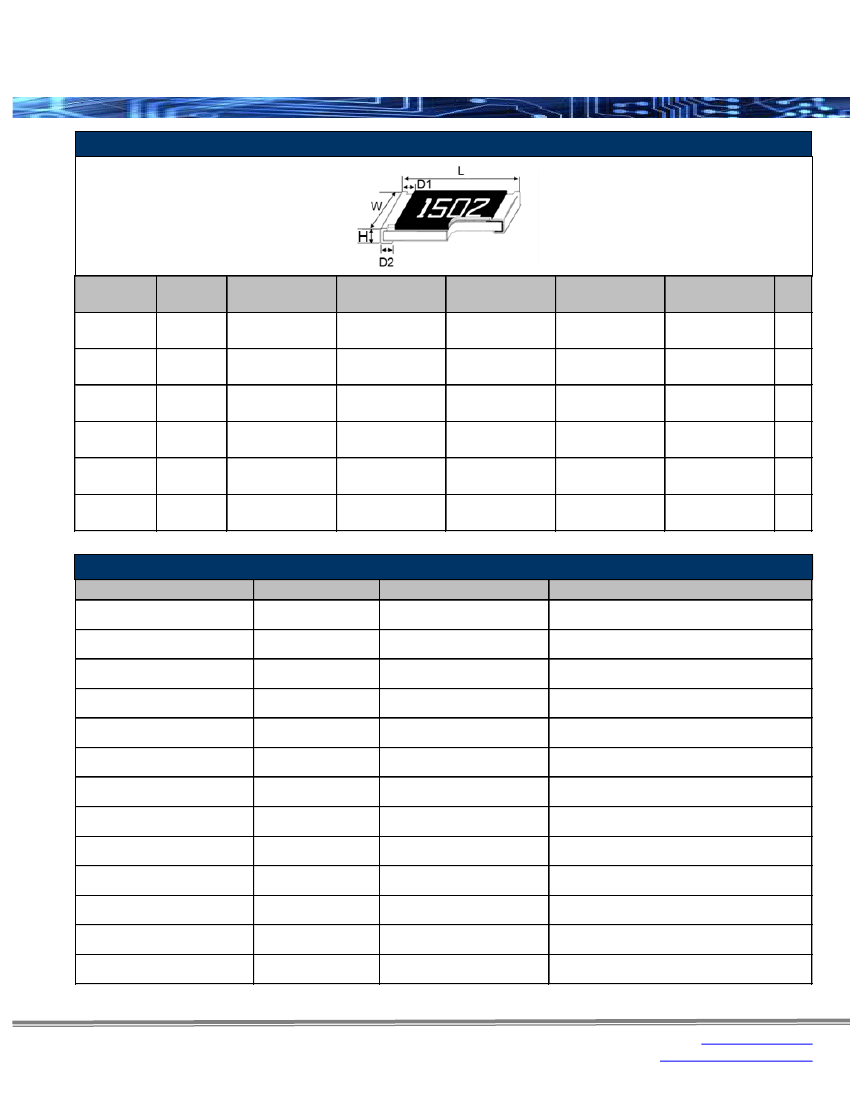

Mechanical Specifications
Type / Code
RPC0603
RPC0805
RPC1206
RPC1210
RPC2010
RPC2512
Weight (g)
(1000 pcs)
2.042
4.368
8.947
15.959
24.241
39.448
L
Body Length
0.063 ± 0.004
1.60 ± 0.10
0.079 ± 0.004
2.00 ± 0.10
0.122 ± 0.004
3.10 ± 0.10
0.122 ± 0.004
3.10 ± 0.10
0.197 ± 0.004
5.00 ± 0.10
0.250 ± 0.004
6.35 ± 0.10
W
Body Width
0.031 ± 0.004
0.80 ± 0.10
0.049 ± 0.004
1.25 ± 0.10
0.061 ± 0.004
1.55 ± 0.10
0.102 ± 0.006
2.60 ± 0.15
0.098 ± 0.006
2.50 ± 0.15
0.122 ± 0.006
3.10 ± 0.15
H
Body Height
0.018 ± 0.004
0.45 ± 0.10
0.020 ± 0.004
0.50 ± 0.10
0.022 ± 0.004
0.55 ± 0.10
0.022 ± 0.004
0.55 ± 0.10
0.022 ± 0.004
0.55 ± 0.10
0.022 ± 0.004
0.55 ± 0.10
D1
Top Termination
0.012 ± 0.008
0.30 ± 0.20
0.014 ± 0.008
0.35 ± 0.20
0.020 ± 0.010
0.50 ± 0.25
0.020 ± 0.010
0.50 ± 0.25
0.024 ± 0.010
0.60 ± 0.25
0.024 ± 0.010
0.60 ± 0.25
D2
Bottom Termination
0.012 ± 0.008
0.30 ± 0.20
0.016 ± 0.008
0.40 ± 0.20
0.020 ± 0.008
0.50 ± 0.20
0.020 ± 0.008
0.50 ± 0.20
0.020 ± 0.008
0.50 ± 0.20
0.020 ± 0.008
0.50 ± 0.20
Unit
inches
mm
inches
mm
inches
mm
inches
mm
inches
mm
inches
mm
Performance Characteristics
Item
Temperature Coefficient of
Resistance (T.C.R.)
Short Time Overload
Insulation Resistance
Endurance
Tolerances of 0.5%, 1%
Endurance
Tolerances of 5%, 10%, 20%
Damp Heat with Load
Tolerances of 0.5%, 1%
Damp Heat with Load
Tolerances of 5%, 10%, 20%
Dry Heat
Tolerances of 0.5%, 1%
Dry Heat
Tolerances of 5%, 10%, 20%
Bending Strength
Solderability
Resistance to Soldering Heat
tolerances of 0.5%, 1%
Resistance to Soldering Heat
tolerances of 5%, 10%, 20%
Test Method
JIS-C-5201-1 4.8
IEC-60115-1 4.8
JIS-C-5201-1 4.13
IEC-60115-1 4.13
JIS-C-5201-1 4.6
IEC-60115-1 4.6
JIS-C-5201-1 4.25
IEC-60115-1 4.25.1
JIS-C-5201-1 4.25
IEC-60115-1 4.25.1
JIS-C-5201-1 4.24
JIS-C-5201-1 4.24
JIS-C-5201-1 4.23
IEC-60115-1 2.23.2
JIS-C-5201-1 4.23
IEC-60115-1 2.23.2
JIS-C-5201-1 4.33
IEC-60115-1 4.33
JIS-C-5201-1 4.17
IEC-60115-1 4.17
JIS-C-5201-1 4.18
IEC-60115-1 4.18
JIS-C-5201-1 4.18
IEC-60115-1 4.18
Test Specification
Within the specified tolerance
±(1%+0.05Ω)
≥10G
±(1%+0.05Ω)
±(3%+0.05Ω)
±(0.5%+0.05Ω)
±(3%+0.05Ω)
±(0.5%+0.05Ω)
±(3%+0.05Ω)
±(1%+0.05Ω)
95% min. coverage
±(0.5%+0.05Ω)
±(1%+0.05Ω)
Test Condition
-55°C ~+125°C, 25°C is the
reference temperature
RCWV*2.5 or max. overload voltage
whichever is lower for 5 seconds
Max. overload voltage for 1 minute
70 ± 2°C, RCWV for 1000 hours
with 1.5 hours "ON" and 0.5 hour "OFF"
70 ± 2°C, RCWV for 1000 hours
with 1.5 hours "ON" and 0.5 hour "OFF"
40 ± 2°C, 90~95% R.H, RCWV for 1000 hour
with 1.5 hours "ON" and 0.5 hour "OFF"
40 ± 2°C, 90~95% R.H, RCWV for 1000 hours
with 1.5 hours "ON" and 0.5 hour "OFF"
At +155°C for 1000 hours
At +155°C for 1000 hours
Bending once for 5 seconds
2010, 2512 sizes: 2mm; other sizes: 3mm
245 ± 5°C for 3 seconds
260 ± 5°C for 10 seconds
260 ± 5°C for 10 seconds
Rev Date: 06/14/2017
This specification may be changed at any time without prior notice
Please confirm technical specifications before you order and/or use.
2
www.seielect.com
marketing@seielect.com
RPC Series
Pulse Withstanding Thick Film Chip Resistor
Stackpole Electronics, Inc.
Resistive Product Solutions
Performance Characteristics (cont.)
Item
Voltage Proof
Test Method
Test Specification
Test Condition
1.42 times max. operating voltage for 1 minute
260 ± 5°C for 30 seconds
-55°C to + 150°C , 5 cycles
-55°C to + 150°C , 5 cycles
JIS-C-5201-1 4.7
No Breakdown or flashover
IEC-60115-1 4.7
Individual leaching area ≤5%
JIS-C-5201-1 4.18
Leaching
Total leaching area ≤10%
IEC-60068-2-58-8.2.1
Rapid Change of Temperature
JIS-C-5201-1 4.18
±(0.5%+0.05Ω)
tolerances of 0.5%, 1%
IEC-60115-1 4.18
Rapid Change of Temperature
JIS-C-5201-1 4.18
±(1%+0.05Ω)
tolerances of 5%, 10%, 20%
IEC-60115-1 4.18
RCWV (Rated Continuous Working Voltage)=
√(P*R)
or Max. Working Voltage whichever is
Storage Temperature: 25±3ºC; humidity < 80% R.H.

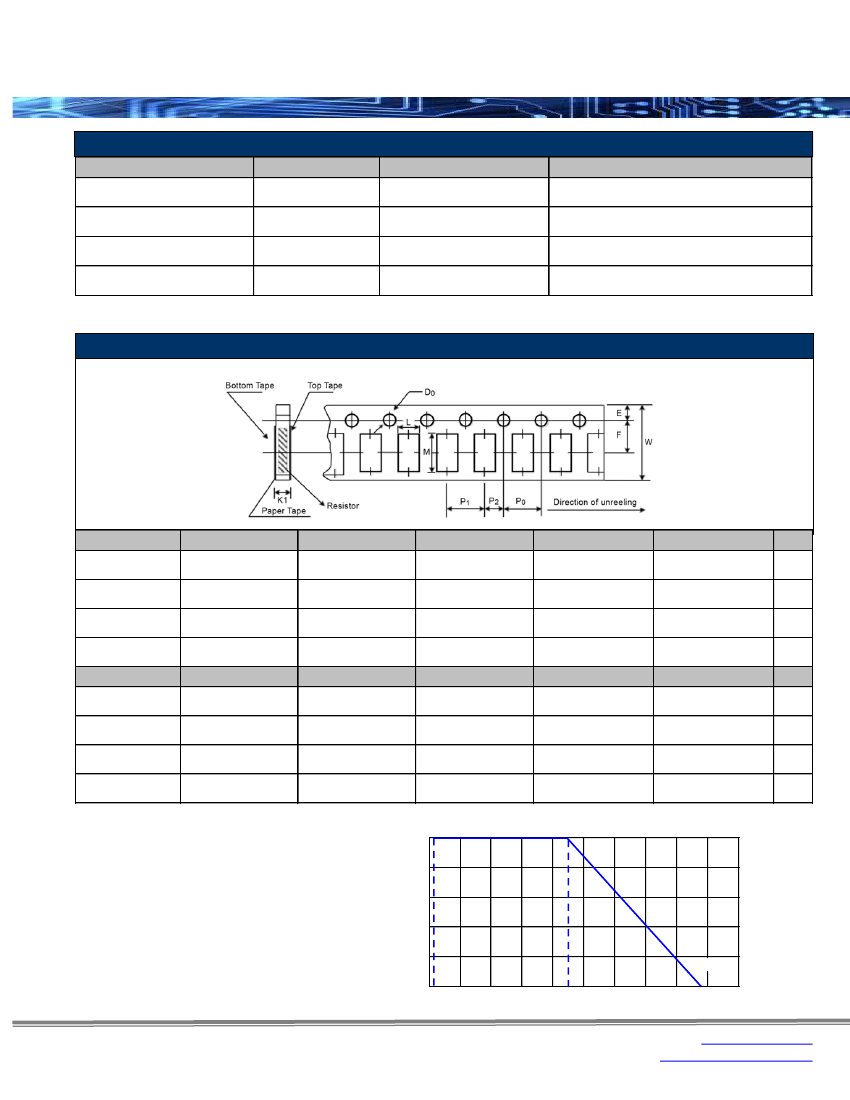

Packaging Specifications - Paper Tape
Type
RPC0603
RPC0805
RPC1206
RPC1210
Type
RPC0603
RPC0805
RPC1206
RPC1210
0.157
4.00
0.157
4.00
0.157
4.00
0.157
4.00
0.043
1.10
0.063
1.60
0.075
1.90
0.110
2.80
L
±
±
±
±
±
±
±
±
P
0
±
±
±
±
±
±
±
±
0.004
0.10
0.004
0.10
0.004
0.10
0.004
0.10
0.157
4.00
0.157
4.00
0.157
4.00
0.157
4.00
0.004
0.10
0.004
0.10
0.004
0.10
0.004
0.10
0.075
1.90
0.094
2.40
0.138
3.50
0.138
3.50
M
±
±
±
±
±
±
±
±
P1
±
±
±
±
±
±
±
±
0.394
10.00
0.394
10.00
0.394
10.00
0.394
10.00
0.079
2.00
0.079
2.00
0.079
2.00
0.079
2.00
-55ºC
W
0.004
0.10
0.008
0.20
0.008
0.20
0.008
0.20
0.315
8.00
0.315
8.00
0.315
8.00
0.315
8.00
±
±
±
±
±
±
±
±
P2
±
±
±
±
±
±
±
±
0.002
0.05
0.002
0.05
0.002
0.05
0.002
0.05
0.008
0.20
0.008
0.20
0.008
0.20
0.008
0.20
0.069
1.75
0.069
1.75
0.069
1.75
0.069
1.75
0.059
1.50
0.059
1.50
0.059
1.50
0.059
1.50
70ºC
E
±
±
±
±
±
±
±
±
±
±
±
±
±
±
±
±
0.004
0.10
0.004
0.10
0.004
0.10
0.004
0.10
0.004
0.10
0.004
0.10
0.004
0.10
0.004
0.10
0.138
3.50
0.138
3.50
0.138
3.50
0.138
3.50
0.028
0.70
0.033
0.85
0.033
0.85
0.033
0.85
F
±
±
±
±
±
±
±
±
±
±
±
±
±
±
±
±
0.002
0.05
0.002
0.05
0.002
0.05
0.002
0.05
0.004
0.10
0.004
0.10
0.004
0.10
0.004
0.10
Unit
inches
mm
inches
mm
inches
mm
inches
mm
Unit
inches
mm
inches
mm
inches
mm
inches
mm
ØD0
K1/K2
Power Derating Curve:
Percent Rated Power (%)
100
80
60
40
20
155ºC
0
-60
0
20
40
60
80
100
120
140
160
180
Ambient Temperature (ºC)
Rev Date: 06/14/2017
This specification may be changed at any time without prior notice
Please confirm technical specifications before you order and/or use.
3
www.seielect.com
marketing@seielect.com
RPC Series
Pulse Withstanding Thick Film Chip Resistor
Stackpole Electronics, Inc.
Resistive Product Solutions

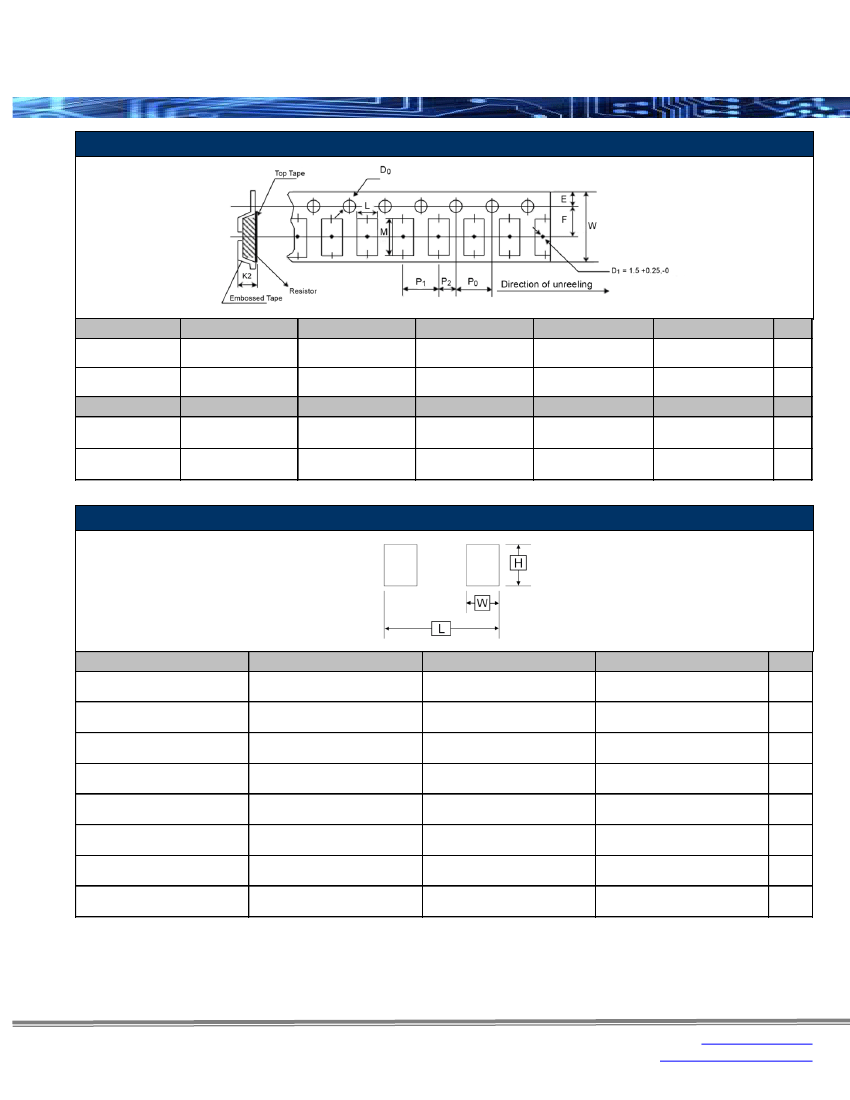

Packaging Specifications – Embossed Plastic Tape
Type
RPC2010
RPC2512
Type
RPC2010
RPC2512
0.110
2.80
0.138
3.50
L
± 0.008
± 0.20
± 0.008
± 0.20
P
0
0.217
5.50
0.264
6.70
0.157
4.00
0.157
4.00
M
± 0.008
± 0.20
± 0.008
± 0.20
P1
±
±
±
±
0.394
10.00
0.394
10.00
0.472
12.00
0.472
12.00
0.079
2.00
0.079
2.00
W
± 0.012
± 0.30
± 0.012
± 0.30
P2
±
±
±
±
0.002
0.05
0.002
0.05
E
0.069 ± 0.004
1.75 ± 0.10
0.069 ± 0.004
1.75 ± 0.10
ØD0
0.059
1.50
0.059
1.50
±
±
±
±
0.004
0.10
0.004
0.10
F
0.217 ± 0.002
5.50 ± 0.05
0.217 ± 0.002
5.50 ± 0.05
K1/K2
0.047
1.20
0.047
1.20
-
-
-
-
0.000
0.00
0.000
0.00
Unit
inches
mm
inches
mm
Unit
inches
mm
inches
mm
0.157 ± 0.004
4.00 ± 0.10
0.157 ± 0.004
4.00 ± 0.10
Recommended Pad Layout
SIZE
RPC0201
RPC0402
RPC0603
RPC0805
RPC1206
RPC1210
RPC2010
RPC2512
L
0.031
0.79
0.051
1.30
0.079
2.00
0.102
2.60
0.150
3.80
0.150
3.80
0.232
5.90
0.283
7.20
H
0.017
0.43
0.024
0.60
0.035
0.90
0.051
1.30
0.067
1.70
0.098
2.50
0.098
2.50
0.126
3.20
W
0.011
0.28
0.016
0.40
0.020
0.50
0.028
0.70
0.035
0.90
0.035
0.90
0.039
1.00
0.039
1.00
Unit
inches
mm
inches
mm
inches
mm
inches
mm
inches
mm
inches
mm
inches
mm
inches
mm
Rev Date: 06/14/2017
This specification may be changed at any time without prior notice
Please confirm technical specifications before you order and/or use.
4
www.seielect.com
marketing@seielect.com
RPC Series
Pulse Withstanding Thick Film Chip Resistor
Stackpole Electronics, Inc.
Resistive Product Solutions
Lightning Surge

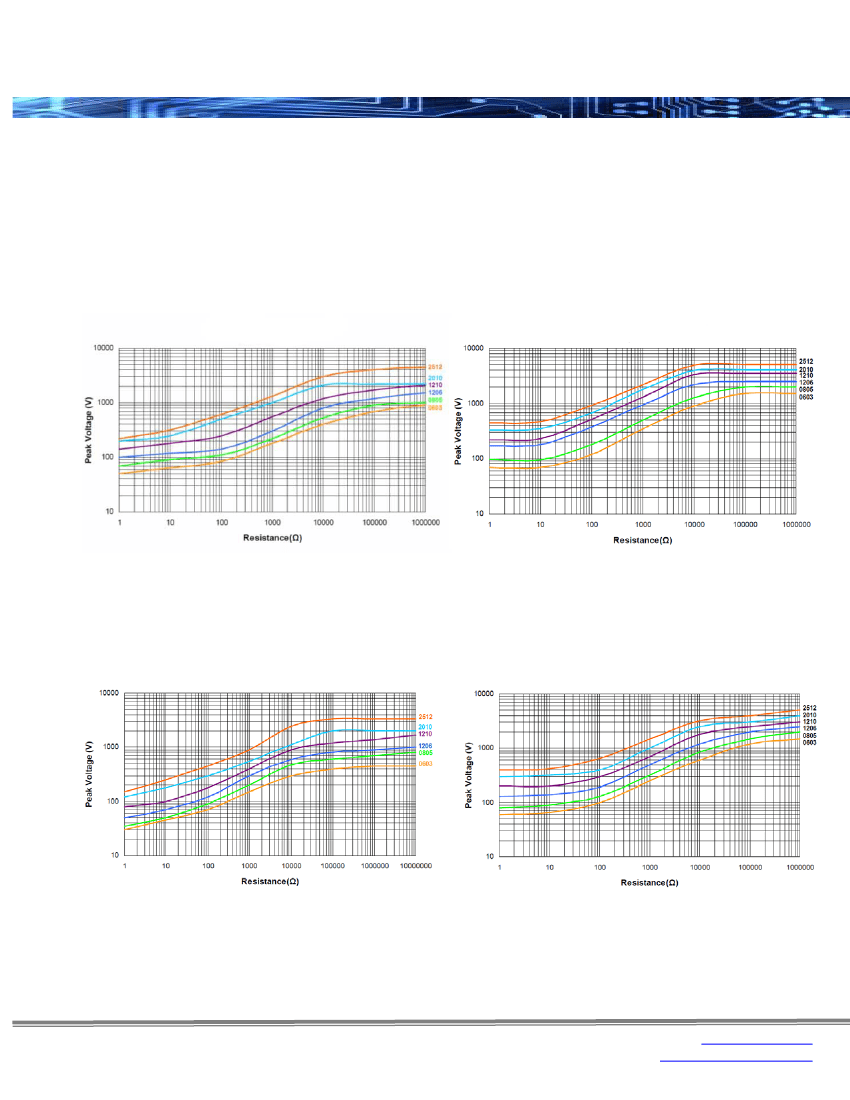

Resistors are tested in accordance with IEC 60115-1 using both 1.2/50us and 10/700 pulse shapes. The limit of
acceptance is a shift in resistance of less than 1% from the initial value.
1.
1.2/50us Lightning Surge
RPC-HP (High Power) All Tolerances
RPC (Std. Power) Tolerances of 0.5% and 1%
RPC (Std. Power)
Tolerances of 5%, 10% and 20%
2.
10/700us Lightning Surge
RPC-HP (High Power) All Tolerances
RPC (Std. Power) Tolerances of 0.5% and 1%
RPC (Std. Power)
Tolerances of 5%, 10% and 20%
Rev Date: 06/14/2017
This specification may be changed at any time without prior notice
Please confirm technical specifications before you order and/or use.
5
www.seielect.com
marketing@seielect.com
京公网安备 11010802033920号
EEWORLD
