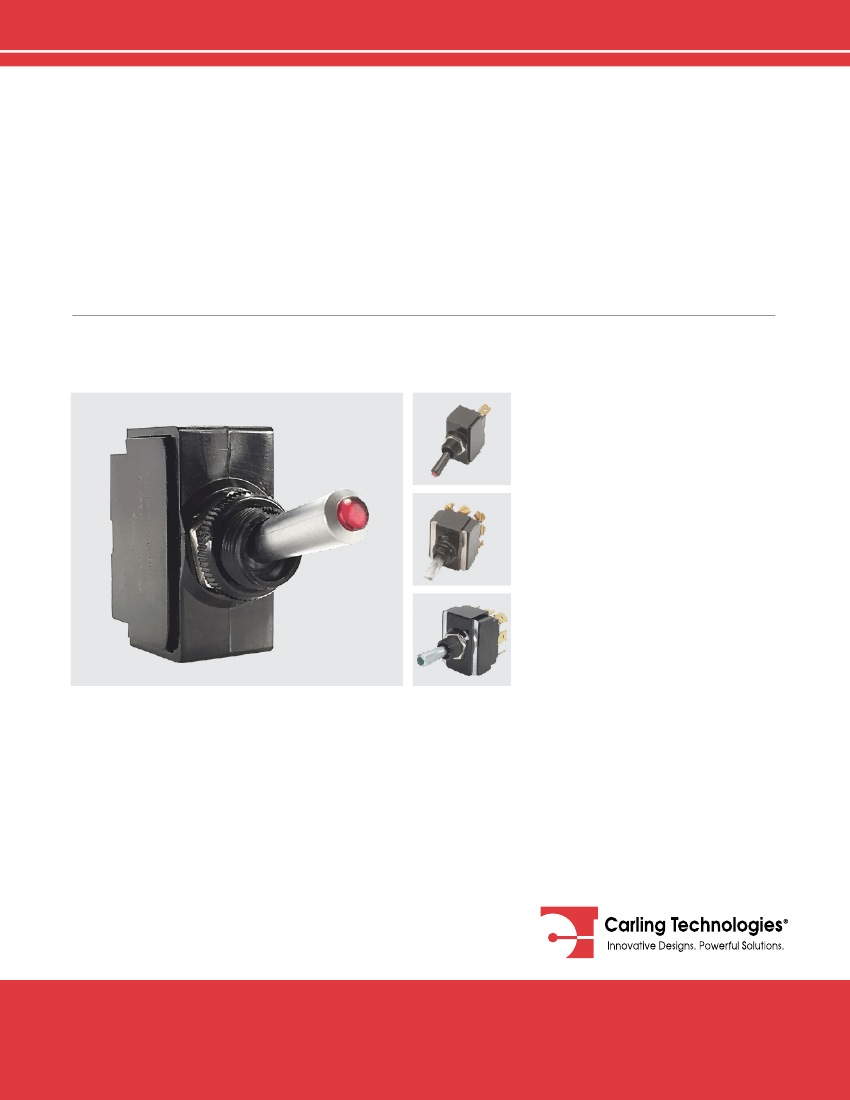

LT-Series
LT-Series
TOGGLE SWITCHES
The LT-Series illuminated toggle switches feature up to a three-color lighting sequence from a single
lamp. These lighted toggles contain neoprene bushing seals for dust and moisture protection. A variety of
circuits and terminations are available.
Product Highlights:
1 or 2 Pole
Independent or Dependent Illumination
Choice of 5 Actuator Styles
Up to 3 different colors under a single lens
Typical Applications:
Marine
Transportation
Carling Technologies, Inc.
60 Johnson Avenue, Plainville, CT
06062
Email:
sales
@
carlingtech.com
Application Support:
team2
@
carlingtech.com
Phone:
860.793.9281
Fax:
860.793.9231
www.carlingtech.com
2 |
LT-Series Toggle Switches - General Specifications, Ordering Scheme, Dimensional Specifications
Dielectric Strength
Electrical Life
50,000 cycles - maintained
25,000 cycles - momentary
1000V - live to dead metal parts
Mechanical Life
100,000 cycles
Operating Temperature
32°F to 185°F (0°C to 85°C)
1
Base Part Number
LT-1561
2
Actuator
Style
1 30
3
Lighting
Sequence
4
Lamp Voltage
012
position 2
red
amber
green
---
clear
clear
clear
clear
clear
---
clear
clear
clear
clear
clear
---
clear
clear
clear
clear
clear
---
clear
clear
clear
clear
clear
---
clear
clear
clear
clear
clear
position 3
red
amber
green
none
red
amber
green
blue
clear
none
red
amber
green
blue
clear
none
red
amber
green
blue
clear
none
red
amber
green
blue
clear
none
red
amber
green
blue
clear
1 BASE PART NUMBER: SERIES / POLES / ILLUMINATION /
CIRCUITRY / RATING / TERMINATION
5
10A 250VAC, 15A 125VAC, 3/4 HP 125-250VAC, 15A 12-28VDC
Single Pole
Solder Lug .250 Tab QC Screw Terms Wire Leads
On-None-Off
LT-1510
LT-1511
LT-1514
LT-1515
On-None-(Off)
LT-1520
LT-1521
LT-1524
LT-1525
LT-1530
LT-1531
LT-1534
LT-1535
(On)-None-Off
On-None-On
LT-1540
LT-1541
LT-1544
LT-1545
On-None-(On)
LT-1550
LT-1551
LT-1554
LT-1555
On-Off-On
LT-1560
LT-1561
LT-1564
LT-1565
On-Off-(On)
LT-1570
LT-1571
LT-1574
LT-1575
(On)-Off-(On)
LT-1580
LT-1581
LT-1584
LT-1585
Double Pole
Solder Lug .250 Tab QC Screw Terms Wire Leads
On-None-Off
LT-2510
LT-2511
LT-2514
LT-2515
On-None-(Off)
LT-2520
LT-2521
LT-2524
LT-2525
(On)-None-Off
LT-2530
LT-2531
LT-2534
LT-2535
On-None-On
LT-2540
LT-2541
LT-2544
LT-2545
On-None-(On)
LT-2550
LT-2551
LT-2554
LT-2555
On-Off-On
LT-2560
LT-2561
LT-2564
LT-2565
On-Off-(On)
LT-2570
LT-2571
LT-2574
LT-2575
(On)-Off-(On)
LT-2580
LT-2581
LT-2584
LT-2585
2 ACTUATOR STYLE
Paddle
1
1
Clear Paddle
4
Solid Color Paddle
Snapkap Style
2
5
Bright Chrome
6
Satin Chrome
7
Black Molded
Notes:
1
Solid color paddle available with lighting sequence 01, 02, 10 or 20.
2
SnapKap Toggle Lenses are available separately. Consult factory.
3
Independent lamp is standard. Dependent lamp with ON-OFF function
(including momentary) is available with Lighting Sequences 10, 20, 30, 40 and 50.
(No light in OFF position.)
4
Green and blue not recommended with 125 volt or 250 volt neon lamps.
5
Additional terminations available. Consult factory for details.
6
Ignition protected (UL 1500) construction is available, consult factory for details.
( ) Indicates momentary function.
3 LIGHTING SEQUENCE
3,4
position 1
01
red
02
amber
03
green
10
red
11
red
12
red
13
red
14
red
15
red
20
amber
21
amber
22
amber
23
amber
24
amber
25
amber
30
green
31
green
32
green
33
green
34
green
35
green
40
blue
41
blue
42
blue
43
blue
44
blue
45
blue
50
clear
51
clear
52
clear
53
clear
54
clear
clear
55
4 LAMP VOLTAGE
4
incandescent
006
6 volt
012
neon
125N
125 volt neon
12 volt
018
18 volt
250N
024
24 volt
250 volt neon
.125[3.18] DIA
.274[6.96] DIA
15/32-32UNS-2A
THREAD
.379[9.63]
.168[4.27] DIA LENS
.187[4.74]
SOLDER LUG
.890[22.61]
.715[18.16]
.865[21.97]
.422[10.72]
#6-32NC-2
THREAD
.370[9.39]
1.375[34.92]
SINGLE POLE
SNAPKAP TOGGLES 5,6,7
.250[6.35]
TOGGLE STYLES 1,4
.625[15.87]
.750[19.05]
1.088[27.64]
DOUBLE
POLE
.286[7.26]
SCREW
(ASSEMBLED)
.062[1.57]
.330[8.38]
.075[1.91] DIA
.055[1.40] DIA
.394[10.00]
.187[4.74]
.187 TAB (Q.C.)
.437[11.09]
.250[6.35]
.250 TAB (Q.C.)
KEYWAY
.072[1.82]
X
.038[.965] DP
TERMINAL TYPE
.141[3.58]
6.000[152.40]
.187[4.75]
.500[12.70]
.187[4.75]
.350[8.89]
WIRE LEAD
PRINTED
CIRCUIT
.270[6.86]
.500[12.70] DIA
MOUNTING HOLE
Keyway should point down
for maximum water resistance
.038[9.65]
*Manufacturer reserves the right to change product specification without prior notice.
