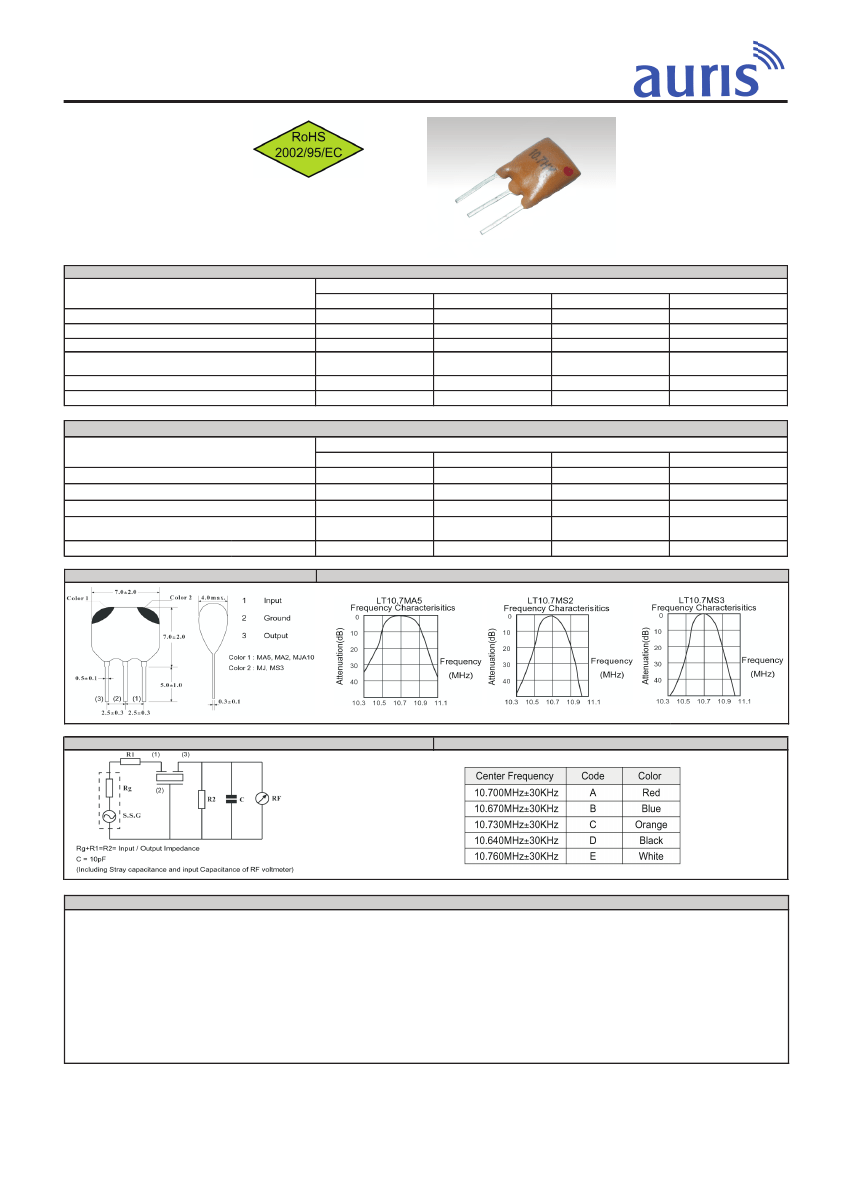

LT/A10: DescriptionFilter THT, Ceramic; File Size326KB，1 Pages; ManufacturerAuris

Download Datasheet Compare View All

LT/A10 Overview

Filter THT, Ceramic

Preview

Download Datasheet

View All

Filter THT, Ceramic

Features:

- Series LT or LT A10

- Consumer electronics

- Individual specification: A5, S2, S3 or J

Specifications

Part

3db band width (kHz)

20db band width (kHz) max

Insertion loss (dB) max

Spurious attenuation ( 9 ~ 12MHz)

(dB) min

Input/output impedance (Ohm)

LT/A10

A5-

280 ±50

650

330

S2-

230 ±50

600

330

S3-

180 ±40

520

330

J-

150 ±40

400

330

Specifications

Part

3db band width (kHz)

20db band width (kHz) max

Insertion loss (dB) max

Spurious attenuation ( 9 ~ 12MHz)

(dB) min

Input/output impedance (Ohm)

Drawing

LT/A10

A10-A5

280 ±50

590

2.5 ±2.0

330

Characteristics

A10-S2

230 ±50

520

3.0 ±2.0

330

A10-S3

180 ±40

470

3.5 ±1.5

330

A10-J

150 ±40

360

4.5 ±2.0

330

Dimensions in mm

Test circuit

Color code

Order key

Part

- LT

Package

- A5

Individual specification

- 10.700 M

Center frequency

M = MHz. K = KHz

Option

F= Ceramic filter

LT/A10

10.700 MHz (= A = Red)

10.670 MHz (= B = Blue)

10.730 MHz (= C = Orange)

10.640 MHz (= D = Black)

10.760 MHz (= E = White)

450 ~ XXX ~ 470 KHz

blank = standard

X=Special options

auris-GmbH

office@auris-gmbh.de www.auris-gmbh.de

All specifications are subject to change without notice.

7.1
