420C112M300EA8L datasheet, PDF

Datasheet> All Categories > Passive components> capacitor> 420C112M300EA8L

420C112M300EA8L: DescriptionCAPACITOR, ALUMINUM ELECTROLYTIC, NON SOLID, POLARIZED, 300V, 1100uF, THROUGH HOLE MOUNT, RADIAL LEADED, CAN; CategoryPassive components capacitor; File Size381KB，4 Pages; ManufacturerCDE [ CORNELL DUBILIER ELECTRONICS ]; Environmental Compliance

Download Datasheet Parametric View All

420C112M300EA8L Overview

CAPACITOR, ALUMINUM ELECTROLYTIC, NON SOLID, POLARIZED, 300V, 1100uF, THROUGH HOLE MOUNT, RADIAL LEADED, CAN

420C112M300EA8L Parametric

Parameter Name	Attribute value
Is it lead-free?	Lead free
Is it Rohs certified?	conform to
Maker	CDE [ CORNELL DUBILIER ELECTRONICS ]
package instruction	,
Reach Compliance Code	compliant
ECCN code	EAR99
capacitance	1100 µF
Capacitor type	ALUMINUM ELECTROLYTIC CAPACITOR
dielectric materials	ALUMINUM (WET)
ESR	111 mΩ
JESD-609 code	e3
leakage current	4 mA
Manufacturer's serial number	420C
Installation features	THROUGH HOLE MOUNT
negative tolerance	20%
Number of terminals	2
Maximum operating temperature	85 °C
Minimum operating temperature	-40 °C
Package shape	CYLINDRICAL PACKAGE
polarity	POLARIZED
positive tolerance	20%
Rated (DC) voltage (URdc)	300 V
ripple current	4500 mA
surface mount	NO
Terminal surface	Tin (Sn)
Terminal shape	WIRE

Preview

Download Datasheet

View All

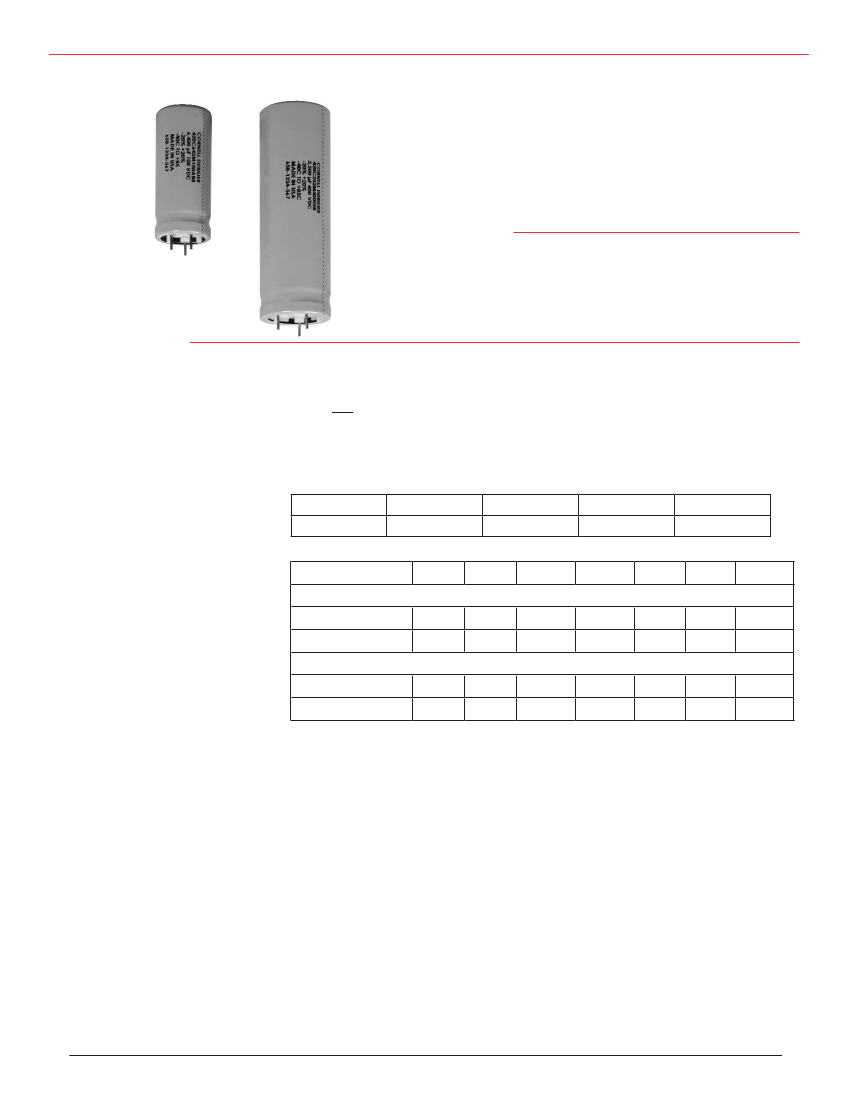

Best Value High Ripple Type Plug-in

Type 420C

85 °C, Long-Life, Inverter Grade, Radial Leaded

Type 420C is the PC-mount version of the Type 520C screw

terminal, computer grade capacitor and the 85 °C version

of the Type 450C Inverter Grade capacitor. It delivers the

ripple current capability and exceptional life needed for

motor-drive bus capacitors and approaches the performance

of the 450C at a lower cost. The extended cathode foil of

the 420C assures cool operation and heat ﬂow from the

capacitor element to the can in all orientations.

Highlights

• For motor drives and UPS systems

• ESRs to 6.9 mΩ

• Printed-circuit mounting

• Thermal-Pak™ extended cathode construction

–40 °C to 85 °C

100 to 500 Vdc

160 µF to 27,000 µF ± 20%

≤ 3 √CV µA, 4 mA max, 5 minutes

–20 °C multiple of 25 °C Z ≤ 3

Ambient Temperature

45 °C

1.80

55 °C

1.63

50 Hz

1 3/8” & 1 3/4” Diameters

100 to 350 V

400 to 500 V

2” Diameters

100 to 350 V

400 to 500 V

0.92

0.82

0.94

0.86

1.00

1.05

1.14

1.07

1.20

1.08

1.23

1.08

1.27

0.91

0.82

0.93

0.86

1.00

1.06

1.14

1.08

1.20

1.09

1.23

1.09

1.23

60 Hz

65 °C

1.45

120 Hz

75 °C

1.25

360 Hz

1 kHz

85 °C

1.00

5 kHz

10 kHz

Speciﬁcations

Operating Temperature:

Rated Voltage:

Capacitance:

DC Leakage Current:

Cold Impedance:

Ripple Current Multipliers:

Frequency

EIA Ripple Life:

Life Test:

Shelf Life Test:

Vibration:

4,000 h at full load at 85 °C per EIA IS-749

∆ Capacitance ± 20%

ESR 200 % of limit

DCL 100 % of limit

6,000 h at 85 ºC with rated voltage

∆ Capacitance ± 10%

ESR 200 % of limit

DCL 100 % of limit

500 h at 105 °C. Capacitance, ESR and DCL meet initial requirements

10 to 55 Hz, 0.06” and 10 g max, 2 h each plane

Cornell Dubilier

•

140 Technology Place

•

Liberty, SC 29657

•

Phone: (864)843-2277

•

Fax: (864)843-3800

•

www.cde.com
