556562M020LV2 datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > Passive components> capacitor> 556562M020LV2

556562M020LV2: DescriptionCAPACITOR, ALUMINUM ELECTROLYTIC, NON SOLID, POLARIZED, 20V, 5600uF, THROUGH HOLE MOUNT, AXIAL LEADED, CAN; CategoryPassive components capacitor; File Size87KB，5 Pages; ManufacturerCDE [ CORNELL DUBILIER ELECTRONICS ]

Download Datasheet Parametric Compare View All

556562M020LV2 Overview

CAPACITOR, ALUMINUM ELECTROLYTIC, NON SOLID, POLARIZED, 20V, 5600uF, THROUGH HOLE MOUNT, AXIAL LEADED, CAN

556562M020LV2 Parametric

Parameter Name	Attribute value
Maker	CDE [ CORNELL DUBILIER ELECTRONICS ]
package instruction	,
Reach Compliance Code	unknown
ECCN code	EAR99
capacitance	5600 µF
Capacitor type	ALUMINUM ELECTROLYTIC CAPACITOR
diameter	18.7 mm
dielectric materials	ALUMINUM (WET)
ESR	70 mΩ
leakage current	0.035466 mA
length	42.5 mm
Manufacturer's serial number	556
Installation features	THROUGH HOLE MOUNT
negative tolerance	20%
Number of terminals	2
Maximum operating temperature	105 °C
Minimum operating temperature	-40 °C
Package shape	TUBULAR PACKAGE
Package form	Axial
polarity	POLARIZED
positive tolerance	20%
Rated (DC) voltage (URdc)	20 V
ripple current	2400 mA
series	556
surface mount	NO
Terminal shape	WIRE

Preview

Download Datasheet

View All

Type 556, 105 °C, Computer Grade, Axial Leaded, Aluminum

105 °C, Computer Grade

Type 556 capacitors are designed for data processing,

telecom and instrumentation applications requiring

smaller size with extended temperature range. They

have longer life and up to twice the ripple capability

of +85 °C capacitors.

Highlights

Small size

Extended life

Extended temperature

Twice ripple capability of +85 C capacitors

Designed for data processing, telecom

and instrumentation applications

Specifications

Operating Temperature Range:

Rated Voltage Range:

Capacitance:

Capacitance Tolerance:

Leakage Current:

Ripple Current:

40 °C to +105 °C

6.3 to 450 Vdc

1.5 F to 12,000 F

20%

3-20 Vdc 0.1 CV +2 A

25 Vdc & up 0.2 CV +2 A

Ambient Temperature

45 °C

1.50

Frequency

0-60 Vdc

Life

557 UHL

p 2.168

Temp

066R

p 2.160

557 UHL

p 2.168

55 °C

1.46

65 °C

1.32

75 °C

1.17

85 °C

1.00

95 °C

0.79

105 °C

0.50

50 Hz

0.85

0.83

60 Hz

1.00

120 Hz

1.10

1.15

360 Hz 1 kHz

1.15

1.20

5 kHz

1.15

1.20

10 kHz+

1.15

1.20

Aluminum

Axial Leaded

Capacitors

61-150 Vdc

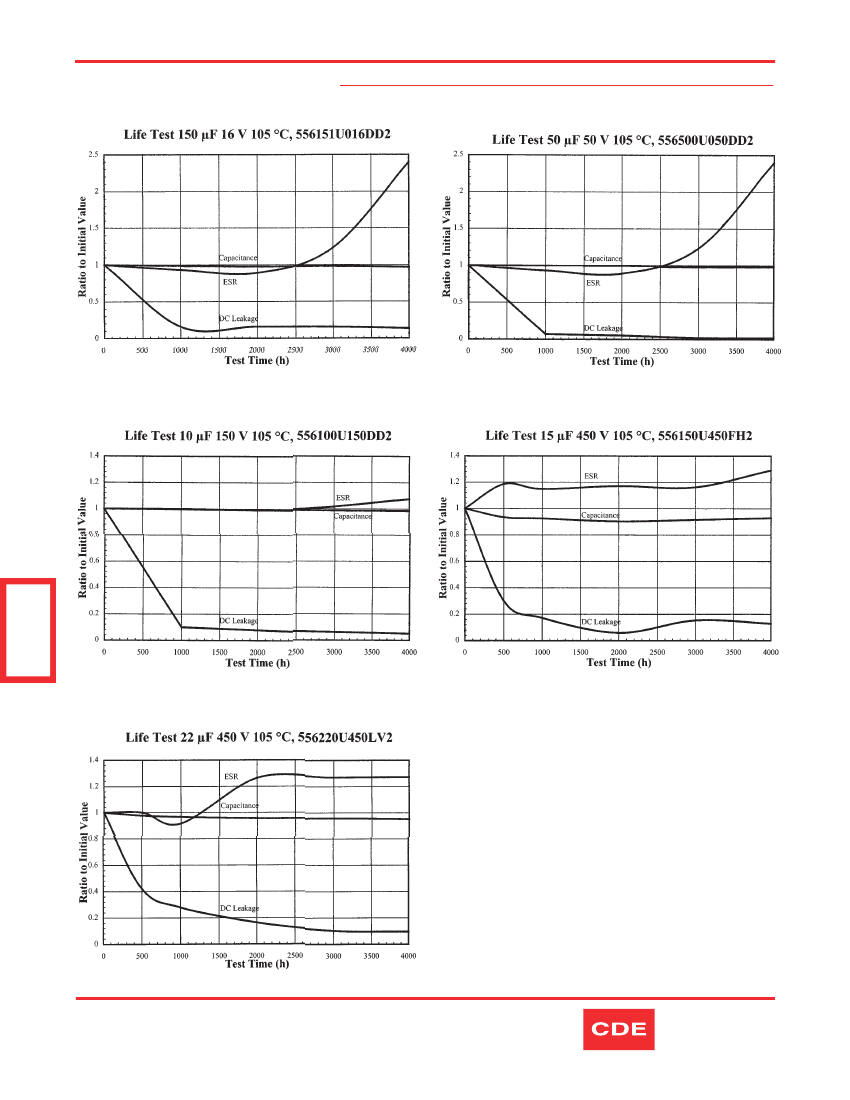

Load Life:

Shelf Life:

Vibration:

4,000 h @ +105 °C, capacitance 20%, ESR 200% of limit, DCL 100% of limit

100 h at 105 °C, capacitance, ESR & DCL, initial requirements.

10 to 55 Hz; 0.06” and 10 g max, 2 h. in each plane

Outline Drawings

20 AWG 0.81

38 mm min.

CORNELL

DUBILIER

Your Source For Capacitor Solutions

140 Technology Place

Liberty, SC 29657

Phone (864) 843-2277, Fax (864) 843-3800

http://www.cornell-dubilier.com

E-mail: cde@cornell-dubilier.com

2.157
