SPECIFICATIONS
Operating voltage:
250VAC max.
Current rating:
3 amps max.
Contact material:
Phosphor bronze
Contact plating:
Gold over nickel
Contact resistance: 20 milliohms max.
Insulator material:
PBT, glass reinforced, UL94V-0
Insulation resistance: 5,000 megohms min.
Withstanding:
1,000 VAC for 1 min.
Operating temperature: -55°C to +105°C
B
C
D
D
E
E196498
Series Positions
Polarization
Finish
AFC
XX
XX
XX
Flat cable 6 to 64
P=Polarized
SGXX=Selective Gold
socket
NP=Not polarized XX=flash if blank 15,30 u”
F
RoHS compliant
Rev.
Description
Date
Approved
Drawing
Name
Approved Howard
Checked Lizzy
Drawn Tina
0.0 ± 0.35
1
2
3
4
Options
XXX
[blank]=None
ASR=Strain relief
APT=Pull tab
AKY=Keying plug
DW=Dual wipe
E
F
Date
08/10/99
08/10/99
08/10/99 Part No.:
Central Components Manufacturing
440 Lincoln Blvd., Middlesex, New Jersey 08846
Phone 732 469-5720 888 288-5152 Fax 732 469-1919
G
AFC-XX-XX-XX-XXX
7
8
9
0.00 ± 0.20 Angles ± 3’
UNIT: mm
5
6

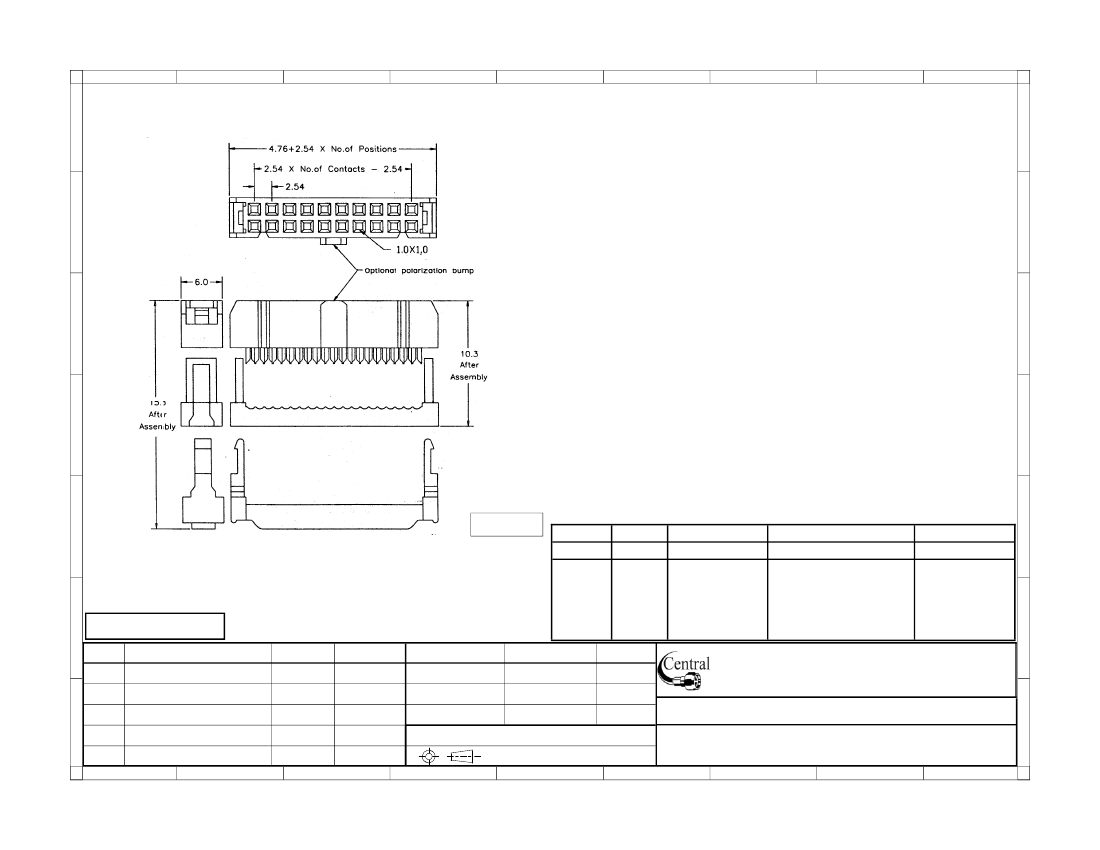

Description: Flat cable socket, .100” by .100”
