A3001-210-010-71-Z: DescriptionTelecom and Datacom Connector, 6 Contact(s), Male, Right Angle, Solder Terminal, Locking, Receptacle; CategoryThe connector The connector; File Size612KB，1 Pages; ManufacturerSMP Technology Inc.

Download Datasheet Parametric Compare View All

A3001-210-010-71-Z Overview

Telecom and Datacom Connector, 6 Contact(s), Male, Right Angle, Solder Terminal, Locking, Receptacle

A3001-210-010-71-Z Parametric

Parameter Name	Attribute value
Maker	SMP Technology Inc.
Reach Compliance Code	unknown
Other features	ROHS COMPLIANT
Board mount options	PEG
body width	0.63 inch
subject depth	0.811 inch
body length	0.62 inch
Body/casing type	RECEPTACLE
Connector type	TELECOM AND DATACOM CONNECTOR
Contact to complete cooperation	AU ON NI
Contact point gender	MALE
Contact material	PHOSPHOR BRONZE
Contact resistance	20 mΩ
Contact style	TELCOM, MODULAR
Dielectric withstand voltage	1000VAC V
Insulation resistance	500000000 Ω
insulator material	GLASS FILLED POLYESTER
Manufacturer's serial number	A3001
Installation option 1	LOCKING
Installation option 2	MOUNTING FLANGE
Installation method	RIGHT ANGLE
Installation type	BOARD
Number of ports	1
Maximum operating temperature	85 °C
Minimum operating temperature	-25 °C
PCB contact pattern	STAGGERED
Plating thickness	10u inch
Rated current (signal)	1.5 A
Guideline	UL
reliability	COMMERCIAL
Terminal length	0.157 inch
Terminal pitch	2.54 mm
Termination type	SOLDER
Total number of contacts	6

Preview

Download Datasheet

View All

HOW TO ORDER:

A

3

0

1

-

X

0

-

0

1

X

-

X

-

Z

RoHS

COMPLIANT

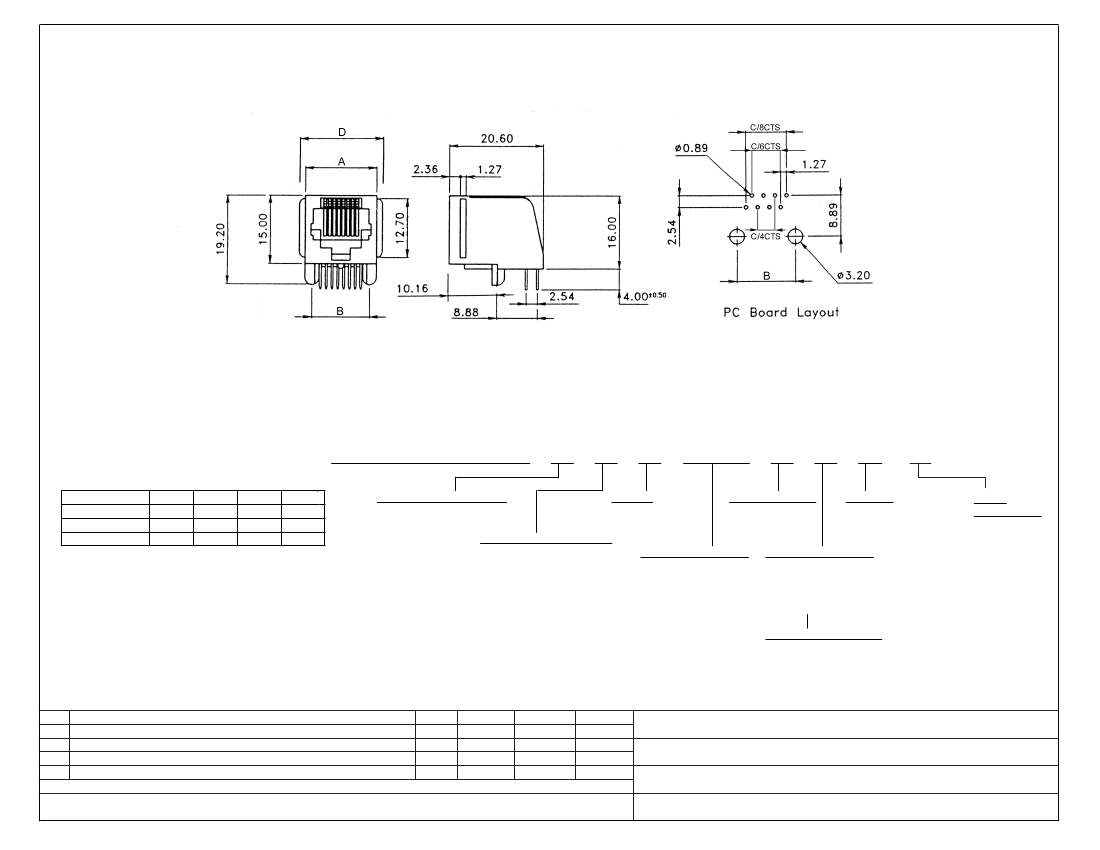

DIMENSION(mm)

NO. POSITIONS

4

6

8

A

11.18

13.21

15.24

B

7.62

10.16

11.43

C

3.81

6.35

8.89

D

13.70

15.70

17.78

ELECTRICAL:

CURRENT: 1.5A

CONTACT RESISTANCE: < 20m

Ω

INSULATOR RESISTANCE: > 500M

Ω

DIELECTRIC WITHSTANDING VOLTAGE: 1000VAC FOR 1 MIN.

OPERATING TEMPERATURE: -25° C TO +85° C

NUMBER OF POSITIONS:

SHIELD:

KEYING OPTION:

FLANGE:

1 - 4 POS

3 - 8 POS

0 - NON SHIELDED

0 - W/ OUT KEY

0 - NO FLANGE

2 - 6 POS

1 - W/ KEY

1 - FLANGE

NUMBER OF CONTACTS:

1 - 2 CON

3 - 6 CON

NUMBER OF PORTS: PLATING OVERALL:

2 - 4 CON

4 - 8 CON

01

0 - FULL Au FLASH

1 - 10u" Au

2 - 15u" Au

3 - 30u" Au

SELECTIVE PLATING:

6 - Au FLASH CONTACT AREA/TIN TAIL

7 - 10u" Au CONTACT AREA/TIN TAIL

8 - 15u" Au CONTACT AREA/TIN TAIL

9 - 30u" Au CONTACT AREA/TIN TAIL

Drawn

S.E.

B.S.

Checked

S.M.

Approved

S.M.

Date

04/15/97

08/25/08

MATERIAL:

CONTACT: PHOSPHOR BRONZE

INSULATOR: GLASS FILLED POLYESTER (UL94V-0)

Rev

0 Issued

A Revised for RoHS Compliance

SMP TECHNOLOGY, INC.

PCB Jack, Right Angle

TOL. DEC.

.X +/- 0.35

.XX +/- 0.25

.XXX +/-

ANGLE +/-

UNIT: mm

SERIES: A 3 0 0 1

Pg: 1

A3001-210-010-71-Z Related Products

	A3001-210-010-71-Z	A3001-230-010-61-Z	A3001-330-010-71-Z	A3001-330-010-61-Z	A3001-210-010-61-Z	A3001-340-010-71-Z
Description	Telecom and Datacom Connector, 6 Contact(s), Male, Right Angle, Solder Terminal, Locking, Receptacle	Telecom and Datacom Connector, 6 Contact(s), Male, Right Angle, Solder Terminal, Locking, Receptacle	Telecom and Datacom Connector, 8 Contact(s), Male, Right Angle, Solder Terminal, Locking, Receptacle	Telecom and Datacom Connector, 8 Contact(s), Male, Right Angle, Solder Terminal, Locking, Receptacle	Telecom and Datacom Connector, 6 Contact(s), Male, Right Angle, Solder Terminal, Locking, Receptacle	Telecom and Datacom Connector, 8 Contact(s), Male, Right Angle, Solder Terminal, Locking, Receptacle
Reach Compliance Code	unknown	unknow	unknown	unknown	unknown	unknown
Other features	ROHS COMPLIANT	ROHS COMPLIANT	ROHS COMPLIANT	ROHS COMPLIANT	ROHS COMPLIANT	ROHS COMPLIANT
Board mount options	PEG	PEG	PEG	PEG	PEG	PEG
body width	0.63 inch	0.63 inch	0.63 inch	0.63 inch	0.63 inch	0.63 inch
subject depth	0.811 inch	0.811 inch	0.811 inch	0.811 inch	0.811 inch	0.811 inch
body length	0.62 inch	0.62 inch	0.7 inch	0.7 inch	0.62 inch	0.7 inch
Body/casing type	RECEPTACLE	RECEPTACLE	RECEPTACLE	RECEPTACLE	RECEPTACLE	RECEPTACLE
Connector type	TELECOM AND DATACOM CONNECTOR	TELECOM AND DATACOM CONNECTOR	TELECOM AND DATACOM CONNECTOR	TELECOM AND DATACOM CONNECTOR	TELECOM AND DATACOM CONNECTOR	TELECOM AND DATACOM CONNECTOR
Contact to complete cooperation	AU ON NI	AU ON NI	AU ON NI	AU ON NI	AU ON NI	AU ON NI
Contact point gender	MALE	MALE	MALE	MALE	MALE	MALE
Contact material	PHOSPHOR BRONZE	PHOSPHOR BRONZE	PHOSPHOR BRONZE	PHOSPHOR BRONZE	PHOSPHOR BRONZE	PHOSPHOR BRONZE
Contact resistance	20 mΩ	20 mΩ	20 mΩ	20 mΩ	20 mΩ	20 mΩ
Contact style	TELCOM, MODULAR	TELCOM, MODULAR	TELCOM, MODULAR	TELCOM, MODULAR	TELCOM, MODULAR	TELCOM, MODULAR
Dielectric withstand voltage	1000VAC V	1000VAC V	1000VAC V	1000VAC V	1000VAC V	1000VAC V
Insulation resistance	500000000 Ω	500000000 Ω	500000000 Ω	500000000 Ω	500000000 Ω	500000000 Ω
insulator material	GLASS FILLED POLYESTER	GLASS FILLED POLYESTER	GLASS FILLED POLYESTER	GLASS FILLED POLYESTER	GLASS FILLED POLYESTER	GLASS FILLED POLYESTER
Manufacturer's serial number	A3001	A3001	A3001	A3001	A3001	A3001
Installation option 1	LOCKING	LOCKING	LOCKING	LOCKING	LOCKING	LOCKING
Installation option 2	MOUNTING FLANGE	MOUNTING FLANGE	MOUNTING FLANGE	MOUNTING FLANGE	MOUNTING FLANGE	MOUNTING FLANGE
Installation method	RIGHT ANGLE	RIGHT ANGLE	RIGHT ANGLE	RIGHT ANGLE	RIGHT ANGLE	RIGHT ANGLE
Installation type	BOARD	BOARD	BOARD	BOARD	BOARD	BOARD
Number of ports	1	1	1	1	1	1
Maximum operating temperature	85 °C	85 °C	85 °C	85 °C	85 °C	85 °C
Minimum operating temperature	-25 °C	-25 °C	-25 °C	-25 °C	-25 °C	-25 °C
PCB contact pattern	STAGGERED	STAGGERED	STAGGERED	STAGGERED	STAGGERED	STAGGERED
Plating thickness	10u inch	FLASH inch	10u inch	FLASH inch	FLASH inch	10u inch
Rated current (signal)	1.5 A	1.5 A	1.5 A	1.5 A	1.5 A	1.5 A
Guideline	UL	UL	UL	UL	UL	UL
reliability	COMMERCIAL	COMMERCIAL	COMMERCIAL	COMMERCIAL	COMMERCIAL	COMMERCIAL
Terminal length	0.157 inch	0.157 inch	0.157 inch	0.157 inch	0.157 inch	0.157 inch
Terminal pitch	2.54 mm	2.54 mm	2.54 mm	2.54 mm	2.54 mm	2.54 mm
Termination type	SOLDER	SOLDER	SOLDER	SOLDER	SOLDER	SOLDER
Total number of contacts	6	6	8	8	6	8
Maker	SMP Technology Inc.	-	SMP Technology Inc.	SMP Technology Inc.	SMP Technology Inc.	-
