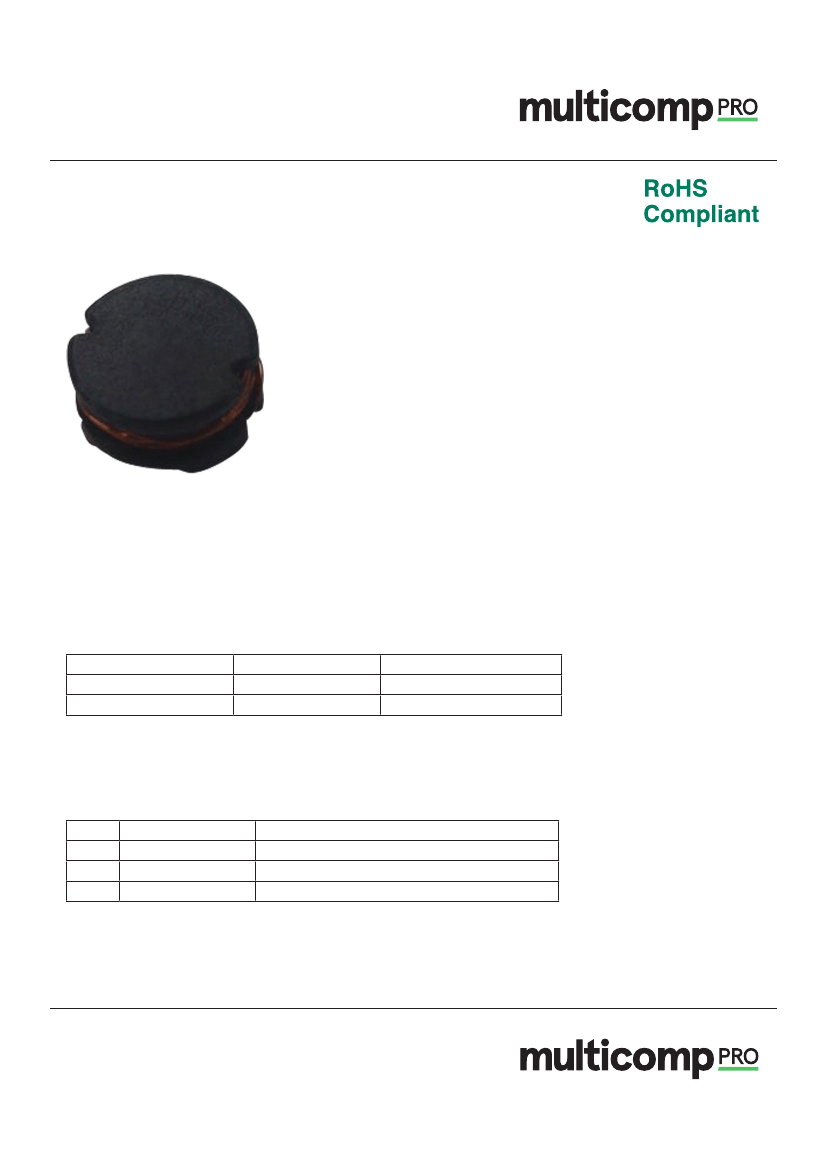

Inductor
Specifications:
Inductance
Inductance Tolerance
DC Resistance Max
DC Current Rating
Self Resonant Frequency
Inductor Case Style
No. of Pins
Lead Spacing
Core Material
External Depth
External Length / Height
External Width
Resonant Frequency
Series
: 12µH
: ± 20%
: 0.07Ω
: 2.45A
: 20MHz
: SMD
:2
: 2.8mm
: Ferrite
: 9.8mm
: 5.8mm
: 9.8mm
: 1kHz
: MCSDC1006
Electrical Characteristics (at 25°C)
1kHz 1V
at 25°C
1kHz 1V I
rms
= 2.45A
Operating temperature: -55°C to +130°C
L
DCR
Δ
T
12μH ±20%
70mΩ (Max.)
Temperature Rise 40°C (Max.)
Material List
No.
1
2
3
Item
Core
Wire
Solder (Lead Free)
Material Description
K22 DRM 9.5 × 5.5 RB-R B=4.5 F=3
Ø0.3mm × 2P 2UEF1/U 155°C
Sn99.3%/Cu0.7%
Newark.com/multicomp-pro
Farnell.com/multicomp-pro
Element14.com/multicomp-pro
Page <1>
23/09/19
V1.0
Inductor
Schematic Diagram
Note:
1. Wire Ø0.3mm × 2P 2UEF1/U 155°C
2. 15.5TS (Reference)
Electric Characteristics
Newark.com/multicomp-pro
Farnell.com/multicomp-pro
Element14.com/multicomp-pro
Page <2>
23/09/19
V1.0
Inductor
Configurations and Dimensions
A
B
C
9.8 mm
5.8 mm
2.9mm
(Maximum)
(Maximum)
(Reference)
Dimensions : Millimetres
Part Number Table
Description
Inductor, 12μH, 20%, SMD
Part Number
MCSDC1006-120MU
