MCSJK-6NC1-20.00-25-B datasheet, PDF

Datasheet> All Categories > Passive components> oscillator> MCSJK-6NC1-20.00-25-B

MCSJK-6NC1-20.00-25-B: DescriptionCMOS/TTL Output Clock Oscillator,; CategoryPassive components oscillator; File Size225KB，3 Pages; ManufacturerSPC Multicomp

Download Datasheet Parametric View All

MCSJK-6NC1-20.00-25-B Overview

CMOS/TTL Output Clock Oscillator,

MCSJK-6NC1-20.00-25-B Parametric

Parameter Name	Attribute value
Maker	SPC Multicomp
Reach Compliance Code	unknown
Oscillator type	CMOS/TTL

Preview

Download Datasheet

View All

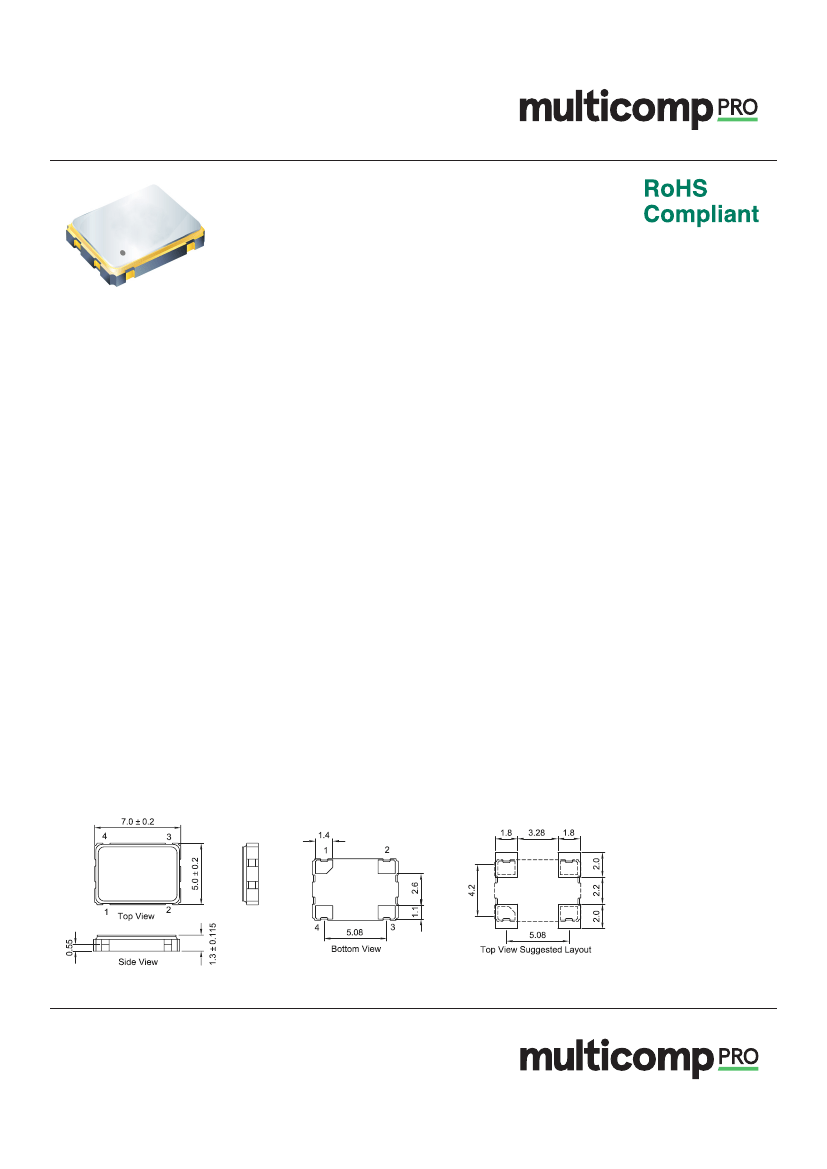

Crystal Oscillator

SMD 7050 (7mm

5mm

1.3mm)

Application

Used in Wireless communication, FC-HBA, PC, LCDM, Server, SONET, Telecommunications, etc.

Features

•

High precision characteristic covering up to wide frequency range

Supply voltage: 5V and 3.3V supply model available

3-state function

Automatic mounting and reflow soldering

High stability, low jitter, low power consumption

Package size: 7mm ×5mm × 1.3mm

Electrical Specifications

Output Type

Output Load

Oscillation Mode

Supply Voltage

Frequency Range

Frequency Stability

Operating Temperature Range

Storage Temperature Range

Voltage Vol (Max.) / Voh (Min.)

Rise(Tr) / Fall(Tf) Time

Supply Current

Symmetry

Start-up Time

Phase Jitter (12kHz ~ 20MHz)

Aging (at 25°C)

: TTL/CMOS (6NC1), CMOS (6NC2)

: 15pF

: Fundamental / 3rd Overtone

: 3.3V, 5V

: 1 ~ 78MHz

: ±25ppm

: -20°C to +70°C

: -55°C to +125°C

: 0.1VDD / 0.9VDD

: 8ns Max.

: 20mA Max.

: 40 ~ 55%, 40 ~ 60%

: 5ms Max.

: 1ps Max.

: ±3ppm/Year Max.

Diagram

PAD Function

1. Enable Control

2. GND

3. Out

4. VDD

Dimensions : Millimetres

Newark.com/multicomp-pro

Farnell.com/multicomp-pro

Element14.com/multicomp-pro

Page <1>

09/09/19

V1.0
