Crystal Resonator
SMD 3225 (3.2mm
×
2.5mm
×
7mm)
Application
Used in PDA, DSC, DVC, Wireless communication, Mobile phone, PC, and more.
Features
•
•
•
•
•
3225 size miniature and light SMD crystal resonator with a low profile of 0.7mm
Wide frequency range form a comparatively low 12MHz up to 48MHz
High precision and high frequency stability
Excellent heat resistance and environmental characteristics
Automatic mounting and reflow soldering
Electrical Specifications
Frequency Range
Frequency Tolerance (at 25°C)
Frequency Stability Over Operating
Temperature Range
Operating Temperature Range
Shunt Capacitance(C
0
)
Drive Level
Load Capacitance
Equivalent Series Resistance (ESR)
Aging (at 25°C)
Storage Temperature Range
: 12 ~ 48MHz
: ±10ppm, ±30ppm
: ±10ppm ~ ±30ppm
: -20°C ~ +70°C
: 3pF Max.
: 1~200μW Max. (100μW Typical)
: 10pF, 12pF
: 60Ω & 80Ω
: ±3ppm / year Max.
: -55°C ~ +125°C

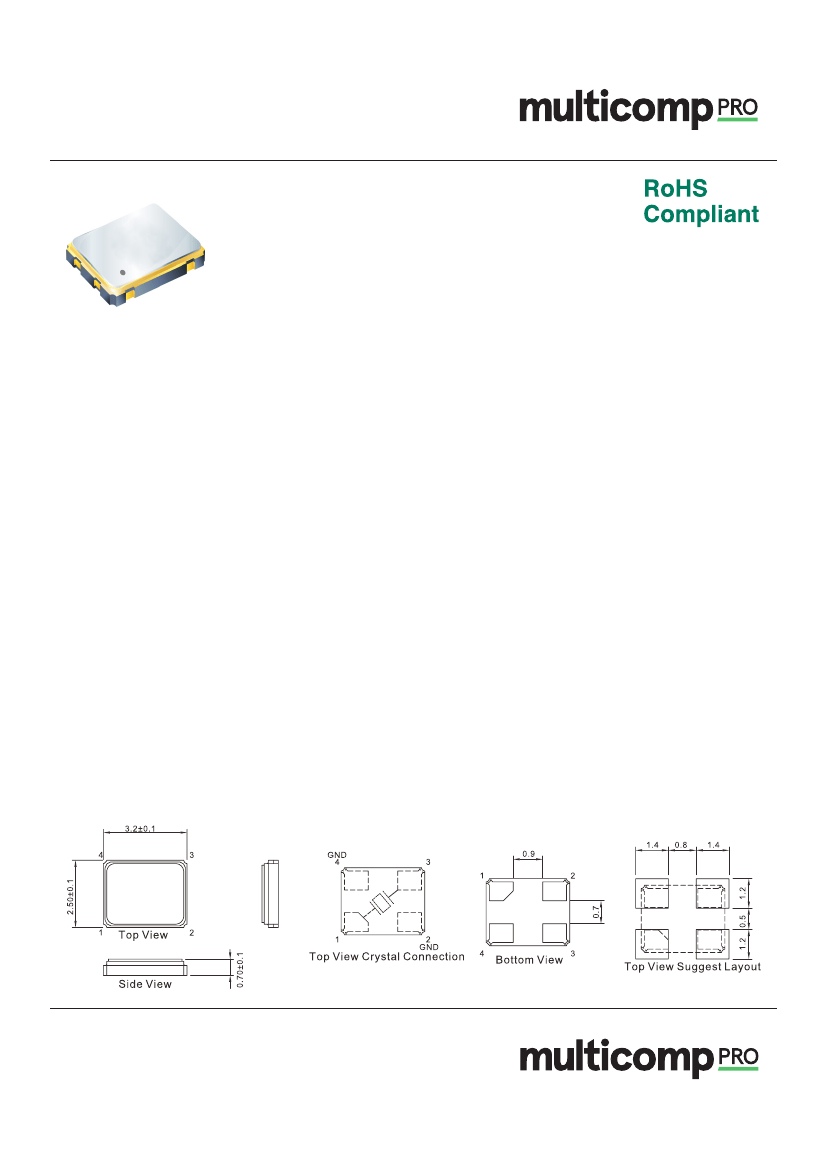

Diagram
Dimensions : Millimetres
Newark.com/multicomp-pro
Farnell.com/multicomp-pro
Element14.com/multicomp-pro
Page <1>
09/09/19
V1.0
Crystal Resonator
SMD 3225 (3.2mm
×
2.5mm
×
7mm)
Part Number Table
Description
Crystal Resonator, 3225, 12MHz/ ±10ppm, 80Ω, ±10ppm, -20 ~ +70°C, 10pF
Crystal Resonator, 3225, 12MHz/ ±30ppm, 80Ω, ±30ppm, -20 ~ +70°C, 10pF
Crystal Resonator, 3225, 12MHz/ ±10ppm, 80Ω, ±10ppm, -20 ~ +70°C, 12pF
Crystal Resonator, 3225, 12MHz/ ±30ppm, 80Ω, ±30ppm, -20 ~ +70°C, 12pF
Crystal Resonator, 3225, 12.288MHz/ ±10ppm, 80Ω, ±10ppm, -20 ~ +70°C, 10pF
Crystal Resonator, 3225, 12.288MHz/ ±30ppm, 80Ω, ±30ppm, -20 ~ +70°C, 10pF
Crystal Resonator, 3225, 12.288MHz/ ±10ppm, 80Ω, ±10ppm, -20 ~ +70°C, 12pF
Crystal Resonator, 3225, 12.288MHz/ ±30ppm, 80Ω, ±30ppm, -20 ~ +70°C, 12pF
Crystal Resonator, 3225, 13.56MHz/ ±10ppm, 80Ω, ±10ppm, -20 ~ +70°C, 10pF
Crystal Resonator, 3225, 13.56MHz/ ±30ppm, 80Ω, ±30ppm, -20 ~ +70°C, 10pF
Crystal Resonator, 3225, 13.56MHz/ ±10ppm, 80Ω, ±10ppm, -20 ~ +70°C, 12pF
Crystal Resonator, 3225, 13.56MHz/ ±30ppm, 80Ω, ±30ppm, -20 ~ +70°C, 12pF
Crystal Resonator, 3225, 14.31818MHz/ ±10ppm, 80Ω, ±10ppm, -20 ~ +70°C, 10pF
Crystal Resonator, 3225, 14.31818MHz/ ±30ppm, 80Ω, ±30ppm, -20 ~ +70°C, 10pF
Crystal Resonator, 3225, 14.31818MHz/ ±10ppm, 80Ω, ±10ppm, -20 ~ +70°C, 12pF
Crystal Resonator, 3225, 14.31818MHz/ ±30ppm, 80Ω, ±30ppm, -20 ~ +70°C, 12pF
Crystal Resonator, 3225, 14.7456MHz/ ±10ppm, 80Ω, ±10ppm, -20 ~ +70°C, 10pF
Crystal Resonator, 3225, 14.7456MHz/ ±30ppm, 80Ω, ±30ppm, -20 ~ +70°C, 10pF
Crystal Resonator, 3225, 14.7456MHz/ ±10ppm, 80Ω, ±10ppm, -20 ~ +70°C, 12pF
Crystal Resonator, 3225, 14.7456MHz/ ±30ppm, 80Ω, ±30ppm, -20 ~ +70°C, 12pF
Crystal Resonator, 3225, 16MHz/ ±10ppm, 80Ω, ±10ppm, -20 ~ +70°C, 10pF
Crystal Resonator, 3225, 16MHz/ ±30ppm, 80Ω, ±30ppm, -20 ~ +70°C, 10pF
Crystal Resonator, 3225, 16MHz/ ±10ppm, 80Ω, ±10ppm, -20 ~ +70°C, 12pF
Crystal Resonator, 3225, 16MHz/ ±30ppm, 80Ω, ±30ppm, -20 ~ +70°C, 12pF
Crystal Resonator, 3225, 16.384MHz/ ±10ppm, 80Ω, ±10ppm, -20 ~ +70°C, 10pF
Crystal Resonator, 3225, 16.384MHz/ ±30ppm, 80Ω, ±30ppm, -20 ~ +70°C, 10pF
Crystal Resonator, 3225, 16.384MHz/ ±10ppm, 80Ω, ±10ppm, -20 ~ +70°C, 12pF
Crystal Resonator, 3225, 16.384MHz/ ±30ppm, 80Ω, ±30ppm, -20 ~ +70°C, 12pF
Crystal Resonator, 3225, 16.934MHz/ ±10ppm, 80Ω, ±10ppm, -20 ~ +70°C, 10pF
Crystal Resonator, 3225, 16.934MHz/ ±30ppm, 80Ω, ±30ppm, -20 ~ +70°C, 10pF
Crystal Resonator, 3225, 16.934MHz/ ±10ppm, 80Ω, ±10ppm, -20 ~ +70°C, 12pF
Crystal Resonator, 3225, 16.934MHz/ ±30ppm, 80Ω, ±30ppm, -20 ~ +70°C, 12pF
Crystal Resonator, 3225, 18.432MHz/ ±10ppm, 80Ω, ±10ppm, -20 ~ +70°C, 10pF
Crystal Resonator, 3225, 18.432MHz/ ±30ppm, 80Ω, ±30ppm, -20 ~ +70°C, 10pF
Crystal Resonator, 3225, 18.432MHz/ ±10ppm, 80Ω, ±10ppm, -20 ~ +70°C, 12pF
Crystal Resonator, 3225, 18.432MHz/ ±30ppm, 80Ω, ±30ppm, -20 ~ +70°C, 12pF
Crystal Resonator, 3225, 19.2MHz/ ±10ppm, 80Ω, ±10ppm, -20 ~ +70°C, 10pF
Crystal Resonator, 3225, 19.2MHz/ ±30ppm, 80Ω, ±30ppm, -20 ~ +70°C, 10pF
Newark.com/multicomp-pro
Farnell.com/multicomp-pro
Element14.com/multicomp-pro
Part Number
MCSJK-7U-12.00-10-10-80-B-10
MCSJK-7U-12.00-10-30-80-B-30
MCSJK-7U-12.00-12-10-80-B-10
MCSJK-7U-12.00-12-30-80-B-30
MCSJK-7U-12.288-10-10-80-B-10
MCSJK-7U-12.288-10-30-80-B-30
MCSJK-7U-12.288-12-10-80-B-10
MCSJK-7U-12.288-12-30-80-B-30
MCSJK-7U-13.56-10-10-80-B-10
MCSJK-7U-13.56-10-30-80-B-30
MCSJK-7U-13.56-12-10-80-B-10
MCSJK-7U-13.56-12-30-80-B-30
MCSJK-7U-14.31818-10-10-80-B-10
MCSJK-7U-14.31818-10-30-80-B-30
MCSJK-7U-14.31818-12-10-80-B-10
MCSJK-7U-14.31818-12-30-80-B-30
MCSJK-7U-14.7456-10-10-80-B-10
MCSJK-7U-14.7456-10-30-80-B-30
MCSJK-7U-14.7456-12-10-80-B-10
MCSJK-7U-14.7456-12-30-80-B-30
MCSJK-7U-16.00-10-10-80-B-10
MCSJK-7U-16.00-10-30-80-B-30
MCSJK-7U-16.00-12-10-80-B-10
MCSJK-7U-16.00-12-30-80-B-30
MCSJK-7U-16.384-10-10-80-B-10
MCSJK-7U-16.384-10-30-80-B-30
MCSJK-7U-16.384-12-10-80-B-10
MCSJK-7U-16.384-12-30-80-B-30
MCSJK-7U-16.934-10-10-80-B-10
MCSJK-7U-16.934-10-30-80-B-30
MCSJK-7U-16.934-12-10-80-B-10
MCSJK-7U-16.934-12-30-80-B-30
MCSJK-7U-18.432-10-10-80-B-10
MCSJK-7U-18.432-10-30-80-B-30
MCSJK-7U-18.432-12-10-80-B-10
MCSJK-7U-18.432-12-30-80-B-30
MCSJK-7U-19.20-10-10-80-B-10
MCSJK-7U-19.20-10-30-80-B-30
Page <2>
09/09/19
V1.0
Crystal Resonator
SMD 3225 (3.2mm
×
2.5mm
×
7mm)
Description
Crystal Resonator, 3225, 19.2MHz/ ±10ppm, 80Ω, ±10ppm, -20 ~ +70°C, 12pF
Crystal Resonator, 3225, 19.2MHz/ ±30ppm, 80Ω, ±30ppm, -20 ~ +70°C, 12pF
Crystal Resonator, 3225, 20MHz/ ±10ppm, 60Ω, ±10ppm, -20 ~ +70°C, 10pF
Crystal Resonator, 3225, 20MHz/ ±30ppm, 60Ω, ±30ppm, -20 ~ +70°C, 10pF
Crystal Resonator, 3225, 20MHz/ ±10ppm, 60Ω, ±10ppm, -20 ~ +70°C, 12pF
Crystal Resonator, 3225, 20MHz/ ±30ppm, 60Ω, ±30ppm, -20 ~ +70°C, 12pF
Crystal Resonator, 3225, 24MHz/ ±10ppm, 60Ω, ±10ppm, -20 ~ +70°C, 10pF
Crystal Resonator, 3225, 24MHz/ ±30ppm, 60Ω, ±30ppm, -20 ~ +70°C, 10pF
Crystal Resonator, 3225, 24MHz/ ±10ppm, 60Ω, ±10ppm, -20 ~ +70°C, 12pF
Crystal Resonator, 3225, 24MHz/ ±30ppm, 60Ω, ±30ppm, -20 ~ +70°C, 12pF
Crystal Resonator, 3225, 24.576MHz/ ±10ppm, 60Ω, ±10ppm, -20 ~ +70°C, 10pF
Crystal Resonator, 3225, 24.576MHz/ ±30ppm, 60Ω, ±30ppm, -20 ~ +70°C, 10pF
Crystal Resonator, 3225, 24.576MHz/ ±10ppm, 60Ω, ±10ppm, -20 ~ +70°C, 12pF
Crystal Resonator, 3225, 24.576MHz/ ±30ppm, 60Ω, ±30ppm, -20 ~ +70°C, 12pF
Crystal Resonator, 3225, 25MHz/ ±10ppm, 60Ω, ±10ppm, -20 ~ +70°C, 10pF
Crystal Resonator, 3225, 25MHz/ ±30ppm, 60Ω, ±30ppm, -20 ~ +70°C, 10pF
Crystal Resonator, 3225, 25MHz/ ±10ppm, 60Ω, ±10ppm, -20 ~ +70°C, 12pF
Crystal Resonator, 3225, 25MHz/ ±30ppm, 60Ω, ±30ppm, -20 ~ +70°C, 12pF
Crystal Resonator, 3225, 26MHz/ ±10ppm, 60Ω, ±10ppm, -20 ~ +70°C, 10pF
Crystal Resonator, 3225, 26MHz/ ±30ppm, 60Ω, ±30ppm, -20 ~ +70°C, 10pF
Crystal Resonator, 3225, 26MHz/ ±10ppm, 60Ω, ±10ppm, -20 ~ +70°C, 12pF
Crystal Resonator, 3225, 26MHz/ ±30ppm, 60Ω, ±30ppm, -20 ~ +70°C, 12pF
Crystal Resonator, 3225, 27MHz/ ±10ppm, 60Ω, ±10ppm, -20 ~ +70°C, 10pF
Crystal Resonator, 3225, 27MHz/ ±30ppm, 60Ω, ±30ppm, -20 ~ +70°C, 10pF
Crystal Resonator, 3225, 27MHz/ ±10ppm, 60Ω, ±10ppm, -20 ~ +70°C, 12pF
Crystal Resonator, 3225, 27MHz/ ±30ppm, 60Ω, ±30ppm, -20 ~ +70°C, 12pF
Crystal Resonator, 3225, 27.12MHz/ ±10ppm, 60Ω, ±10ppm, -20 ~ +70°C, 10pF
Crystal Resonator, 3225, 27.12MHz/ ±30ppm, 60Ω, ±30ppm, -20 ~ +70°C, 10pF
Crystal Resonator, 3225, 27.12MHz/ ±10ppm, 60Ω, ±10ppm, -20 ~ +70°C, 12pF
Crystal Resonator, 3225, 27.12MHz/ ±30ppm, 60Ω, ±30ppm, -20 ~ +70°C, 12pF
Crystal Resonator, 3225, 28.63636MHz/ ±10ppm, 60Ω, ±10ppm, -20 ~ +70°C, 10pF
Crystal Resonator, 3225, 28.63636MHz/ ±30ppm, 60Ω, ±30ppm, -20 ~ +70°C, 10pF
Crystal Resonator, 3225, 28.63636MHz/ ±10ppm, 60Ω, ±10ppm, -20 ~ +70°C, 12pF
Crystal Resonator, 3225, 28.63636MHz/ ±30ppm, 60Ω, ±30ppm, -20 ~ +70°C, 12pF
Crystal Resonator, 3225, 30MHz/ ±10ppm, 60Ω, ±10ppm, -20 ~ +70°C, 10pF
Crystal Resonator, 3225, 30MHz/ ±30ppm, 60Ω, ±30ppm, -20 ~ +70°C, 10pF
Crystal Resonator, 3225, 30MHz/ ±10ppm, 60Ω, ±10ppm, -20 ~ +70°C, 12pF
Crystal Resonator, 3225, 30MHz/ ±30ppm, 60Ω, ±30ppm, -20 ~ +70°C, 12pF
Newark.com/multicomp-pro
Farnell.com/multicomp-pro
Element14.com/multicomp-pro
Part Number
MCSJK-7U-19.20-12-10-80-B-10
MCSJK-7U-19.20-12-30-80-B-30
MCSJK-7U-20.00-10-10-60-B-10
MCSJK-7U-20.00-10-30-60-B-30
MCSJK-7U-20.00-12-10-60-B-10
MCSJK-7U-20.00-12-30-60-B-30
MCSJK-7U-24.00-10-10-60-B-10
MCSJK-7U-24.00-10-30-60-B-30
MCSJK-7U-24.00-12-10-60-B-10
MCSJK-7U-24.00-12-30-60-B-30
MCSJK-7U-24.576-10-10-60-B-10
MCSJK-7U-24.576-10-30-60-B-30
MCSJK-7U-24.576-12-10-60-B-10
MCSJK-7U-24.576-12-30-60-B-30
MCSJK-7U-25.00-10-10-60-B-10
MCSJK-7U-25.00-10-30-60-B-30
MCSJK-7U-25.00-12-10-60-B-10
MCSJK-7U-25.00-12-30-60-B-30
MCSJK-7U-26.00-10-10-60-B-10
MCSJK-7U-26.00-10-30-60-B-30
MCSJK-7U-26.00-12-10-60-B-10
MCSJK-7U-26.00-12-30-60-B-30
MCSJK-7U-27.00-10-10-60-B-10
MCSJK-7U-27.00-10-30-60-B-30
MCSJK-7U-27.00-12-10-60-B-10
MCSJK-7U-27.00-12-30-60-B-30
MCSJK-7U-27.12-10-10-60-B-10
MCSJK-7U-27.12-10-30-60-B-30
MCSJK-7U-27.12-12-10-60-B-10
MCSJK-7U-27.12-12-30-60-B-30
MCSJK-7U-28.63636-10-10-60-B-10
MCSJK-7U-28.63636-10-30-60-B-30
MCSJK-7U-28.63636-12-10-60-B-10
MCSJK-7U-28.63636-12-30-60-B-30
MCSJK-7U-30.00-10-10-60-B-10
MCSJK-7U-30.00-10-30-60-B-30
MCSJK-7U-30.00-12-10-60-B-10
MCSJK-7U-30.00-12-30-60-B-30
Page <3>
09/09/19
V1.0
Crystal Resonator
SMD 3225 (3.2mm
×
2.5mm
×
7mm)
Description
Crystal Resonator, 3225, 32MHz/ ±10ppm, 60Ω, ±10ppm, -20 ~ +70°C, 10pF
Crystal Resonator, 3225, 32MHz/ ±30ppm, 60Ω, ±30ppm, -20 ~ +70°C, 10pF
Crystal Resonator, 3225, 32MHz/ ±10ppm, 60Ω, ±10ppm, -20 ~ +70°C, 12pF
Crystal Resonator, 3225, 32MHz/ ±30ppm, 60Ω, ±30ppm, -20 ~ +70°C, 12pF
Crystal Resonator, 3225, 36MHz/ ±10ppm, 60Ω, ±10ppm, -20 ~ +70°C, 10pF
Crystal Resonator, 3225, 36MHz/ ±30ppm, 60Ω, ±30ppm, -20 ~ +70°C, 10pF
Crystal Resonator, 3225, 36MHz/ ±10ppm, 60Ω, ±10ppm, -20 ~ +70°C, 12pF
Crystal Resonator, 3225, 36MHz/ ±30ppm, 60Ω, ±30ppm, -20 ~ +70°C, 12pF
Crystal Resonator, 3225, 38.4MHz/ ±10ppm, 60Ω, ±10ppm, -20 ~ +70°C, 10pF
Crystal Resonator, 3225, 38.4MHz/ ±30ppm, 60Ω, ±30ppm, -20 ~ +70°C, 10pF
Crystal Resonator, 3225, 38.4MHz/ ±10ppm, 60Ω, ±10ppm, -20 ~ +70°C, 12pF
Crystal Resonator, 3225, 38.4MHz/ ±30ppm, 60Ω, ±30ppm, -20 ~ +70°C, 12pF
Crystal Resonator, 3225, 40MHz/ ±10ppm, 60Ω, ±10ppm, -20 ~ +70°C, 10pF
Crystal Resonator, 3225, 40MHz/ ±30ppm, 60Ω, ±30ppm, -20 ~ +70°C, 10pF
Crystal Resonator, 3225, 40MHz/ ±10ppm, 60Ω, ±10ppm, -20 ~ +70°C, 12pF
Crystal Resonator, 3225, 40MHz/ ±30ppm, 60Ω, ±30ppm, -20 ~ +70°C, 12pF
Crystal Resonator, 3225, 48MHz/ ±10ppm, 60Ω, ±10ppm, -20 ~ +70°C, 10pF
Crystal Resonator, 3225, 48MHz/ ±30ppm, 60Ω, ±30ppm, -20 ~ +70°C, 10pF
Crystal Resonator, 3225, 48MHz/ ±10ppm, 60Ω, ±10ppm, -20 ~ +70°C, 12pF
Crystal Resonator, 3225, 48MHz/ ±30ppm, 60Ω, ±30ppm, -20 ~ +70°C, 12pF
Part Number
MCSJK-7U-32.00-10-10-60-B-10
MCSJK-7U-32.00-10-30-60-B-30
MCSJK-7U-32.00-12-10-60-B-10
MCSJK-7U-32.00-12-30-60-B-30
MCSJK-7U-36.00-10-10-60-B-10
MCSJK-7U-36.00-10-30-60-B-30
MCSJK-7U-36.00-12-10-60-B-10
MCSJK-7U-36.00-12-30-60-B-30
MCSJK-7U-38.4-10-10-60-B-10
MCSJK-7U-38.4-10-30-60-B-30
MCSJK-7U-38.4-12-10-60-B-10
MCSJK-7U-38.4-12-30-60-B-30
MCSJK-7U-40.00-10-10-60-B-10
MCSJK-7U-40.00-10-30-60-B-30
MCSJK-7U-40.00-12-10-60-B-10
MCSJK-7U-40.00-12-30-60-B-30
MCSJK-7U-48.00-10-10-60-B-10
MCSJK-7U-48.00-10-30-60-B-30
MCSJK-7U-48.00-12-10-60-B-10
MCSJK-7U-48.00-12-30-60-B-30
Important Notice :
This data sheet and its contents (the “Information”) belong to the members of the AVNET group of companies (the “Group”) or are licensed to it. No licence is granted for
the use of it other than for information purposes in connection with the products to which it relates. No licence of any intellectual property rights is granted. The Information is subject to change
without notice and replaces all data sheets previously supplied. The Information supplied is believed to be accurate but the Group assumes no responsibility for its accuracy or completeness,
any error in or omission from it or for any use made of it. Users of this data sheet should check for themselves the Information and the suitability of the products for their purpose and not make
any assumptions based on information included or omitted. Liability for loss or damage resulting from any reliance on the Information or use of it (including liability resulting from negligence or
where the Group was aware of the possibility of such loss or damage arising) is excluded. This will not operate to limit or restrict the Group’s liability for death or personal injury resulting from its
negligence. Multicomp Pro is the registered trademark of Premier Farnell Limited 2019.
Newark.com/multicomp-pro
Farnell.com/multicomp-pro
Element14.com/multicomp-pro
Page <4>
09/09/19
V1.0
京公网安备 11010802033920号
EEWORLD
