SP4T Switch

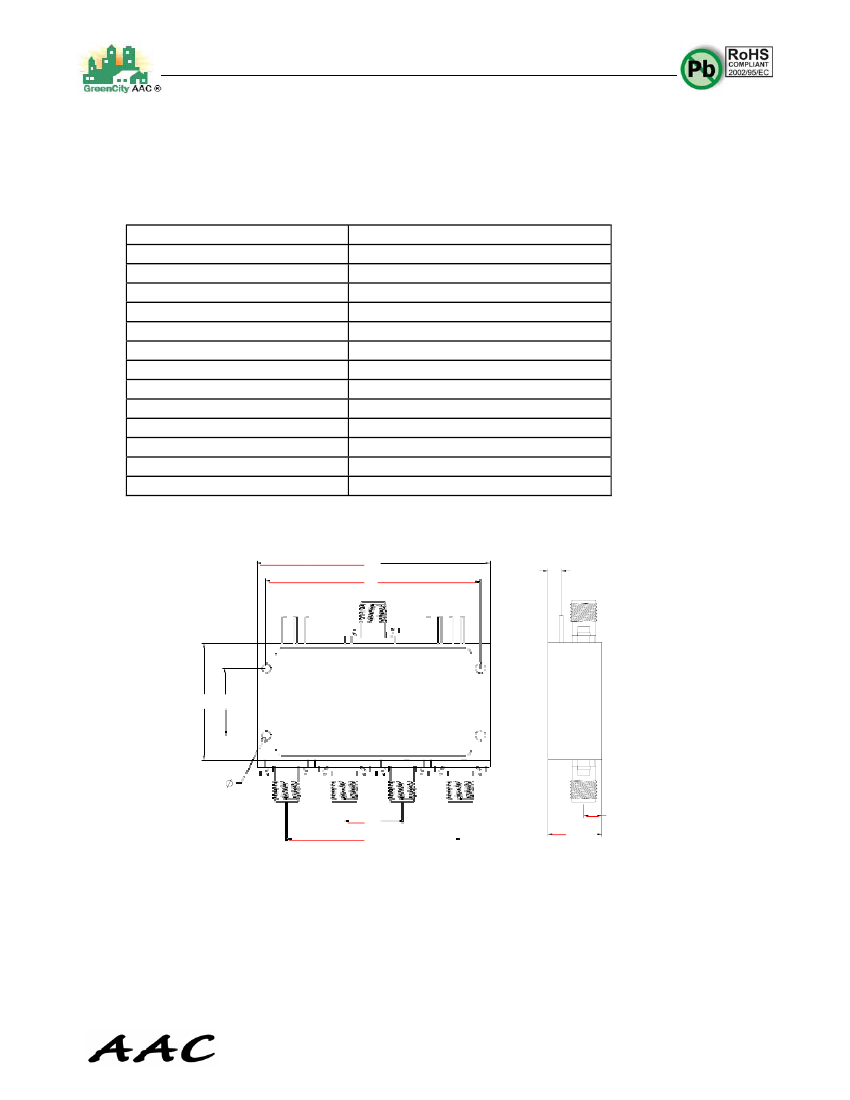

The content of this specification may change without notification 7/01/09

SP4T Switch

P/N: JXWBKG-T-4-20-600-A

Frequency Range(MHz)

Switch Type

Insertion Loss(dB)

VSWR

Isolation(dB)

RF Power(dBm)

Impedance(Ohms)

Control

Switching Speed(ms)

DC Power(V)

Connector

Operating Temperature(ºC)

Storage Temperature (ºC)

Net Weight(Kg)

Outline Drawing (Size: mm)

20-600

Absorptive

1.8 max

1.4 max

80 min

20 max

TTL(“0” OFF, “1” Thru)

0.5

+5@150mA max;-5@150mA max

SMA-Female(Removable)

-40 ~ +70

-55 - +85

0.085 Around

C1C2C3 C4

2.2

For current data sheets, please contact: sales@aacix.com

American Accurate Components, Inc.

188 Technology Drive, Unit H, Irvine, CA 92618

Tel: 949-453-9888 Fax: 949-453-8889 Email: sales@aacix.com
