1N3905 datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > Discrete semiconductor> diode> 1N3905

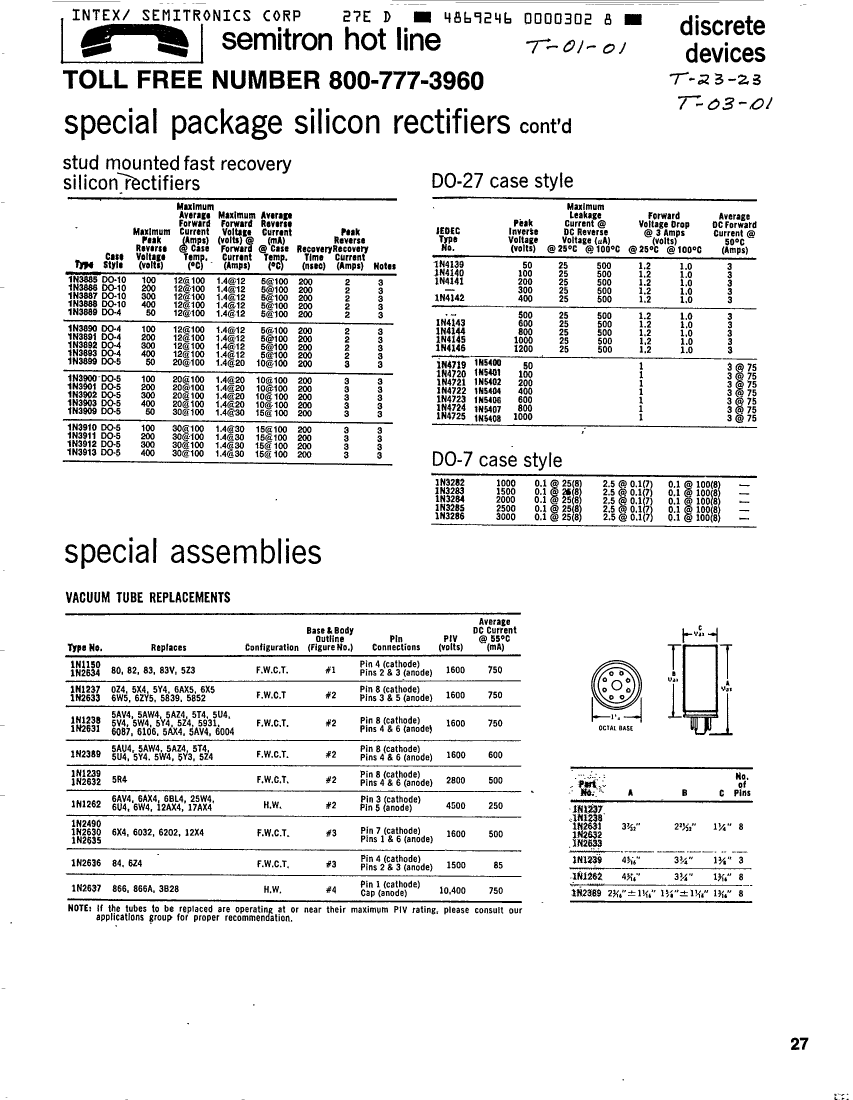

1N3905: DescriptionRectifier Diode, 1 Element, 20A, 100V V(RRM),; CategoryDiscrete semiconductor diode; File Size63KB，1 Pages; ManufacturerSemitronics Corp.

Download Datasheet Parametric Compare View All

1N3905 Overview

Rectifier Diode, 1 Element, 20A, 100V V(RRM),

1N3905 Parametric

Parameter Name	Attribute value
Maker	Semitronics Corp.
Reach Compliance Code	unknown
ECCN code	EAR99
Configuration	SINGLE
Diode type	RECTIFIER DIODE
Maximum forward voltage (VF)	1.4 V
Number of components	1
Maximum operating temperature	150 °C
Maximum output current	20 A
Maximum repetitive peak reverse voltage	100 V
Maximum reverse recovery time	0.35 µs
surface mount	NO

Preview

Download Datasheet

View All

1N3905 Related Products

	1N3905	1N3887	1N3888	1N3886	1N3885
Description	Rectifier Diode, 1 Element, 20A, 100V V(RRM),	Rectifier Diode, 1 Phase, 1 Element, 12A, 300V V(RRM), Silicon, DO-10, DO-10, 2 PIN	Rectifier Diode, 1 Phase, 1 Element, 12A, 400V V(RRM), Silicon, DO-10, DO-10, 2 PIN	Rectifier Diode, 1 Phase, 1 Element, 12A, 200V V(RRM), Silicon, DO-10, DO-10, 2 PIN	Rectifier Diode, 1 Phase, 1 Element, 12A, 100V V(RRM), Silicon, DO-10, DO-10, 2 PIN
Reach Compliance Code	unknown	unknow	unknow	unknow	unknow
Configuration	SINGLE	SINGLE	SINGLE	SINGLE	SINGLE
Diode type	RECTIFIER DIODE	RECTIFIER DIODE	RECTIFIER DIODE	RECTIFIER DIODE	RECTIFIER DIODE
Maximum forward voltage (VF)	1.4 V	1.4 V	1.4 V	1.4 V	1.4 V
Number of components	1	1	1	1	1
Maximum operating temperature	150 °C	150 °C	150 °C	150 °C	150 °C
Maximum output current	20 A	12 A	12 A	12 A	12 A
Maximum repetitive peak reverse voltage	100 V	300 V	400 V	200 V	100 V
Maximum reverse recovery time	0.35 µs	0.2 µs	0.2 µs	0.2 µs	0.2 µs
surface mount	NO	NO	NO	NO	NO
ECCN code	EAR99	-	EAR99	-	EAR99
Parts packaging code	-	DO-10	DO-10	DO-10	DO-10
package instruction	-	DO-10, 2 PIN	O-MXPM-D2	O-MXPM-D2	O-MXPM-D2
Contacts	-	2	2	2	2
application	-	FAST RECOVERY	FAST RECOVERY	FAST RECOVERY	FAST RECOVERY
Shell connection	-	CATHODE	CATHODE	CATHODE	CATHODE
Diode component materials	-	SILICON	SILICON	SILICON	SILICON
JEDEC-95 code	-	DO-10	DO-10	DO-10	DO-10
JESD-30 code	-	O-MXPM-D2	O-MXPM-D2	O-MXPM-D2	O-MXPM-D2
Phase	-	1	1	1	1
Number of terminals	-	2	2	2	2
Package body material	-	METAL	METAL	METAL	METAL
Package shape	-	ROUND	ROUND	ROUND	ROUND
Package form	-	POST/STUD MOUNT	POST/STUD MOUNT	POST/STUD MOUNT	POST/STUD MOUNT
Certification status	-	Not Qualified	Not Qualified	Not Qualified	Not Qualified
Terminal form	-	SOLDER LUG	SOLDER LUG	SOLDER LUG	SOLDER LUG
Terminal location	-	UNSPECIFIED	UNSPECIFIED	UNSPECIFIED	UNSPECIFIED
Base Number Matches	-	1	1	1	1
