340WCAN

Description
Waveguide to Coaxial Adapter
File Size172KB,5 Pages
ManufacturerAAC [American Accurate Components]
Websitehttp://www.aacix.com/
Download Datasheet View All

340WCAN Overview

Waveguide to Coaxial Adapter

Waveguide to Coaxial Adapter
The content of this specification may change without notification 7/01/09

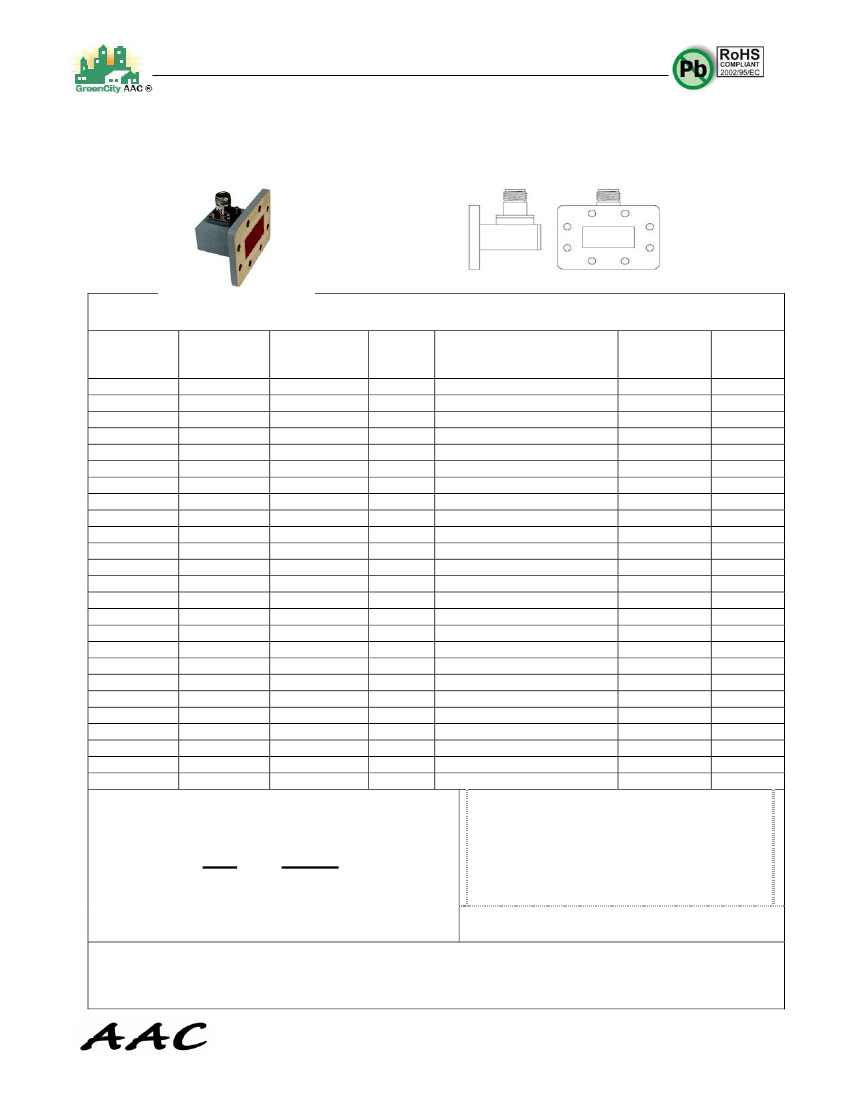

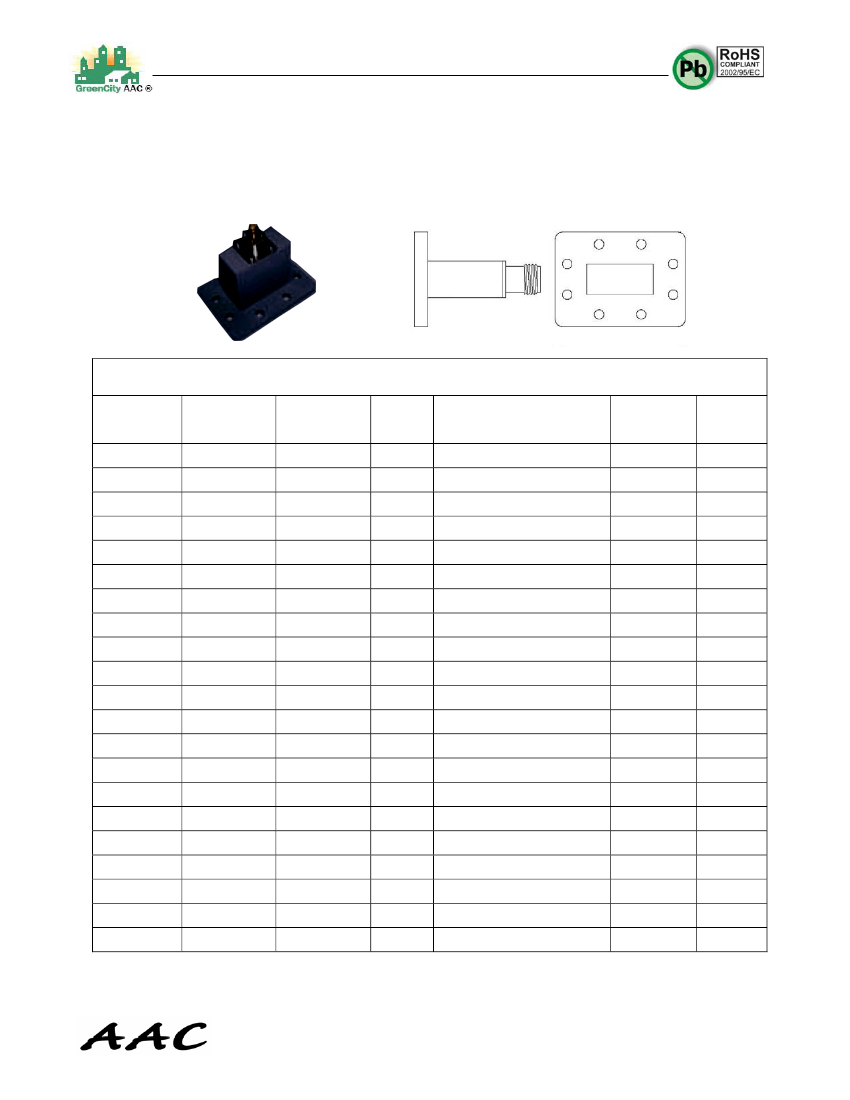

Right Angle W/G to Coaxial Adapter
Right Angle Waveguide to Coaxial Adapter
Standard Models
P/N
Frequency
Range
(GHz)
0.75-1.12
0.96-1.45
1.12-1.70
1.45-2.20
1.70-2.60
2.20-3.30
2.60-3.95
3.30-4.90
3.95-5.85
4.90-7.05
5.85-8.20
5.85-8.20
7.05-10.0
7.05-10.0
8.20-12.4
8.20-12.4
10.0-15.0
10.0-15.0
12.4-18.0
15.0-22.0
18.0-26.5
22.0-33.0
26.5-40.0
33.0-50.0
40.0-60.0
Waveguide
VSWR
Flange
Connector
Material
975WCAN
770WCAN
650WCAN
510WCAN
430WCAN
340WCAN
284WCAN
229WCAN
187WCAN
159WCAN
137WCAN
137WCAS
112WCAN
112WCAS
90WCAN
90WCAS
75WCAN
75WCAS
62WCAS
51WCAS
42WCAS
34WCAS
28WCAK
22WCA2.4
19WCAV
WR975
WR770
WR650
WR510
WR430
WR340
WR284
WR229
WR187
WR159
WR137
WR137
WR112
WR112
WR90
WR90
WR75
WR75
WR62
WR51
WR42
WR34
WR28
WR22
WR19
1.25
1.25
1.25
1.25
1.25
1.25
1.25
1.25
1.25
1.25
1.25
1.25
1.25
1.25
1.25
1.25
1.25
1.25
1.25
1.25
1.30
1.50
1.50
1.50
1.50
FDP9
FDP12
FDP14/FDM14
FDP18/FDM18
FDP22/FDM22
FDP26/FDM26
FDP32/FDM32
FDP40/FDM40
FDP48/FDM48
FDP58/FDM58
FDP70/FDM70
FDP70/FDM70
FBP84/FBM84/FBE84
FBP84/FBM84/FBE84
FBP100/FBM100/FBE100
FBP100/FBM100/FBE100
FBP120/FBM120/FBE120
FBP120/FBM120/FBE120
FBP140/FBM140/FBE140
FBP180/FBM180/FBE180
FBP220/FBM220/FBE220
FBP260/FBM260/FBE260
FBP320/FBM320/FBE320
FUGP400
FUGP500
N-F
N-F
N-F
N-F
N-F
N-F
N-F
N-F
N-F
N-F
N-F
SMA-F
N-F
SMA-F
N-F
SMA-F
N-F
SMA-F
SMA-F
SMA-F
SMA-F
SMA-F
2.92K-F
2.4mm-F
1.85mm-F
Al
Al
Al
Al/Cu
Al/Cu
Al/Cu
Al/Cu
Al/Cu
Al/Cu
Al/Cu
Al/Cu
Al/Cu
Al/Cu
Al/Cu
Al/Cu
Al/Cu
Al/Cu
Al/Cu
Al/Cu
Al/Cu
Al/Cu
Al/Cu
Al/Cu
Cu
Cu
Ordering Information
P/N:
229
WR Size
WCAN
Product Code
AAC manufactures wide variety of right angle
waveguide to coaxial adapter assemblies specially
designed for every customer’s unique requirements.
Right Angle Waveguide to Coaxial Adapter can be
assembled with many types of flange. We also offer
many other special configurations, length and whole
size to meet special requirements.
Example:
229WCAN is a WR229 waveguide to coaxial
adapter(N type Female connector).
Note: 1. Customization is available;
2. For detailed information of each right angle waveguide to coaxial adapter, please visit the
website: www.aacix.com.
American Accurate Components, Inc.
188 Technology Drive, Unit H, Irvine, CA 92618
Tel: 949-453-9888 Fax: 949-453-8889 Email: sales@aacix.com
