FC-12119262 datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > Wireless rf/communication> Optical fiber> FC-12119262

FC-12119262: DescriptionSplitter/Coupler; CategoryWireless rf/communication Optical fiber; File Size166KB，2 Pages; ManufacturerLaser Components USA Inc.; Environmental Compliance

Download Datasheet Parametric View All

FC-12119262 Overview

Splitter/Coupler

FC-12119262 Parametric

Parameter Name	Attribute value
Is it lead-free?	Lead free
Is it Rohs certified?	conform to
Maker	Laser Components USA Inc.
Reach Compliance Code	unknown
body height	54 mm
Body length or diameter	3 mm
Connection Type	FC/PC CONNECTOR
Fiber optic equipment types	SPLITTER/COUPLER
Fiber type	HI 980
Maximum insertion loss	3.4 dB
Maximum operating temperature	70 °C
Minimum operating temperature	-10 °C
Maximum operating wavelength	995 nm
Minimum operating wavelength	965 nm
Nominal operating wavelength	980 nm
Port configuration	2X2
minimum return loss	55 dB
Split ratio/coupling ratio	50/50

Preview

Download Datasheet

View All

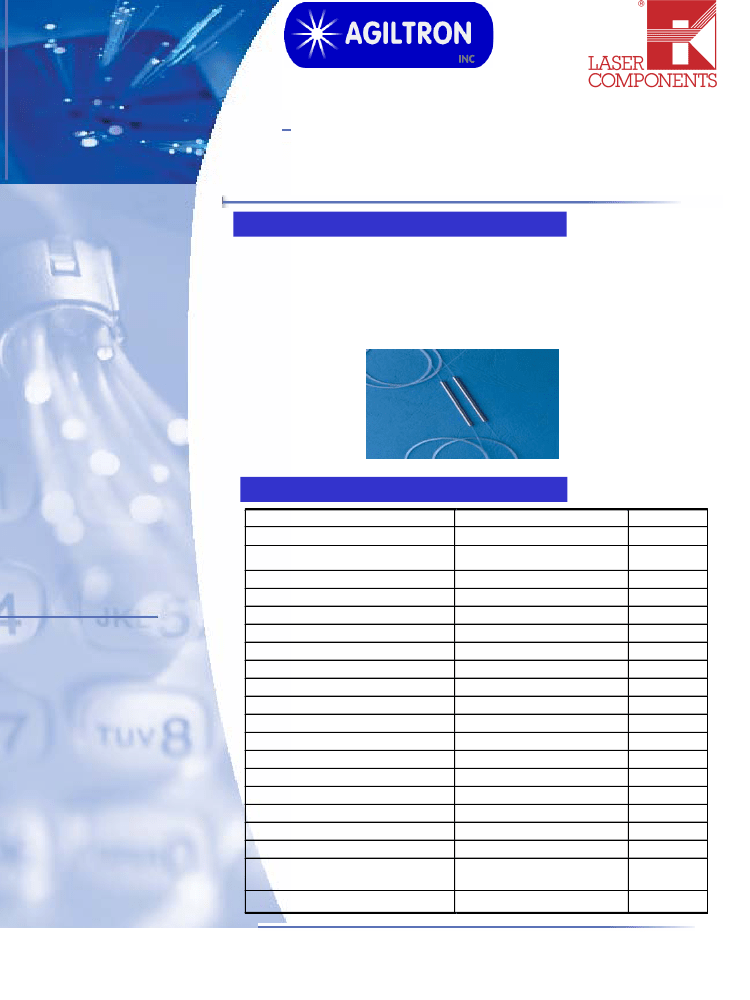

FiberOptic Coupler/Splitter

980 nm Single Mode

(patent pending)

Product Description

The FC Series fiber optic wideband coupler is based on Agiltron’s fused

biconical taper technology and compact packaging structure. It features

good uniformity, low excess loss and very low polarization sensitivity.

The device is ideal for splitting or combining light with exceptional

performance over a wide wavelength range

Features

•

Wavelength Independent

•

Ultra Low Excess Loss

•

Low Polarization

Sensitivity

•

Highly Stable & Reliable

•

Ultra Low Cost

Performance Specifications

FC Series

Coupling Ratio

Operation Wavelength

Excess Loss

Insertion Loss Split Ratio:50/50

Split Ratio:40/60

Split Ratio:30/70

Split Ratio:20/80

Split Ratio:10/90

Split Ratio: 5/95

Split Ratio: 1/99

Uniformity (50/50)

Polarization Dependent Loss

Temperature Sensitivity

Directivity

Return Loss

Optical Power Handling

Operating Temperature

Storage Temperature

Fiber Type

Package Dimension *

Performance

1/99 to 50/50

965-995

< 0.12

< 3.4

< 4.5/2.5

< 5.7/1.8

< 7.8/1.1

< 11.0/0.60

< 14.0/0.45

< 19-21/0.2

< 0.5

< 0.10

< 0.002

> 55

-10~70

-40~85

Puremode HI 980 or

PuremodeHI 1060

(φ)3.0x(L)54

Unit

dB/

Applications

•

Telecommunications

CATV

Local Access Network (LAN)

Fiberoptic Instrumentation

LASER COMPONENTS GmbH

Werner-von-Siemens-Str. 15, 82140 Olching, Germany, Phone: +49 8142 2864 0, Fax: +49 8142 2864 11, info@lasercomponents.com
