860-RF836.5M-F

Description
CDMA, RF-Tx SAW Filter
File Size181KB,3 Pages
ManufacturerOscilent
Websitehttp://www.oscilent.com
Download Datasheet View All

860-RF836.5M-F Overview

CDMA, RF-Tx SAW Filter

RF SAW Filter
Part Number
Package
Application
Last Modified
860-RF836.5M-F
.
TYPE :
1.6 x 2.0 SMD
CDMA
Mar.10, 2007
CDMA, RF-Tx SAW Filter
PART NUMBER :
860-RF836.5M-F
..
OPERATING CONDITIONS / ELECTRICAL CHARACTERISTICS
PARAMETERS
Center Frequency (Fo)
Maximum Insertion Loss
Attenuation:
Condition
-
824.0~ 849.0 MHz
DC ~ 770 MHz
770 ~ 804 MHz
869 ~ 894 MHz
894 ~ 1080 MHz
1080 ~ 1500 MHz
1500 ~ 2000 MHz
2000 ~ 2600 MHz
Source Impedence (single ended)*
Load Impendance (single ended)*
VSWR
Amplitude Ripple
Maximum DC Voltage
Maximum Input Power
Operating Temperature
-
-
824.0~ 849.0 MHz
824.0~ 849.0 MHz
-
-
-
Minimum
-
-
30
32
40
33
32
34
28
-
-
-
-
-
-
-30
Typical
836.5
2.1
35
36
47
36
35
38
33
50
50
1.9
0.7
-
-
-
Maximum
-
2.9
-
-
-
-
-
-
-
-
-
2.2
1.4
5
15
+85
ohm
ohm
dBp-p
dBp-p
V
dBm
ºC
dB
Units
MHz
dB
* No Matching Network(Ref. Testing Enviroment Circut as shown below)
.

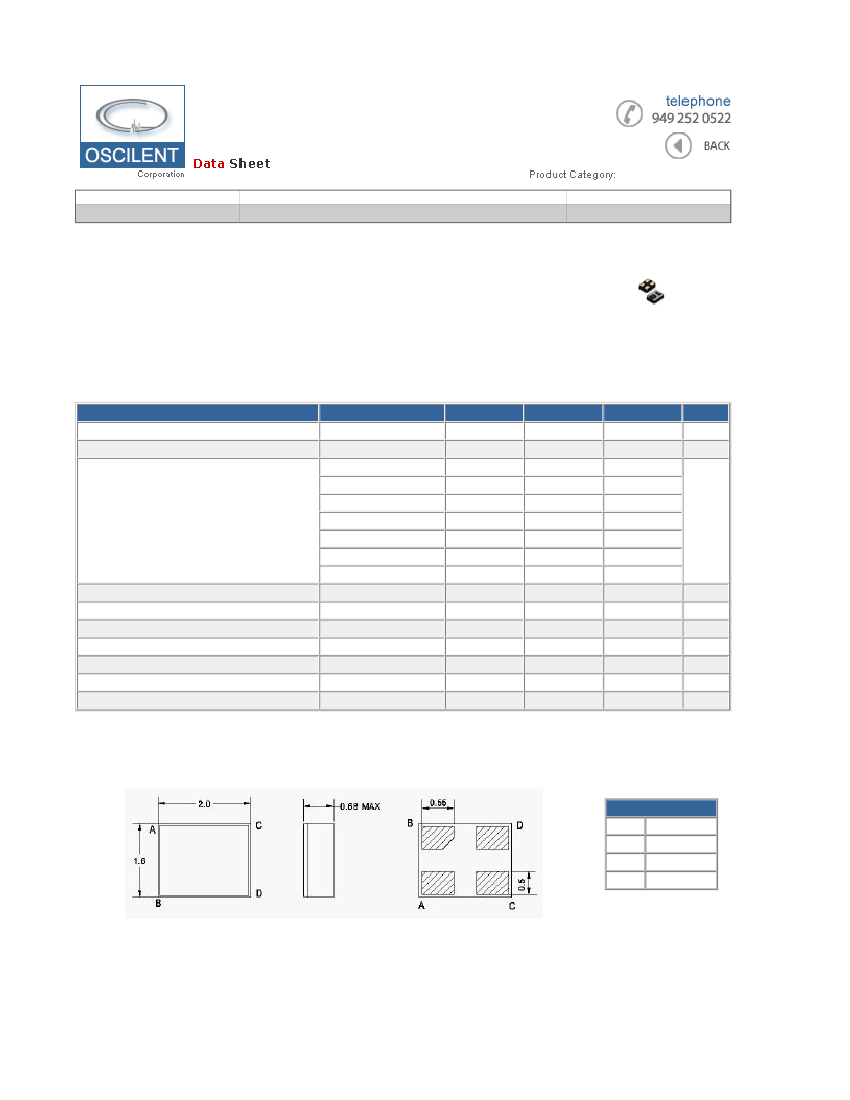

PACKAGE OUTLINE
(mm)
PIN LAYOUT
A
B
C
D
Ground
In
Out
Ground

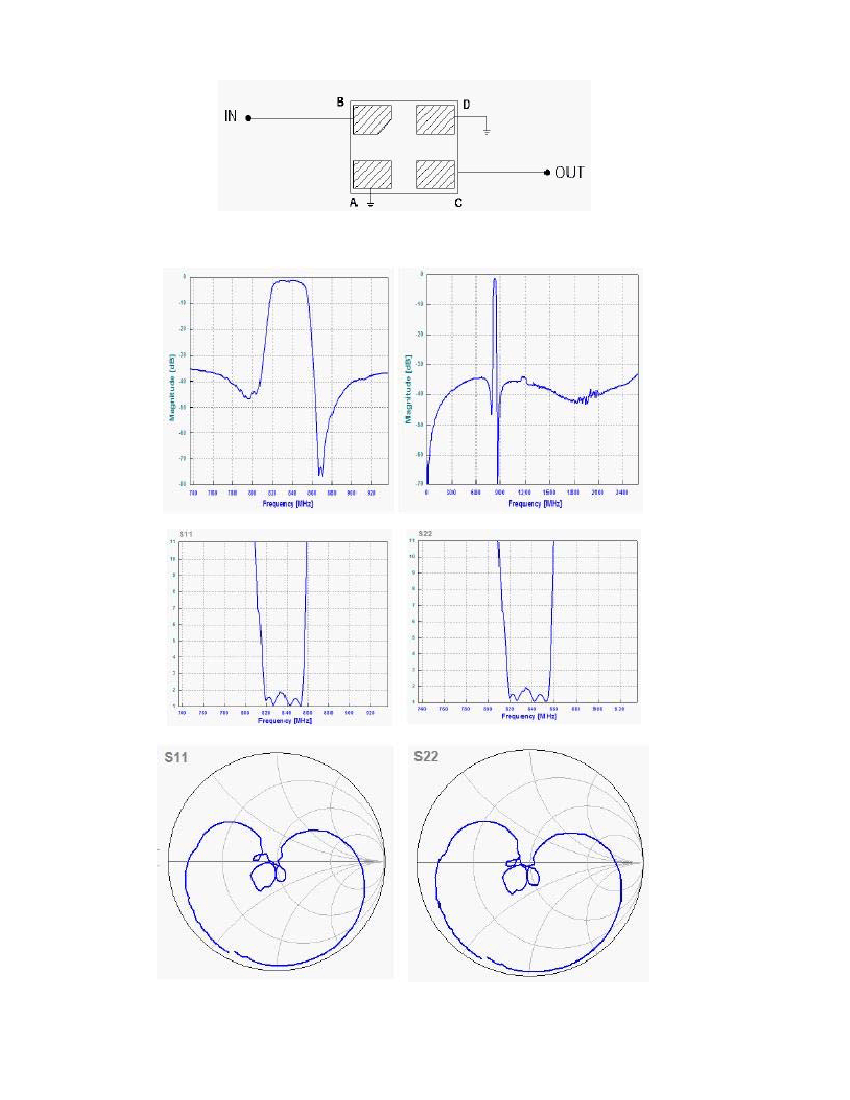

TEST FIXTURE
