861-RF1960.0M-B Overview

US-PCS Rx, Balanced RF SAW Filter

Oscilent Corporation RF SAW Filter | 861-RF1960.0M-B
Page 1 of 3
RF SAW Filter
Part Number
Package
Application
Last Modified
861-RF1960.0M-B
.
TYPE :
2.5 x 2.0 SMD
US-PCS Rx
Mar. 14, 2007
US-PCS Rx, Balanced RF SAW Filter
PART NUMBER :
861-RF1960.0M-B
..
OPERATING CONDITIONS / ELECTRICAL CHARACTERISTICS
PARAMETERS
Center Frequency (Fo)
Maximum Insertion Loss
Attenuation:
Condition
-
1930.0~ 1990.0 MHz
D.C.~ 1000.0 MHz
1000.0~1830.0 MHz
1830.0~ 1900.0MHz
1900.0~ 1910.0 MHz
2010.0~ 2030.0 MHz
2030.0~ 2070.0 MHz
2070.0~ 2310.0 MHz
2310.0~ 2380.0 MHz
2380.0~ 4600.0 MHz
4600.0~ 6000.0 MHz
Source Impedence (single ended)*
Load Impendance (Balanced ended)*
Input VSWR
Output VSWR
Amplitude Ripple
Maximum DC Voltage
Maximum Input Power
Operating Temperature
Symmetry in Band
Output Amplitude Balance (l S31/S21 l)
Output Phase Balance (φ(S31)-φ(S21)+180º)
*With Matching Network
-
-
1930.0~ 1990.0 MHz
1930.0~ 1990.0 MHz
1930.0~ 1990.0 MHz
-
-
-
1930.0~ 1990.0 MHz
-
-
-2.2
-15
0
0
Minimum
-
-
45
25
15
7
5
12
20
33
30
23
-
-
-
-
-
-
-
-30
Typical
1960.0
3.3
55
30
25
15
7.5
17
22
36
44
50
50
200//3.3nH
1.7
2.0
0.7
-
-
-
-
2.2
15
dB
degree
Maximum
-
4.0
-
-
-
-
-
-
-
-
-
-
-
-
2.4
2.4
2.4
5
12
+85
ohm
ohm
-
-
dBp-p
V
dBm
ºC
dB
Units
MHz
dB
.

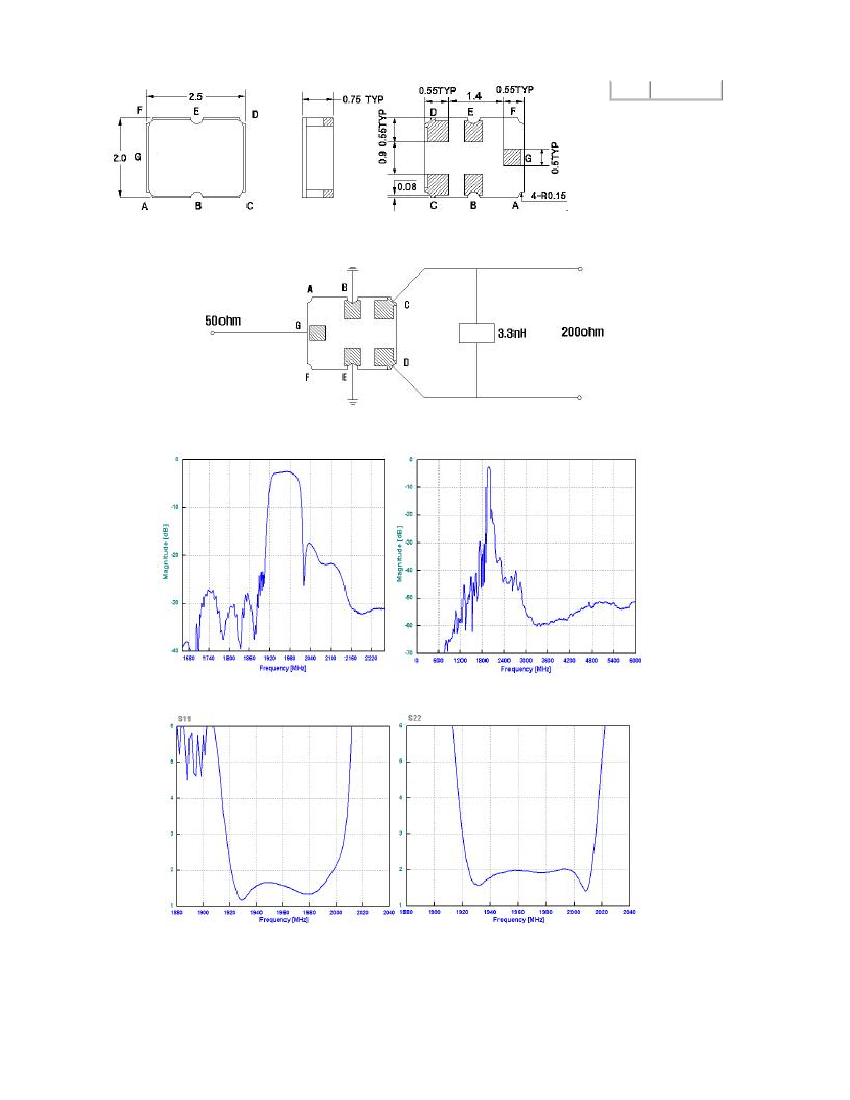

PACKAGE OUTLINE
(mm)
PIN LAYOUT
A
B
C
D
E
F
Out
Out
Ground
-
-
Ground
