Oscilent Corporation RF SAW Filter | 862-RF1690.0M-A
Page 1 of 3
RF SAW Filter
Part Number
Package
Application
Last Modified
862-RF1690.0M-A
.
TYPE :
3.0 x 3.0 SMD
Wireless
Jan. 01, 2007
Wireless, Balanced RF SAW Filter
PART NUMBER :
862-RF1690.0M-A
..
OPERATING CONDITIONS / ELECTRICAL CHARACTERISTICS
PARAMETERS
Center Frequency (Fo)
Maximum Insertion Loss
Attenuation:
Condition
-
1679.7~1698.8 MHz
54.0~1100.0 MHz
3262.7~3352.6 MHz
4911.0~5009.0 MHz
6559.4~6665.1 MHz
8211.1~8319.4 MHz
Group Delay Ripple
Input/ Output VSWR
Source Impedence (balanced ended)*
Load Impendance (balanced ended)*
Maximum DC Voltage
Maximum Input Power
Operating Temperature
* No Matching Network
1679.7~ 1698.8 MHz
1679.7~ 1698.8 MHz
-
-
-
-
-
Minimum
-
-
45
18
25
18
20
-
-
-
-
-
-
-10
Typical
1690.0
3.3
54
22
32
22
28
7.0
2.10
200
200
-
-
-
Maximum
-
4.5
-
-
-
-
-
15.0
2.50
-
-
3
0
+70
Units
MHz
dB
dB
dB
dB
dB
dB
dB
-
ohm
ohm
V
dBm
ºC
.

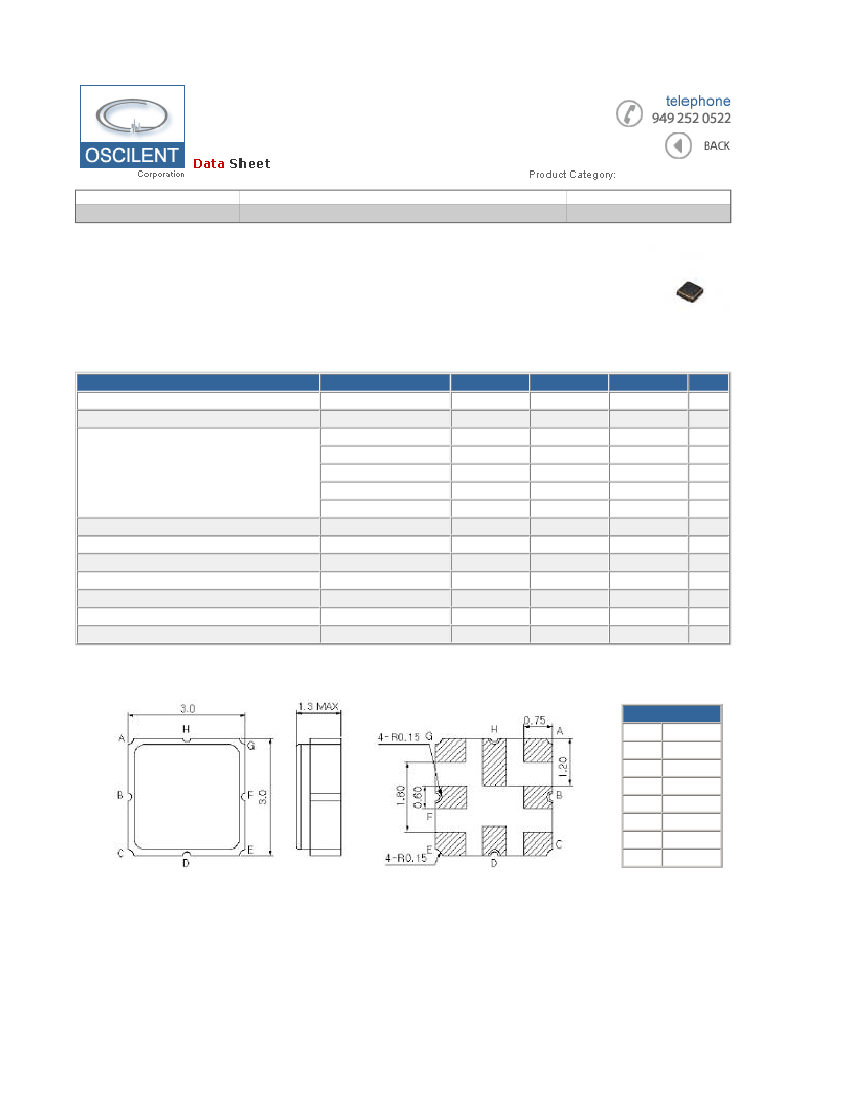

PACKAGE OUTLINE
(mm)
PIN LAYOUT
A
B
C
D
E
F
G
H
In
Ground
Out
Ground
Out
Ground
In
Ground
TEST FIXTURE
Oscilent Corporation RF SAW Filter | 862-RF1690.0M-A
Page 2 of 3
Load Impedance = 200 ohms
Source Impedance = 200 ohms

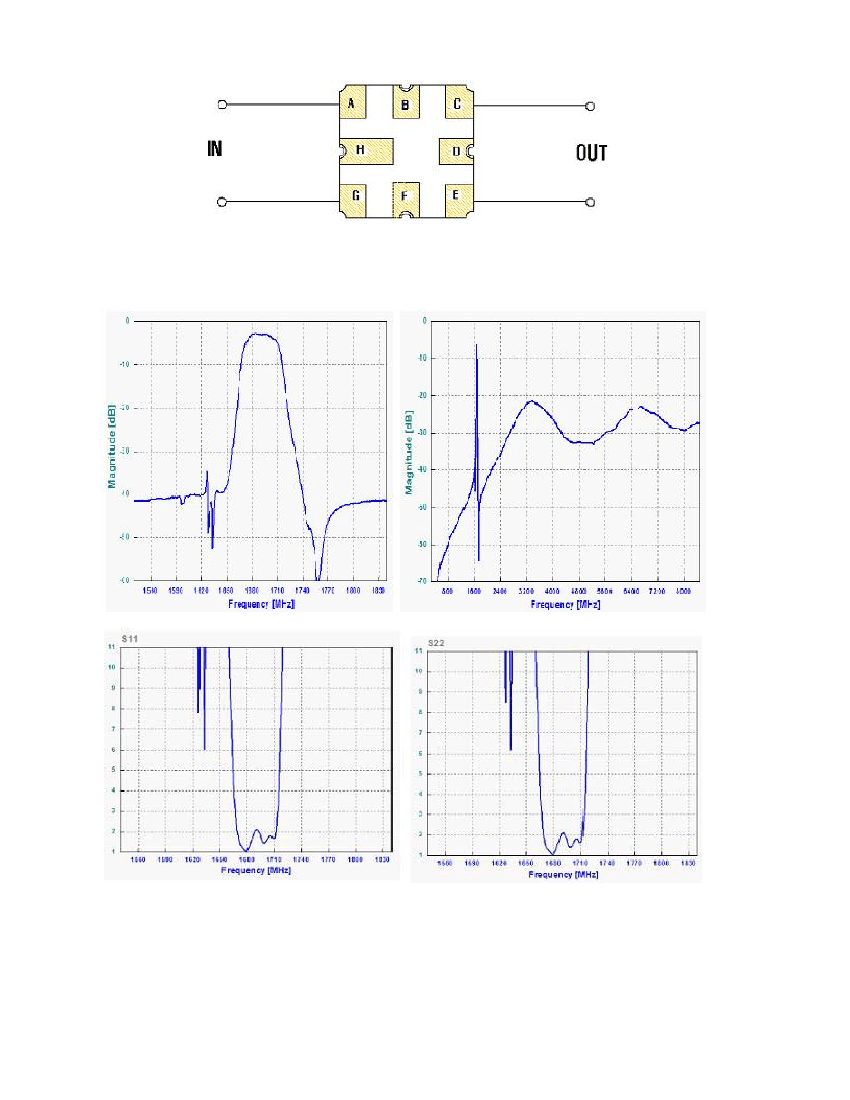

FREQUENCY RESPONSE
VSWR

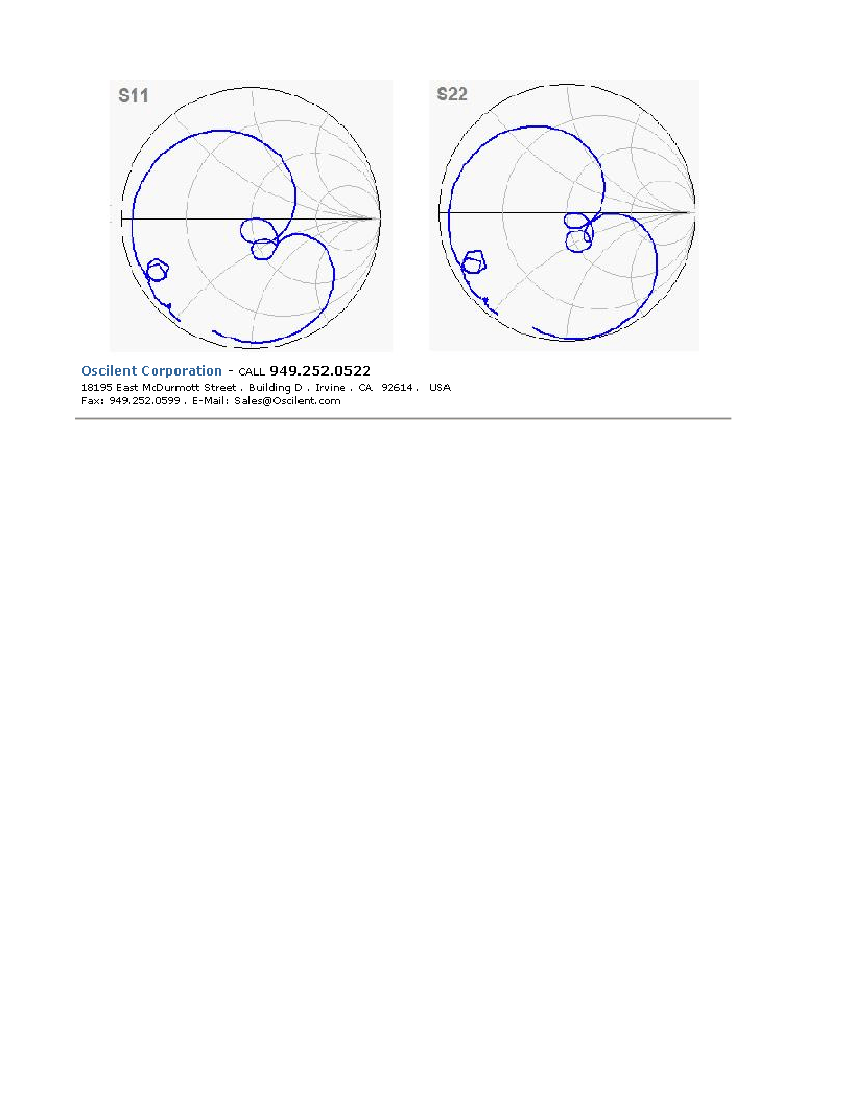

SMITH CHART
