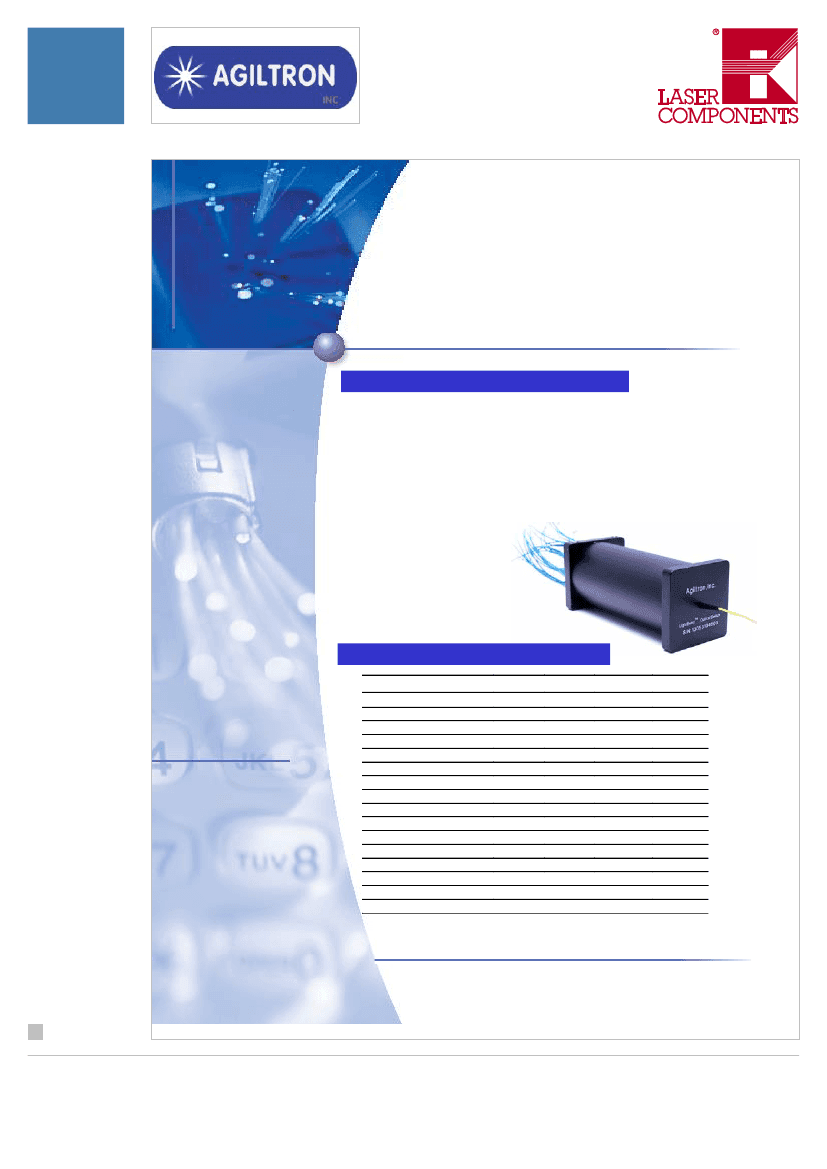

Fiber
Optics
LightBend
TM
1xN Mini Broadband
OptoMechanical Fiberoptic Switch
(Protected
by U.S. patent 6823102 and pending patents)
(Bidirectional)
Product Description
The LB Series 1xN Multimode Broadband Fiberoptic Switch connects optical
channels by redirecting an incoming optical signal into a selected output fiber.
This is achieved by using a patent pending opto-mechanical configuration activated
via an electrical control signal. Latching operation preserves the selected optical
path after the drive signal has been removed. Agiltron unique design offers low
insertion loss covering a very broad spectral band from 400 to 2000 nm with
various fiber core size from 5 to 100 um. The LB series 1xN optical fiber switch is
suitable for multiple channel signal monitoring and signal management. The switch
is bidirectional. The switch is ideal for sensor and spectroscopy applications as well.
The driving circuit is connected
to computer through RS232, or
USB interface for operation.
The LB series 1xN optical fiber
switch is compliant with the
Telcordia 1209 and 1221
reliability standards.
Features
Unmatched Low Cost
Very Broad Spectral Range
High Isolation
High Reliability
Epoxy-Free Optical Path
Performance Specifications
LB 1xN Mini Broadband Switch
Min
400
0.5
0.1
0.03
35/50
[3]
60
12
Latching
1
70
500
-40
85
SMF-28, 50/125MM, 62.5/125MM
105L x 40W x 40H
300
10⁷
0
13
1
Typical
Max
2000
1.5
0.3
0.10
Unit
nm
dB
dB
dB
dB
dB
VDC
W
s
Cycle
o
C
mW
o
C
mm
04/17 / V01 / IF / agiltron/sm_schalter/lb_1xn_mini_broad_bend_switch
Applications
•
•
•
•
•
Signal management
Sensor
Spectroscopy
High Power Laser
Instrumentation
Operation Wavelength
Insertion Loss
[1]
Wavelength Dependent Loss
[2]
Polarization Dependent Loss
Return Loss (APC/UPC)
Cross Talk
Operating Voltage
Power Consumption
Switching Type
Switching Time
Durability
Operating Temperature
Optical Power Handling
[4]
Storage Temperature
Fiber Type
Package Dimension
Note:
[1]. Exclude connectors.
[2]. Within 50nm bandwidth.
[3]. Single mode RL=50dB, Multimode RL=35dB.
[4]. High power version available.
Revision: 2-1-17
1
Germany & Other Countries
Laser Components GmbH
Tel: +49 8142 2864 – 0
Fax: +49 8142 2864 – 11
info@lasercomponents.com
www.lasercomponents.com
United Kingdom
Laser Components (UK) Ltd.
Tel: +44 1245 491 499
Fax: +44 1245 491 801
info@lasercomponents.co.uk
www.lasercomponents.co.uk
Fiber
Optics
LightBend
TM
1xN Mini Broadband
OptoMechanical Fiberoptic Switch
Electrical Driving Requirement
Computer controlling kit with USB and RS232 interfaces and Windows
TM
GUI

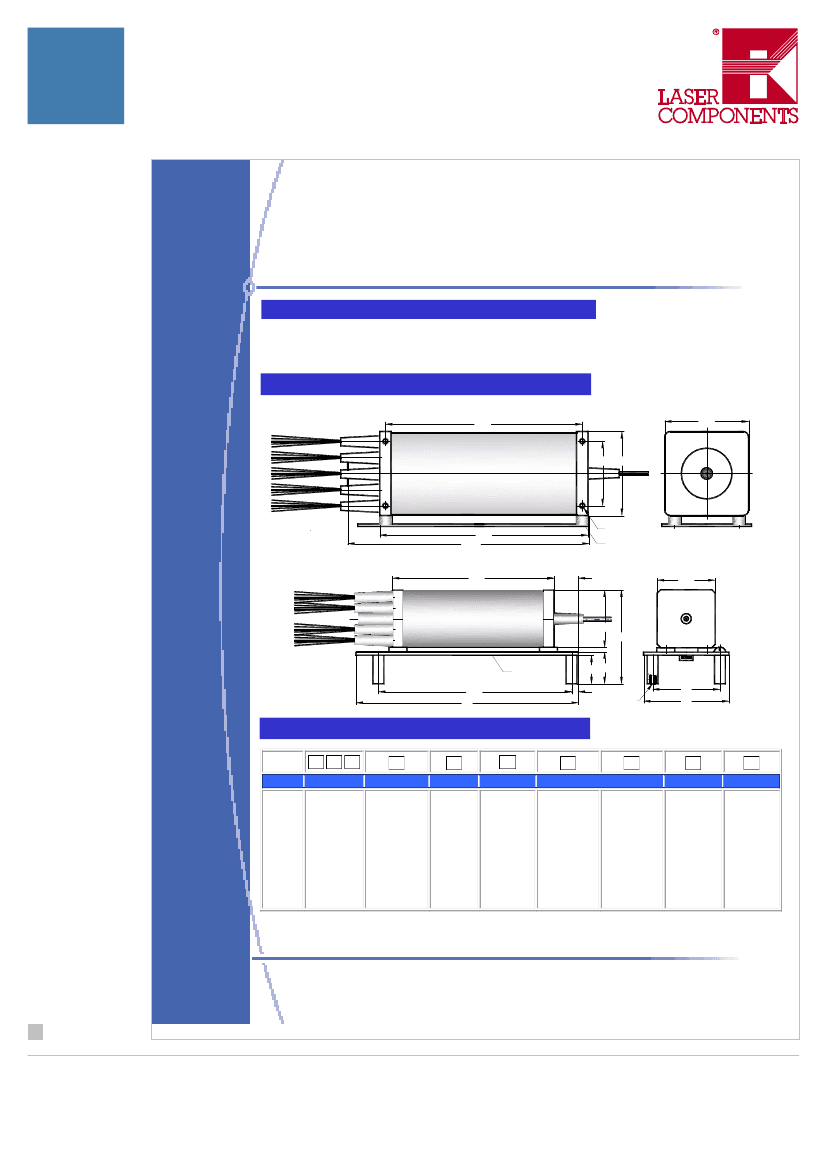

Mechanical Dimensions
(Unit: mm)
Package A
86.0
36.5
28.0
36.5
91.0
105.0
4xM2.5
3.5 DEEP
Driving Circult
Package B
72.0
10.8
25.8
AGILTRON
25.8
42.0
LB Optical Switch
S/N: xxxxxxxxx
Driving Circult
86.0
12.7 14.2
3
USP
30
38
04/17 / V01 / IF / agiltron/sm_schalter/lb_1xn_mini_broad_bend_switch
99
4xM3
3.5 DEEP
Ordering Information
LBMB*-
Type
1x2=002
1x3=003
1x4=004
1x6=006
1x8=008
1x16=016
1x32=032
1x48=048
Special=000
Wavelength
1060=1
C+L=2
1310=3
1410=4
1550=5
650=6
780=7
850=8
1310/1550=9
1260~1620=B
Special=0
Switch
3
Package
Fiber Type
SMF-28=1
Bare fiber=1
50/125MM=5 900um tube=3
62.5/125MM=6 Special=0
100 um=A
200um=B
400um=C
Special=0
Fiber Length Connector
0.25m=1
0.5m=2
1.0m=3
Special=0
None=1
FC/PC=2
FC/APC=3
SC/PC=4
SC/APC=5
ST/PC=6
LC=7
Duplex LC=8
SMA905=9
Special= 0
Latching=1 Package A=2
Special=0
Package B=3
Special=0
*
LBMB: LightBend Mini Broadband
Switch.
Revision: 2-1-17
