BQ-M512RD
●
1.
2.
3.
4.
5.
6.
7.
Features :
0.56 inch (14.20mm) Digit Height.
Continuous uniform segments.
Low power requirement.
Excellent characters appearance.
Solid state reliability.
Categorized for luminous intensity.
Multiplex drive common anode.
●

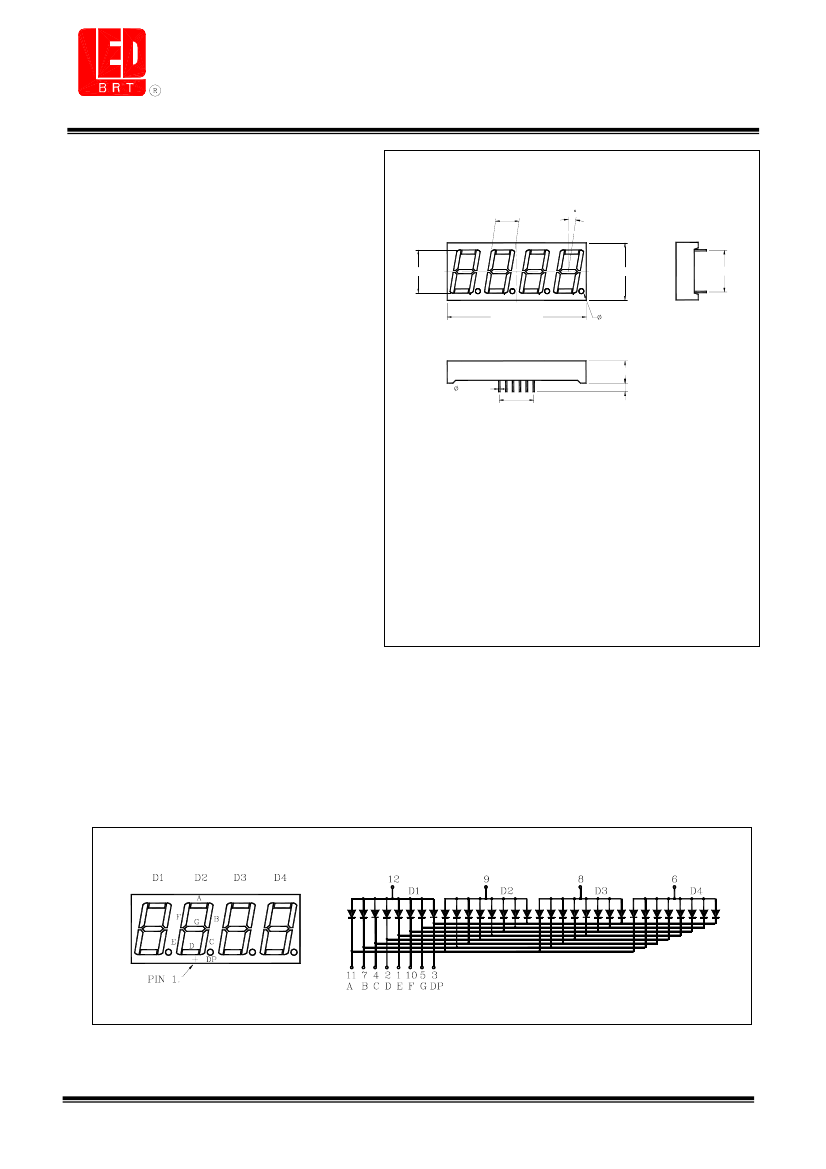

Package Dimensions :
8.10(.319)
8
14.20(.560)
19.0(.748)
15.24(.600)
50.00(1.969)
1.6(.063)
8.00(.315)
0.5(.020)
2.54x5=12.70(.500)
3.00(.118) MIN.
●
1.
2.
3.
4.
Description :
The BQ-M512RD is a 14.20mm (0.56")
high four digit seven segments display.
This product use green chips, which are
made from GaP on GaP substrate.
This product have a black face and
white segments.
This product doesn't contain restriction
substance, comply ROHS standard.
Notes:
1. All dimensions are in millimeters(inches).
2. Tolerance is ±0.25mm(.01")unless otherwise
specified.
3. Specifications are subject to change without
notice.
●
Internal Circuit Diagram :
½鴻工業股½有限公司
http://www.brtled.com
Ver.2.0 Page 1 of 3
BRIGHT LED ELECTRONICS CORP.
SINCE 1981
BQ-M512RD
●
Absolute Maximum Ratings(Ta=25℃)
Parameter
Power Dissipation Per Segment
Forward Current Per Segment
Peak Forward Current Per Segment
Reverse Voltage Per Segment
Operating Temperature
Storage Temperature
Soldering Temperature
(1/16" From Body)
Symbol
Pd
I
F
I
FP
(Duty 1/10, 1KHZ)
V
R
Topr
Tstg
Tsol
Rating
80
30
150
5
-40℃~80℃
-40℃~85℃
260℃ For 5 Seconds
Unit
mW
mA
mA
V
-
-
-
●
Electrical And Optical Characteristics(Ta=25℃)
Parameter
Forward Voltage Per Segment
Luminous Intensity Per Segment
Reverse Current Per Segment
Peak Wave Length
Dominant Wave Length
Symbol Condition
Vf
Iv
I
R
λp
λd
I
F
=10mA
I
F
=10mA
V
R
=5V
I
F
=10mA
I
F
=10mA
Min.
-
-
-
-
569
-
Typ.
2.1
3.5
-
568
-
Max.
2.5
-
100
-
574
-
Unit
V
mcd
µA
nm
nm
nm
Spectral Line Half-width
½鴻工業股½有限公司
http://www.brtled.com
∆λ
I
F
=10mA
30
Ver.2.0 Page 2 of 3
BRIGHT LED ELECTRONICS CORP.
SINCE 1981
BQ-M512RD
●
Typical Electro-Optical Characteristics Curves
(25℃ Ambient Temperature Unless Otherwise Noted)
Fig.1 Relative Radiant Intensity VS. Wavelength
1.0
Relative Radiant Intensity
0.5
0
460
490
520
Wavelength(nm)
550
580
610
640
Relative Luminous Intensity
(@20mA)
1
2
3
4
5
50
Fig.2 Forward Current VS.
Forward Voltage
3.0
2.5
2.0
1.5
1.0
0.5
Fig.3 Relative Luminous
Intensity VS.
Ambient Temperature
Forward Current (mA)
40
30
20
10
0
Forward Voltage (V)
Fig.4 Relative Luminous
Intensity VS.
Forward Current
0
-40
Ambient Temperature Ta( C)
Fig.5 Forward Current
Derating Curve VS.
Ambient Temperature
-20
0
20
40
60
Relative Luminous Intensity
(@20mA)
3.0
50
40
2.0
Forward Current(mA)
1.0
½鴻工業股½有限公司
http://www.brtled.com
30
20
10
0
10
20
30
40
50
20
40
60
80
100 120
0.0
0
Forward Current(mA)
Ambient Temperature Ta( C)
Ver.2.0 Page 3 of 3
