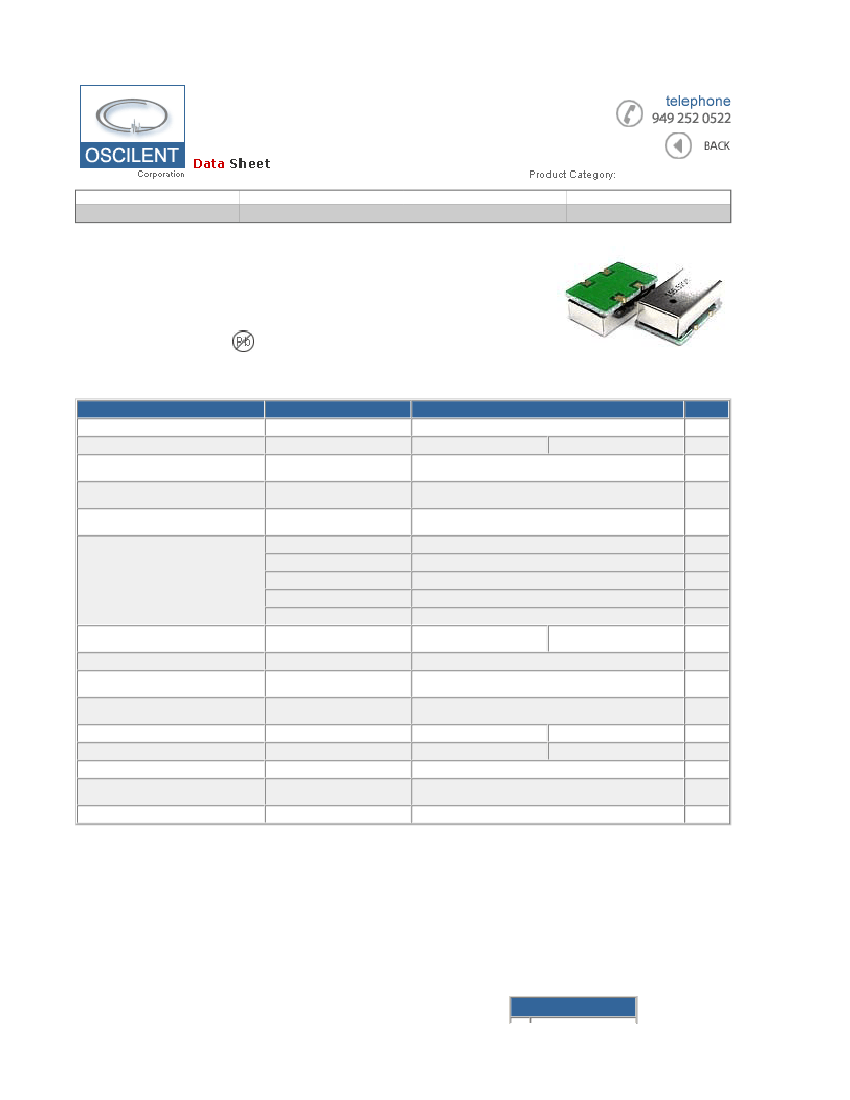

Oscilent Corporation | 470 Series Surface Mount Crystal Oscillator
Page 1 of 2
SMD Oscillators
Series Number
Package
Description
Last Modified
470
FEATURES
4 Pad PCB Base
HCMOS / TTL Output
Jan. 01 2007
- Extended temperature range capabilities
- Tape and Reel
- Tri-State enable / disable
- 5V or 3.3V optional
- RoHs / Lead Free compliant
OPERATING CONDITIONS / ELECTRICAL CHARACTERISTICS
PARAMETERS
Output Logic
Input Voltage (VDD)
Frequency Range (f
O
)
Operating Temperature (T
OPR
)
Storage Temperature (T
STG
)
Frequency Stability
CONDITIONS
-
-
-
-
-
a+b+c+d
(a) Frequency Tolerance
(b) Temperature Stability
(c) Input Voltage Stability
(d) Load Stability
Input Current (I
DD
)
Aging
Rise Time (T
R
) / Fall Time (T
F
)
Rise Time (T
R
) / Fall Time (T
F
)
Output Voltage High "1" VOH
Output Voltage Low "0" VOL
Duty Cycle
Start-Up Time (T
S
)
Output Load
-
@ 25°C
-
-
-
-
-
-
-
2.97 min.
0.33 max.
CHARACTERISTICS
HCMOS / TTL Output
3.3 ±10%
1.000 ~ 225.000
0 ~ +70 (Std.) / -40 ~ 85 (Option)
-55 ~ +125
±10, ±20, ±25, ±50 max.
Inclusive of Overall Stability
Inclusive of Overall Stability (Operating Temperature)
Inclusive of Overall Stability (VDD ±5%)
Inclusive of Overall Stability (RL ±5%)
10 ~ 45 max.
±3 max.
10 max.
10 max.
4.5 min.
0.5 max.
15 ~ 85 max.
5.0 ±10%
UNITS
-
V
MHz
°C
°C
ppm
-
-
-
-
mA
ppm/Y
nS
nS
Vdc
Vdc
%
mS
pF
50 ±10 (Std.) / 50 ±5 (Option)
10 max.
50 max.
PIN CONNECTIONS
Oscilent Corporation | 470 Series Surface Mount Crystal Oscillator
Page 2 of 2
No Connection or
#1 Tri-State Enable
High
#2 Case Ground
#3 Ouput
#4 Vdd
PART NUMBER GUIDE
Series
Number
Frequency
Voltage
Supply
Option
Frequency
Tolerance &
Stability (max.)
Operating Temp. (°
C)
Duty Cycle
Pin 1 Connection
470
Oscilent
SMD
Oscillators
- 8.0 M
Enter your freq.
e.g. 8.0M = 8.00 MHz
See table below
for standard freq.
-3
5 = 5VDC
3 = 3.3VDC
E=
F=
G=
H=
E
±50 ppm
±25 ppm
±20 ppm
±10 ppm
N
Blank* = 0~+70
C = -10~+70
D = -20~+70
N = -40~+85
-T
Blank*= 50±10%
T = -50±5%
TS
NC = No
Connnection
TS = Tri-State
Enable High
NOTE:
- Deviations on all parameters available. Please consult Oscilent for details.
DEFINITIONS:
- Click on the characteristic names above, for definitions of the particular characteristic.
*STANDARDS:
- "Blank" part number selections, indicate standard variables for the particular characteristic.
PACKAGING:
- Add
-TR
for Tape/Reel. Click
here
for tape/reel specifications
