BM-10657ND
●
1.
2.
3.
4.
5.
6.
Features :
1.54 inch (39.1mm) matrix height.
Dot size 3.00mm.
Low power requirement.
Excellent characters appearance.
Solid state reliability.
Multiplex drive , column cathode com.
and row anode com.
●

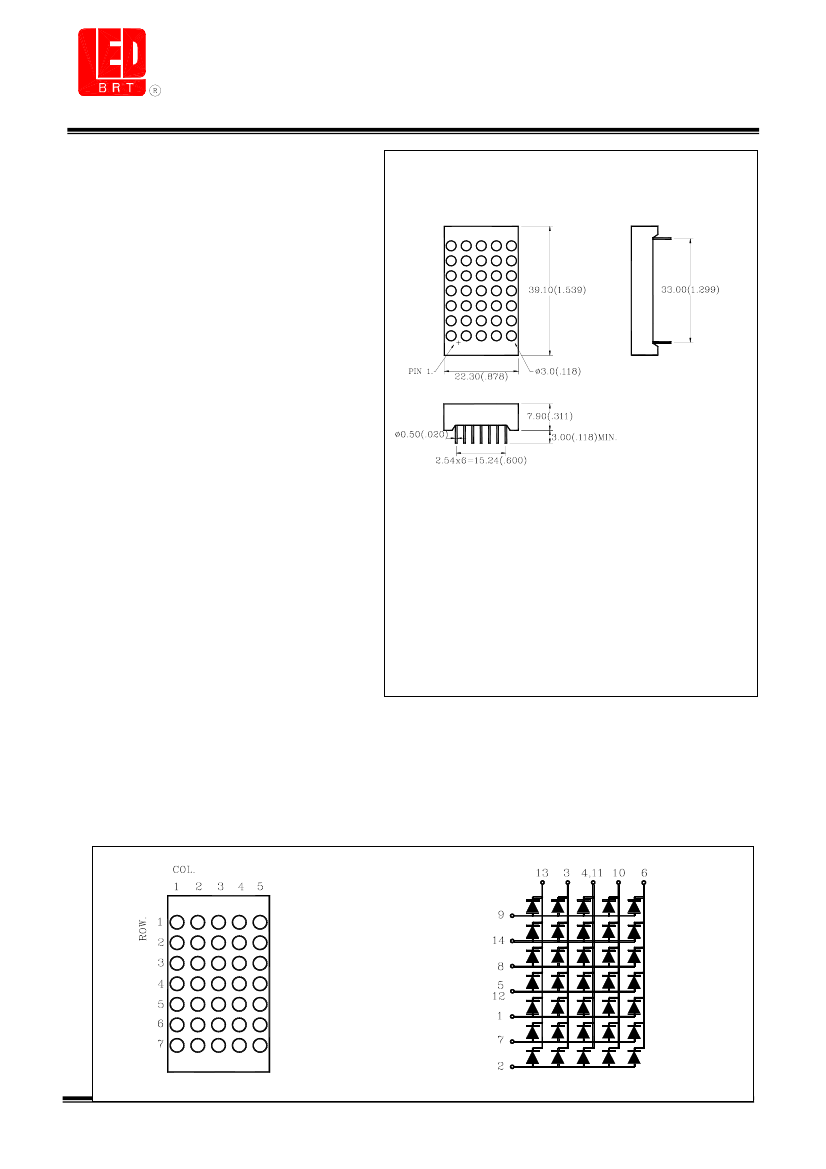

Package Dimensions :
7.
8.
9.
Single color available.
Categorized for luminous intensity.
Stackable vertically and horizontally.
●
1.
2.
Description :
The BM-10657ND is a 39.1mm(1.54")
matrix height 5×7 dot matrix display.
This product use super red chips, which
are made from GaAlAs on GaAs
substrate.
Notes:
1. All dimensions are in millimeters(inches).
2. Tolerance is ±0.25mm(.01")unless otherwise
specified.
3. Specifications are subject to change without
notice.
3.
4.
This product have a black face and
white dots.
This product doesn't contain restriction
substance, comply ROHS standard.
●
Internal Circuit Diagram :
½鴻工業股½有限公司
http://www.brtled.com
Ver.2.0 Page 1 of 3
BRIGHT LED ELECTRONICS CORP.
SINCE 1981
BM-10657ND
●
Absolute Maximum Ratings(Ta=25℃)
Parameter
Power Dissipation Per Dot
Forward Current Per Dot
Peak Forward Current Per Dot
Reverse Voltage Per Dot
Operating Temperature
Storage Temperature
Soldering Temperature
(1/16" From Body)
Symbol
Pd
I
F
I
FP
(Duty 1/10, 1KHZ)
V
R
Topr
Tstg
Tsol
Rating
80
30
150
5
-40℃~80℃
-40℃~85℃
260℃ For 5 Seconds
Unit
mW
mA
mA
V
-
-
-
●
Electrical And Optical Characteristics(Ta=25℃)
Parameter
Forward Voltage Per Dot
Luminous Intensity Per Dot
Reverse Current Per Dot
Peak Wave Length
Dominant Wave Length
Symbol Condition
V
F
Iv
I
R
λp
λd
I
F
=10mA
I
F
=10mA
V
R
=5V
I
F
=10mA
I
F
=10mA
Min.
-
-
-
-
638
-
Typ.
1.7
12.0
-
660
-
Max.
2.5
-
100
-
648
-
Unit
V
mcd
µA
nm
nm
nm
Spectral Line Half-width
½鴻工業股½有限公司
http://www.brtled.com
∆λ
I
F
=10mA
20
Ver.2.0 Page 2 of 3
BRIGHT LED ELECTRONICS CORP.
SINCE 1981
BM-10657ND
●
Typical Electro-Optical Characteristics Curves
(25℃ Ambient Temperature Unless Otherwise Noted)
Fig.1 Relative Radiant Intensity VS. Wavelength
1.0
Relative Radiant Intensity
0.5
0
570
600
630
Wavelength(nm)
660
690
720
750
Relative Luminous Intensity
(@20mA)
1
2
3
4
5
50
Fig.2 Forward Current VS.
Forward Voltage
3.0
2.5
2.0
1.5
1.0
0.5
Fig.3 Relative Luminous
Intensity VS.
Ambient Temperature
Forward Current (mA)
40
30
20
10
0
Forward Voltage (V)
Fig.4 Relative Luminous
Intensity VS.
Forward Current
0
-40
Ambient Temperature Ta( C)
Fig.5 Forward Current
Derating Curve VS.
Ambient Temperature
-20
0
20
40
60
Relative Luminous Intensity
(@20mA)
2.0
50
40
30
1.5
1.0
0.5
0
Forward Current(mA)
½鴻工業股½有限公司
http://www.brtled.com
20
10
0
10
20
30
40
50
Forward Current(mA)
Ambient Temperature Ta( C)
20
40
60
80
100 120
Ver.2.0 Page 3 of 3
