BRIGHT LED ELECTRONICS CORP.
SINCE 1981
BM-20457MD
●
1.
2.
3.
4.
5.
6.
7.
8.
9.
Features :
2.00 inch (53.20mm) matrix height.
Dot size 5.0 mm.
Low power requirement.
Excellent characters appearance.
Solid state reliability.
Multiplex drive , column anode com.
and row cathode com.
Single color available.
Categorized for luminous intensity.
Stackable vertically and horizontally.
●

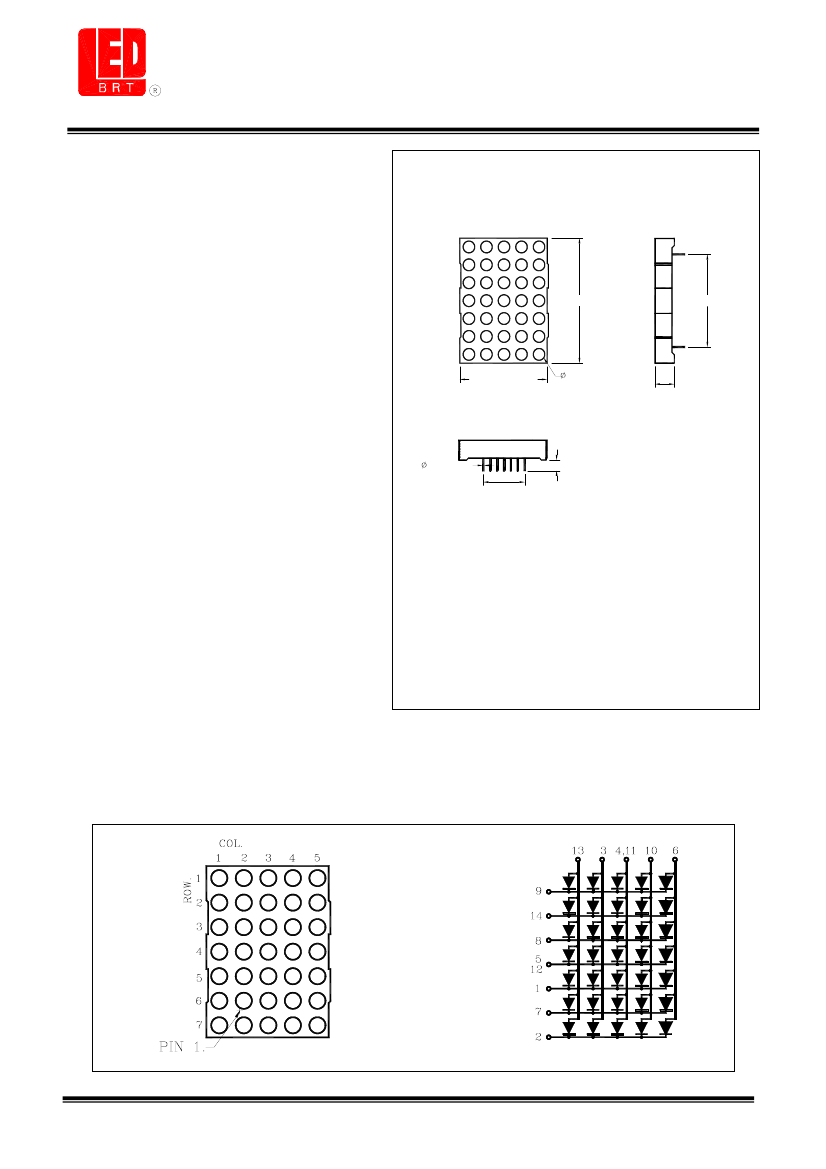

Package Dimensions :
53.10(2.091)
38.10(1.500)
37.8(1.488)
5.0(.197)
8.60(.339)
0.50(.020)
5.9±0.5(.232±020)
●
1.
2.
3.
4.
Description :
The BM-20457MD is a 53.2mm (2.00"
)matrix height5×7 dot matrix display.
This product use hi-eff red chips, which
are made from GaAsP on GaP substrate.
This product have a black face and
white dots.
This product doesn't contain restriction
substance, comply ROHS standard.
2.54x6=15.24(.600)
Notes:
1. All dimensions are in millimeters(inches).
2. Tolerance is ±0.25mm(.01")unless otherwise
specified.
3. Specifications are subject to change without
notice.
●
Internal Circuit Diagram :
½鴻工業股½有限公司
http://www.brtled.com
Ver.2.0 Page 1 of 3
BRIGHT LED ELECTRONICS CORP.
SINCE 1981
BM-20457MD
●
Absolute Maximum Ratings(Ta=25℃)
Parameter
Power Dissipation Per Dot
Forward Current Per Dot
Peak Forward Current Per Dot
Reverse Voltage Per Dot
Operating Temperature
Storage Temperature
Soldering Temperature
(1/16" From Body)
Symbol
Pd
I
F
I
FP
(Duty 1/10, 1KHZ)
V
R
Topr
Tstg
Tsol
Rating
80
30
150
5
-40℃~80℃
-40℃~85℃
260℃ For 5 Seconds
Unit
mW
mA
mA
V
-
-
-
●
Electrical And Optical Characteristics(Ta=25℃)
Parameter
Forward Voltage Per Dot
Luminous Intensity Per Dot
Reverse Current Per Dot
Peak Wave Length
Symbol Condition
V
F
Iv
I
R
I
F
=10mA
I
F
=10mA
V
R
=5V
Min.
-
-
-
Typ.
1.9
12.0
-
Max.
2.5
-
100
-
Unit
V
mcd
µA
nm
nm
nm
Dominant Wave Length
Spectral Line Half-width
½鴻工業股½有限公司
http://www.brtled.com
λp
I
F
=10mA
-
640
-
λd
I
F
=10mA
626
-
∆λ
I
F
=10mA
40
-
636
Ver.2.0 Page 2 of 3
BRIGHT LED ELECTRONICS CORP.
SINCE 1981
BM-20457MD
●
Typical Electro-Optical Characteristics Curves
(25℃ Ambient Temperature Unless Otherwise Noted)
Fig.1 Relative Radiant Intensity VS. Wavelength
1.0
Relative Radiant Intensity
0.5
0
560
590
620
Wavelength(nm)
650
680
710
740
Relative Luminous Intensity
(@20mA)
0
1
2
3
4
5
50
Fig.2 Forward Current VS.
Forward Voltage
3.0
2.5
2.0
1.5
1.0
0.5
Fig.3 Relative Luminous
Intensity VS.
Ambient Temperature
Forward Current (mA)
40
30
20
10
0
Forward Voltage (V)
Fig.4 Relative Luminous
Intensity VS.
Forward Current
0
-40
Ambient Temperature Ta( C)
Fig.5 Forward Current
Derating Curve VS.
Ambient Temperature
-20
0
20
40
60
Relative Luminous Intensity
(@20mA)
3.0
50
40
30
2.0
Forward Current(mA)
1.0
½鴻工業股½有限公司
http://www.brtled.com
20
10
0
0
10
20
30
40
50
0
20
40
60
80
100 120
0.0
Forward Current(mA)
Ambient Temperature Ta( C)
Ver.2.0 Page 3 of 3
